Trailer hand-lifting mobile lighting tower

FEATURES

Equipped with imported power, quality assurance,superior performance.
Equipped with metal halide lamp, large luminousflux and long life.
High performance self-braking hand winch.
Three-section lifting pole, galvanized light pole,anti-drop, corrosion-resistant.
Five windproof support legs for stable support.
Integrated operator panel with rain cover.
9 meters lifting height, adjustable irradiation angle.long irradiation distance.
Large capacity fuel tank, long battery life.

Model		4TN4000

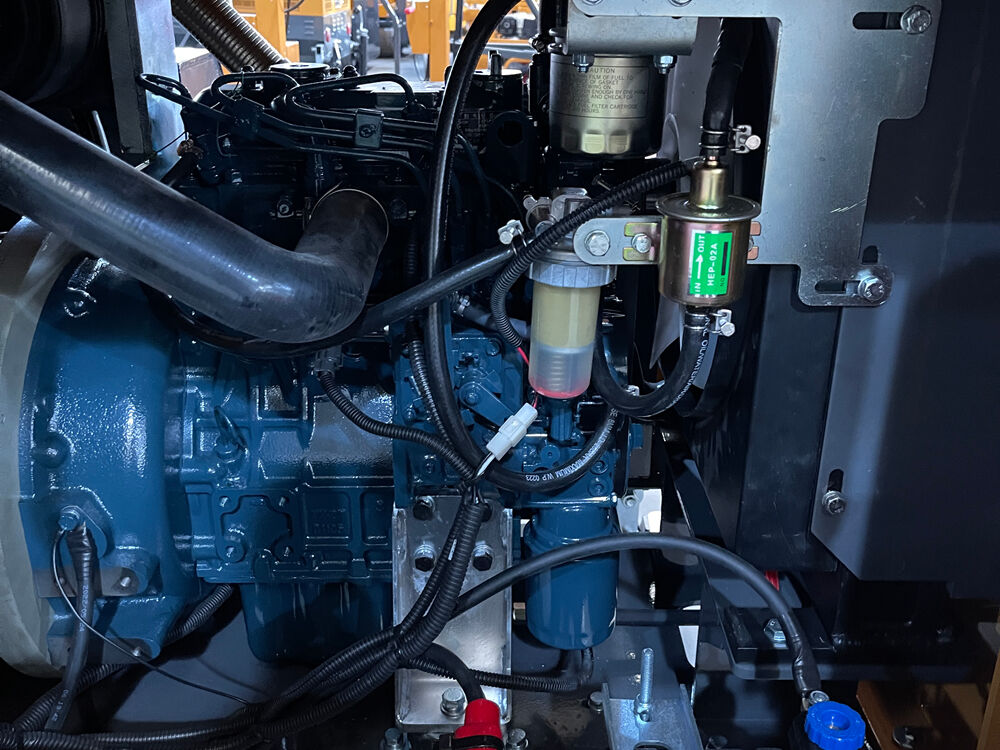

Engine Brang		CHANGCHAI		YANMAR	KUBOTA
Engine Model		3M78	CZ380Q	3TNV76	D1105
Engine Type		Three cylinder,water-cooled,four stroke
Power	kw	11.5	14.3	10.7	12.6
Frequency	rpm	1500
Burning method		E-TVS
Intake method		Naturally aspirated
Emission class		Conventional
Generator standard configuration		XINGNUO
Rated voltage(50/60hz)	V	230/240-120
Motor insulation class		CLASS H
Motor protection class		IP23

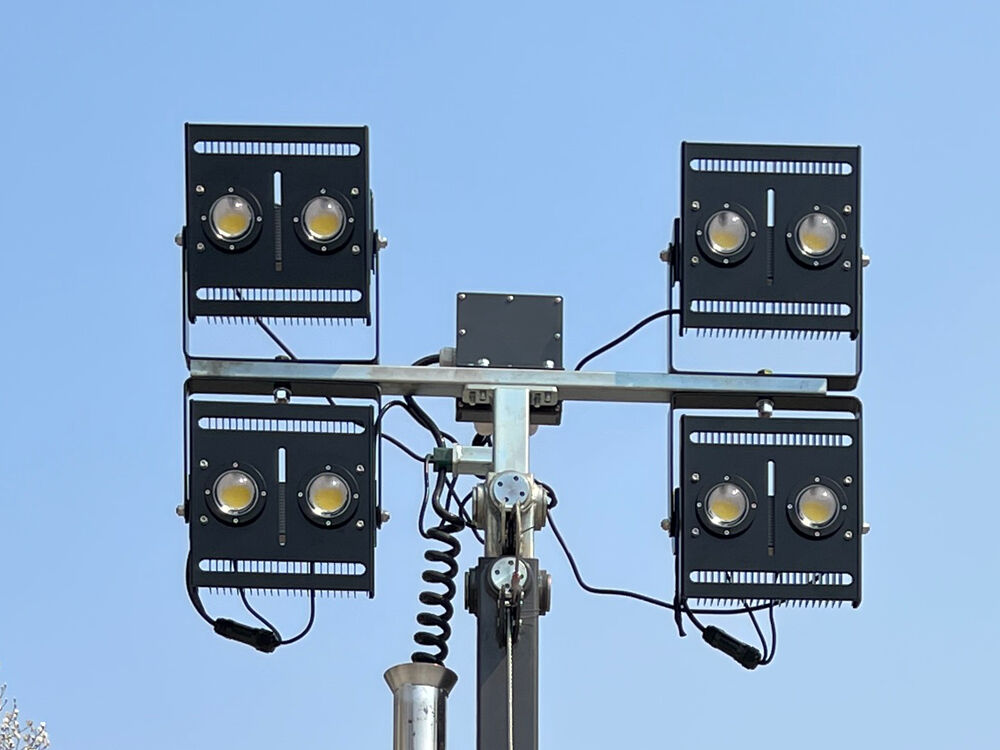

Headlights		Metal Halide Flood Lights		LED lamp
Luminous flux	lm	440000		224000
Power &number of lamps	w	1000x4		400x4
Number of pole sections		3
Fuel tank capacity	L	110
Continuous working time	h	80
Unit start method		Key start
Maximum wind resistance speed	m/s	20
Noise level	dB	72 at 7 meters
Suspension &Brakes		Leaf spring suspension & single axle without brake
Drawbar		Adjustable lever with retractable adjustable guide whee
Maximum lift height	m	9
Tire size	"	14
Maximum traction speed	km/h	100
Length	mm	4400
Width	mm	1670
High	mm	1830
Weight	kg	980
