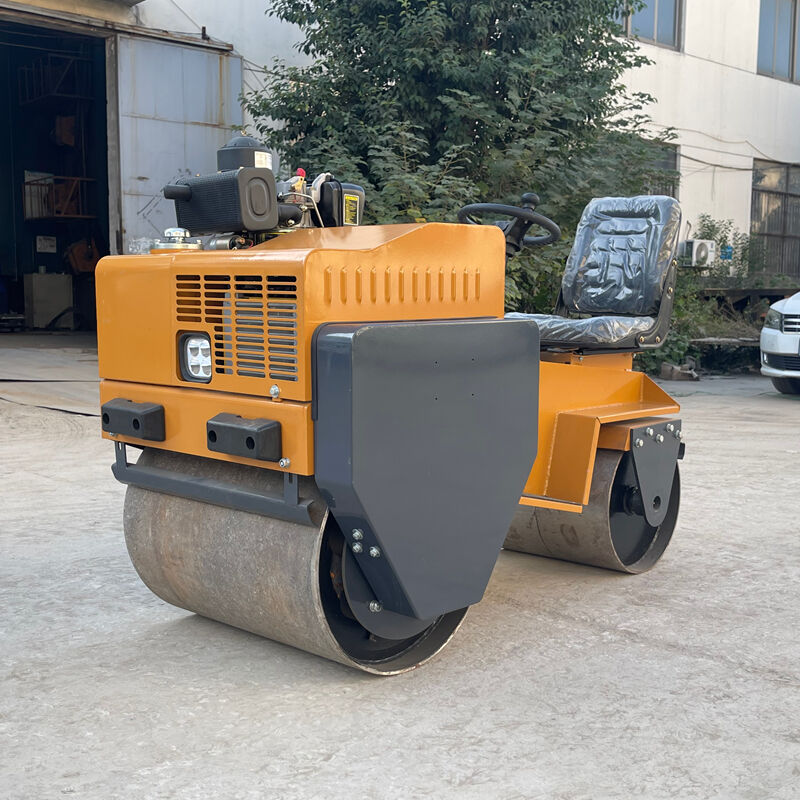

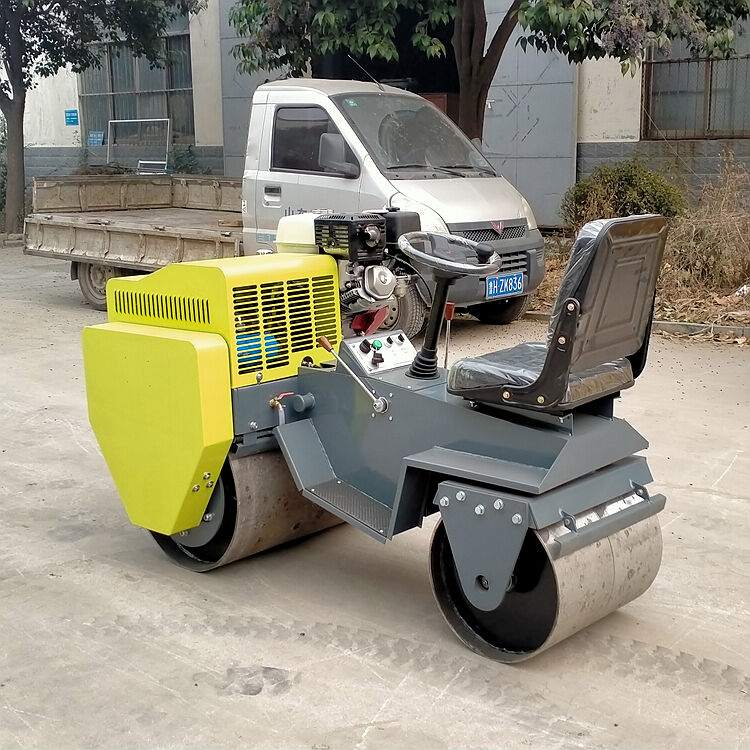

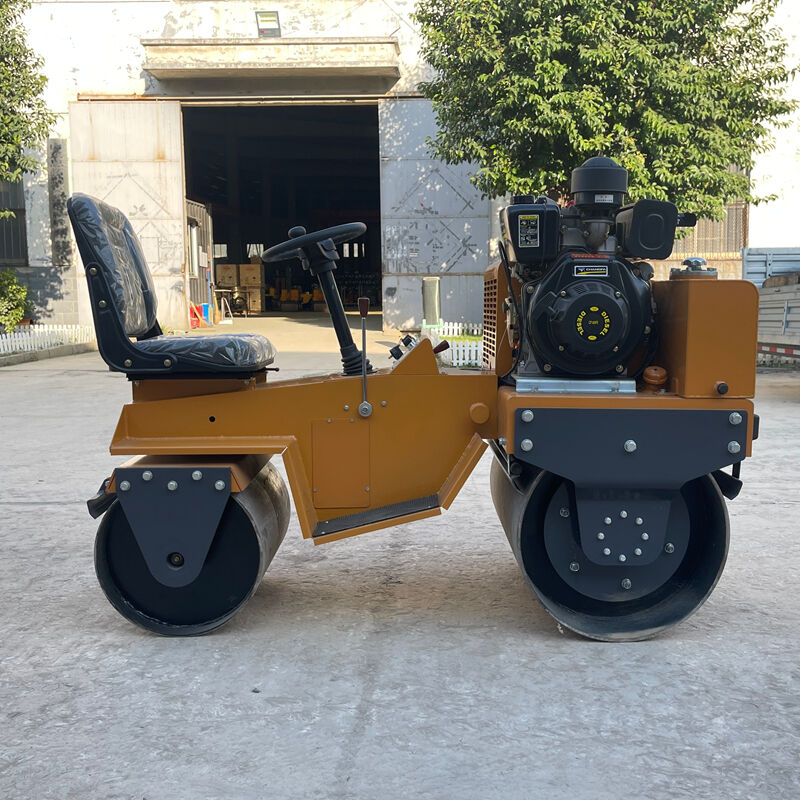

SVH70 | 800kg | Vibratory roller

Ride on double drum vibratory roller

What is a double drum road roller?
The double-steel-wheel roller has two rollers at the front and rear.Some models support synchronous vibration of the two rollers,which results in better compaction efficiency and uniformity.It is the core equipment for compacting asphalt pavement. The vibration mode is flexible and can be switched according to the types of materials such as soil, sand and gravel,and is suitable for each stage of initial compaction,re-compaction and final compaction.

What is the function of a road roller?
The core function of a road roller is to compact road-building materials such as soil, sand, gravel and asphalt mixture through its own weight or vibratory impact force. This improves the compactness, flatness and stability of the compacted materials, reduces their porosity, enhances load-bearing and anti-deformation capacity, and ensures the construction quality and service life of roads, foundations, dykes and other engineering projects.

FEATURES

• Equipped with famous brand power, quality assurance superior performance
• Ergonomic streamlined body design, wide field of vision beautiful appearance
• Imported hydraulic variable pump and quantitative motor,stepless speed change, walking forward and backward

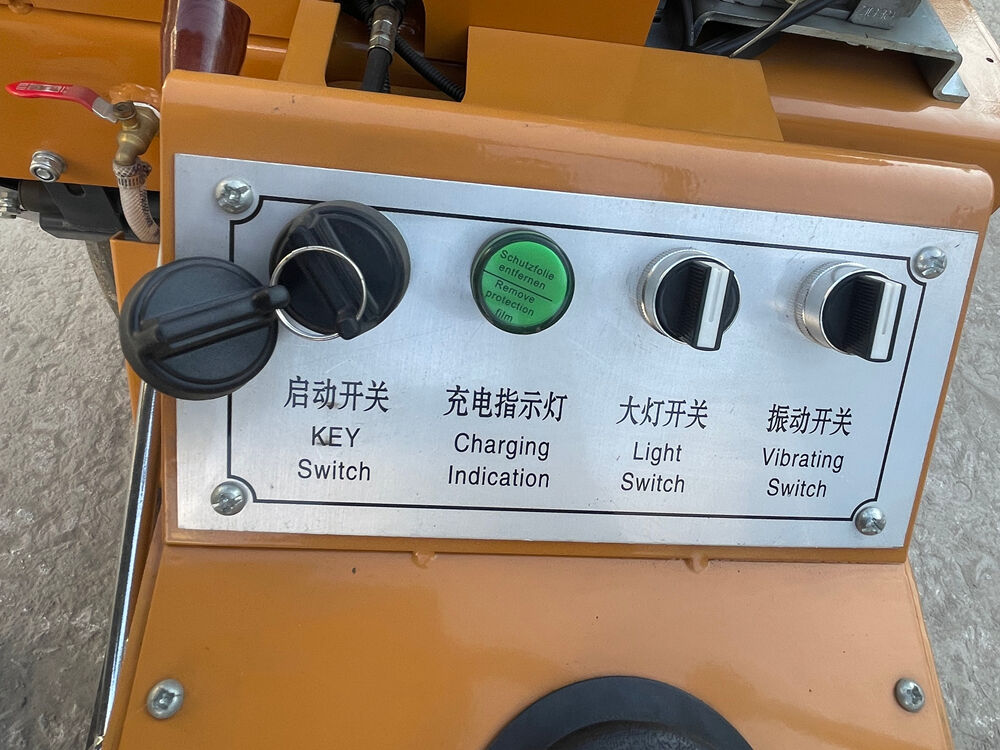

• The control panel is fully functional, one-key operation
• Front-mounted LED headlights can be constructed at night
• Hydraulic oil air cooling fan heater, fast heat dissipation and long battery life
• The product has passed CE certification

Product Parameter

Product details

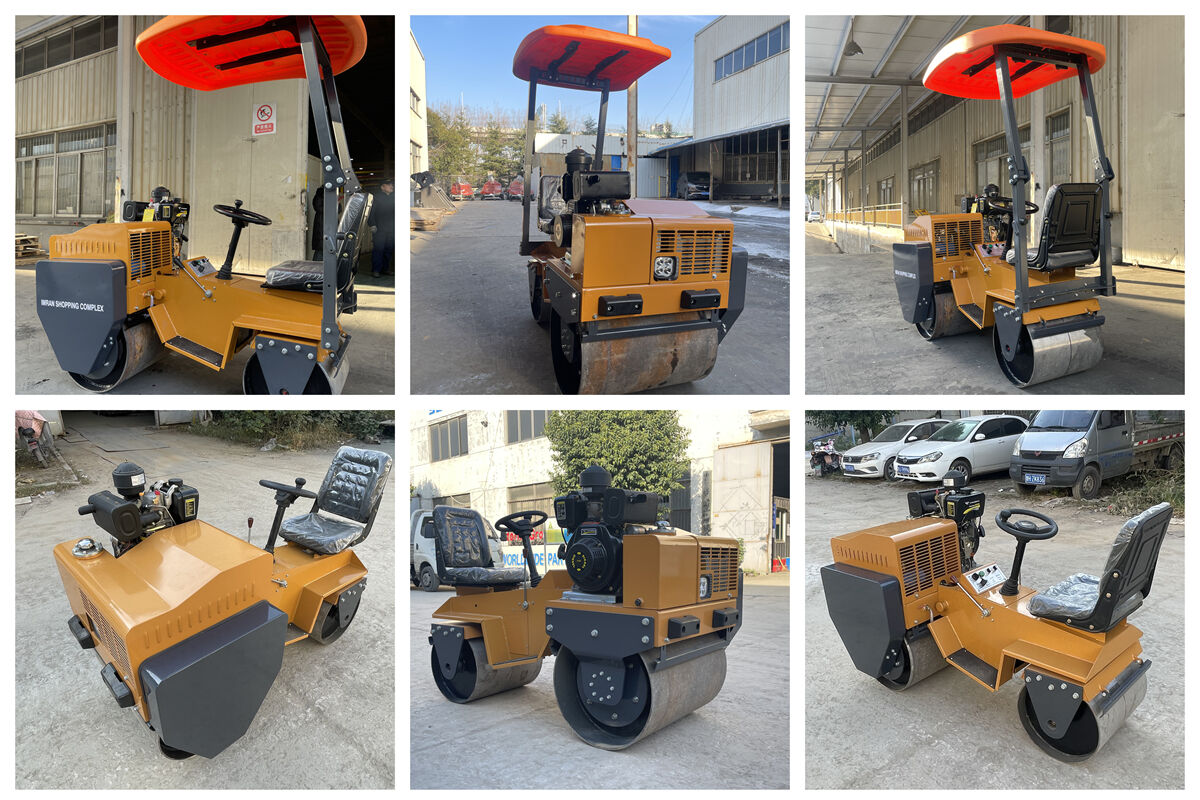

The SVH70/SVH70C compact road roller equipment is equipped with multi-brand compatible power systems, along with a reliable drive control system. This enables it to easily handle various complex working conditions.

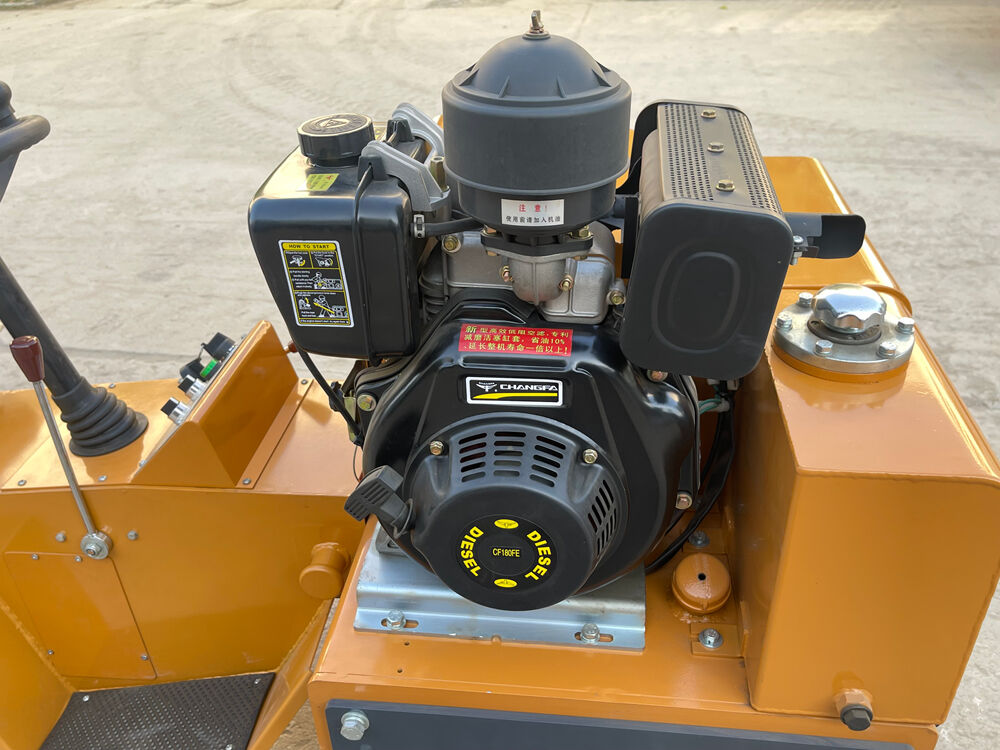

1.Power system
The SVH70 can be equipped with the Honda GX390 gasoline engine, with a fuel capacity of 6.5L, and the output power can reach 9.7kw, with a rotational speed of 3600rpm. It has strong power and is suitable for high-intensity compaction operations.
The SVH70C can be equipped with three types of engines, all of which adopt a four-stroke design:
Loncin 390FD engine: fuel capacity 6.5L, output power 9.7kw, rotational speed 2400rpm
Changfa180F engine: fuel capacity 3.5L, output power 4.8kw, rotational speed 3600rpm, suitable for work conditions with moderate power requirements
Changchai178F air-cooled engine: fuel capacity 2.7L, output power 4.4kw, rotational speed 3600rpm, stable operation and economical fuel consumption.
The equipment is equipped with a 12V electrical system, ensuring smooth startup and stable power supply. The hydraulic oil capacity is 12L and the water tank capacity is 18L. The endurance is sufficient and it can support long-term continuous operation.

2.Drive & Control System
Drive system: Utilizes a bidirectional hydraulic chain drive, ensuring efficient and smooth power transmission.Combined with a 0-6 km/h continuous speed control design,it enables precise adjustment of driving speed according to operational requirements,suitable for different compaction rhythms.

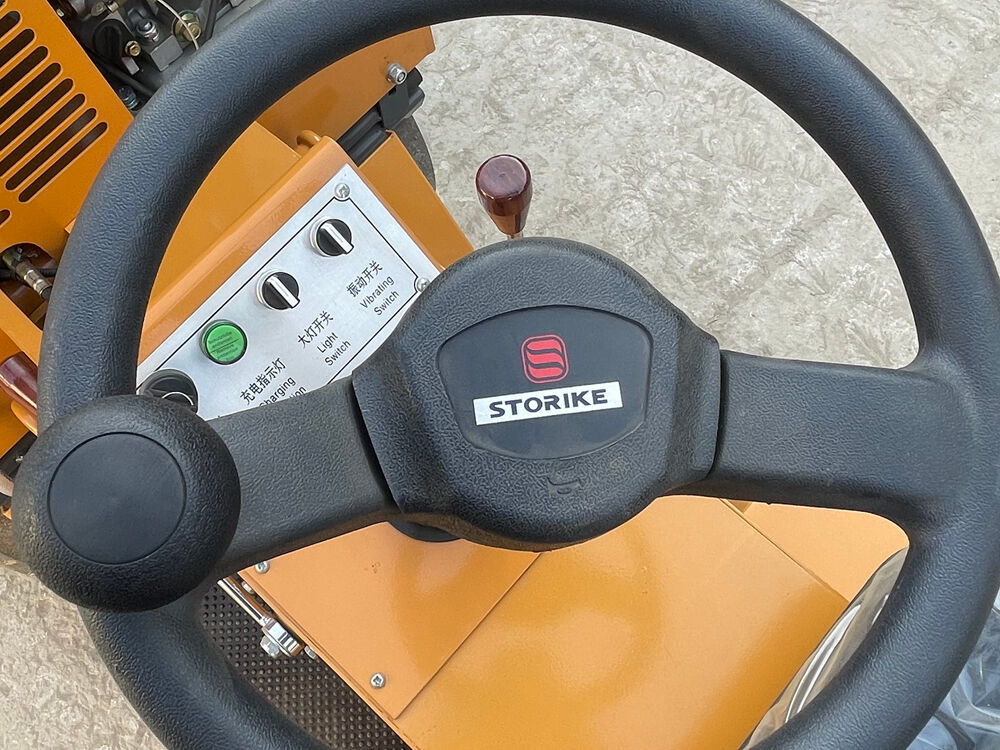

Steering system: Adopting rear-wheel mechanical steering, it is operationally lightweight and flexible. The outer turning radius is only 2300mm,significantly enhancing operational mobility.
Vibration system: Equipped with a front-mounted vibrating drum, it uses a mechanical transmission method.The vibration frequency reaches 70 Hz, the vibration amplitude is 0.5 mm,and the excitation force can reach 30 kN, achieving excellent compaction depth and effect.
Spraying water system: Equipped with a gravity spray system,it can effectively reduce the adhesion between the drum and the material, improving the compaction flatness.



The braking system is equipped with a variable displacement piston pump, which ensures rapid braking response and reliable braking effect, effectively guaranteeing operational safety.

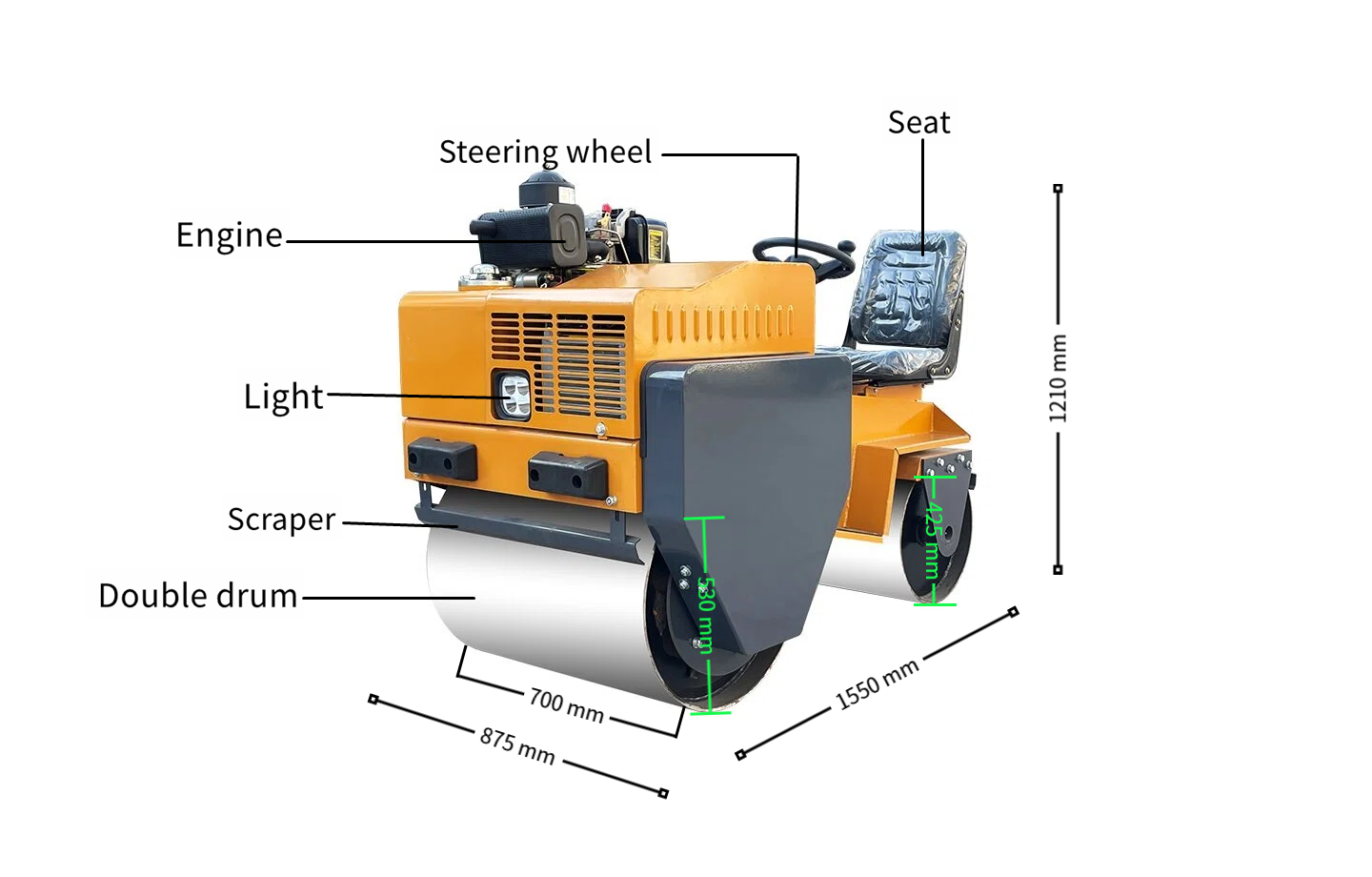

3.Size
Weight: The total operating weight of the machine is 620 kg, and the static line load is 55 N/cm. The weight is moderate, ensuring the compaction effect while avoiding excessive damage to the ground.
Machine size: The overall size of the machine is compact. The working width is 875 mm, the overall length is 1550 mm, the overall height is 1210 mm, and the wheel spacing is 1110 mm. It can easily enter narrow areas for operation.
Roller size: The width of the front roller is 700 mm and the diameter is 530 mm, while the width of the rear roller is 500 mm and the diameter is 425 mm. The roller size is suitable for small-scale engineering needs.
Steep slope capability: The theoretical climbing ability of the equipment is up to 30%, capable of handling gentle slope operation scenarios and maintaining a stable operation state even in complex terrains.

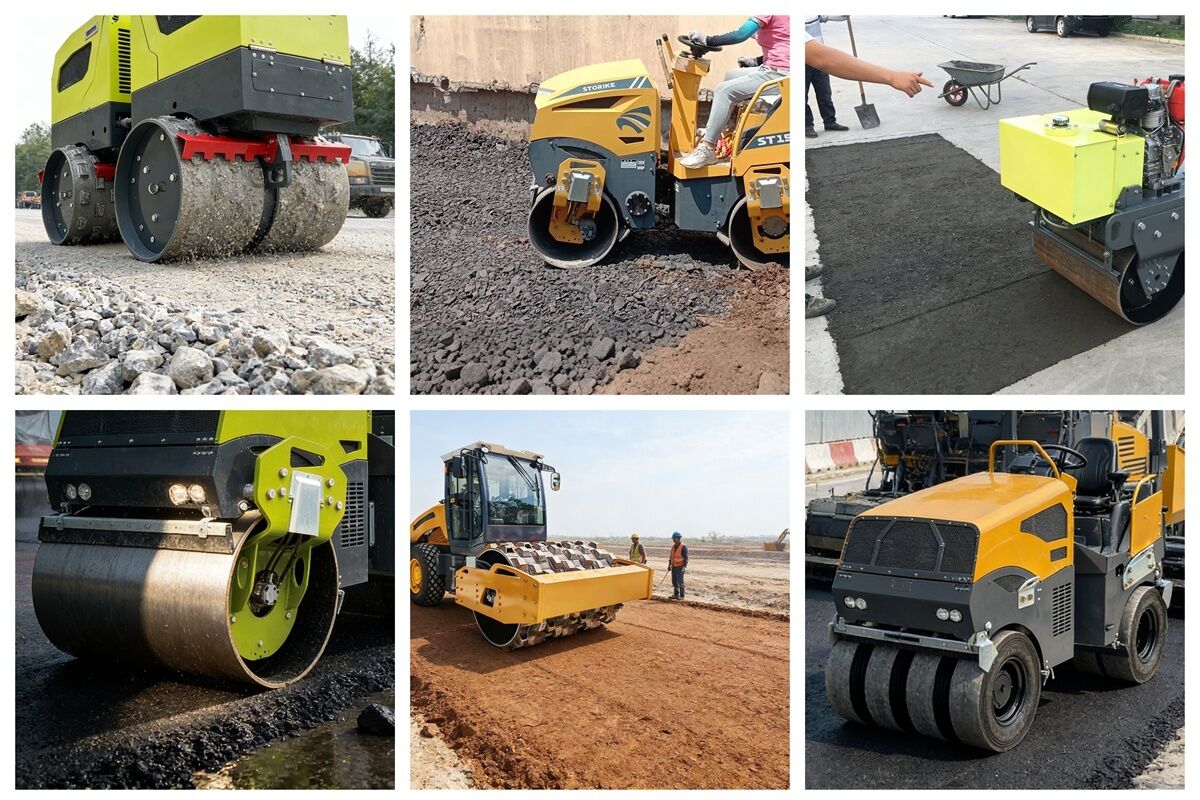

4.Application
The SVH70 roller, with its flexible design and powerful performance, is widely applicable in the following scenarios:
· Municipal engineering: Sidewalk paving,community road maintenance, ground compaction in underground garages,and reinforcement around manhole covers;
· Road construction: Rural road paving, scenic area path maintenance, initial and final compaction of asphalt surfaces,and compaction of non-motorized vehicle lanes;
· Building construction: Compaction of house foundations,courtyard hardening,villa garden renovation,and small site leveling;
· Landscape gardening: Compaction of lawn bases,flower bed construction, road leveling in parks, and laying of landscape paths;
· Other scenarios: Compaction of warehouse floors,factory floor maintenance,emergency repair projects,and compaction of farm and water conservancy access roads,etc.

5.Service
Comprehensive service guarantee: Offer a one-year warranty period and a professional service team available 24/7 online. In case of equipment issues, you can call the service hotline at any time. We will respond immediately and provide you with a full range of services including technical consultation, fault diagnosis, and maintenance guidance, ensuring your construction is worry-free.



6.Packing and shipping
We provide wooden case packaging and strictly protect your machine's body as required, including components and paint finish, to ensure no scratches occur. Custom packaging is also available. We will select an appropriate transportation method for you. If you have a freight forwarder, we can also deliver the machine to your designated freight forwarder's location.



Company Introduction
STORIKE is a professional engineering equipment manufacturer with 15 years of production experience, specializing in products such as light towers, plate compactors, road rollers, excavators and loaders. Our products have obtained CE, EPA and Euro 5 certifications, and can be flexibly customized according to engine types, while providing comprehensive OEM/ODM service support. All products undergo strict quality control. We have participated in the Canton Fair and international construction machinery exhibitions, serving more than 100 countries worldwide. We have 6 dedicated sales and service departments and a 23,000-square-meter modern manufacturing base. We warmly welcome global customers to visit our factory and explore cooperation opportunities.

Suggested use
Here are some safety tips to help you maintain the machine and extend its service life：
Safety Tips & Maintenance Advice：
·  During the operation of the equipment, do not perform cleaning or maintenance work. Rotating parts may cause personal injury.
·  It is strictly prohibited to clean parts with gasoline, other fuels or flammable solvents, especially in enclosed areas; the fumes volatilized from fuels and solvents are prone to accumulation, which may cause explosions.
·  Regularly check the external buttons of the equipment to ensure their normal functions.
·  Provide professional operation and safety training to equipment operators on a regular basis.
·  Do not operate the equipment in areas with flammable substances, fuel or flammable vapors.
·  After the equipment is out of service, turn off the engine immediately, store it in a clean, dry area out of the reach of children, and ensure standardized storage.
·  Do not remove the air filter cover, paper filter element and pre-cleaner while the engine is running.
·  Before hoisting, jacking up the equipment or performing maintenance work, be sure to fasten the articulated steering connection in place with a locking rod.
· We provide instruction manuals and operation suggestions. Please use the machine in accordance with the manual to ensure personal safety and avoid machine damage.
