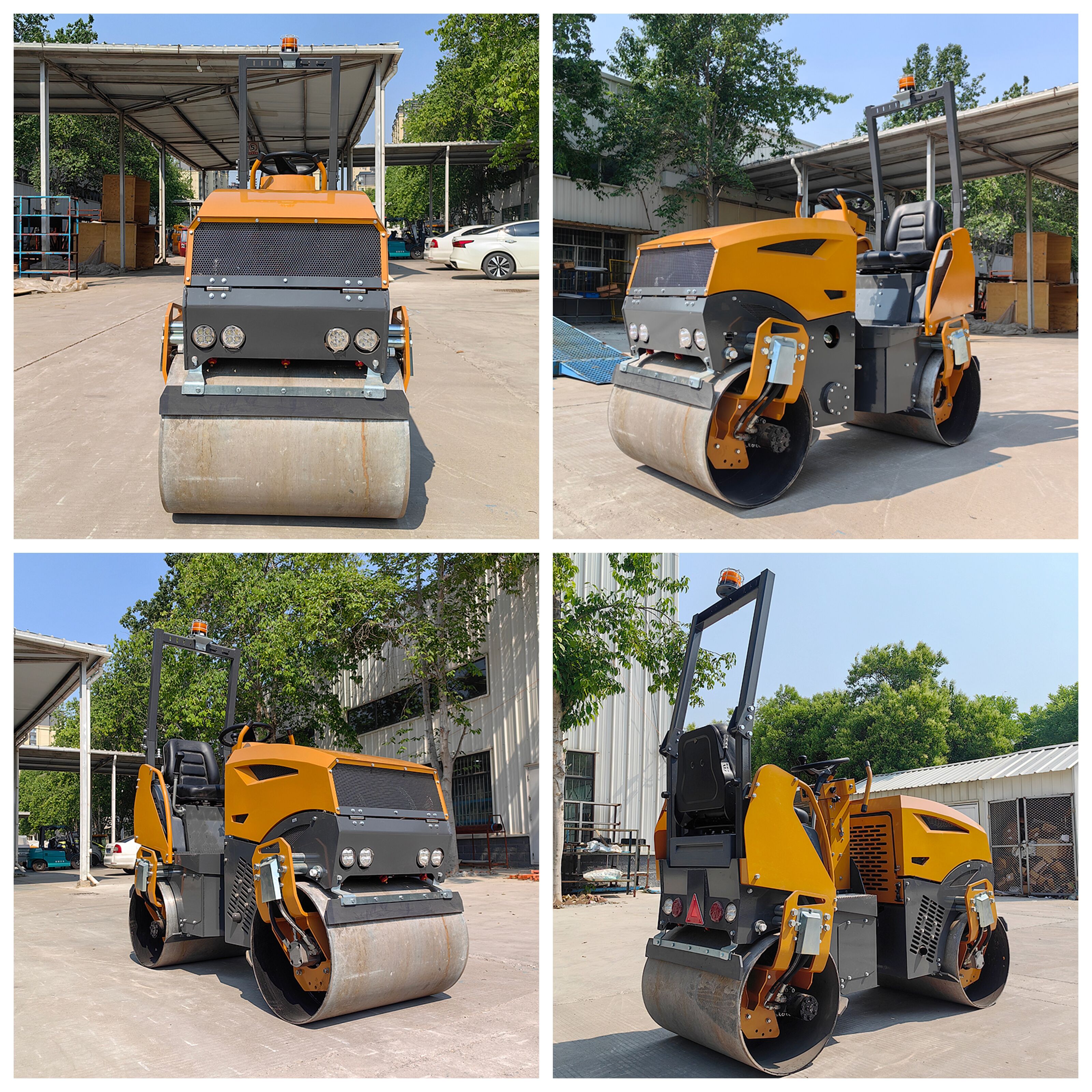

ST1300 | 1.3 ton | Vibratory roller

Articulated double drum vibratory roller

What is a double drum road roller?
The double-steel-wheel roller has two rollers at the front and rear. Some models support synchronous vibration of the two rollers, which results in better compaction efficiency and uniformity. It is the core equipment for compacting asphalt pavement. The vibration mode is flexible and can be switched according to the types of materials such as soil, sand and gravel, and is suitable for each stage of initial compaction, re-compaction and final compaction.

What is the function of a road roller?
The core function of a road roller is to compact road-building materials such as soil, sand, gravel and asphalt mixture through its own weight or vibratory impact force. This improves the compactness, flatness and stability of the compacted materials, reduces their porosity, enhances load-bearing and anti-deformation capacity, and ensures the construction quality and service life of roads, foundations, dykes and other engineering projects.

FEATURES

• Equipped with famous brand power,quality assurance, superior performance.
• Eagle-eye body design, wide field of vision,beautiful and generous.
• Imported hydraulic variable pump and quantitative motor, stepless speed change, walking forward and backward.
• The control panel is fully functional, one-key operation.
• Front and rear lighting & warning lights, can beconstructed at night.
• Ergonomic driving.
• The product has passed the CE certification, and the design of the Red Star Award.
• The steel wheel is equipped with an outline light,which is easy to operate, safe and efficient.

Product Parameter

Product details
The ST1300 small road roller is an efficient equipment specially designed for the compaction work in small and medium-sized projects. It has become an ideal choice in fields such as municipal construction, highways, and architecture.



1.Power system
This equipment is equipped with a KUBOTA Z482 dual-cylinder water-cooled diesel engine, which can effectively prevent overheating during long-term operation and is suitable for continuous construction requirements. The engine has a rated power of 9.8kW at 3600rpm, providing stable power for movement and compaction.
It uses a front-mounted vibrating drum, driven by a hydraulic motor. The vibration frequency is 65Hz, the amplitude is 0.5mm, and the excitation force is 30KN. It can uniformly compact soil,sand,asphalt and other materials, meeting various engineering standards.
It is equipped with a 12V electrical system, which is reliable for starting; it also comes with an intermittent pressure spray system, which can suppress dust and protect the drum, improving the compaction effect.

2.Drive & Control System
The ST1300 road roller adopts a variable piston pump for stepless speed control with two-wheel drive, enabling smooth speed adjustment from 0 to 10 km/h, suitable for various working rhythms. Its hydraulic steering system, combined with the swing articulation design, is easy to operate and requires less effort. The steering is precise, and the outer turning radius is only 3165mm, allowing for flexible operation even in narrow areas or cornered regions.



The working brake system is also based on the variable piston pump design, with rapid and reliable braking response, effectively reducing safety hazards caused by operational inertia.



3.Size
The ST1300 road roller adopts a compact structure design. Its operating weight is 1280kg, and the static linear load reaches 70N/cm. It has sufficient compressive strength and can effectively complete the compaction of deep materials.

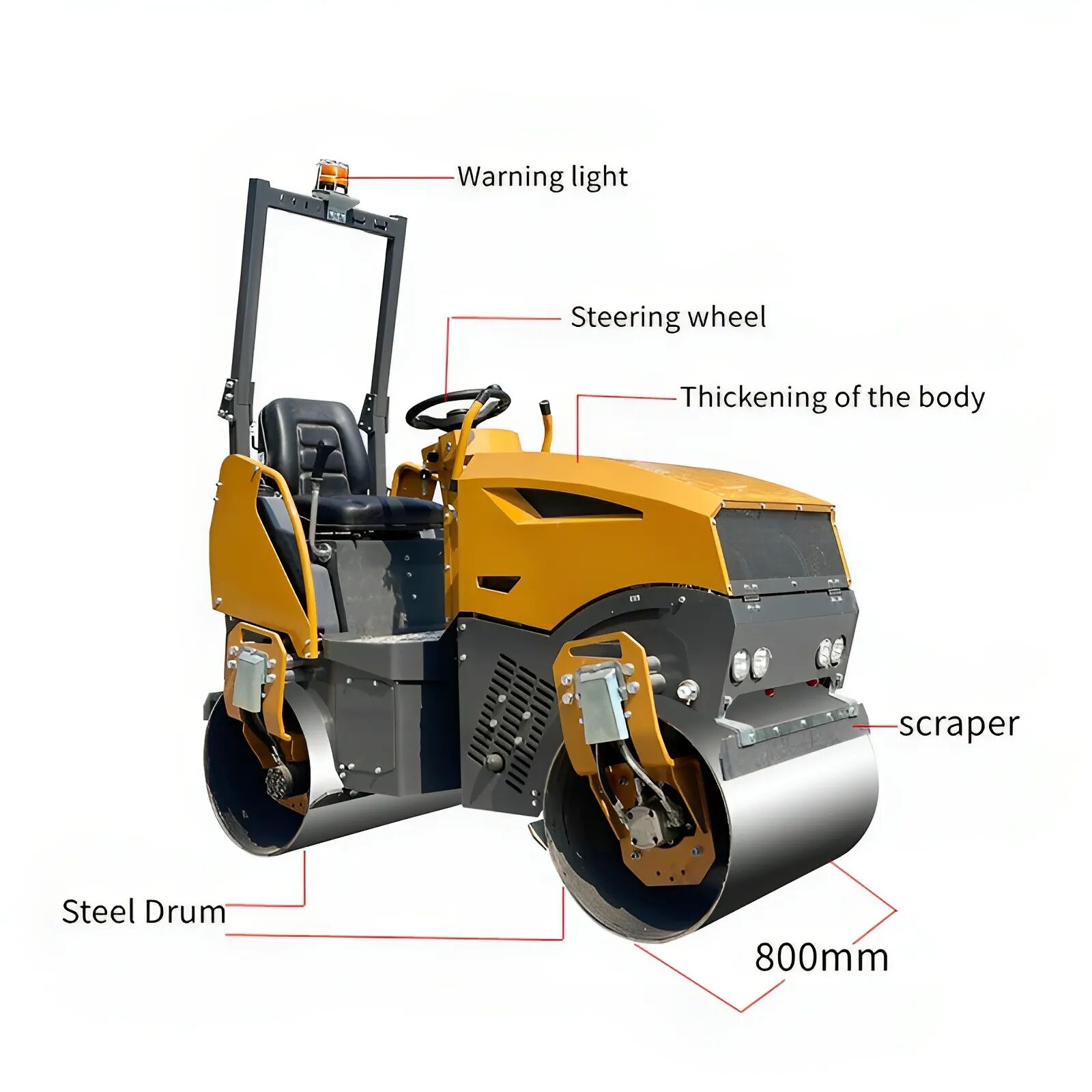

The working width of the equipment is 920mm, the roller width is 800mm, and the diameter is 560mm. The single-time compaction coverage area is large, which helps to improve the operation efficiency. The overall length is between 2030/1990mm, and the height can be adapted to 1460/2130mm. The structure is compact, facilitating transportation and enabling operation in narrow or low spaces.
The hydraulic oil capacity of this equipment is 18L, the fuel capacity is 15L, and the water tank capacity is 70L. It supports long-term continuous operation. The theoretical climbing ability is 30%-35%, which can adapt to complex terrains with slopes.



4.Application
The ST1300 compact roller, with its flexible design and powerful performance, is widely applicable in the following scenarios:
· Municipal engineering: Sidewalk paving,community road maintenance, ground compaction in underground garages,and reinforcement around manhole covers;
· Road construction: Rural road paving, scenic area path maintenance, initial and final compaction of asphalt surfaces,and compaction of non-motorized vehicle lanes;
· Building construction: Compaction of house foundations,courtyard hardening,villa garden renovation,and small site leveling;
· Landscape gardening: Compaction of lawn bases,flower bed construction, road leveling in parks, and laying of landscape paths;
· Other scenarios: Compaction of warehouse floors,factory floor maintenance,emergency repair projects,and compaction of farm and water conservancy access roads,etc.

5.Service
Comprehensive service guarantee: Offer a one-year warranty period and a professional service team available 24/7 online. In case of equipment issues, you can call the service hotline at any time. We will respond immediately and provide you with a full range of services including technical consultation, fault diagnosis, and maintenance guidance, ensuring your construction is worry-free.



6.Packing and shipping
We provide wooden case packaging and strictly protect your machine's body as required, including components and paint finish, to ensure no scratches occur. Custom packaging is also available. We will select an appropriate transportation method for you. If you have a freight forwarder, we can also deliver the machine to your designated freight forwarder's location.



Company Introduction
STORIKE is a professional engineering equipment manufacturer with 15 years of production experience, specializing in products such as light towers, plate compactors, road rollers, excavators and loaders. Our products have obtained CE, EPA and Euro 5 certifications, and can be flexibly customized according to engine types, while providing comprehensive OEM/ODM service support. All products undergo strict quality control. We have participated in the Canton Fair and international construction machinery exhibitions, serving more than 100 countries worldwide. We have 6 dedicated sales and service departments and a 23,000-square-meter modern manufacturing base. We warmly welcome global customers to visit our factory and explore cooperation opportunities.

Suggested use
Here are some safety tips to help you maintain the machine and extend its service life：
Safety Tips & Maintenance Advice：
·  During the operation of the equipment, do not perform cleaning or maintenance work. Rotating parts may cause personal injury.
·  It is strictly prohibited to clean parts with gasoline, other fuels or flammable solvents, especially in enclosed areas; the fumes volatilized from fuels and solvents are prone to accumulation, which may cause explosions.
·  Regularly check the external buttons of the equipment to ensure their normal functions.
·  Provide professional operation and safety training to equipment operators on a regular basis.
·  Do not operate the equipment in areas with flammable substances, fuel or flammable vapors.
·  After the equipment is out of service, turn off the engine immediately, store it in a clean, dry area out of the reach of children, and ensure standardized storage.
·  Do not remove the air filter cover, paper filter element and pre-cleaner while the engine is running.
·  Before hoisting, jacking up the equipment or performing maintenance work, be sure to fasten the articulated steering connection in place with a locking rod.
· We provide instruction manuals and operation suggestions. Please use the machine in accordance with the manual to ensure personal safety and avoid machine damage.
