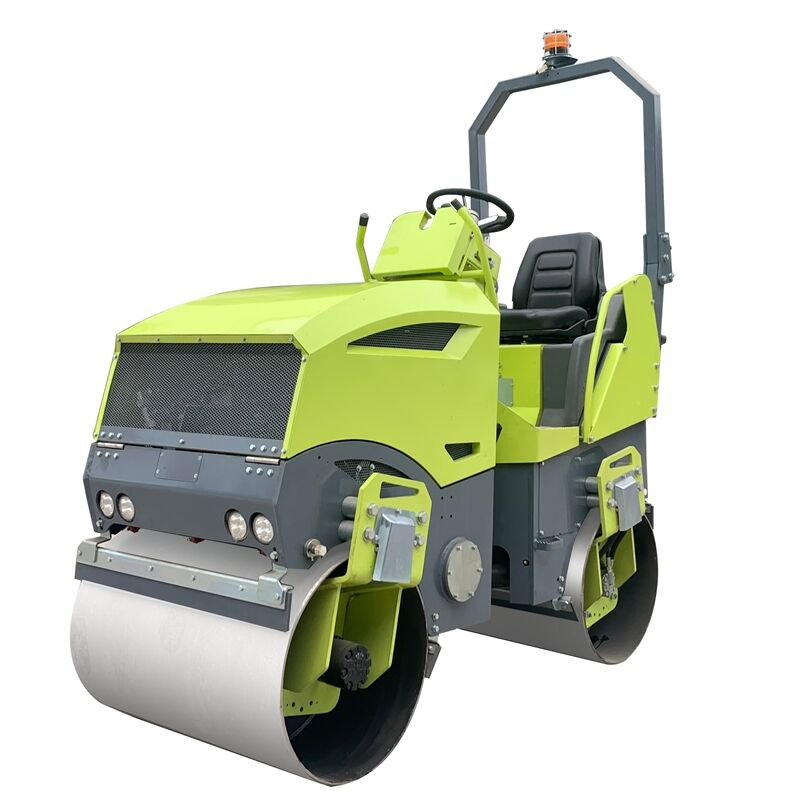

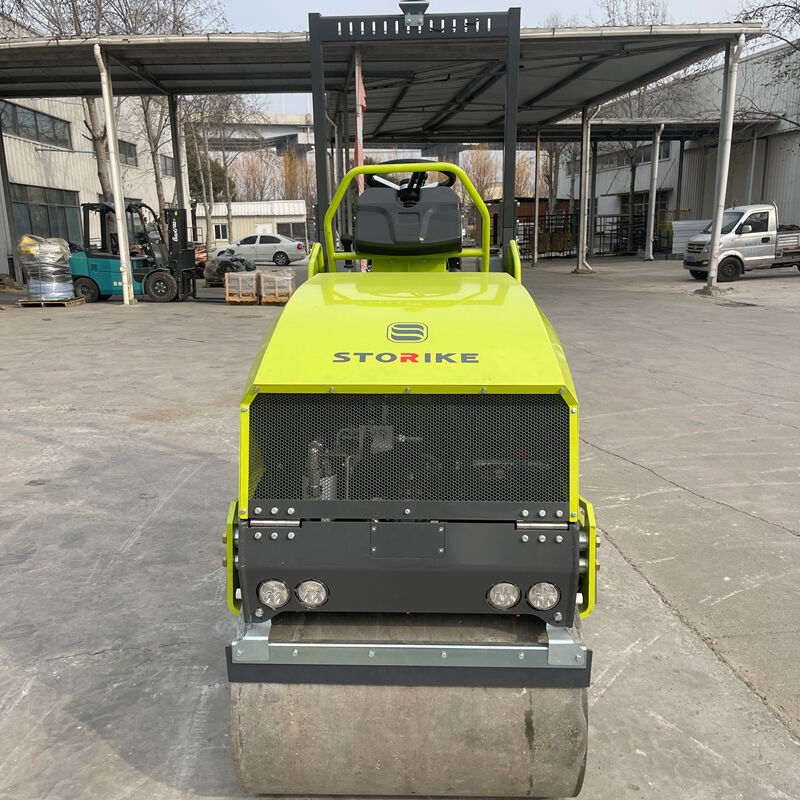

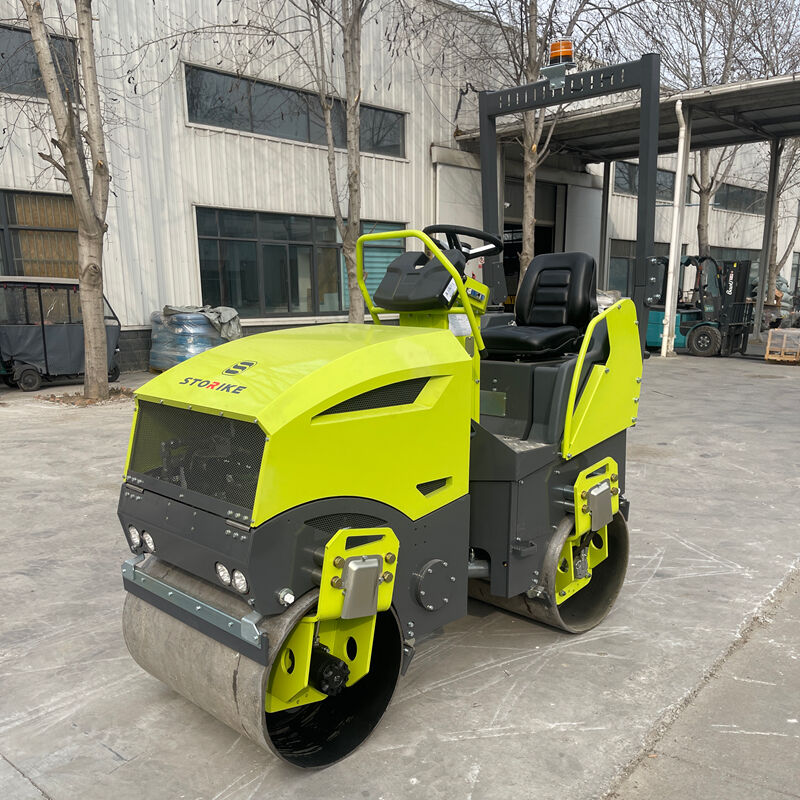

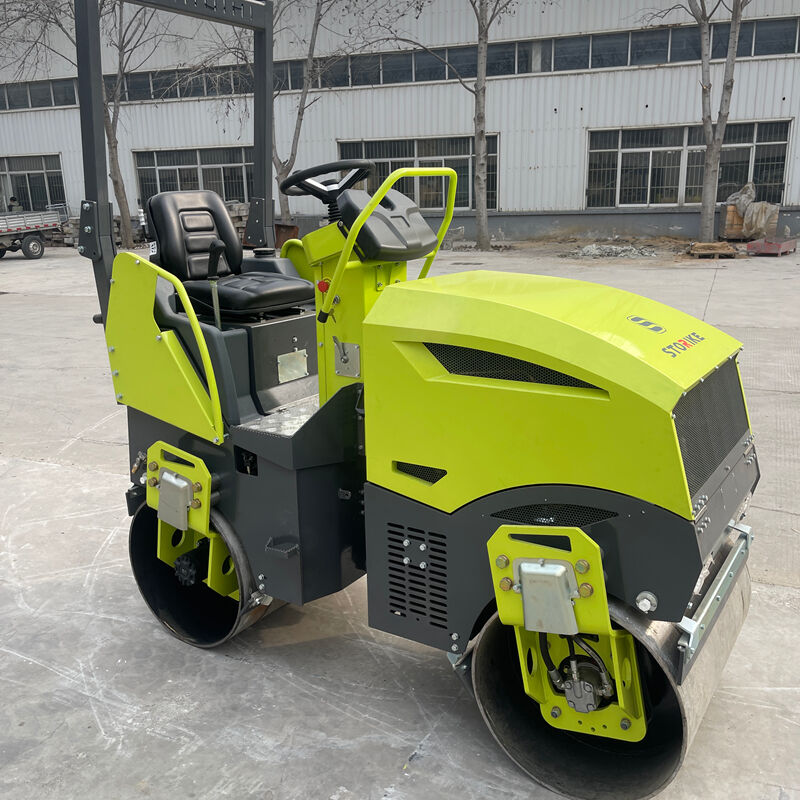

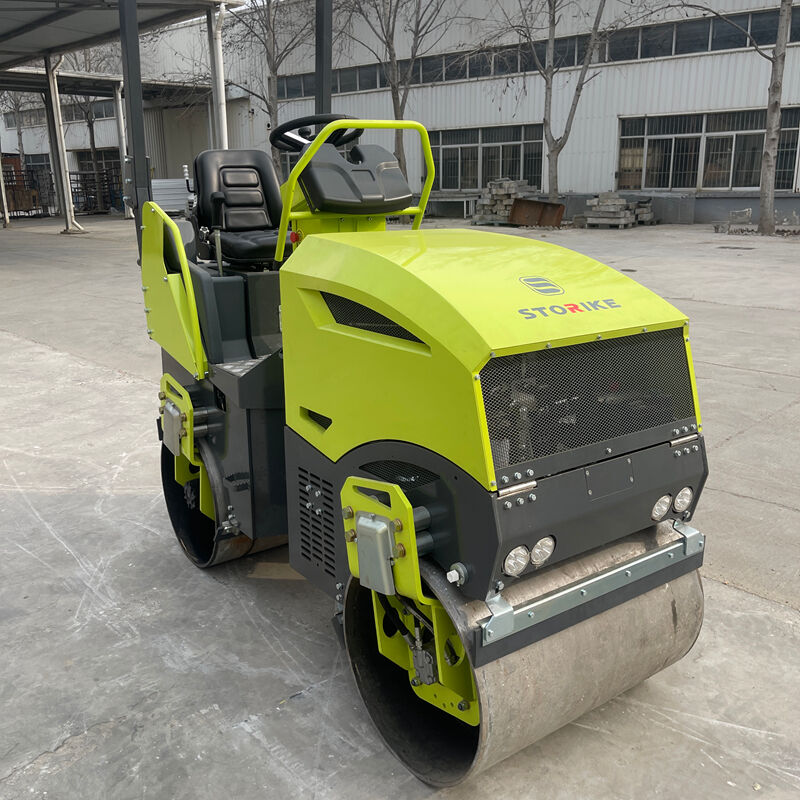

ST2000 | 2 ton | Vibratory roller

Articulated double drum vibratory roller

What is a double drum road roller?
The double-steel-wheel roller has two rollers at the front and rear. Some models support synchronous vibration of the two rollers, which results in better compaction efficiency and uniformity. It is the core equipment for compacting asphalt pavement. The vibration mode is flexible and can be switched according to the types of materials such as soil, sand and gravel, and is suitable for each stage of initial compaction, re-compaction and final compaction.

What is the function of a road roller?
The core function of a road roller is to compact road-building materials such as soil, sand, gravel and asphalt mixture through its own weight or vibratory impact force. This improves the compactness, flatness and stability of the compacted materials, reduces their porosity, enhances load-bearing and anti-deformation capacity, and ensures the construction quality and service life of roads, foundations, dykes and other engineering projects.

FEATURES

• Equipped with famous brand power, quality assurance superior performance.
• Eagle-eye body design, wide field of vision, beautiful and generous.
• lmported hydraulic variable pump and quantitative motor, stepless speed change, walking forward and backward.
• LED Display Dashboard.

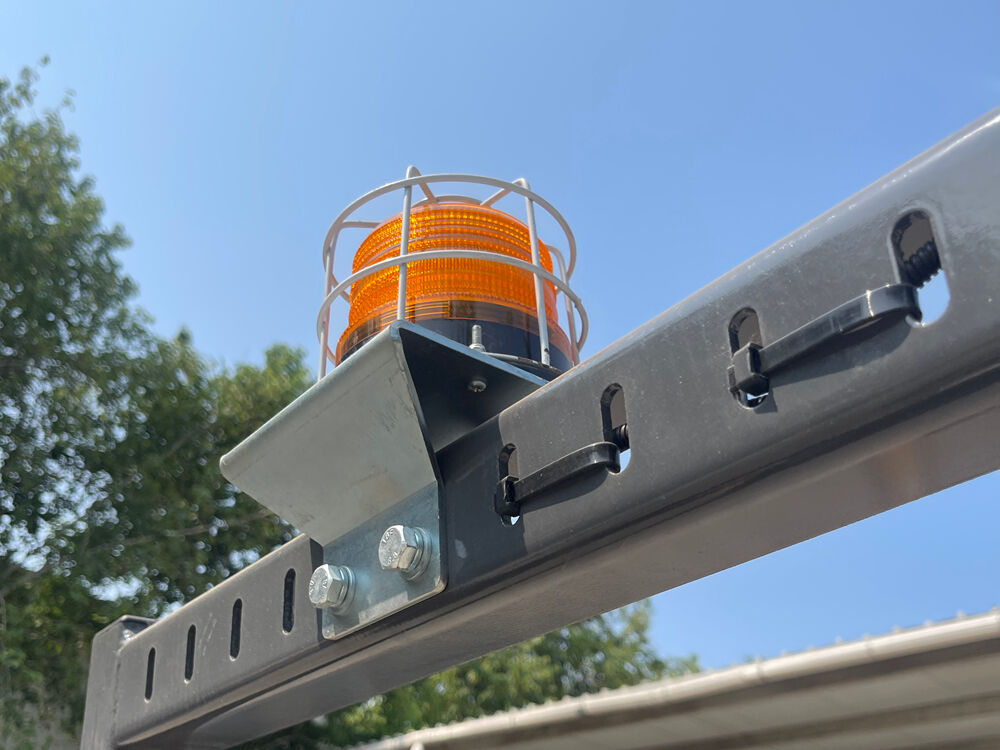

• Front and rear lighting & warning lights, can be constructed at night.
• Ergonomic driving.
• The product has passed the CE certification, and the design of the Red Star Award.

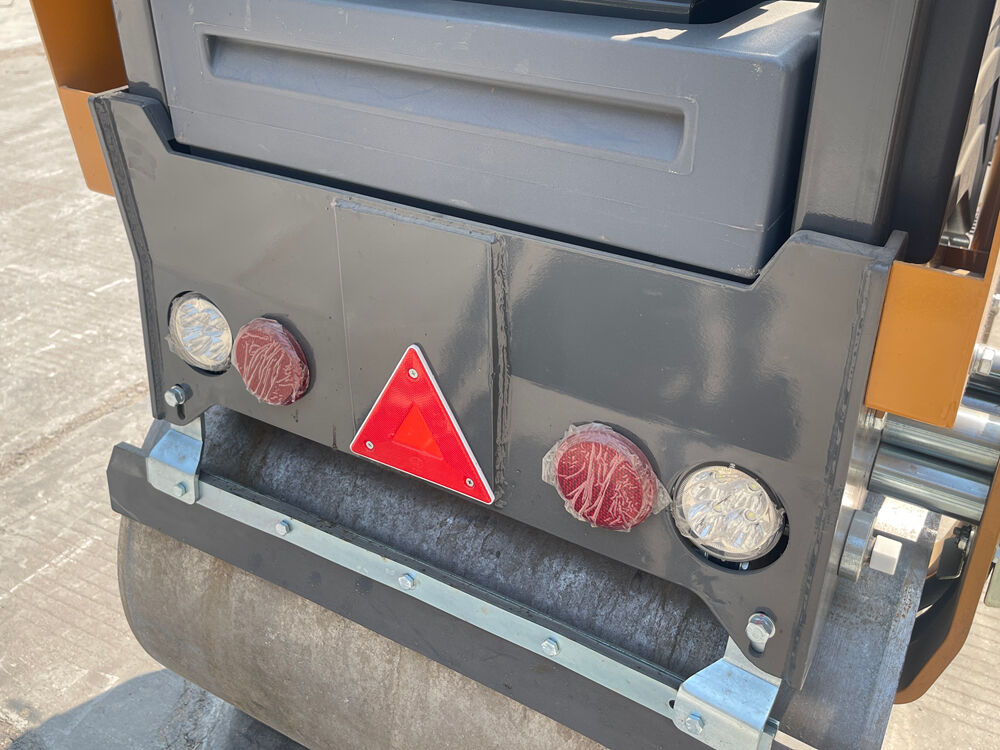

• The steel wheel is equipped with an outline light, which is easy to operate, safe and efficient.

Product Parameter

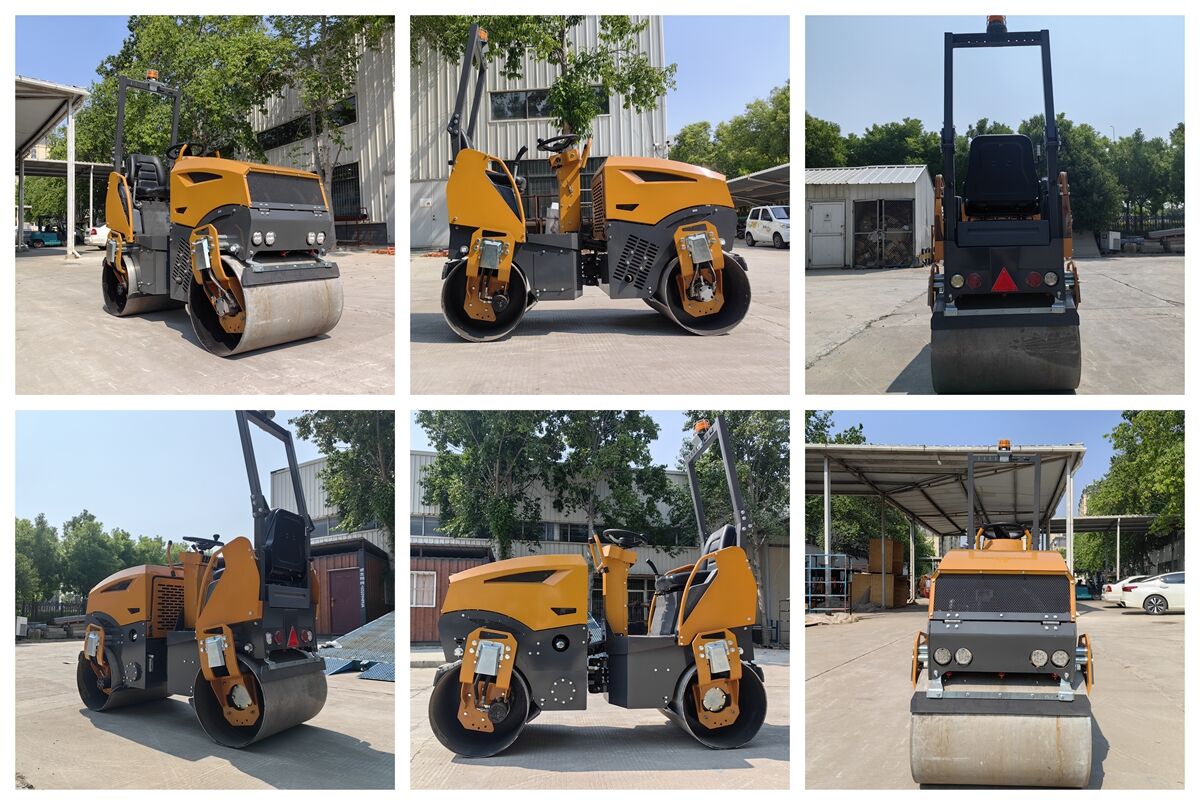

Product details
The ST2000 compact road roller, with its precise control, powerful engine and flexible adaptability, has become the ideal choice for compaction operations in municipal, road and construction fields.



1.Power system
In terms of power configuration, the ST2000 offers three 3-cylinder 4-stroke water-cooled diesel engines from well-known brands for selection:
YANMAR 3TNW80: The speed of this engine is 3000 rpm, and the output power is 17.8 kW, which can meet different operation intensity requirements.
CHANGCHAI 3M78: The maximum power is 19 kW, with a speed of 3200 rpm, and it has strong power performance.
KUBOTA D1105: The speed is 3000 rpm, and the output power is 18.2 kW, with stable power.
The equipment is equipped with a 12V electrical system, which starts smoothly and has strong stability. It is also accompanied by a 36L large-capacity fuel tank, a 45L hydraulic oil tank, and a 160L water tank. The water tank is equipped with an intermittent pressure spray system, which reduces the frequency of refilling and improves the operational efficiency.

2.Drive & Control System
The equipment adopts a variable plunger pump for stepless speed regulation with two-wheel drive. The motor is designed in a parallel/series configuration to achieve stepless speed adjustment from 0 to 10 km/h. It can precisely adjust the working speed according to the compaction requirements.
The steering system uses a hydraulic cylinder articulated steering and swing articulated structure, which is flexible and stable. The turning radius on the outside is only 2955mm/4005mm, enabling flexible operation even in narrow spaces or complex working conditions.
The braking system relies on the variable plunger pump to achieve efficient braking. It responds quickly and, in combination with a theoretical climbing ability of 30%/35%, can easily handle slope operation scenarios.



The vibration system is driven by a hydraulic motor and supports two modes: single-wheel vibration and double-wheel vibration. The vibration frequency is fixed at 65 Hz, the amplitude is 0.5 mm, the single-wheel excitation force is 35 kN, and the double-wheel excitation force can reach 70 kN (2 * 35 kN). The compaction effect is outstanding, and it can quickly compact soil, sand, and other basic materials.

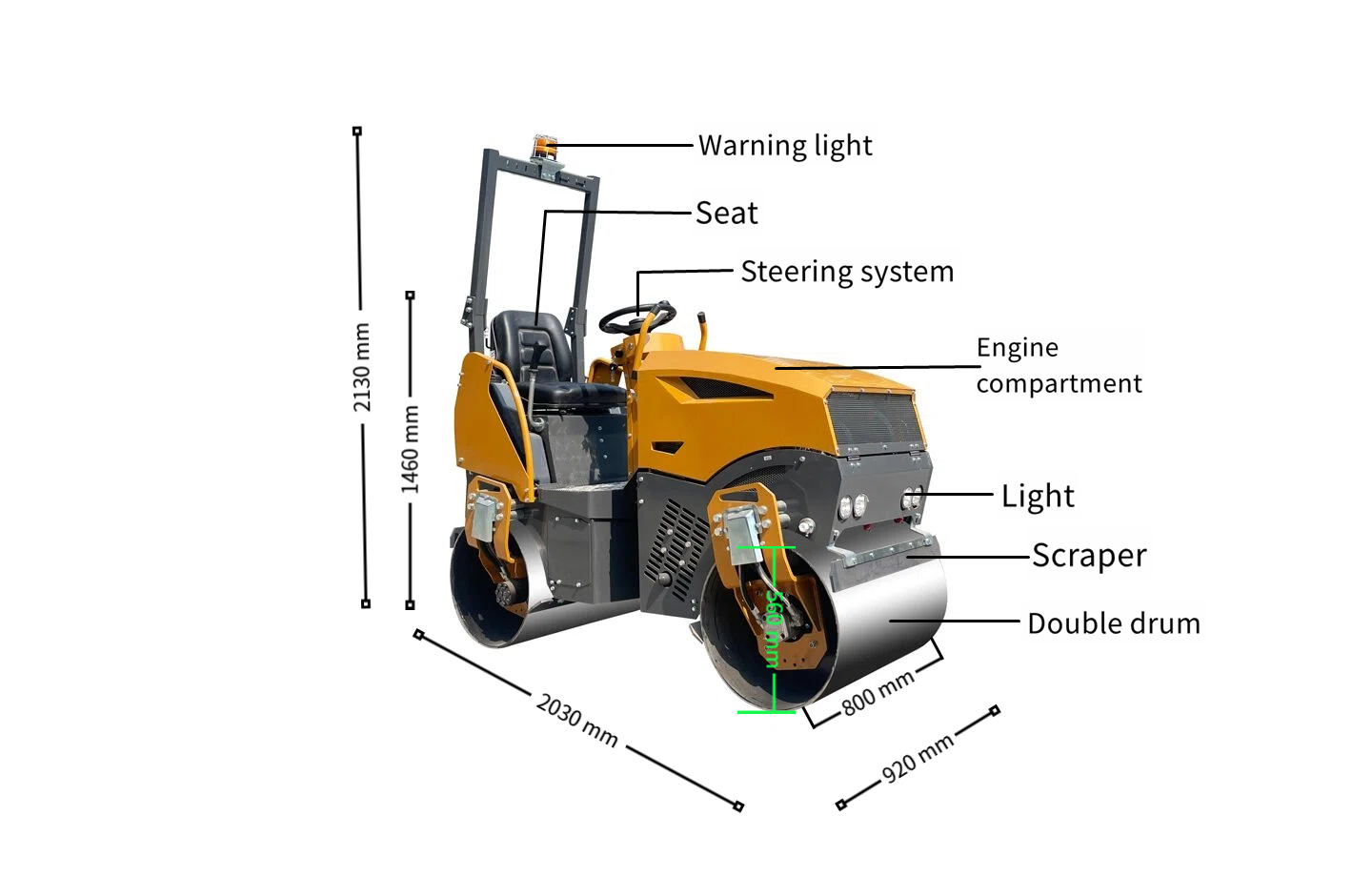

3.Size
The operating weight of the ST2000 equipment is 2100kg. The static linear load is 110/105n/cm. It has strong compaction stability. The working width is 1050mm. Combined with a 900mm-wide and 630mm-diameter compaction wheel, it has a wide working coverage and can achieve uniform and efficient compaction.

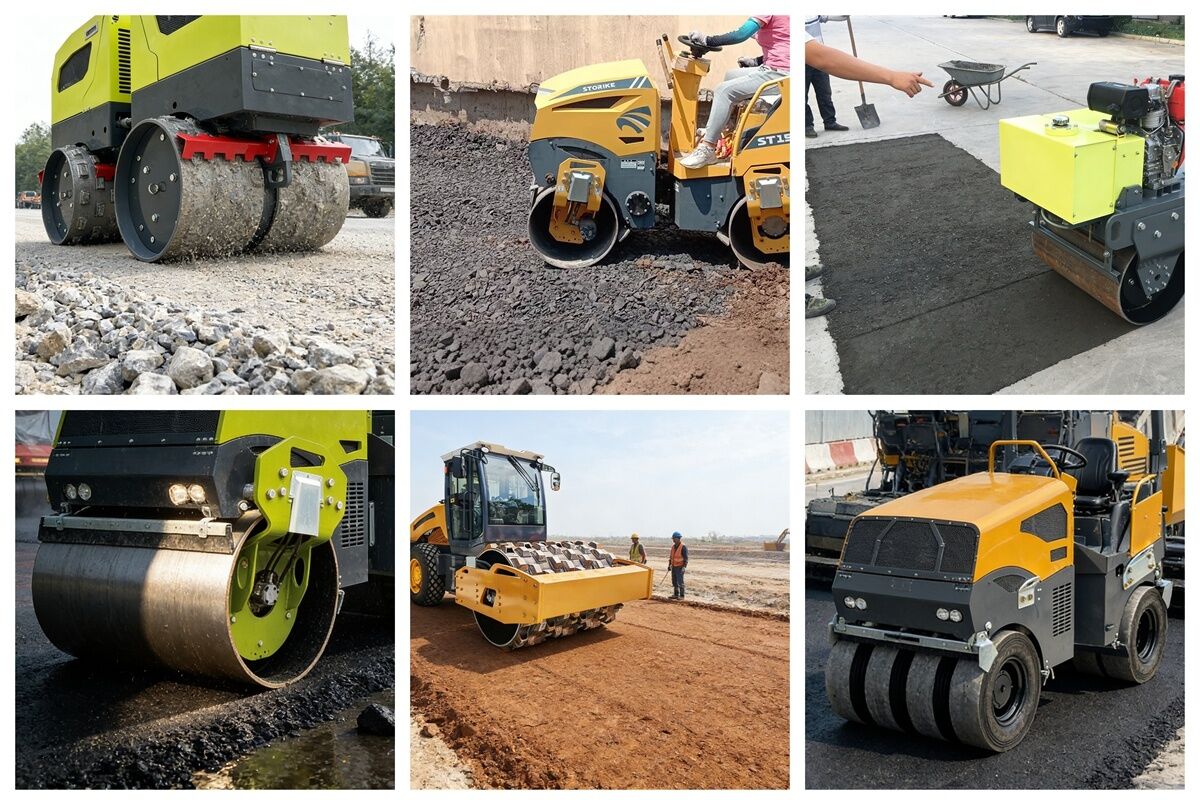

4.Application
The ST2000 compact roller, with its flexible design and powerful performance, is widely applicable in the following scenarios:
· Municipal engineering: Sidewalk paving,community road maintenance, ground compaction in underground garages,and reinforcement around manhole covers;
· Road construction: Rural road paving, scenic area path maintenance, initial and final compaction of asphalt surfaces,and compaction of non-motorized vehicle lanes;
· Building construction: Compaction of house foundations,courtyard hardening,villa garden renovation,and small site leveling;
· Landscape gardening: Compaction of lawn bases,flower bed construction, road leveling in parks, and laying of landscape paths;
· Other scenarios: Compaction of warehouse floors,factory floor maintenance,emergency repair projects,and compaction of farm and water conservancy access roads,etc.

5.Service
Comprehensive service guarantee: Offer a one-year warranty period and a professional service team available 24/7 online. In case of equipment issues, you can call the service hotline at any time. We will respond immediately and provide you with a full range of services including technical consultation, fault diagnosis, and maintenance guidance, ensuring your construction is worry-free.



6.Packing and shipping
We provide wooden case packaging and strictly protect your machine's body as required, including components and paint finish, to ensure no scratches occur. Custom packaging is also available. We will select an appropriate transportation method for you. If you have a freight forwarder, we can also deliver the machine to your designated freight forwarder's location.



Company Introduction
STORIKE is a professional engineering equipment manufacturer with 15 years of production experience, specializing in products such as light towers, plate compactors, road rollers, excavators and loaders. Our products have obtained CE, EPA and Euro 5 certifications, and can be flexibly customized according to engine types, while providing comprehensive OEM/ODM service support. All products undergo strict quality control. We have participated in the Canton Fair and international construction machinery exhibitions, serving more than 100 countries worldwide. We have 6 dedicated sales and service departments and a 23,000-square-meter modern manufacturing base. We warmly welcome global customers to visit our factory and explore cooperation opportunities.

Suggested use
Here are some safety tips to help you maintain the machine and extend its service life：
Safety Tips & Maintenance Advice：
·  During the operation of the equipment, do not perform cleaning or maintenance work. Rotating parts may cause personal injury.
·  It is strictly prohibited to clean parts with gasoline, other fuels or flammable solvents, especially in enclosed areas; the fumes volatilized from fuels and solvents are prone to accumulation, which may cause explosions.

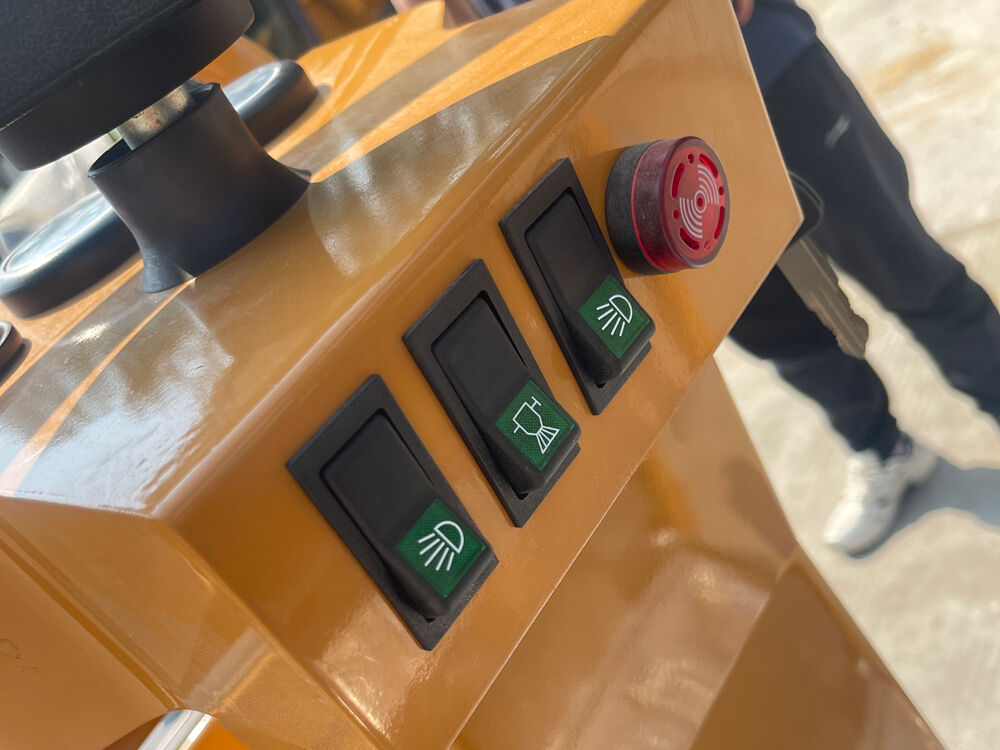

·  Regularly check the external buttons of the equipment to ensure their normal functions.
·  Provide professional operation and safety training to equipment operators on a regular basis.
·  Do not operate the equipment in areas with flammable substances, fuel or flammable vapors.
·  After the equipment is out of service, turn off the engine immediately, store it in a clean, dry area out of the reach of children, and ensure standardized storage.
·  Do not remove the air filter cover, paper filter element and pre-cleaner while the engine is running.
·  Before hoisting, jacking up the equipment or performing maintenance work, be sure to fasten the articulated steering connection in place with a locking rod.
· We provide instruction manuals and operation suggestions. Please use the machine in accordance with the manual to ensure personal safety and avoid machine damage.
