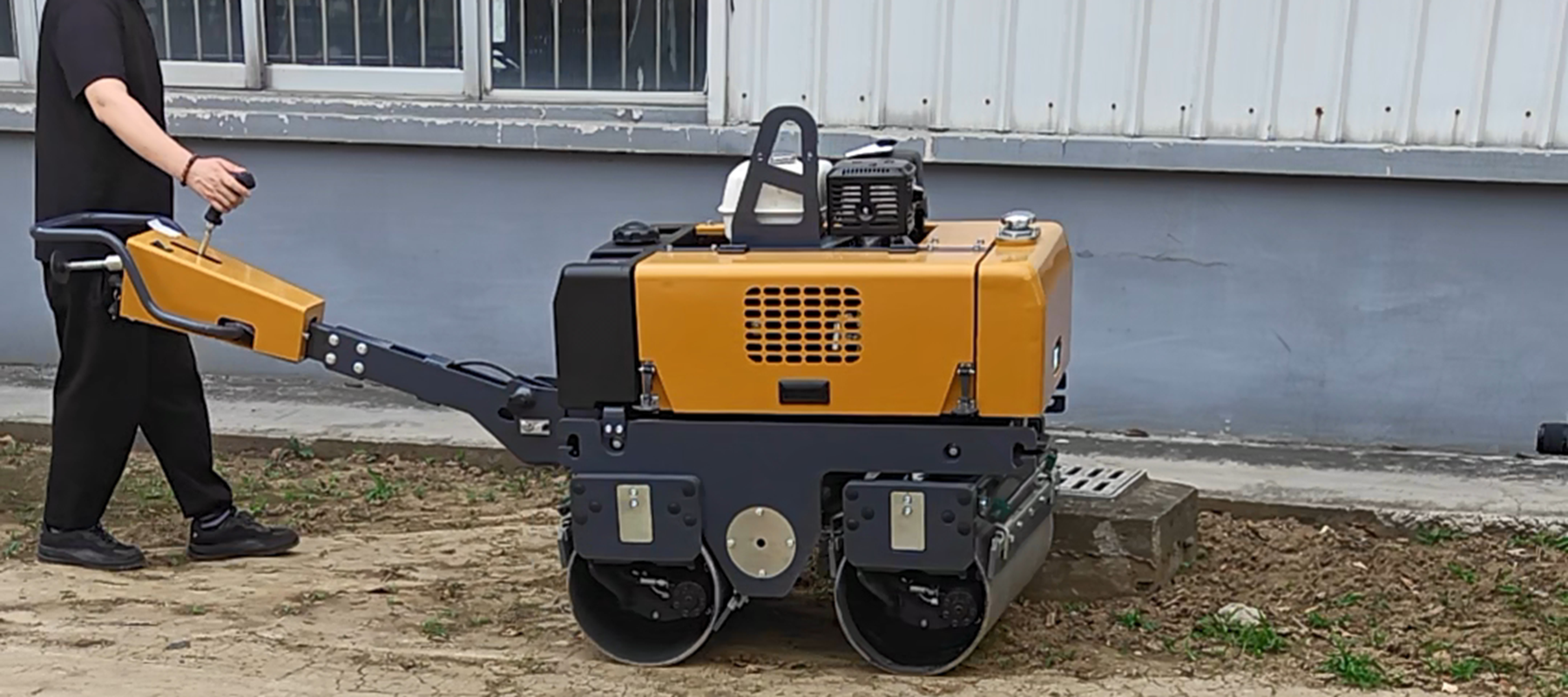

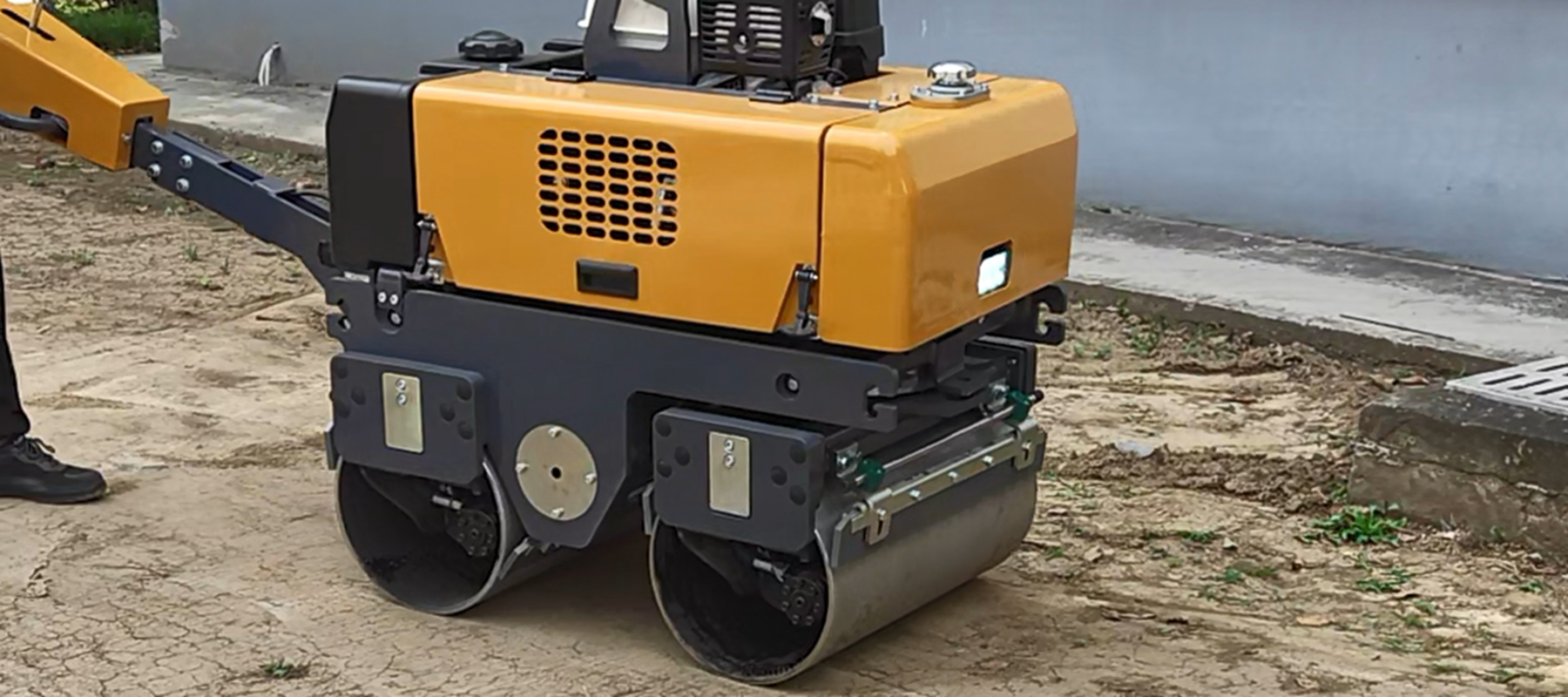

Vibratory roller | 800KG | SVH80

The SVH80 series road rollers are equipped with a powerful power system, advanced drive and control systems, optimized dimensions, and a wide range of applications, which can meet various needs ranging from small to medium-sized construction projects.

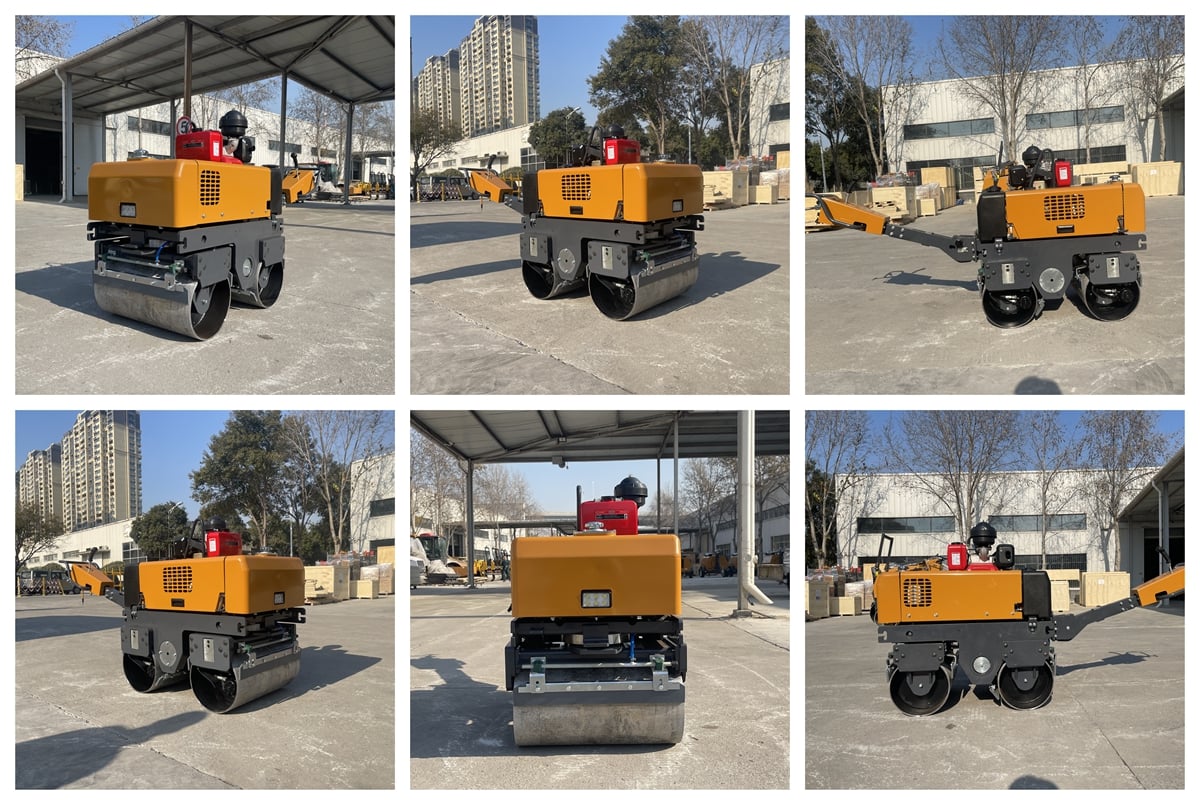

Details picture

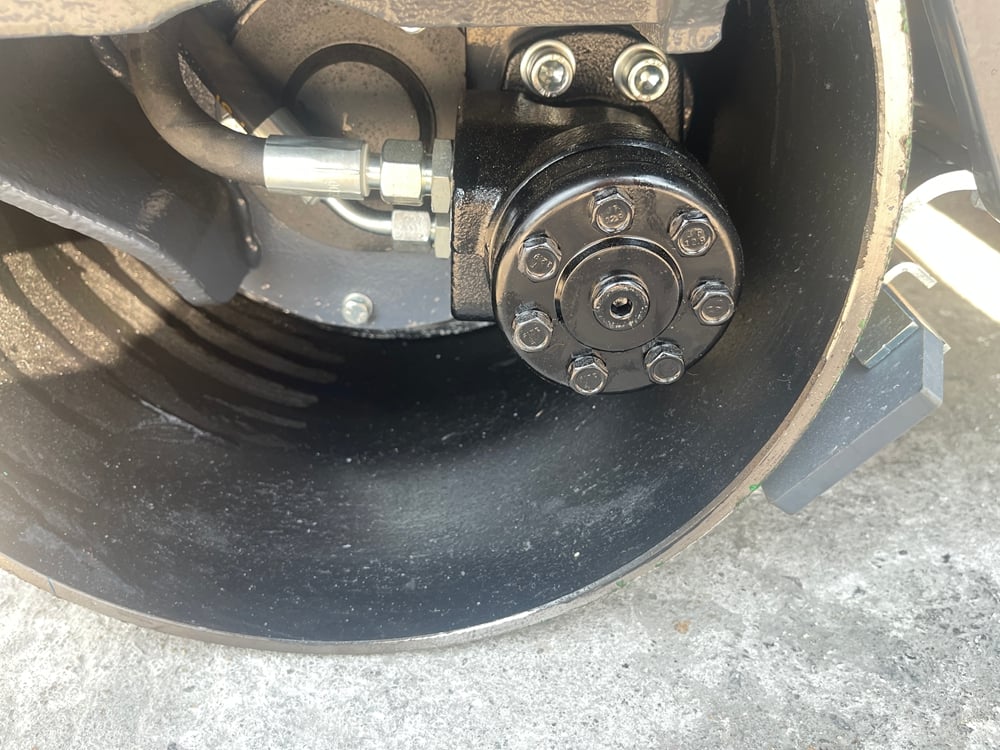

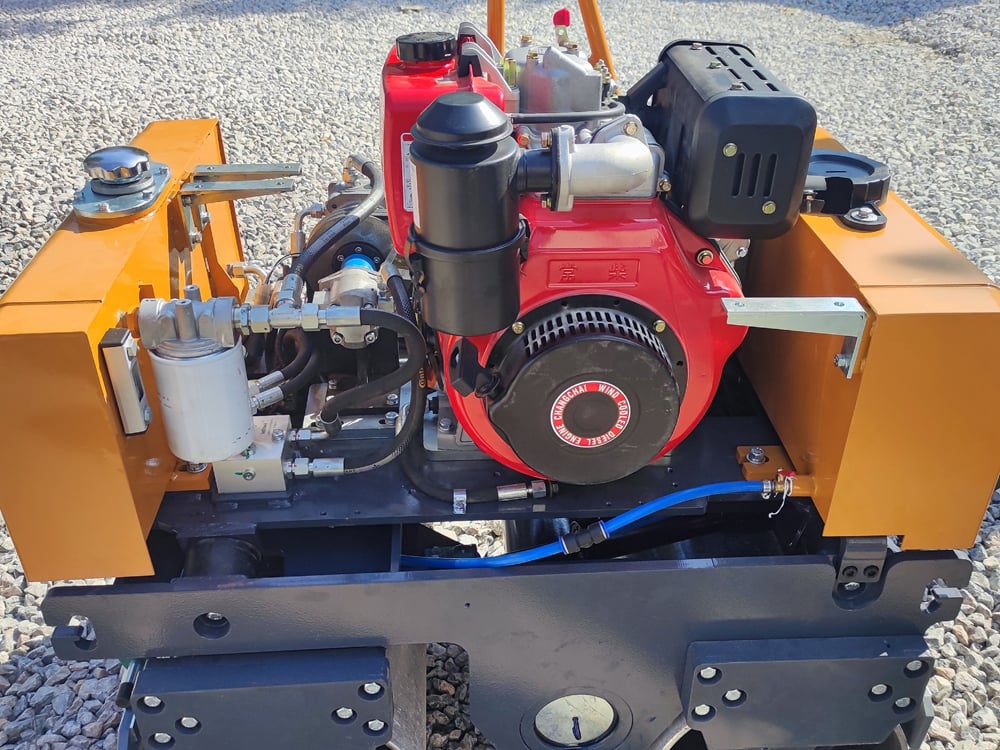

Name	Engine	Motor	water spray system	Water tank

1.Power system

[1].This series of models are equipped with three high-quality single-cylinder engines, precisely matching the power requirements of different working scenarios.

[2].The SVH80 is equipped with a Honda GX390 gasoline four-stroke engine with a rotational speed of 3600 rpm, an output power of 9.7 KW, a fuel capacity of 6.5L, featuring powerful and stable performance, capable of handling heavy compaction operations;

[3].The SVH80C is equipped with a Changchai Changfa 186F diesel four-stroke engine with a rotational speed of 3600 rpm, an output power of 6 KW, a fuel capacity of 5.5L, with excellent fuel economy, a durable body, and suitable for conventional earthwork and road compaction;

[4].The SVH80S adopts a GOLDEN FLYING FISH RD90N-1 horizontal water-cooled diesel engine with a rotational speed of 2400 rpm, an output power of 5.88 KW, a fuel capacity of 10L, with an effective water-cooling design for temperature control, capable of supporting long-term continuous operation, and with stable and reliable performance.

[5].All models in this series are equipped with 12V electrical equipment, ensuring stable startup and operation status;
The hydraulic oil capacity is uniformly 28L, eliminating the need for frequent replenishment, effectively improving operational efficiency.

2.Drive & Control System

[1].The SVH80 series adopts a variable piston pump stepless speed control dual-wheel drive mode. The walking speed can be flexibly adjusted within the range of 0-6 kilometers per hour. It can precisely match the operation speed according to the compacted materials and construction requirements, and is suitable for various scenarios of compaction operations.

[2].The braking system is linked with the drive system. It achieves operation braking through the variable piston pump and adopts a hydraulic steering method. It is equipped with a hydraulic support plate steering system, which enables flexible and precise steering. It can complete small-radius turns in narrow areas, significantly enhancing operational convenience.

[3].The vibration system is designed with dual rollers driven by hydraulic power, and the amplitude of the entire series is 0.5 MM, with an excitation force of 30 KN.

[4].The vibration frequencies of SVH80 and SVH80S are 65 HZ, while that of SVH80C is 60 HZ. High-frequency vibration can effectively enhance the compaction density, making the compaction of soil, sand, gravel, and asphalt materials more uniform.

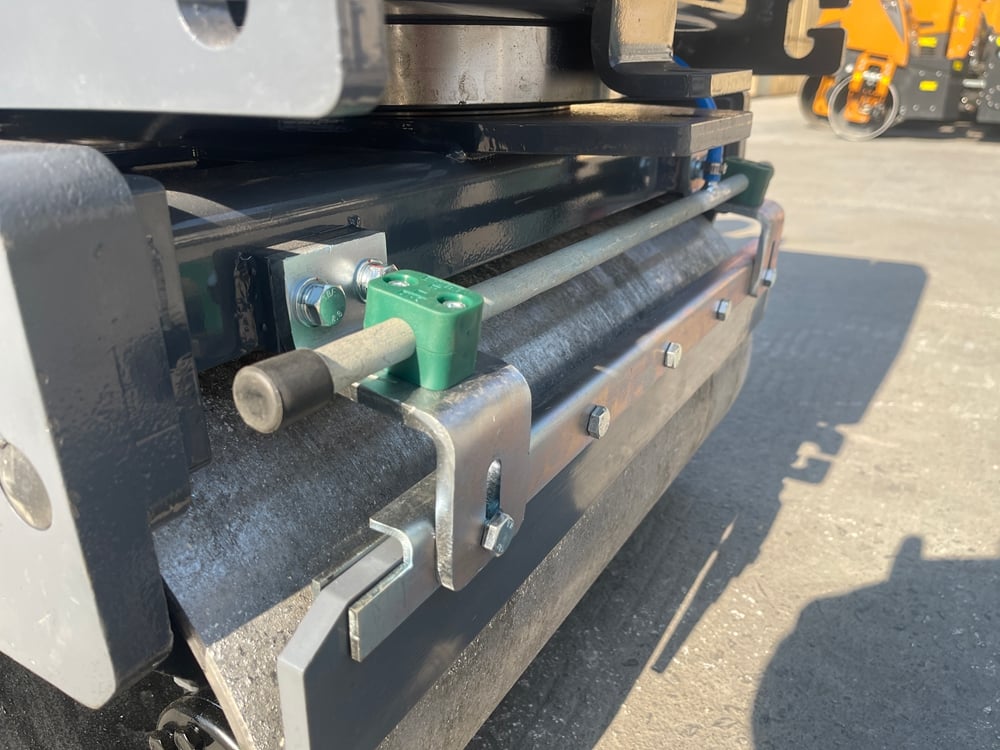

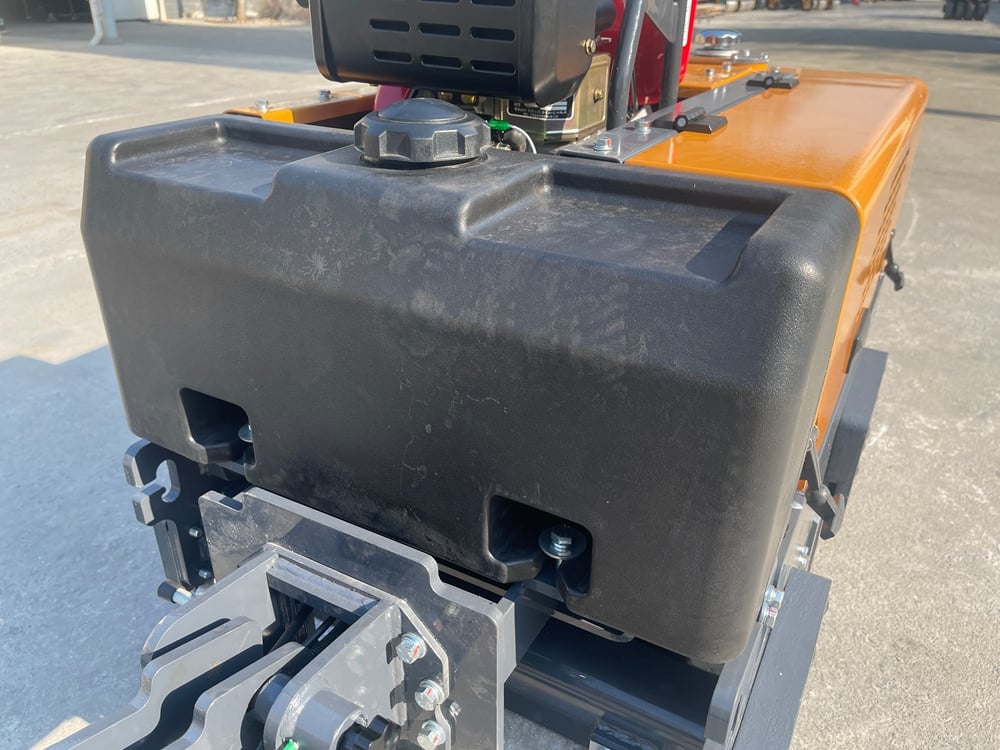

[5].The entire machine is equipped with a gravity spray watering system, featuring a 30-liter large water tank that can continuously supply water, effectively preventing the rollers from sticking to the compacted materials, and ensuring the compaction quality and smooth operation.

3.Size

[1].Weight: The operating weight is uniformly 800 kilograms.

[2].Roller size: The width of the roller is 680 mm, the diameter is 355 mm, the axle distance is 650 mm. The machine is compact and has a stable center of gravity. When moving, the compaction surface is uniform and there are no compaction dead zones.

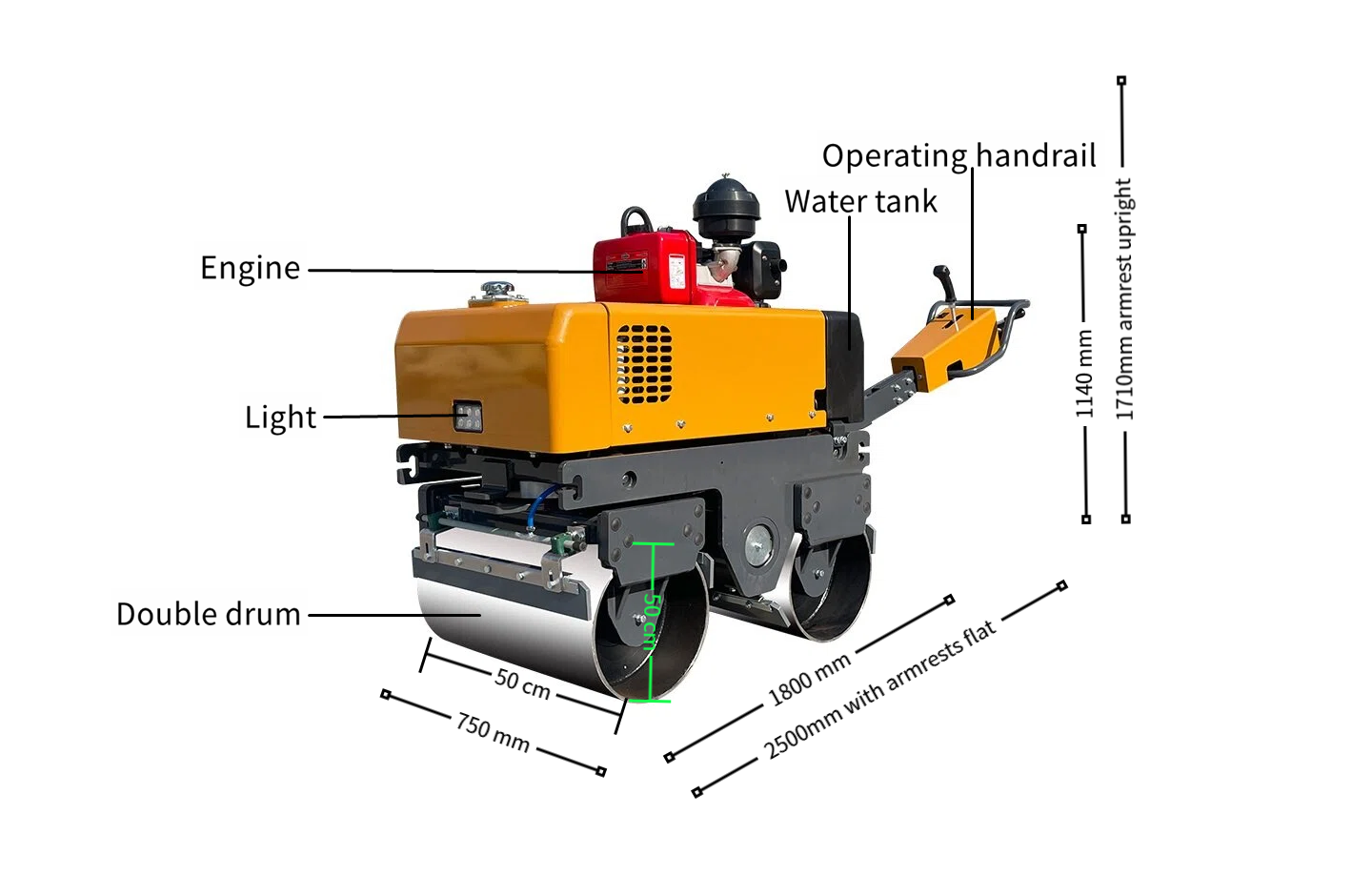

[3].Machine size: The overall width of the machine is 750 mm. When the handrails are laid flat, the overall length is 2500/1800 mm. When the handrails are raised, the overall height is 1140/1710 mm. The structure can be flexibly adjusted to adapt to the height and length restrictions of different working spaces.

[4].Packaging size: 1320×700×1730 mm. It is convenient for transportation and storage, and flexible for transfer.
The theoretical climbing ability of this model is up to 30%. It can easily handle construction scenarios with slopes, such as slopes and steps, and there are no obvious limitations in the working scenarios.

Thanks to its specific parameter configurations, the Storike 0.8-Ton roller is highly versatile across various infrastructure projects:

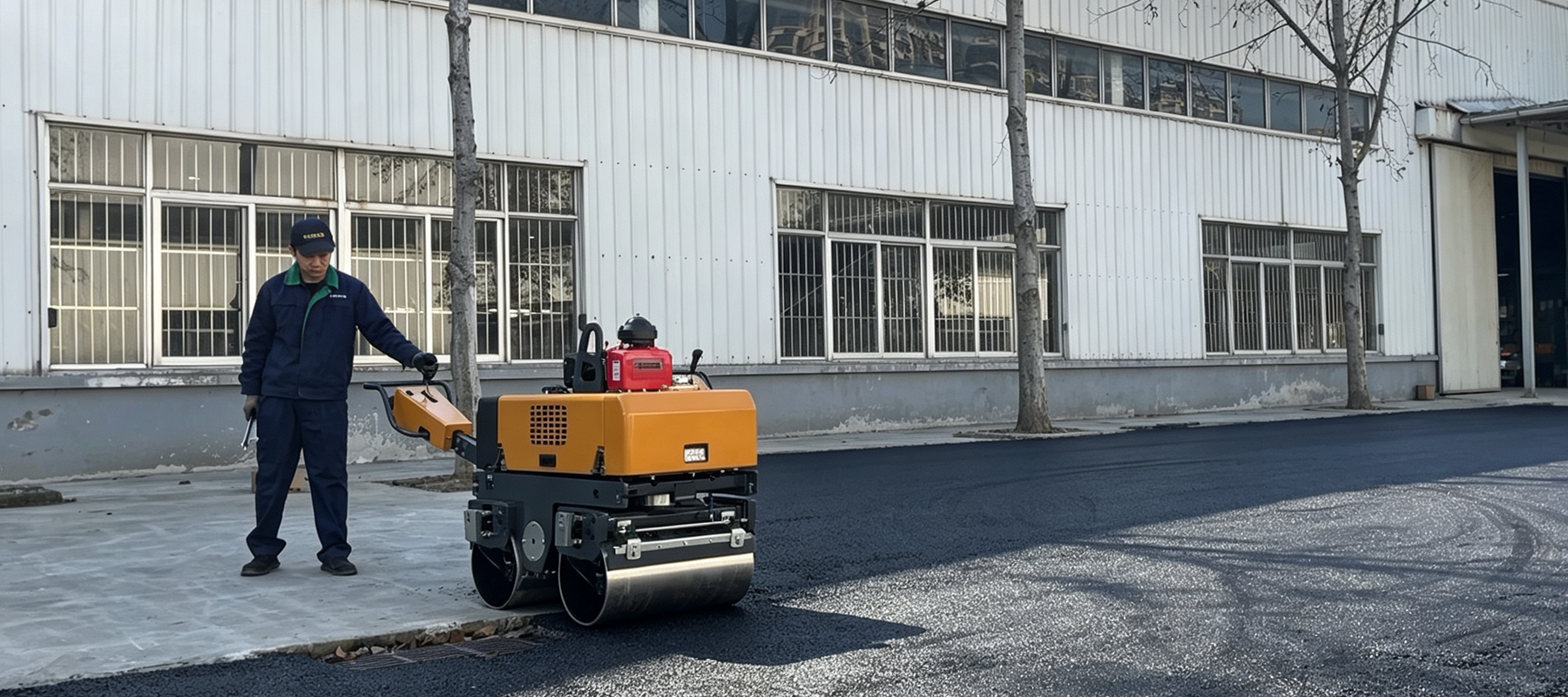

[1].Asphalt Driveway & Sidewalk Resurfacing: The 680mm drum width and 30L gravity water-dripping system prevent fresh asphalt mixture from adhering to the steel drums. This ensures an ultra-smooth finish on narrow residential walkways, asphalt patch repairs, and parking lots.

[2].Pipeline Trench & Sewer Backfilling: With a narrow 750mm machine width, it fits directly into utility trenches. The deep-impact 30kN centrifugal force guarantees that soil backfilled over water/gas lines is compacted thoroughly to eliminate subsequent ground sinking.

[3].Underground Garage Ramp Construction: Conquers slopes easily due to its 30% gradeability and fully hydraulic dual-wheel drive. It maintains consistent compaction force even while climbing steep multi-level garage approaches.

[4].Foundation Compaction for Courtyards & Sports Fields: The 800kg operating weight paired with a 0.5mm amplitude delivers high soil density for brick paving foundations, garden pathways, golf course maintenance, and stadium sub-grades without displacing surrounding brick borders.

PRODUCT TRANSPORTATION & PACKAGING

[1].Export-Grade Packaging: Every Storike roller is securely housed inside a heavy-duty, wooden box case (Dimensions: 1320×700×1730mm) to safeguard hydraulic and engine parts against moisture and impacts.

[2].Multimodal Shipping Channels: With 15 years of global export experience, we provide flexible shipping solutions including Sea Freight (FCL/LCL), Land Transport, and Air Cargo.

[3].Door-to-Door Delivery: We handle logistics seamlessly to your specified job site, warehouse, or seaport, assisting you completely with customs clearance and freight documentation.

FACTORY & COMPANY INFORMATION

Storike (Shandong Storike Engineering Machinery Co., Ltd.) is a premier, heavy-duty construction equipment manufacturer boasting 15 years of manufacturing excellence. Based in a 23,000 square meter modernized production facility, we specialize in the R&D and manufacturing of lighting towers, plate compactors, road rollers, asphalt pavers, excavators, and loaders.

Our products carry verified CE, EPA, and Euro 5 certifications, maintaining strict ISO9001 quality controls before leaving our bays. Storike products are proudly exported to over 100 countries including the USA, Mexico, Russia, UK, Austria, Czech Republic, Romania, Poland, Australia, Brazil, Chile, Peru, Ecuador, Colombia, Kazakhstan, Saudi Arabia, and the UAE. With 6 dedicated international sales and service centers, we welcome global customers to visit our state-of-the-art facility.

Factory Address: No. 2, Zone A, Yangjiahe Technology Incubation Park, No. 2166 Chongwen Avenue, High-tech Zone, Jining City, Shandong Province, China.

SERVICES PROVIDED

[1].1-Year Warranty & Free Parts: We provide a comprehensive 1-year warranty. Replacement parts are sent completely free of charge for non-human damages.

[2].Original Parts Stockpile: We maintain a massive original parts warehouse. You can purchase genuine factory-spec parts at cost anytime.

[3].24/7 One-on-One Technical Support: Our experienced engineers provide lifetime, 24-hour online video guidance to troubleshoot and maintain your machine.

[4].Pre-Sales Consultation: We assist you with customized project solutions and help you select the exact engine and specification configuration before you purchase.

[5].Lifetime Service Commitment: Even after your warranty expires, our relationship continues. We guarantee online repair guidance and endless access to our spare parts pool.

SAFETY & MAINTENANCE RECOMMENDATIONS

[1].Safety Suggestion 1: Always verify that the infinitely variable travel lever is in the "Neutral" position before starting the engine to prevent sudden movement.

[2].Safety Suggestion 2: Never engage the electromagnetic vibration clutch while traveling at max speed on hard concrete to prevent structural stress.

[3].Maintenance Suggestion 1: Inspect the hydraulic oil level in the 28L tank. regularly. Maintenance Suggestion 2: Drain the 30L water tank completely if storing the roller in freezing temperatures to prevent gravity sprinkler pipe cracking.

[4].Maintenance Suggestion 3: Check the tension of the Japanese MITSUBOSHI V-belt every month to maintain rapid and optimal vibration delivery.

Q1: Which models are included in the SVH80 series and what are the differences in core power?
A1: There are three models: SVH80/SVH80C/SVH80S. They are equipped with Honda gasoline engine, constant-speed constant-fuel diesel engine, and GOLDEN FLYING FISH water-cooled diesel engine respectively. The power is 9.7kW/6kW/5.88kW.

Q2:What is the configuration of the vibration and sprinkler system?
A2: Dual-roller hydraulic vibration at front and rear, frequency 60/65Hz; Standard equipped with gravity spray sprinkler system, water tank capacity 30L

Q3：How do I know which engine model (SVH80, SVH80C, or SVH80S) fits my business best?
A3: If you want a world-renowned brand with lower noise and easy cold-weather starts, choose the SVH80 (HONDA GX390 Gasoline). If you want an economic outdoor workhorse with high torque, choose the SVH80C (Changchai Diesel). If you operate in hot climates (e.g., Middle East/Africa) and need long continuous runtimes, choose the SVH80S (Golden Flying Fish Water-Cooled Diesel with a large 10L fuel tank)

Q4: What happens if a part fails after the 1-year warranty period?
A4: Storike offers a lifetime service system. Even past the warranty period, we provide free one-on-one video repair guidance. You can purchase 100% genuine parts from our original factory parts warehouse anytime at factory prices.

Q5: How to get after-sales support in case of equipment failure or remote control problems?
A5: We have a professional service team providing 24/7 reception service. You can call the service hotline at any time. We will respond immediately, offer remote technical consultation and fault diagnosis, and arrange on-site maintenance if necessary.
