ST1000 | 1 တန် | အခြေထားရောလှုပ်ရှားသည့် ယာဉ် | နှစ်ဆင့် ဒရัม(ကျောက်လုံး) | Shandong Storike Engineering Machinery Co., Ltd.

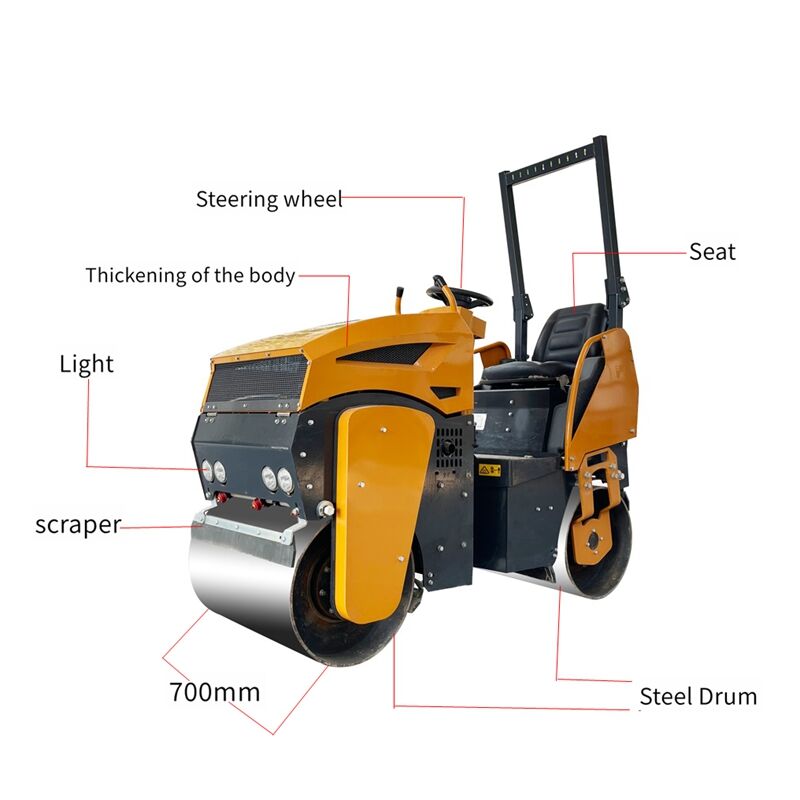

Articulated double drum vibratory road roller

FEATURES

Equipped with famous brand power, quality assurance, superior performance
Eagle-eye body design, wide field of vision,beautiful and generous
Imported hydraulic variable pump and quantitative motor, stepless speed change.walking forward and backward
The control panel is fully functional, one-key operation
Front and rear lighting & warning lights, can be constructed at night
Ergonomic driving
The product has passed the CE certification, and the design of the Red Star Award

Model		ST1000
Weights
Operating weight	kg	1000
Static linear load	N/cm	56/77
Dimensions
Working width	mm	825
Total length	mm	1870/1780
Total height with ROPS	mm	1450/1985
Turning radius(outer)	mm	2600
Drum width	mm	700
Drum diameter	mm	500
Wheel base	mm	1230
Drive
Engine manufacturer		HONDA	CHANGFA CHANGCHAI
Type		GX390	186F
Engine type		Gasoline four-stroke	DIESEL 4-STROKE
Number of cylinders		1
Output Power	KW	9.7	6
Rating speed	rpm	3600
Electric equipment	V	12
Drive mode		Variable displacement piston pump infinitely variable two-wheel series
Driving characteristics
Speed	km/h	0-6
Theoretical climbing ability	%	30
Brakes
Working brake		Variable displacement piston pump
Steering
Steering method		Hydraulic steering
Steering system		Swing articulated
Exciter system
Vibrating drum		Front
Driving form		Mechanical transmission electromagnetic clutch
Vibration Frequency	HZ	70
Vibration Amplitude	mm	0.5
Exciting force	KN	25
Sprinkler system
Form		Intermittent pressure spray
Capacities
Hydraulic oil capacity	L	15
Fuel capacity	L	6.5
Water tank capacity	L	70
