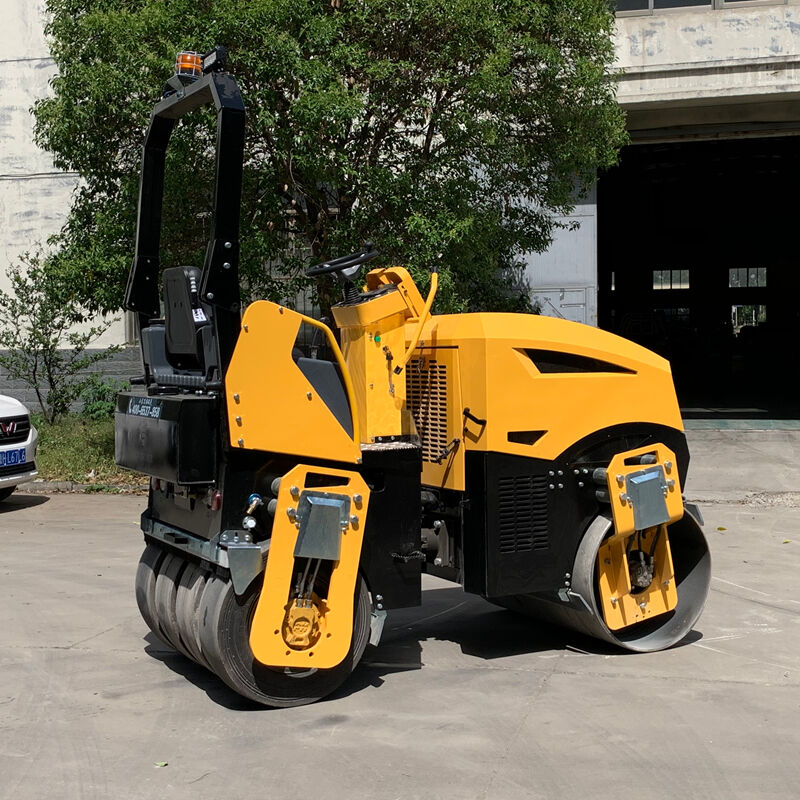

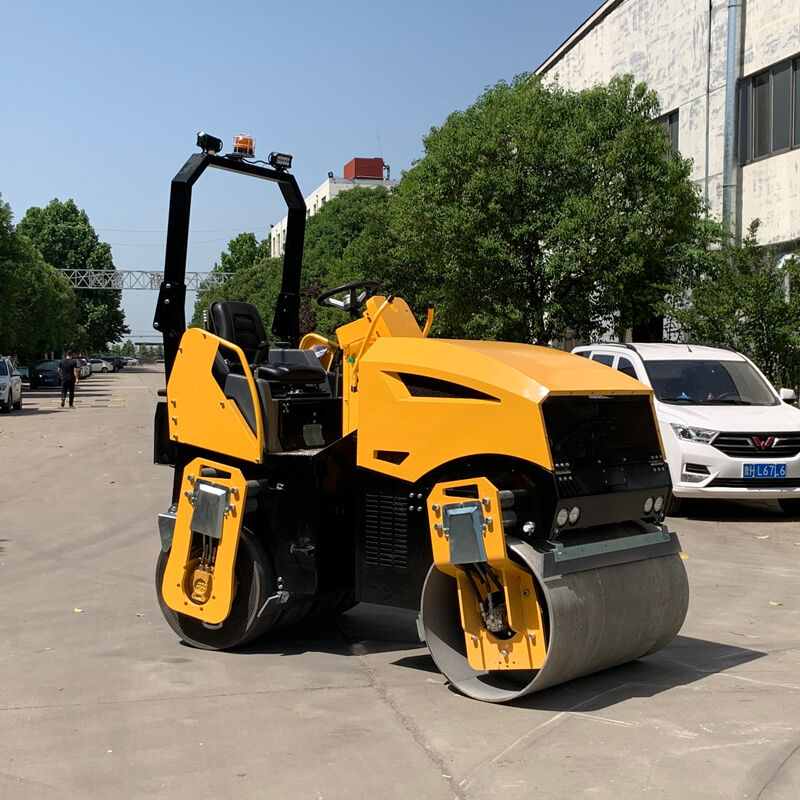

The ST3500C adopts a classic structure of front steel wheels and rear tires, balancing both the compaction strength and driving stability: The front wheels are thickened steel drums, with a static linear load of 130n/cm providing strong compaction penetration power; the rear wheels are in the form of tires, with staggered wheel spacing and a central support design, having a large ground contact area, stable driving without slipping, and suitable for compaction of various materials.

Details picture

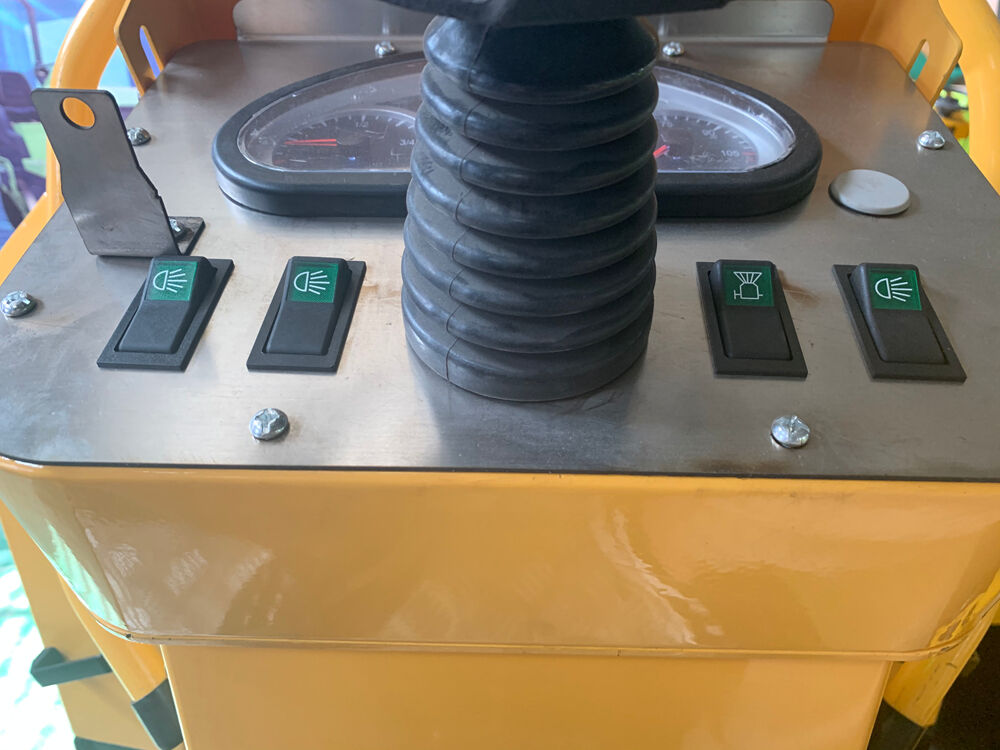

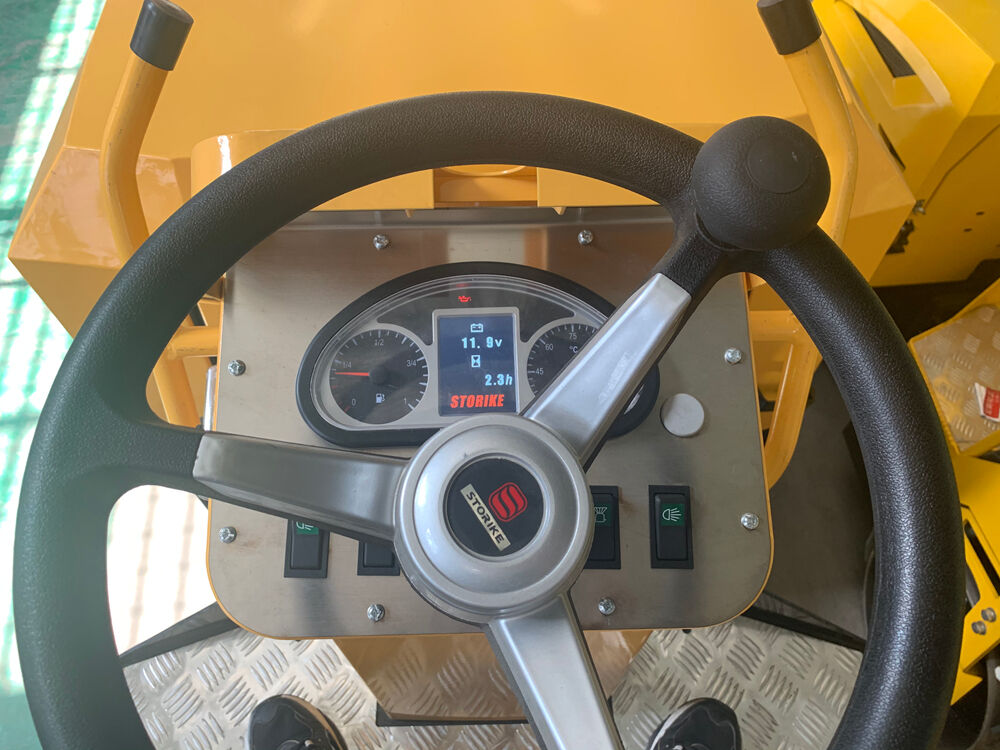

Name	Operating station	Pneumatic tire	Steering wheel	Motor

1.Power system

[1].The equipment is equipped with a high-quality diesel power core. All of them adopt a diesel inline water-cooled four-stroke design, featuring powerful performance, low fuel consumption, and high stability. They can be flexibly selected according to the construction intensity:

①Changchai ZN390B: 3-cylinder configuration, with an output power of up to 28.1 hp and a rated speed of 2600 rpm.

②Yanmar 3TNV88: 3-cylinder configuration, with an output power of up to 28.5 hp and a rated speed of 3000 rpm.

③Kubota V1505 Engine: 4-cylinder configuration, with an output power of 26.1 hp and a rated speed of 3000 rpm.

[2].The entire power system has excellent heat dissipation efficiency and can withstand long-term and high-intensity operations. When paired with 12V electrical equipment, it starts smoothly and operates safely and reliably.

[3].The hydraulic oil capacity is 50L and the fuel capacity is 38L. The range is sufficient, reducing the time spent on frequent refueling.

2.Drive & Control System

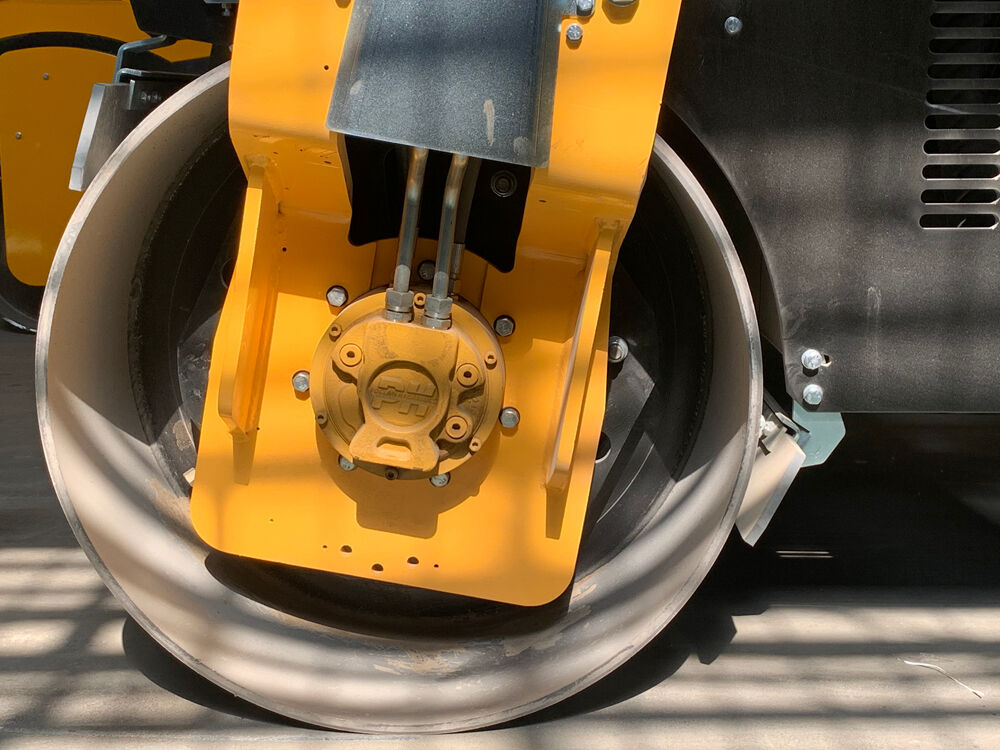

[]1.The drive system adopts a variable piston pump for stepless speed control, combined with three Poclain drive motors. The power transmission is efficient and smooth, enabling stepless speed adjustment from 0 to 10 kilometers per hour, meeting the needs of different compaction rhythms.

[2].The steering system uses hydraulic cylinder articulated steering and swing articulated structure, which is easy to operate and flexible. The minimum turning radius is as low as 2600 - 3980 millimeters. It can easily turn around even in narrow construction sites, improving work efficiency.

[3].The braking system relies on the variable piston pump for precise braking, with rapid response, ensuring work safety.

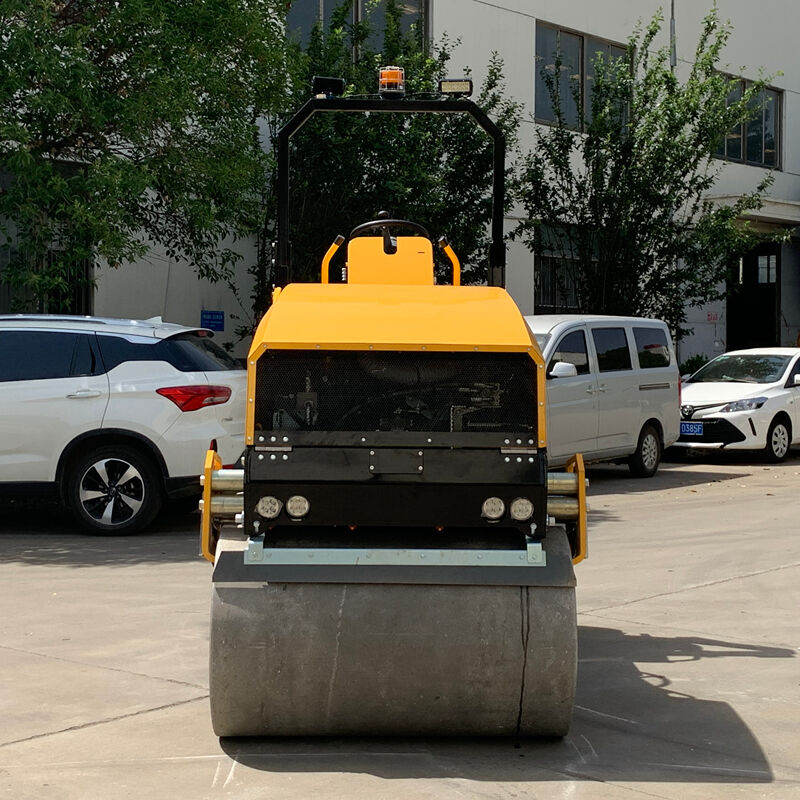

[4].The vibration system uses a hydraulic motor to drive the front vibration drum. The vibration frequency is 60 hertz, the amplitude is 0.5 millimeters, and the excitation force can reach 50 kilonewtons. Combined with a 16-millimeter-thick steel drum and a 720-millimeter drum diameter, the compaction effect is uniform and the depth is sufficient, effectively improving pavement density.

[5].The equipment is equipped with an intermittent pressure spraying system. The water tank capacity is 180L, which can effectively prevent material from adhering to the drum and ensure the compaction quality.

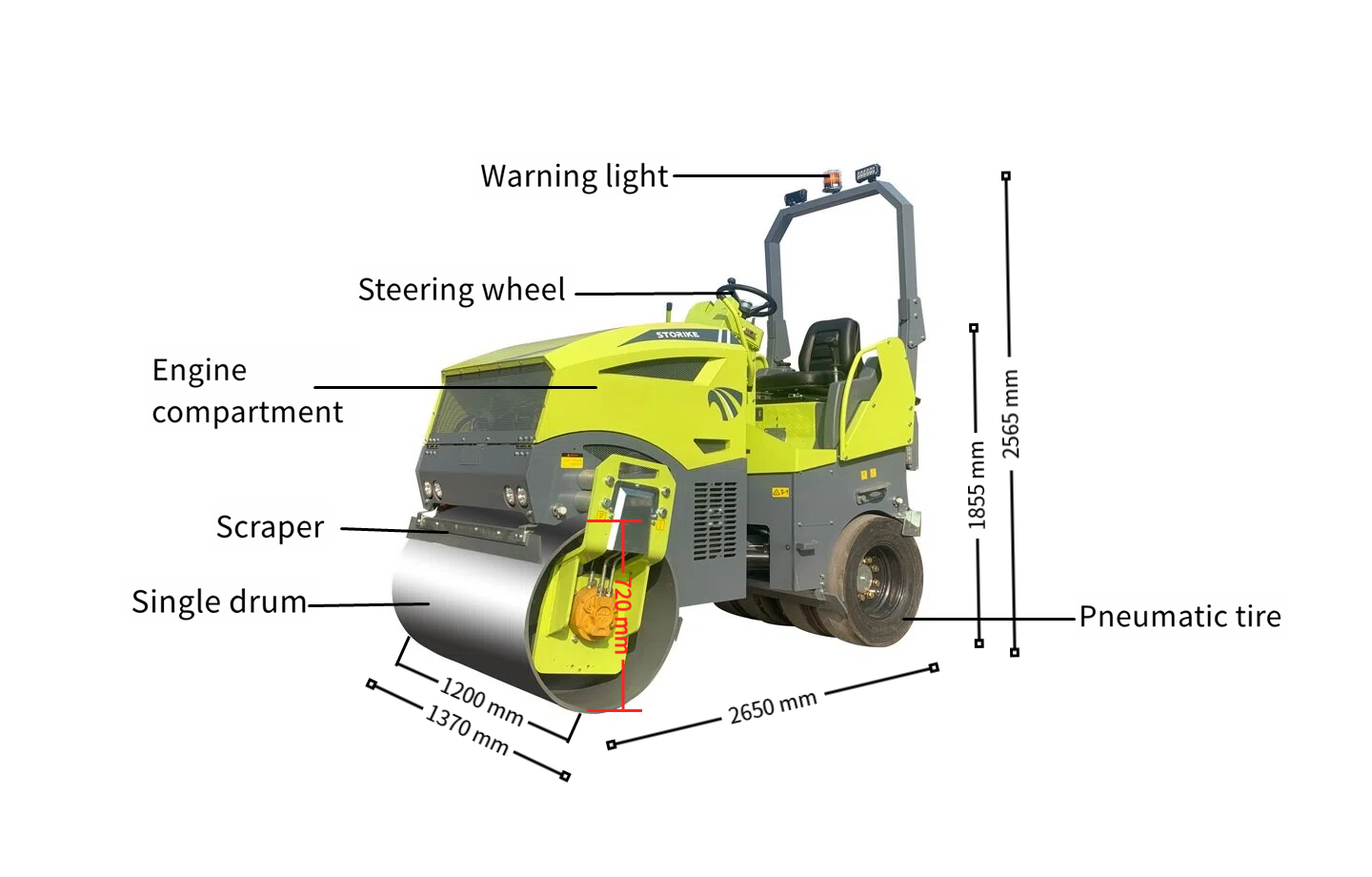

3.Size

[1].Working dimensions: Working width 1370 millimeters, drum width 1200 millimeters, capable of achieving large-scale and efficient compaction.

[2].Equipment dimensions: The overall length of the equipment is 2545 - 2650 millimeters, the overall height is 1855 - 2565 millimeters, the wheelbase is 1795 millimeters. The structure is compact, facilitating transportation and site conversion.

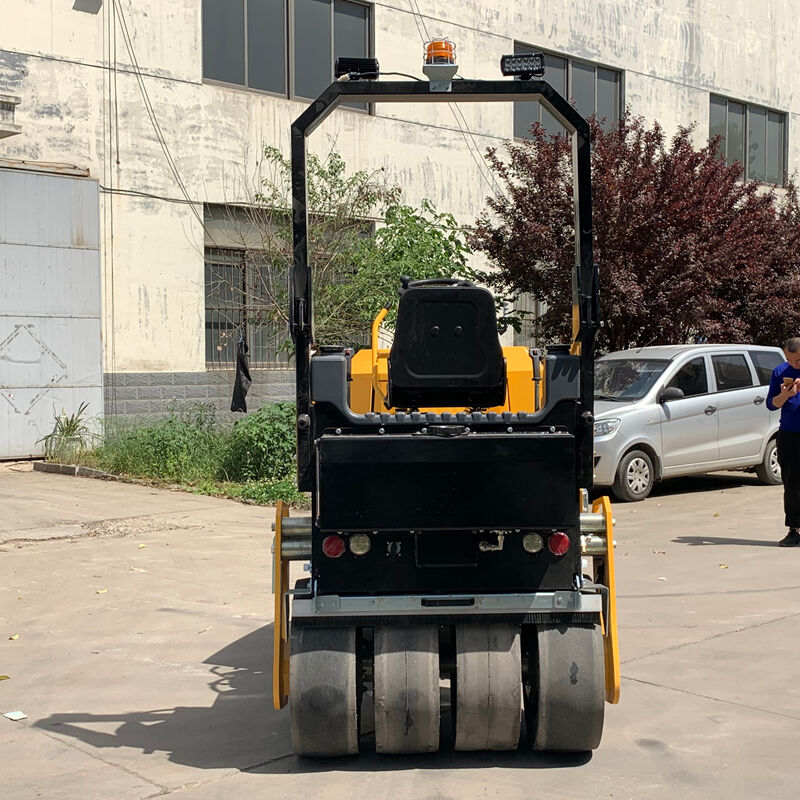

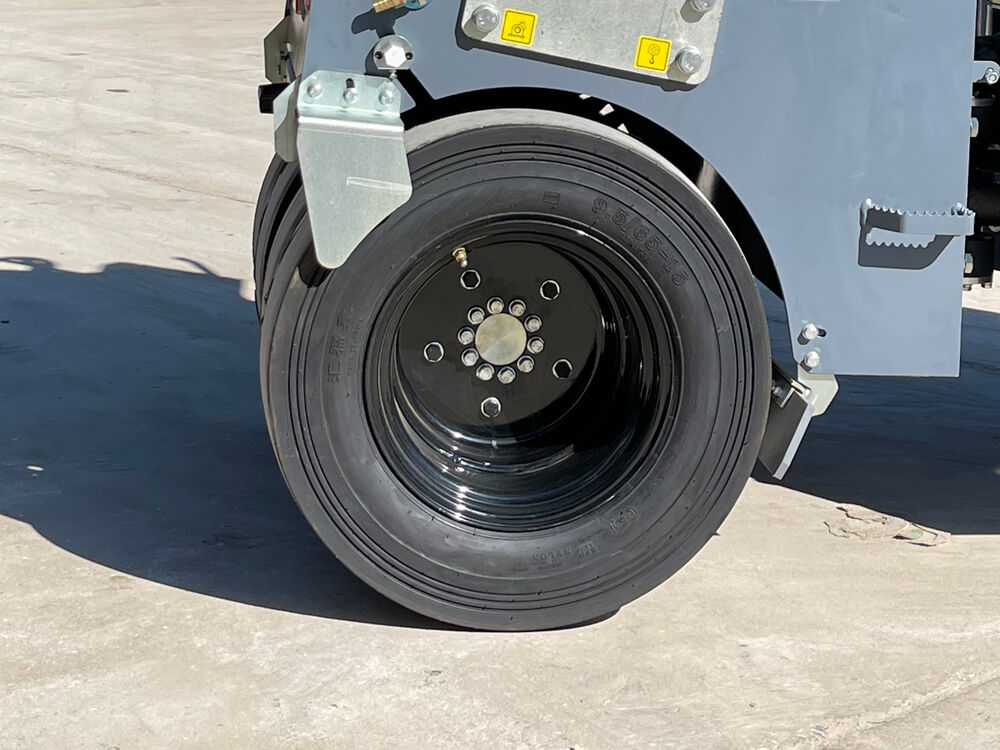

[3].Wheel size: The wheels are equipped with 4 tires of 9.5/65-15 specification. The total width of the tires is 1140 millimeters, with staggered wheel spacing of 50 millimeters. They are paired with two support methods: mid-support and bilateral support. The ground stability is strong, and they can adapt to different road conditions.

[4].Weight: The operating weight of the equipment is 2820 kilograms. The static line load is 130 Newtons per centimeter. The ground pressure is reasonable, which can ensure the compaction effect without causing excessive damage to the base layer.

[5].Steel drum：The steel drum has a thickness of 16 millimeters, which is wear-resistant and durable, extending the service life of the equipment.

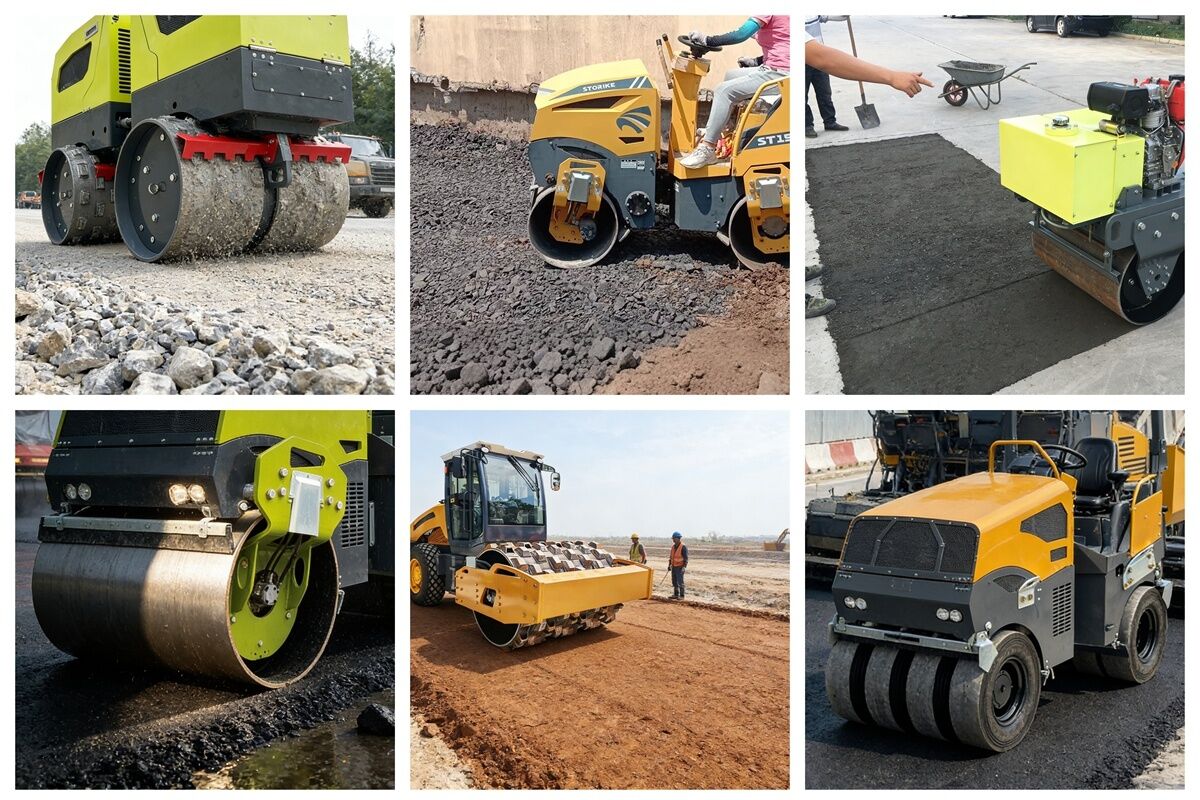

Application Projects

[1].Asphalt Road Construction

The ST3500C is suitable for asphalt surface compaction. The front steel drum provides vibration compaction, and the rear pneumatic tires help knead and seal the asphalt surface. This makes the machine useful for small and medium asphalt road projects.

[2].Municipal Road Maintenance

With a compact body, hydraulic articulated steering, and 0–10 km/h speed control, this roller is suitable for road patching, lane repair, sidewalk edge compaction, and urban road maintenance.

[3].Parking Lot Construction

The 1370 mm working width allows the machine to work efficiently in parking lots. The rear tire compaction helps improve asphalt surface density and reduce tire marks after paving.

[4].Industrial Park Roads

Industrial park roads often require stable compaction quality and smooth surface finishing. The 3500 kg operating weight and 50 kN excitation force make the ST3500C suitable for factory roads and internal logistics roads.

[5].Residential Roads and Community Roads

The compact size and articulated steering make the machine suitable for residential roads, community lanes, villa roads, and narrow construction areas where larger rollers may not be convenient.

[6].Road Repair and Patching Work

For road repair projects, the machine can quickly compact repaired asphalt areas. The front drum compacts the repair layer, while the rear tires help improve surface bonding and smoothness.

Transportation and Delivery

STORIKE can provide export wooden case packaging and help customers choose suitable transportation methods, including sea freight, land transportation, air transportation, and delivery to the customer’s designated location.

With 15 years of export experience, we can assist customers with freight arrangements and product delivery communication. If you have questions about shipping, packaging, or delivery time, our team can provide support before shipment.

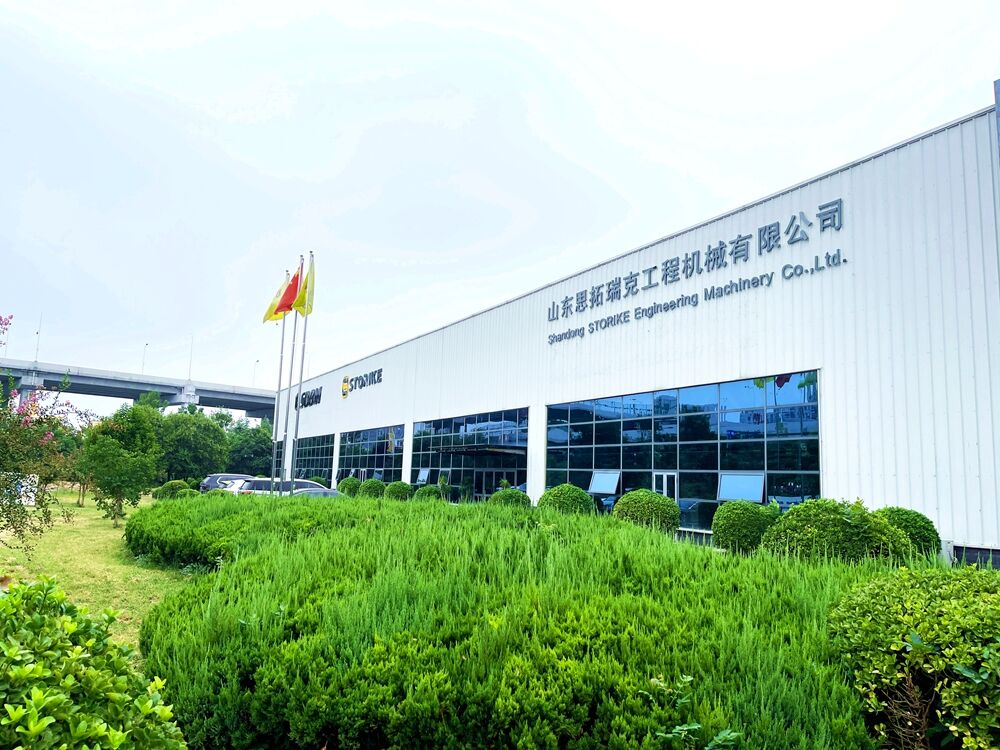

Company Introduction

STORIKE is a professional construction machinery manufacturer located in Jining, Shandong, China.

Company Name: Shandong Storike Engineering Machinery Co., Ltd.

Factory Address: No. 2166 Chongwen Avenue, Yangjiahe Science and Technology Entrepreneurship Park, Zone A, No. 2, High-tech Zone, Jining City, Shandong Province, China.

STORIKE has 15 years of production experience and focuses on road rollers, light towers, plate compactors, asphalt pavers, excavators, loaders, and other light construction machinery. The factory provides OEM/ODM services and supports flexible customization based on engine type, local market demand, and customer application requirements.

Services We Provide

[1].One-year warranty service.

[2].Free spare parts can be sent for non-human damage during the warranty period.

[3].Original spare parts warehouse is available for paid replacement parts.

[4].24-hour online service and one-to-one after-sales guidance.

[5].Pre-sales model selection support and customized solution planning.

[6].Lifetime service system: even after the warranty period, we can still provide online repair guidance and original parts support.

[7].MOQ starts from one unit. For bulk buyers, price support can be discussed to help reserve profit space for dealers and distributors.

Q1: What are the features of the drive and steering system?
A1: Continuously variable speed (0-10 km/h), hydraulic cylinder articulated hydraulic steering, with flexible operation.

Q2: What are the working width and turning radius of the equipment?
A2: Working width 1370mm, minimum turning radius 2600/3980mm

Q3：Is the ST3500C suitable for asphalt compaction?

A3:Yes. The front steel drum provides vibration compaction, and the rear pneumatic tires provide a kneading effect, making it suitable for asphalt surface compaction and road finishing.

Q4: What after-sales service does STORIKE provide?
A4: STORIKE provides one-year warranty, 24-hour online service, one-to-one after-sales guidance, original spare parts supply, and lifetime online repair support.

Q5: How to get after-sales support in case of equipment failure or remote control problems?
A5: We have a professional service team providing 24/7 reception service. You can call the service hotline at any time. We will respond immediately, offer remote technical consultation and fault diagnosis, and arrange on-site maintenance if necessary.
