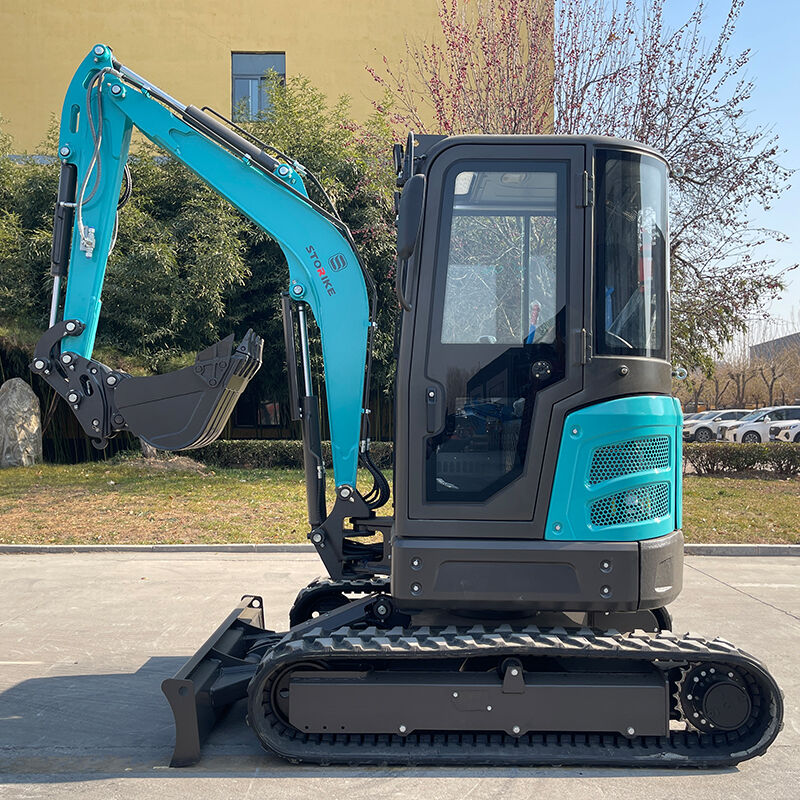

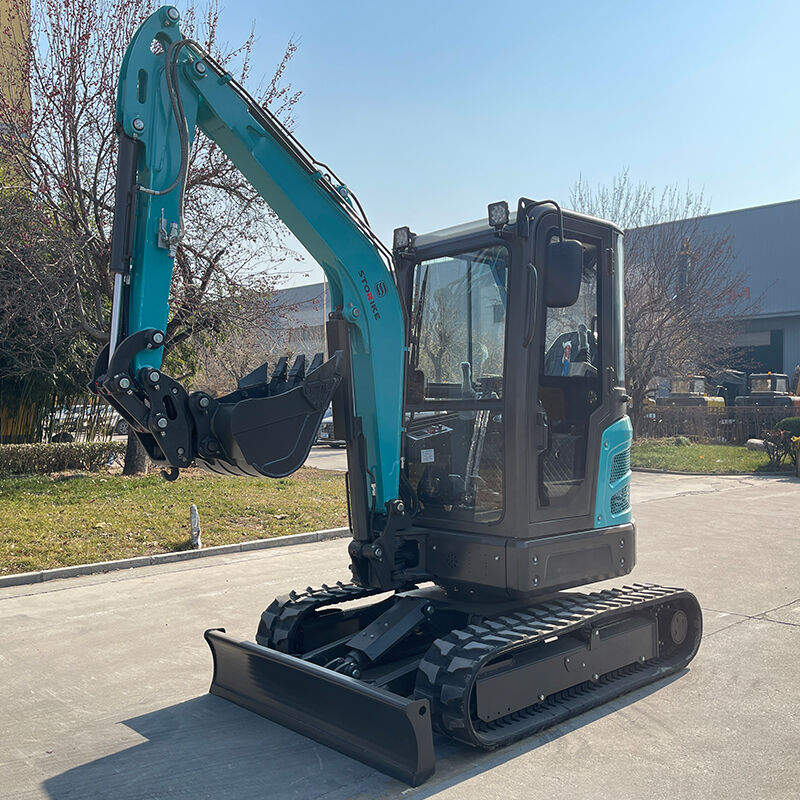

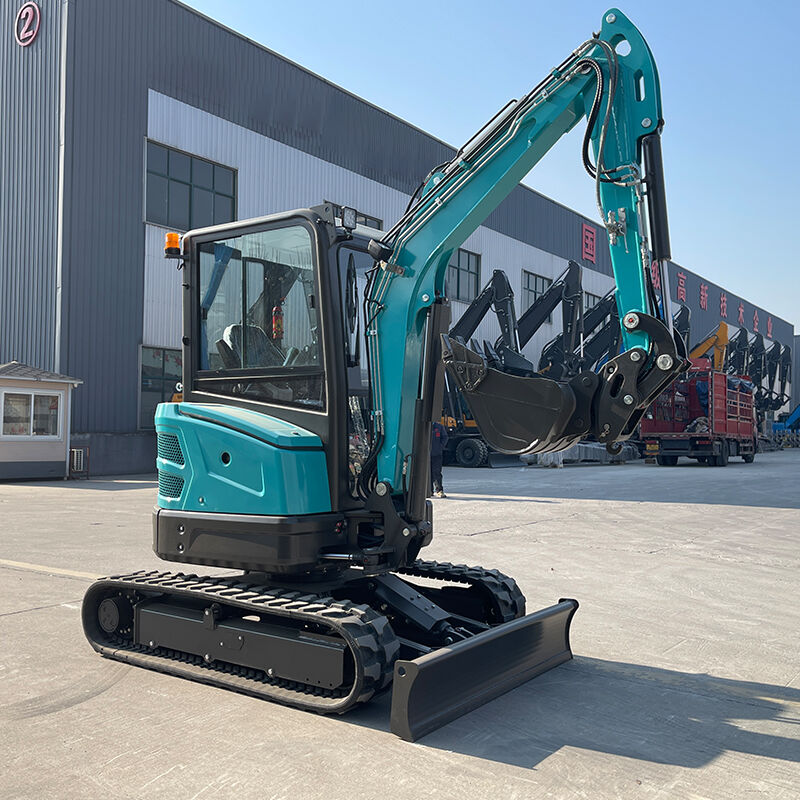

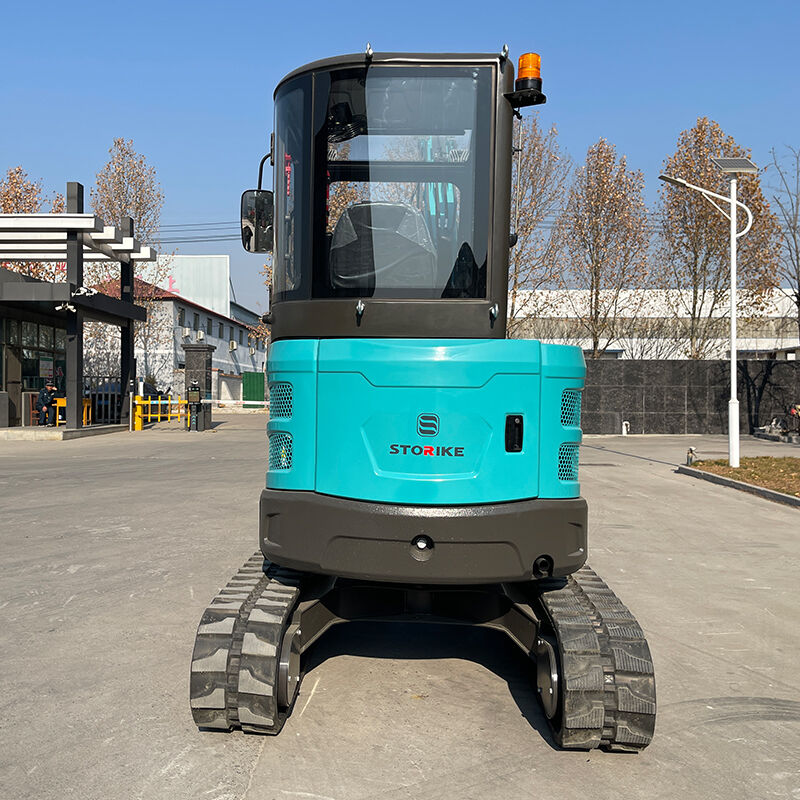

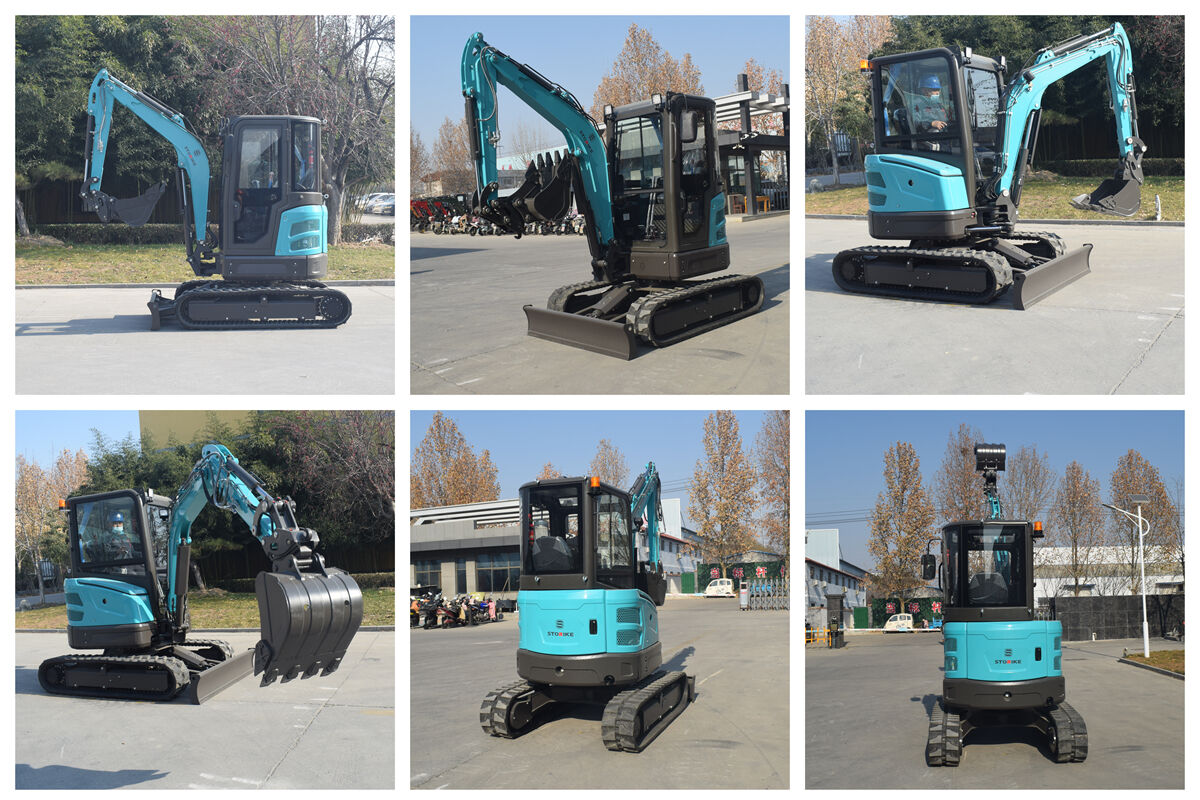

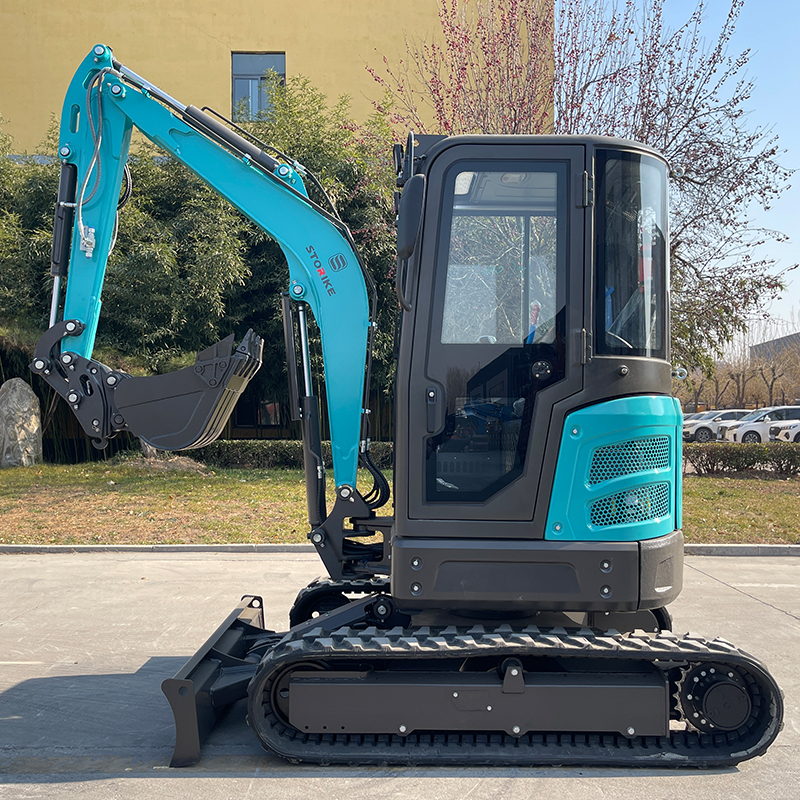

PC30.3 | 3 Ton Crawler Excavator

The 3 ton mini excavator is equipped with ISO,CE and EPA certifications

What is a small excavator?
Small excavators are compact earthmoving machinery, also known as mini or small excavators. Their core features include tailless rotation and rubber tracks. The body is narrow, the turning radius is small, and the transportation is convenient. They cause less ground damage and can be equipped with various attachments to perform multiple operations such as excavation, crushing, and loading. They are suitable for narrow areas that large equipment cannot access.

Product details



1.Power system

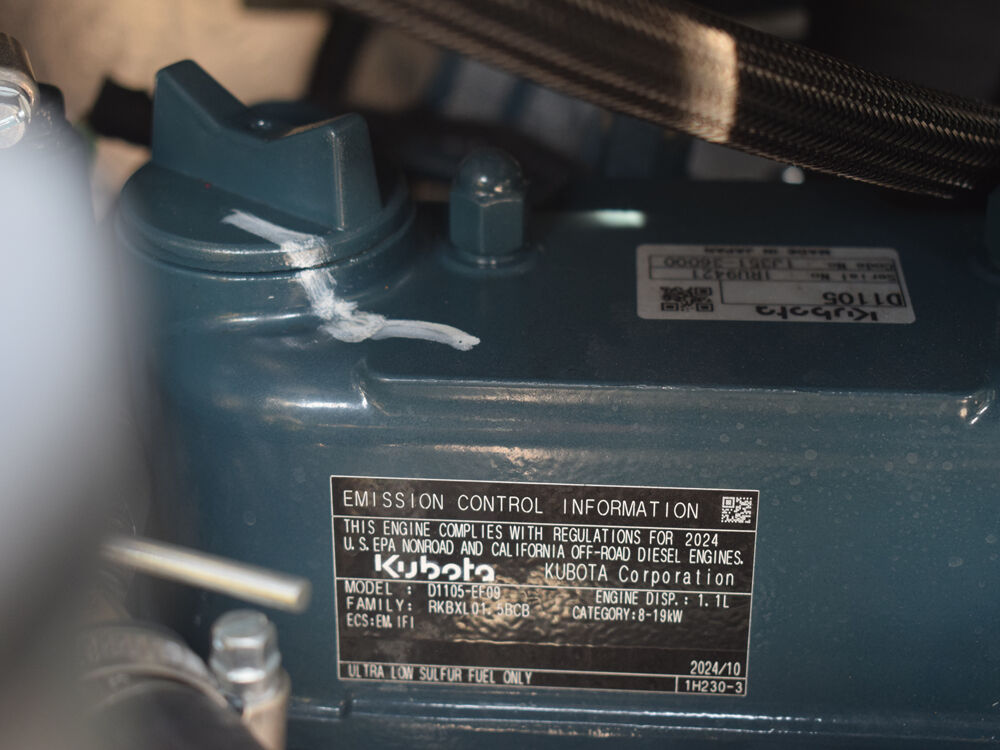

The PC30.3 wheeled mini excavator is equipped with a KUBOTA D1105 14kw three-cylinder engine, strictly meeting the EPA4/EURO 5 emission standards. It combines environmental protection performance with powerful power. The rated speed is stable at 2200 rpm. The power output is uniform and the fuel economy is excellent, meeting the requirements for long-term continuous operation.
The hydraulic system adopts high-precision control technology. The working pressure is as high as 20.5 Mpa. Combined with the maximum digging force of 23.5 KN for the bucket and 14 KN for the boom, it is equipped with a 1-10 rpm adjustable rotation speed. The operation is flexible and precise, with a standard bucket capacity of 0.1 m³ suitable for small and medium-sized operation scenarios, balancing efficiency and practicality.

2.Drive & Control System
The equipment is equipped with 300mm-wide rubber tracks, which have the functions of anti-slip, wear resistance and ground protection. It is suitable for various ground environments and can avoid damaging the paved road, lawn, etc.
The track gauge is 1250mm, the length of the ground tracks is 1565mm, the radius of the rotating tail is only 860mm, the minimum turning radius is 2160mm, and it has a maximum climbing ability of 58°. It can easily handle complex operation scenarios such as narrow spaces with steep slopes and rough terrains, and has extremely strong stability.



The drive system supports both high and low speed adjustments. The maximum driving speeds are 2.6 km/h at low speed and 4.5 km/h at high speed. It can be flexibly switched according to the operational requirements



3.Size

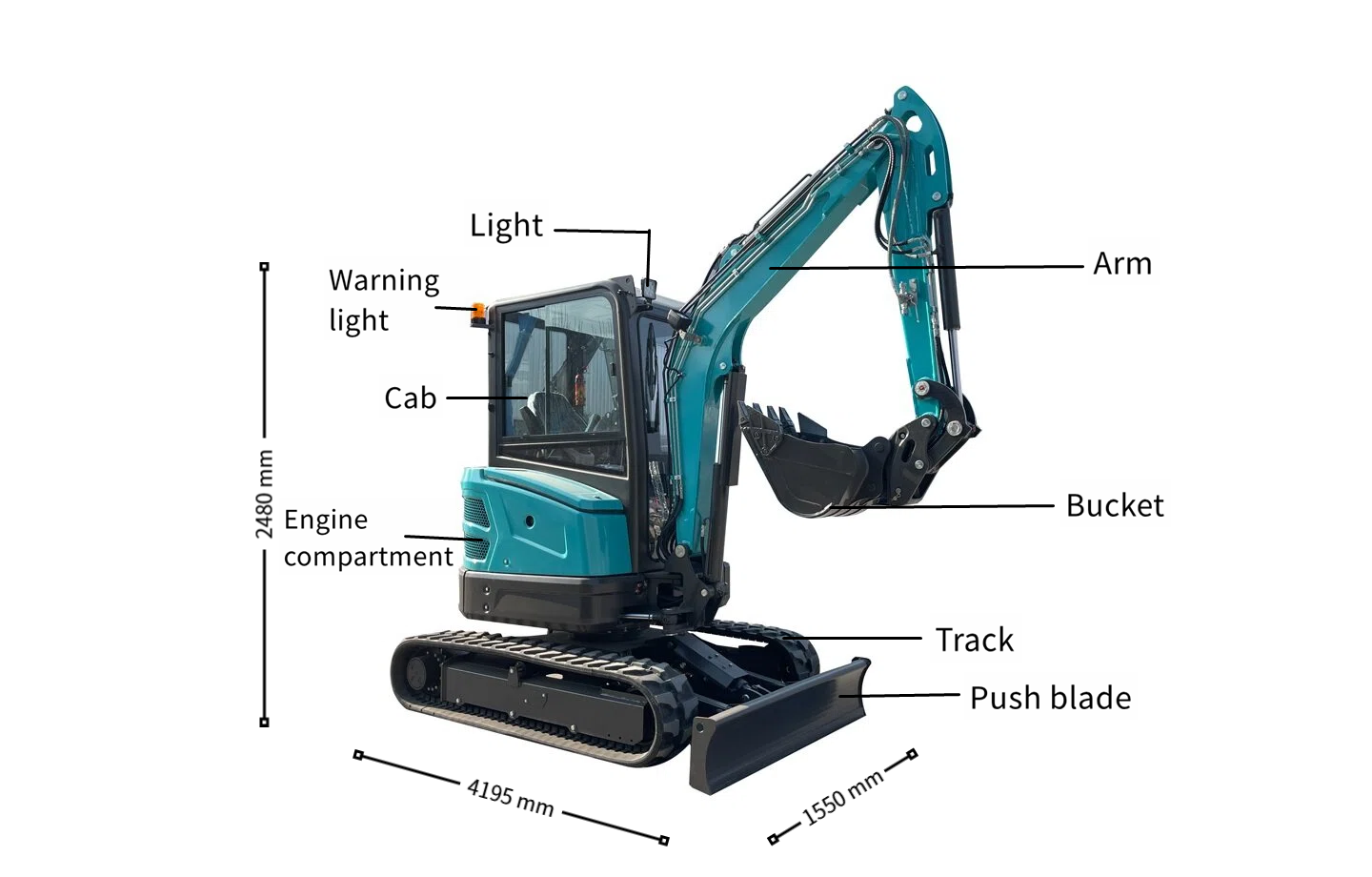

PC30.3 adopts a compact design,with an overall size of 4195mm×1550mm×2480mm. The equipment weighs 2750kg and has a minimum ground clearance of 286mm, which can effectively prevent the machine from being bumped by ground obstacles,ensuring safety during operations in complex terrains.
Operating range: Maximum digging height 4427mm,maximum dumping height 3005mm, maximum digging depth 2830mm, maximum digging radius 4835mm.The vertical digging depth can reach 2530mm. The boom can swing left and right at angles of 69° and 45° respectively. Combined with the plow shovel, the maximum lifting height is 308mm and the maximum cutting depth is 363mm. The operation coverage is wide, meeting the diverse excavation and leveling requirements.



4.Application

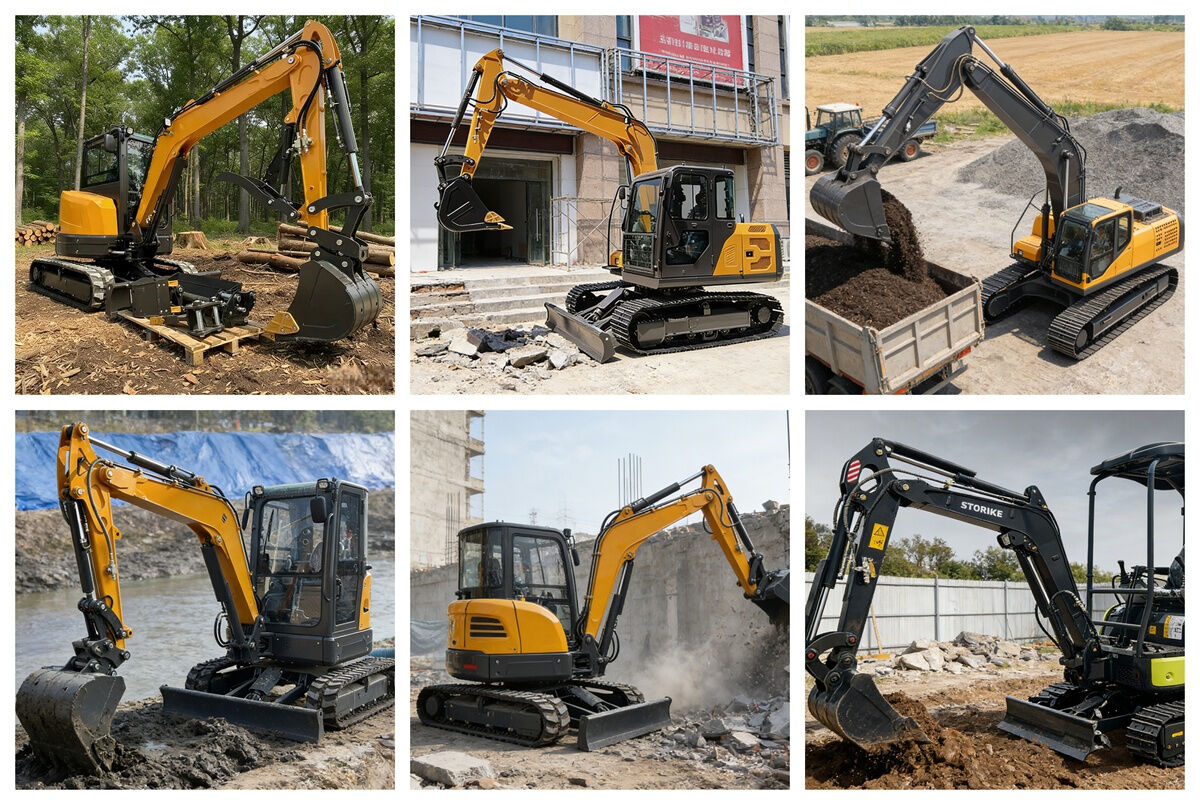

Small excavators are widely used. Here are the application scenarios of small excavators：
·  Municipal: Pipeline laying/repair, sidewalk excavation, manhole operation；
·  Landscaping: Digging tree pits, site grading, river channel dredging；
·  Rural: Homestead land leveling, farmland water conservancy, small-scale farm construction;
·  Construction: Indoor demolition, small-scale foundation excavation, basement finishing;
·  Others: Orchard renovation, small-scale demolition, emergency rescue and disaster relief.

5.Service
Comprehensive service guarantee: Offer a one-year warranty period and a professional service team available 24/7 online. In case of equipment issues, you can call the service hotline at any time. We will respond immediately and provide you with a full range of services including technical consultation, fault diagnosis, and maintenance guidance, ensuring your construction is worry-free.



6.Packing and shipping

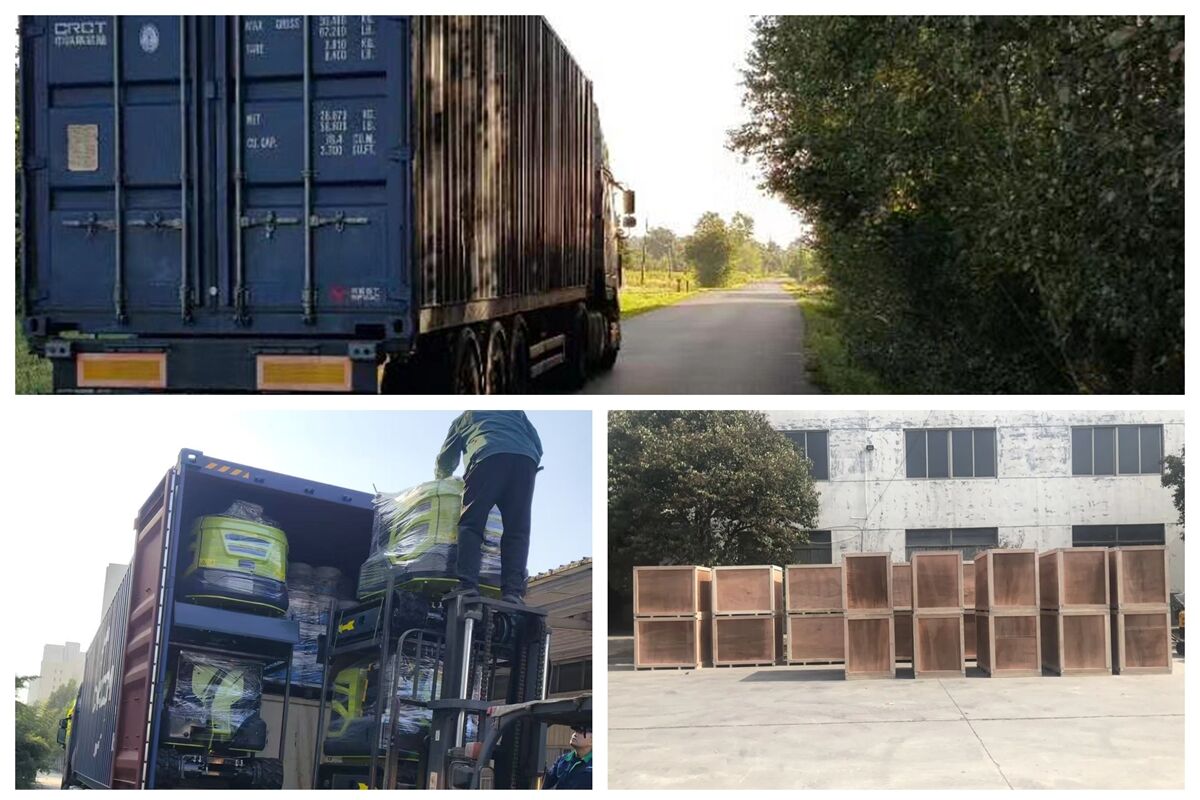

We provide wooden case packaging and strictly protect your machine's body as required, including components and paint finish, to ensure no scratches occur. Custom packaging is also available. We will select an appropriate transportation method for you. If you have a freight forwarder, we can also deliver the machine to your designated freight forwarder's location.



Company Introduction

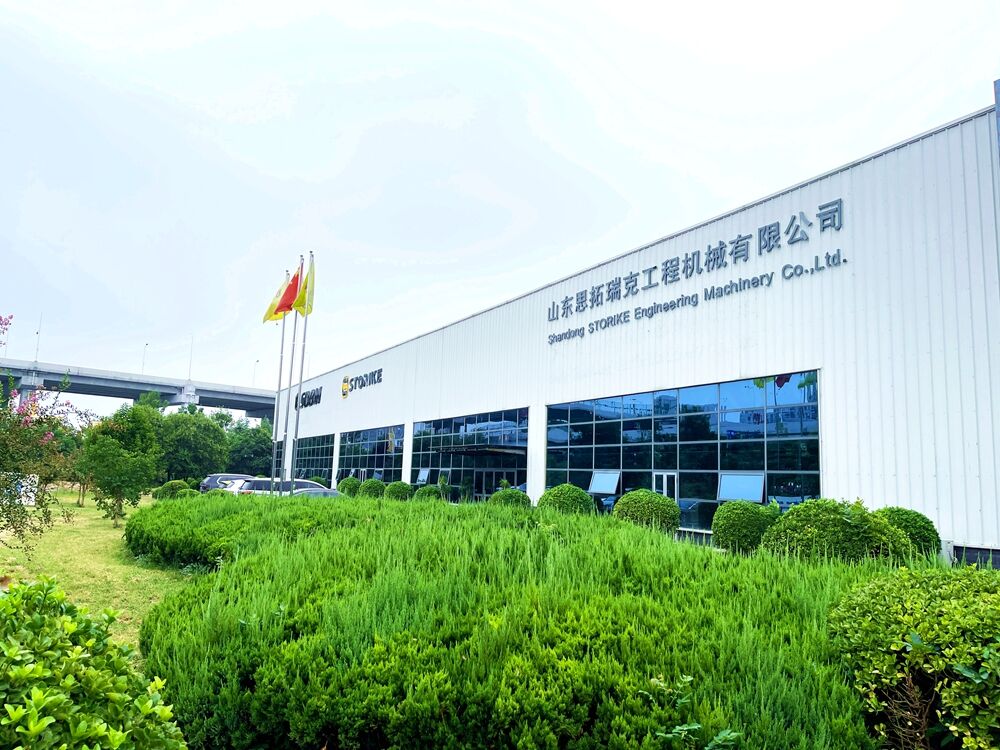

STORIKE is a professional engineering equipment manufacturer with 15 years of production experience, specializing in products such as light towers, plate compactors, road rollers, excavators and loaders. Our products have obtained CE, EPA and Euro 5 certifications, and can be flexibly customized according to engine types, while providing comprehensive OEM/ODM service support. All products undergo strict quality control. We have participated in the Canton Fair and international construction machinery exhibitions, serving more than 100 countries worldwide. We have 6 dedicated sales and service departments and a 23,000-square-meter modern manufacturing base. We warmly welcome global customers to visit our factory and explore cooperation opportunities.
