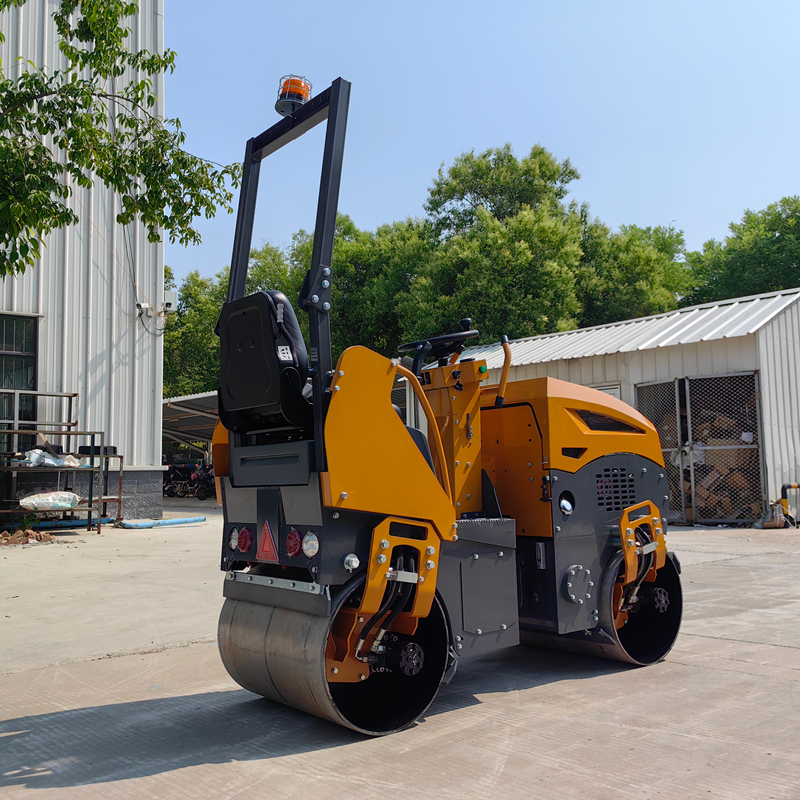

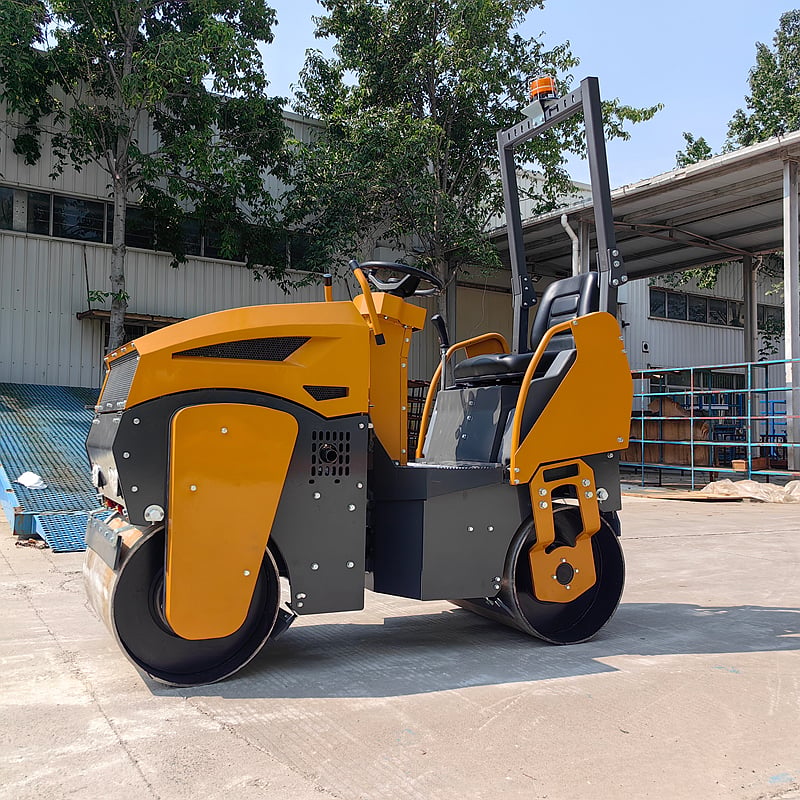

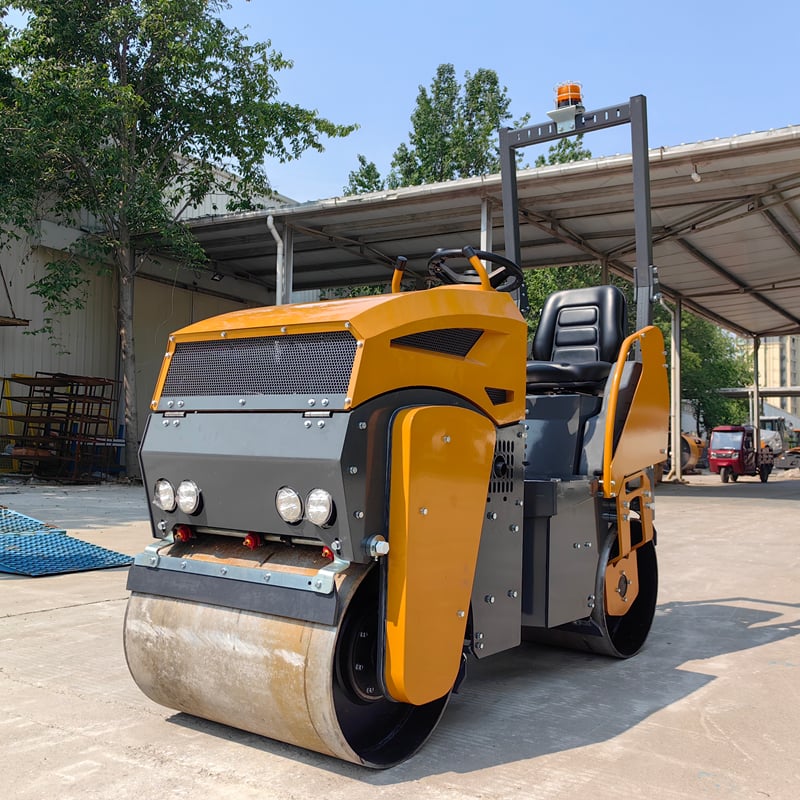

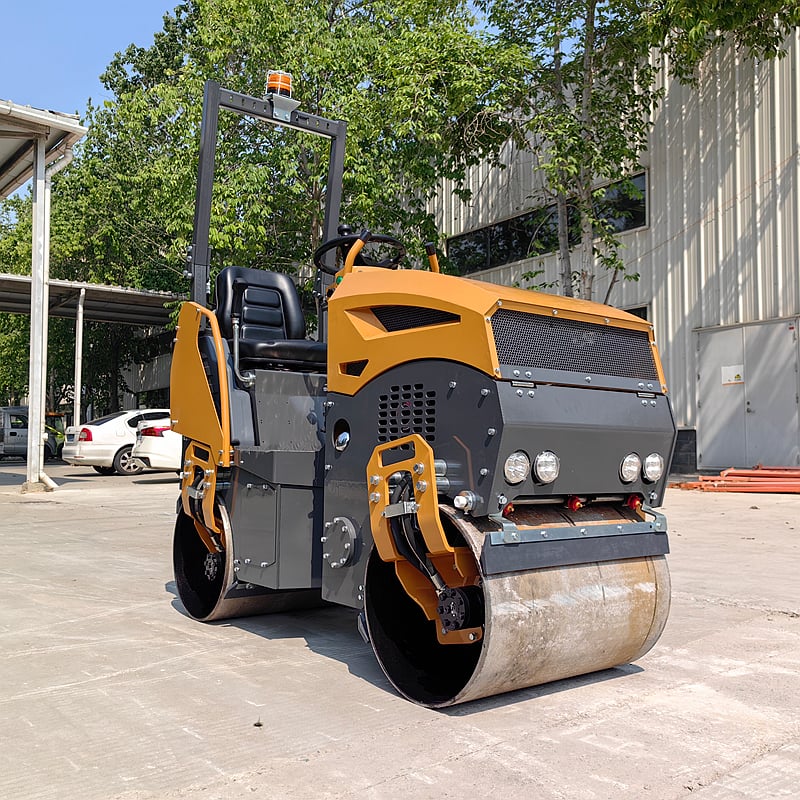

Vibratory roller |1 ton | ST1000

The ST1000 high-performance compact road roller features precise parameters, flexible operation and reliable power, making it an ideal choice for municipal, road and garden construction scenarios. It has strong compaction ability, flexible maneuverability and excellent durability. Coupled with comprehensive after-sales service, it ensures trouble-free construction.

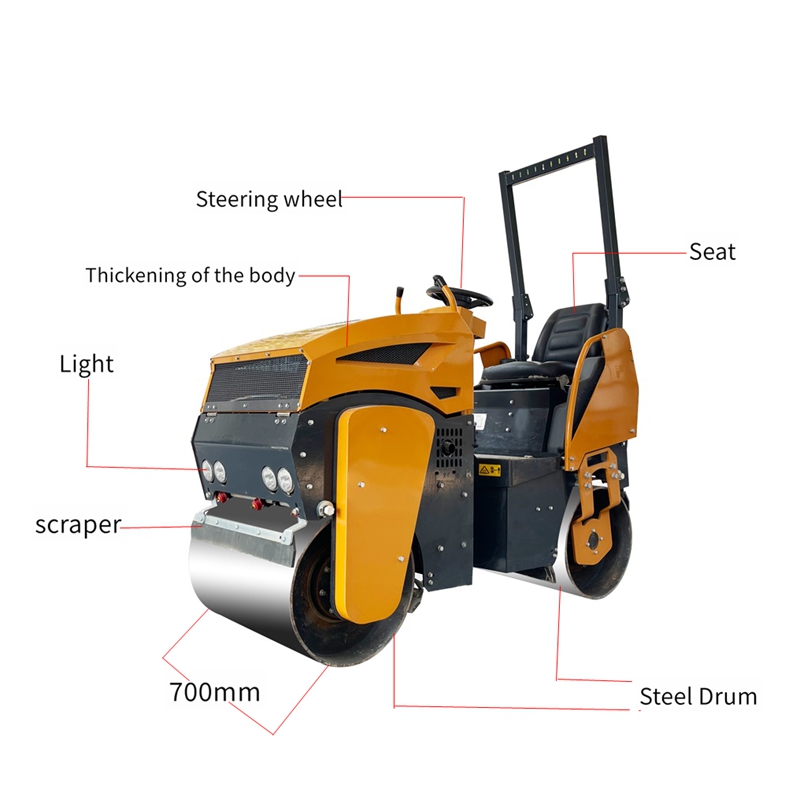

Details picture
Name	Steering system	Water tank	Seat	Motor

1.Power System

Two high-performance engines are available for selection, catering to different working conditions:

[1].HONDA Power: Equipped with the GX390 gasoline four-stroke single-cylinder engine, with an output power of up to 9.7KW and a rated speed of 3600rpm, suitable for continuous operation scenarios with high power requirements;

[2].CHANGFA/CHANGCHAI Power: Equipped with the 186F diesel four-stroke single-cylinder engine, with an output power of 6KW and a rated speed of 3600rpm, featuring economical fuel consumption and sufficient torque, suitable for long-term outdoor construction.

Both are equipped with a 12V electrical system, which is stable and easy to maintain.

[3].They are also paired with a 15L hydraulic fuel tank, a 6.5L fuel tank, and a 70L water tank, an intermittent spray anti-sticking cylinder, strong endurance, reducing the time for frequent refueling, and improving construction efficiency.

2.Drive & Control System

[1].The system adopts a variable plunger pump for stepless speed control with two wheels connected in series. The speed adjustment range is 0-6 km/h, allowing for precise control of the driving speed according to construction requirements.

[2].The theoretical climbing ability reaches 30%, enabling stable progress even on steep slopes, and it is suitable for complex terrains.

[3].The hydraulic steering is combined with a swing-hinged steering system, providing precise and flexible steering, significantly reducing the labor intensity of the operators, and allowing for easy turns even in narrow spaces.​

[4].The front wheel vibration drum (with a frequency of 70Hz, an amplitude of 0.5mm and an excitation force of 25KN) can quickly and efficiently compact various materials such as soil, sand, and asphalt. The compaction degree fully meets the engineering standards

3.Size
The equipment has been optimally designed to balance the coverage area and maneuverability:

[1].Operating weight: 1100kg;

[2].Static linear load: 56-77N/cm;

[3].The compressive strength is sufficient and uniform;

[4].Working width: 825mm; Combined with a 700mm-wide and 500mm-diameter vibrating drum, the total length is 1780-1870mm, the total height is 1450-1985mm, the turning radius is 2600mm.

It is small, flexible, and can easily handle complex construction environments.

4.Engine recommendation

How to Choose the Right Road Roller by Fuel Type?

[1].Gasoline engine → Easy maintenance and cold start

[2].Diesel engine → Fuel efficient and suitable for long work

The ST1000 detailed applications :

[1].Asphalt Road Construction: Ideal for compacting asphalt pavement on municipal roads, residential roads, community streets, and industrial parks;

[2].Road Repair & Maintenance: Perfect for pothole repair, trench backfill compaction, shoulder maintenance, and patching work;

[3].Sidewalks & Bicycle Paths: The compact body allows easy operation in narrow construction areas;

[4].Parking Lots & Driveways: Suitable for compacting parking areas, villa driveways, commercial plazas, and pedestrian pavements;

[5].Landscaping & Garden Engineering: Can be used for compacting garden paths, park roads, and landscape foundations;

[6].Construction Rental Business: Easy operation and low maintenance cost make it suitable for equipment rental companies.

We provide professional export packaging and global logistics solutions

Our Transportation Services Include:

[1].Strong wooden box packaging

[2].Sea freight, land freight, and air freight

[3].Delivery to customer-designated destination

[4].Export document support

[5].Container loading optimization

[6].Safe international transportation solutions

About STORIKE

STORIKE is a professional construction equipment manufacturer with over 15 years of production experience. We specialize in light towers, plate compactors, road rollers, excavators, skid steer loaders, and other construction machinery.

Why Choose STORIKE?

[1].CE / EPA / Euro 5 certified products

[2].OEM & ODM customization support

[3].Strict quality control system

[4].Exported to over 100 countries

[5].23,000㎡ modern manufacturing base

[6].6 professional sales & service departments

[7].Participated in Canton Fair and international construction exhibitions

[8].Agent cooperation support with protected profit margins

[9].Intelligent and environmentally friendly manufacturing philosophy

We warmly welcome global customers to visit our factory and establish long-term cooperation

Professional Service Support

[1].1-year warranty

[2].Free spare parts for non-human damage

[3].24-hour online support

[4].One-to-one after-sales guidance

[5].Original spare parts warehouse

[6].Technical operation manuals provided

[7].Video technical assistance available

Before purchasing spare parts, please confirm the exact model with our service team.

Safe Operation Guidelines

[1].Do not clean or maintain the machine while it is operating.

[2].Never use gasoline or flammable liquids for cleaning parts.

[3].Regularly inspect all control buttons and safety systems.

[4].Provide professional safety training for operators.

[5].Do not operate near flammable materials or explosive gases.

[6].Shut down the engine after use and store properly.

[7].Do not remove the air filter while the engine is running.

[8].Lock the articulated steering system before lifting or maintenance.

[9].Always follow the operation manual instructions.

Q1：How to choose between the two engines of ST1000 (HONDA gasoline version and Changfa/Changchai diesel version)?
A1: Select based on the working environment and requirements: If you need frequent continuous operation, have high power requirements, and gasoline refueling is allowed in the working environment, you can choose the HONDA GX390 gasoline version (9.7KW, with stronger power); if the operation time is long, there are many outdoor scenarios, you pursue fuel economy, and diesel refueling is more convenient, you can choose the CHANGFA/CHANGCHAI 186F diesel version (6KW, with sufficient torque and excellent durability), or you can contact us to customize the engine.

Q2：Can the compaction effect of ST1000 meet the engineering standards? Which materials can it compact?
A2: It fully meets the engineering standards! The equipment's operating weight is 1100kg, the static linear load is 56-77N/cm, the vibration force of the front wheel vibrating drum reaches 25KN, the vibration frequency is 70HZ, the amplitude is 0.5mm. It can efficiently compact various materials such as soil, sand, asphalt, etc.; with a 700mm wide drum, it has a wide coverage area, good compaction uniformity, and is suitable for initial compaction, small area re-compaction and other requirements, and the compaction degree complies with the specifications for small and medium-sized projects.

Q3: Can you arrange international shipping??
A3: Yes. We provide sea freight, air freight, land transportation, and destination delivery services.

Q4: What is the warranty period of the equipment, and where is your factory located?
A4: We provide a one-year whole-machine warranty. Our factory is located in Jining City, Shandong Province, China. If you need, please contact our sales team, who will customize a visit route for you.

Q5: Is technical support available?
A5: Yes. We provide 24-hour online technical support and operation guidance.
