ST1000 |1 ton | Vibratory roller

Articulated double drum vibratory road roller

What is a double drum road roller?
The double-steel-wheel roller has two rollers at the front and rear. Some models support synchronous vibration of the two rollers, which results in better compaction efficiency and uniformity. It is the core equipment for compacting asphalt pavement. The vibration mode is flexible and can be switched according to the types of materials such as soil, sand and gravel, and is suitable for each stage of initial compaction, re-compaction and final compaction.

What is the function of a road roller?
The core function of a road roller is to compact road-building materials such as soil, sand, gravel and asphalt mixture through its own weight or vibratory impact force. This improves the compactness, flatness and stability of the compacted materials, reduces their porosity, enhances load-bearing and anti-deformation capacity, and ensures the construction quality and service life of roads, foundations, dykes and other engineering projects.

FEATURES

• Equipped with famous brand power, quality assurance, superior performance.
• Eagle-eye body design, wide field of vision,beautiful and generous.

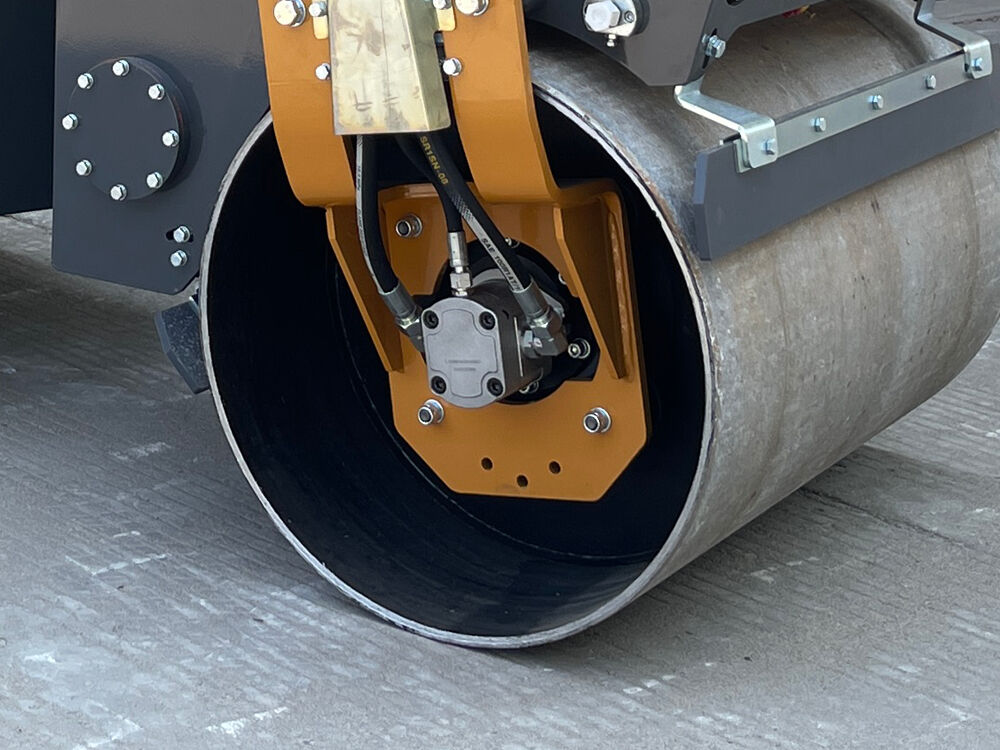

• Imported hydraulic variable pump and quantitative motor, stepless speed change walking forward and backward.
• The control panel is fully functional, one-key operation.
• Front and rear lighting & warning lights, can be constructed at night.
• Ergonomic driving.
• The product has passed the CE certification, and the design of the Red Star Award.

Product Parameter

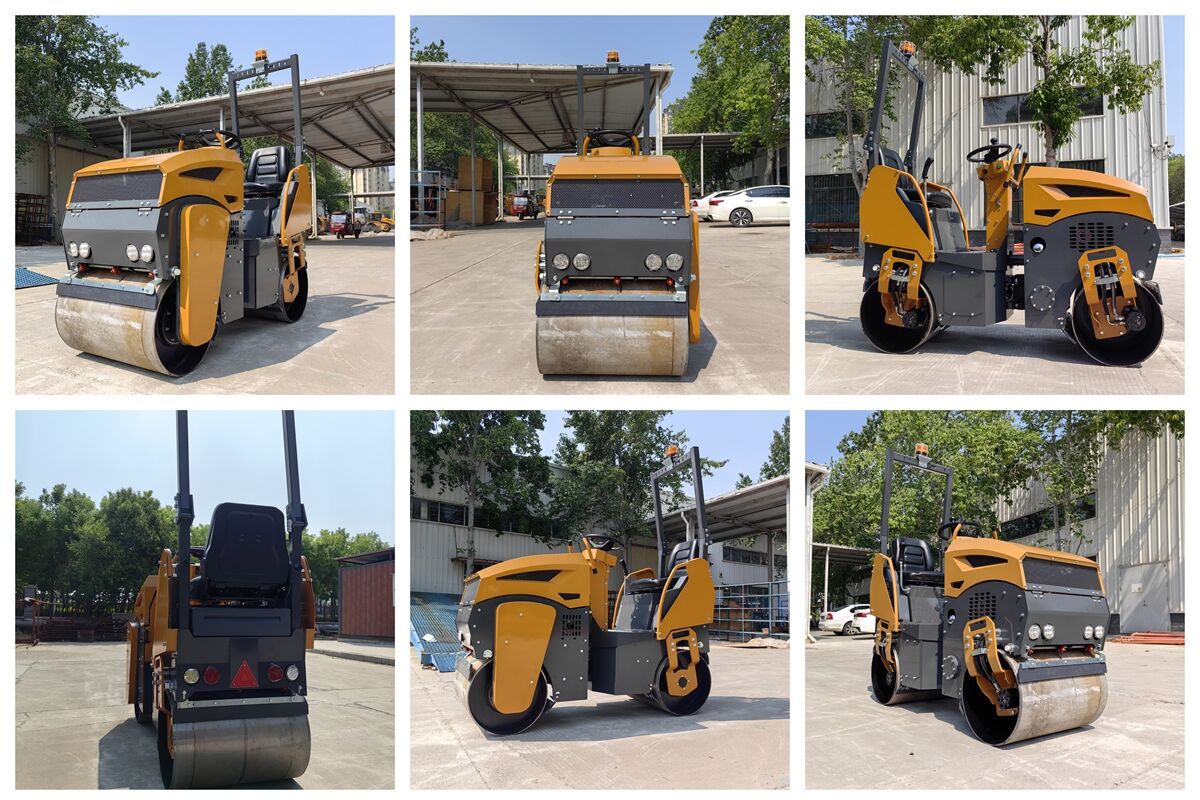

Product details
The ST1000 high-performance compact road roller features precise parameters, flexible operation and reliable power, making it an ideal choice for municipal, road and garden construction scenarios. It has strong compaction ability, flexible maneuverability and excellent durability. Coupled with comprehensive after-sales service, it ensures trouble-free construction.



1.Power system
Two high-performance engines are available for selection, catering to different working conditions:
HONDA Power: Equipped with the GX390 gasoline four-stroke single-cylinder engine, with an output power of up to 9.7KW and a rated speed of 3600rpm, suitable for continuous operation scenarios with high power requirements;
CHANGFA/CHANGCHAI Power: Equipped with the 186F diesel four-stroke single-cylinder engine, with an output power of 6KW and a rated speed of 3600rpm, featuring economical fuel consumption and sufficient torque, suitable for long-term outdoor construction.

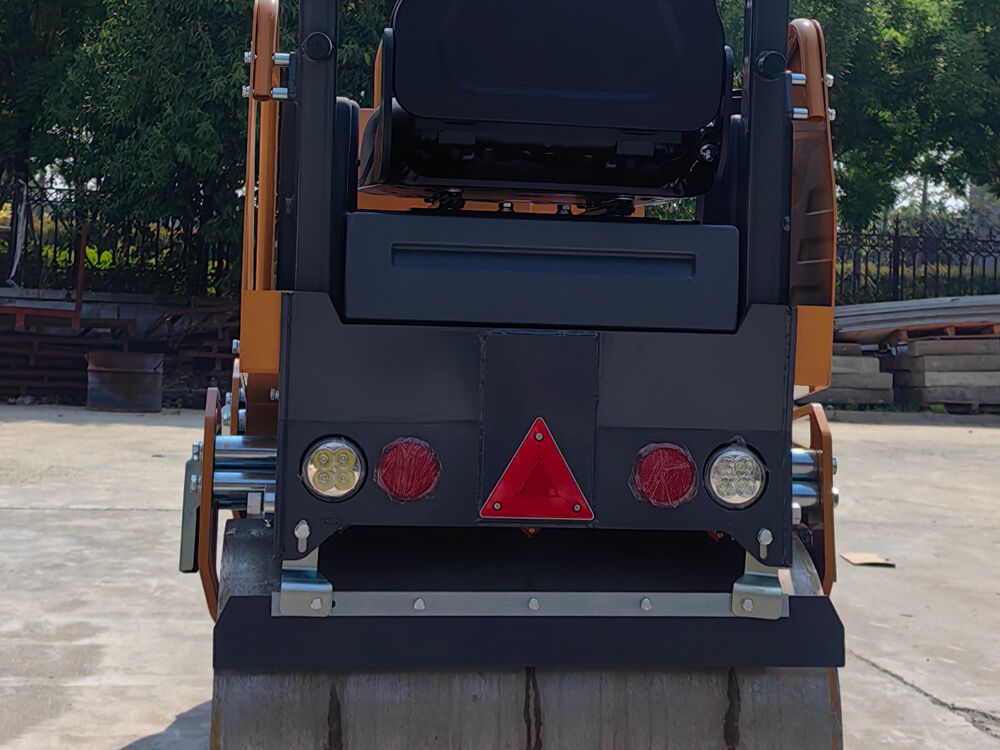

Both are equipped with a 12V electrical system, which is stable and easy to maintain. They are also paired with a 15L hydraulic fuel tank, a 6.5L fuel tank, and a 70L water tank, an intermittent spray anti-sticking cylinder, strong endurance, reducing the time for frequent refueling, and improving construction efficiency.

2.Drive & Control System
he system adopts a variable plunger pump for stepless speed control with two wheels connected in series. The speed adjustment range is 0-6 km/h, allowing for precise control of the driving speed according to construction requirements. The theoretical climbing ability reaches 30%, enabling stable progress even on steep slopes, and it is suitable for complex terrains.

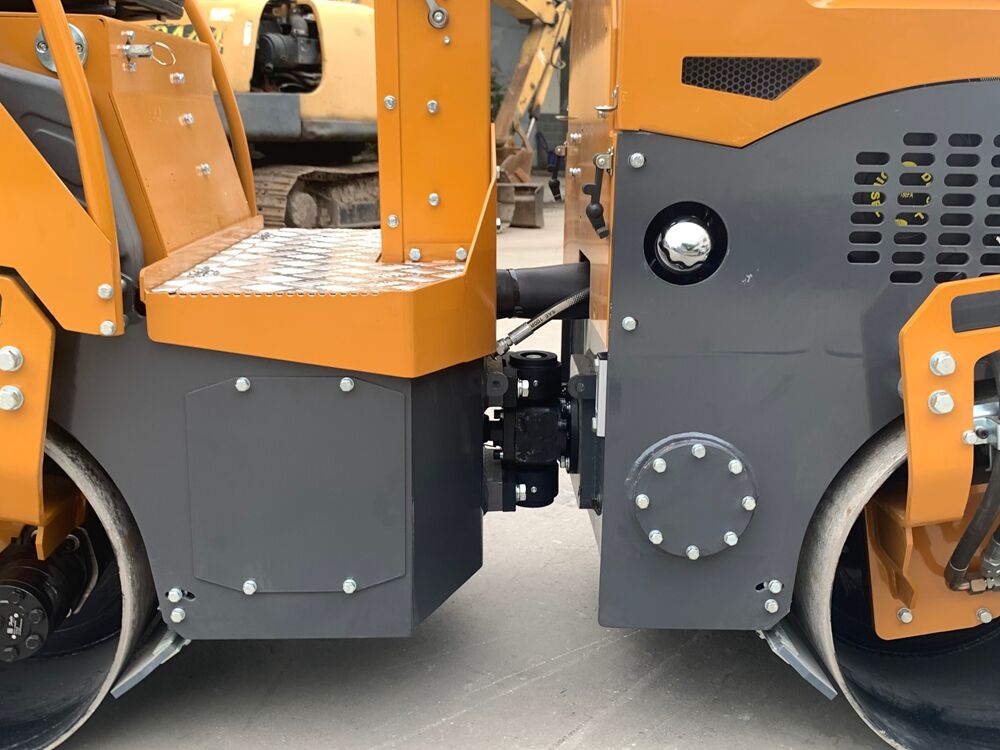

The hydraulic steering is combined with a swing-hinged steering system, providing precise and flexible steering, significantly reducing the labor intensity of the operators, and allowing for easy turns even in narrow spaces.​



The front wheel vibration drum (with a frequency of 70Hz, an amplitude of 0.5mm and an excitation force of 25KN) can quickly and efficiently compact various materials such as soil, sand, and asphalt. The compaction degree fully meets the engineering standards.



3.Size
The equipment has been optimally designed to balance the coverage area and maneuverability:

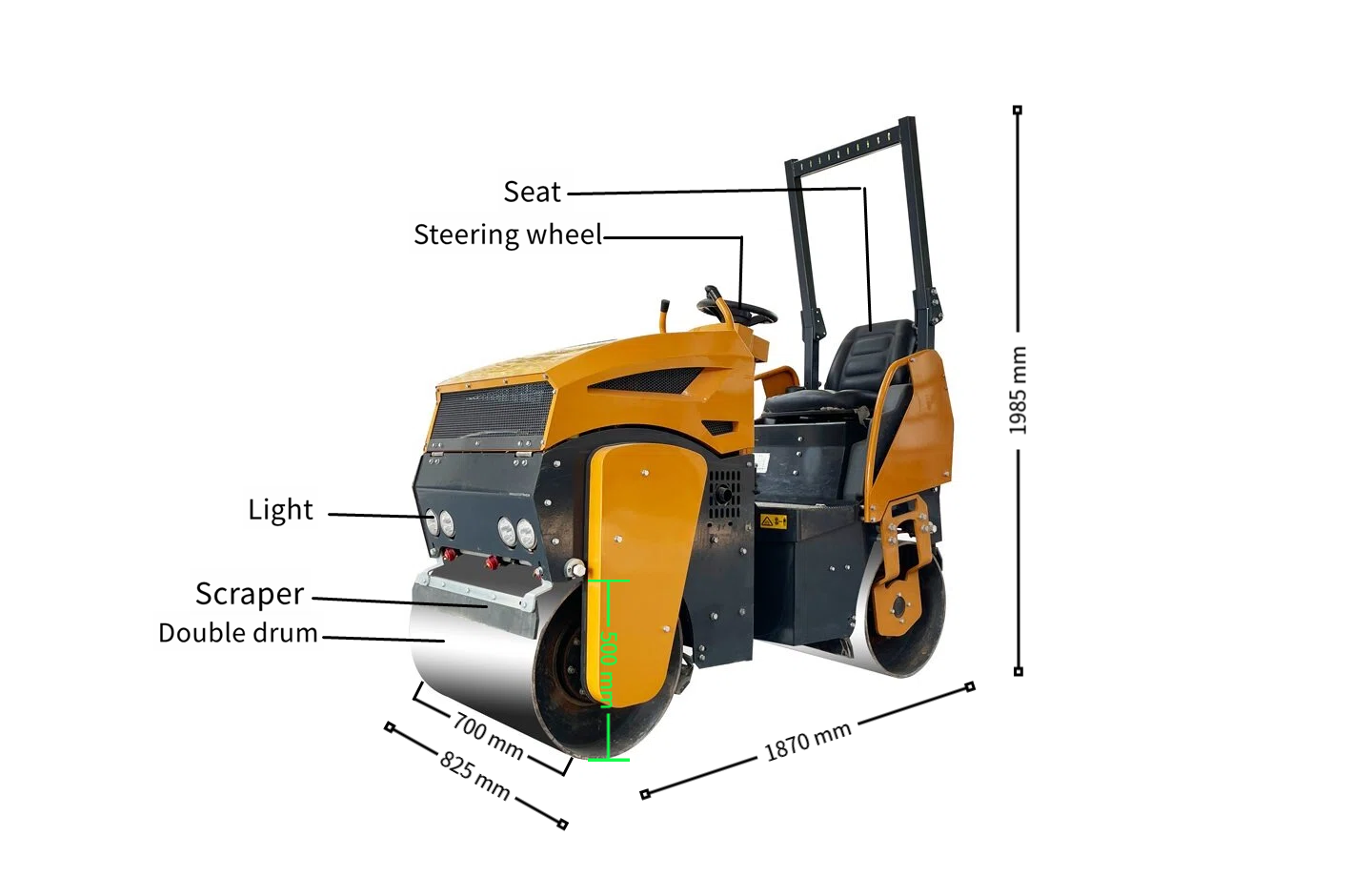

Operating weight: 1100kg; Static linear load: 56-77N/cm; The compressive strength is sufficient and uniform; Working width: 825mm; Combined with a 700mm-wide and 500mm-diameter vibrating drum, the total length is 1780-1870mm, the total height is 1450-1985mm, the turning radius is 2600mm. It is small, flexible, and can easily handle complex construction environments.



4.Application

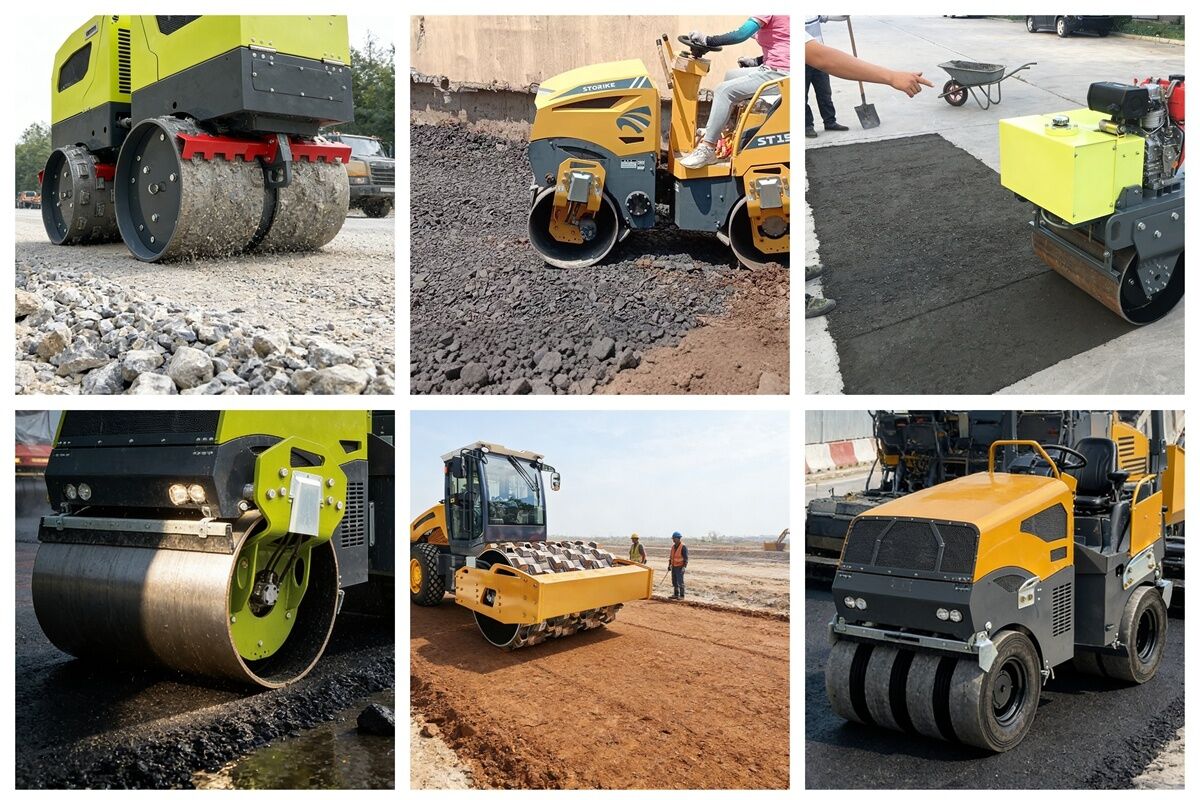

The ST1000 compact roller, with its flexible design and powerful performance,is widely applicable in the following scenarios:
· Municipal engineering: Sidewalk paving,community road maintenance, ground compaction in underground garages,and reinforcement around manhole covers;
· Road construction: Rural road paving, scenic area path maintenance, initial and final compaction of asphalt surfaces,and compaction of non-motorized vehicle lanes;
· Building construction: Compaction of house foundations,courtyard hardening,villa garden renovation,and small site leveling;
· Landscape gardening: Compaction of lawn bases,flower bed construction, road leveling in parks, and laying of landscape paths;
· Other scenarios: Compaction of warehouse floors,factory floor maintenance,emergency repair projects,and compaction of farm and water conservancy access roads,etc.

5.Service
Comprehensive service guarantee: Offer a one-year warranty period and a professional service team available 24/7 online. In case of equipment issues, you can call the service hotline at any time. We will respond immediately and provide you with a full range of services including technical consultation, fault diagnosis, and maintenance guidance, ensuring your construction is worry-free.



6.Packing and shipping
We provide wooden case packaging and strictly protect your machine's body as required, including components and paint finish, to ensure no scratches occur. Custom packaging is also available. We will select an appropriate transportation method for you. If you have a freight forwarder, we can also deliver the machine to your designated freight forwarder's location.



Company Introduction
STORIKE is a professional engineering equipment manufacturer with 15 years of production experience, specializing in products such as light towers, plate compactors, road rollers, excavators and loaders. Our products have obtained CE, EPA and Euro 5 certifications, and can be flexibly customized according to engine types, while providing comprehensive OEM/ODM service support. All products undergo strict quality control. We have participated in the Canton Fair and international construction machinery exhibitions, serving more than 100 countries worldwide. We have 6 dedicated sales and service departments and a 23,000-square-meter modern manufacturing base. We warmly welcome global customers to visit our factory and explore cooperation opportunities.

Suggested use
Here are some safety tips to help you maintain the machine and extend its service life：
Safety Tips & Maintenance Advice：
·  During the operation of the equipment, do not perform cleaning or maintenance work. Rotating parts may cause personal injury.
·  It is strictly prohibited to clean parts with gasoline, other fuels or flammable solvents, especially in enclosed areas; the fumes volatilized from fuels and solvents are prone to accumulation, which may cause explosions.
·  Regularly check the external buttons of the equipment to ensure their normal functions.
·  Provide professional operation and safety training to equipment operators on a regular basis.
·  Do not operate the equipment in areas with flammable substances, fuel or flammable vapors.
·  After the equipment is out of service, turn off the engine immediately, store it in a clean, dry area out of the reach of children, and ensure standardized storage.
·  Do not remove the air filter cover, paper filter element and pre-cleaner while the engine is running.
·  Before hoisting, jacking up the equipment or performing maintenance work, be sure to fasten the articulated steering connection in place with a locking rod.
· We provide instruction manuals and operation suggestions. Please use the machine in accordance with the manual to ensure personal safety and avoid machine damage.
