ST2000U |2 Ton | Vibratory roller

The ST2500U high-performance compact road roller features precise parameters, flexible operation and reliable power, making it an ideal choice for municipal, road and garden construction scenarios. It has strong compaction ability, flexible maneuverability and excellent durability. Coupled with comprehensive after-sales service, it ensures trouble-free construction.

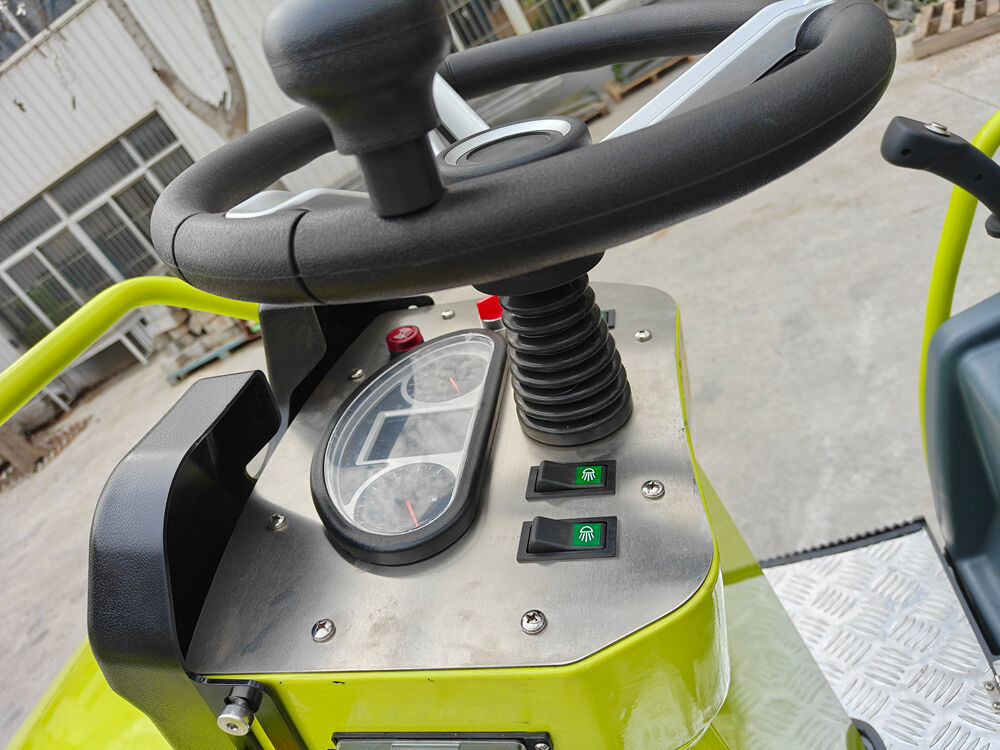

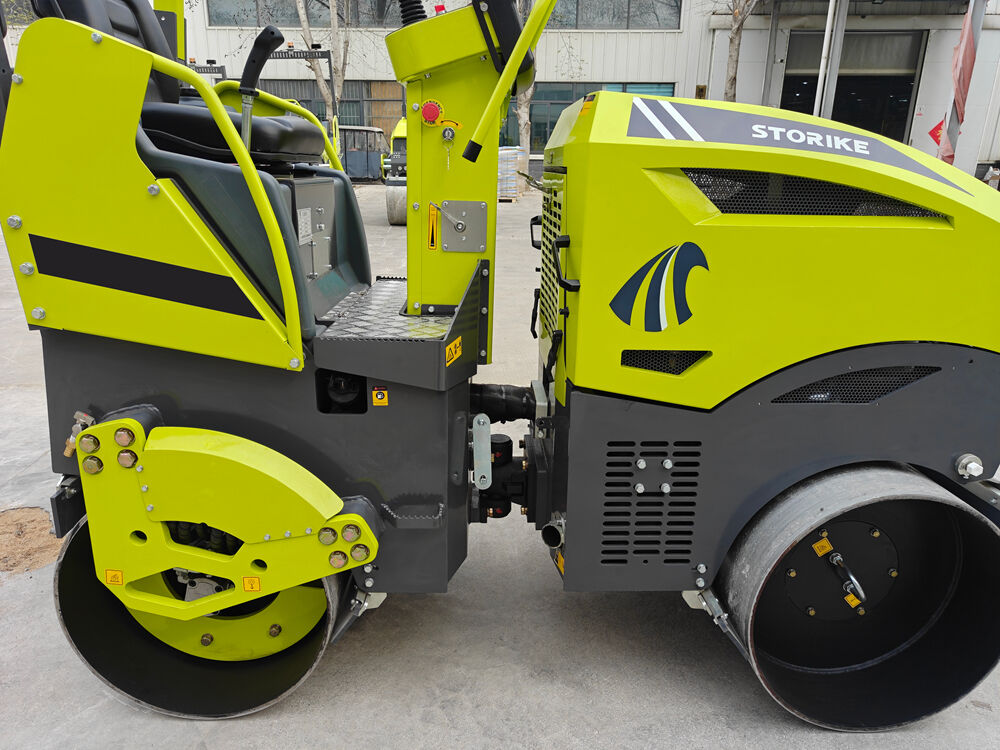

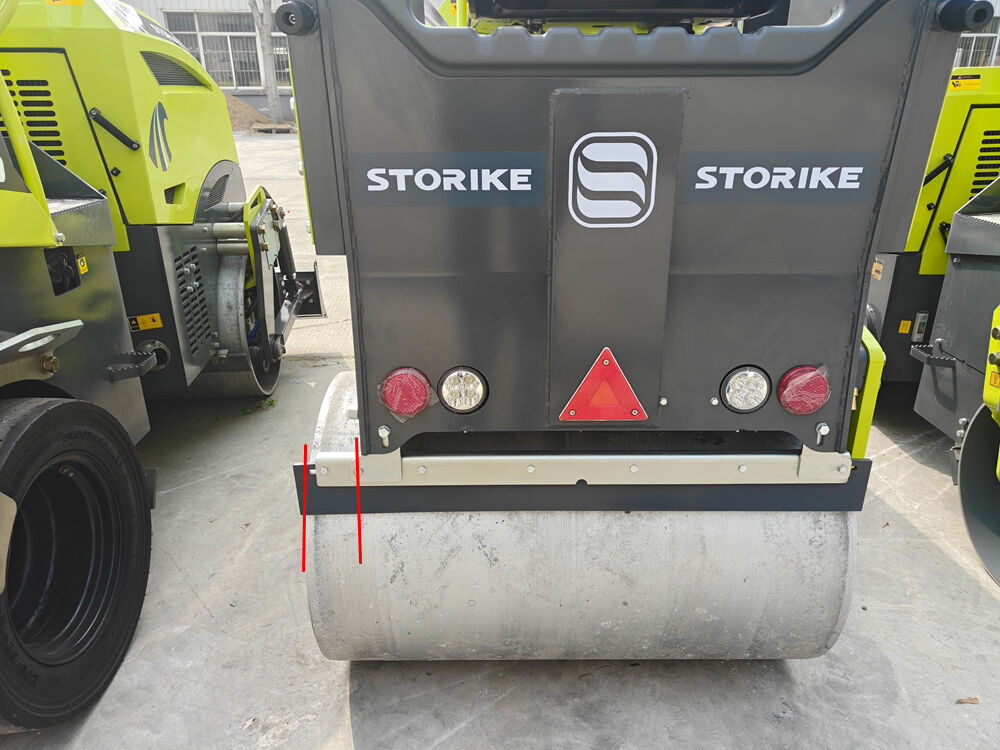

Front wheel	Rear wheel	Link	Control panel

1.Power System

- The ST2500U paver is equipped with three mature 3-cylinder four-stroke water-cooled diesel engine configurations, which ensure efficient output for various compaction operations:

①. Yanmar 3TNV80: Output power 18.6kW, 3200rpm
②. Changchai 3M78: Output power 18.5kW, 3000rpm
③. Kubota D1105: Output power 18.2kW, 3000rpm

- The 12V electrical system is suitable for stable startup and operation in various scenarios.

- The 36L large-capacity fuel tank significantly extends the continuous operation time, reduces refueling and downtime, and significantly improves construction efficiency.

2.Drive & Control System

- By adopting an advanced variable plunger pump stepless speed regulation system combined with a dual-wheel drive motor parallel structure, a stepless speed adjustment range of 0-8 km/h is achieved. The operation speed can be flexibly adjusted according to the construction conditions.

- The theoretical climbing ability is 30/35%, and the hydraulic cylinder articulated steering is combined with the swing articulated system. The minimum outer turning radius is only 2910mm, enabling flexible control even in narrow construction sites.

- The intermittent pressure spraying water system is equipped with a 160L large water tank, effectively preventing asphalt from adhering to the wheels. The 45L hydraulic oil capacity ensures the long-term stable operation of the hydraulic system.

- Equipped with an efficient vibration system driven by hydraulic motors, it supports two modes: single-wheel vibration (at a frequency of 68Hz and an excitation force of 20kN) and dual-wheel vibration (at a frequency of 46Hz and an excitation force of 10kN). It is suitable for different soil and asphalt compaction requirements from the base layer to the surface layer, ensuring uniform compaction density and meeting the standards.

3.Size

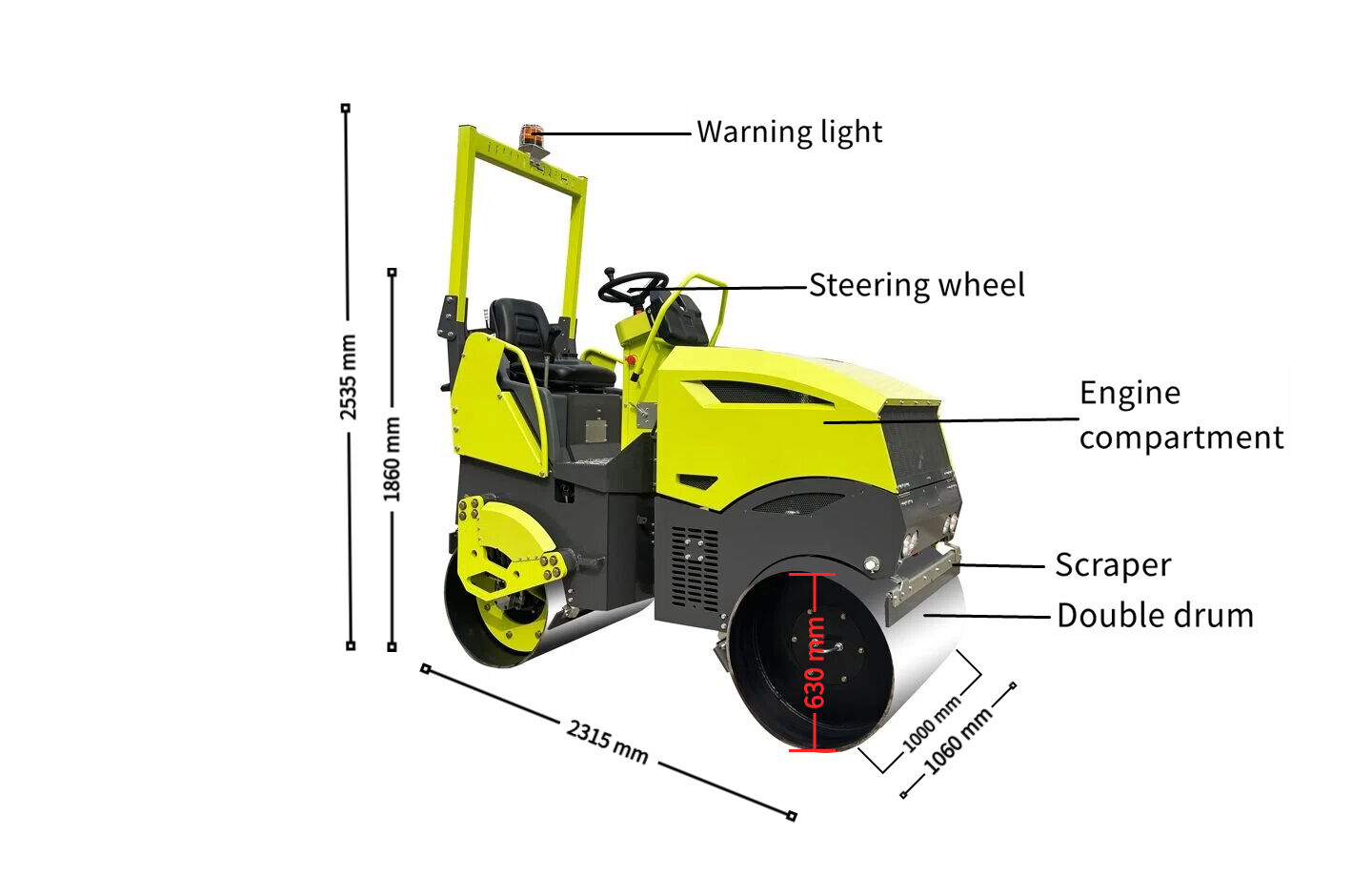

- The entire machine adopts a compact and sturdy structural design. With a 1060mm operation width and a 1000mm steel wheel width, it can cover a large area in a single pass and is suitable for operations in narrow spaces. The 630mm steel wheel diameter and 1560mm axle distance ensure stability and uniform compaction during operation.

- The machine's dimensions (length 2315/2255mm, height 1860/2535mm) facilitate transportation between construction sites. Its working weight of 1820kg and static load of 90N/cm provide sufficient pressure for compaction of base layers and surface layers. The optimized structural design ensures high reliability and long service life, and reduces the maintenance cost throughout the entire life cycle.

The ST2500U compact roller, with its flexible design and powerful performance,is widely applicable in the following scenarios:

• Municipal engineering: Sidewalk paving,community road maintenance, ground compaction in underground garages,and reinforcement around manhole covers;
• Road construction: Rural road paving, scenic area path maintenance, initial and final compaction of asphalt surfaces,and compaction of non-motorized vehicle lanes
• Building construction: Compaction of house foundations,courtyard hardening,villa garden renovation,and small site leveling;
• Landscape gardening: Compaction of lawn bases,flower bed construction, road leveling in parks, and laying of landscape paths;
• Other scenarios: Compaction of warehouse floors,factory floor maintenance,emergency repair projects,and compaction of farm and water conservancy access roads,etc.

We provide wooden case packaging and strictly protect your machine's body as required, including components and paint finish, to ensure no scratches occur. Custom packaging is also available. We will select an appropriate transportation method for you. If you have a freight forwarder, we can also deliver the machine to your designated freight forwarder's location.

Company Introduction

STORIKE is a professional engineering equipment manufacturer with 15 years of production experience, specializing in products such as light towers, plate compactors, road rollers, excavators and loaders. Our products have obtained CE, EPA and Euro 5 certifications, and can be flexibly customized according to engine types, while providing comprehensive OEM/ODM service support. All products undergo strict quality control. We have participated in the Canton Fair and international construction machinery exhibitions, serving more than 100 countries worldwide. We have 6 dedicated sales and service departments and a 23,000-square-meter modern manufacturing base. We warmly welcome global customers to visit our factory and explore cooperation opportunities.

Service

Comprehensive service guarantee: Offer a one-year warranty period and a professional service team available 24/7 online. In case of equipment issues, you can call the service hotline at any time. We will respond immediately and provide you with a full range of services including technical consultation, fault diagnosis, and maintenance guidance, ensuring your construction is worry-free.

Suggested use
Here are some safety tips to help you maintain the machine and extend its service life：
Safety Tips & Maintenance Advice：

• During the operation of the equipment, do not perform cleaning or maintenance work. Rotating parts may cause personal injury.
• It is strictly prohibited to clean parts with gasoline, other fuels or flammable solvents, especially in enclosed areas; the fumes volatilized from fuels and solvents are prone to accumulation, which may cause explosions.
• Regularly check the external buttons of the equipment to ensure their normal functions.
• Provide professional operation and safety training to equipment operators on a regular basis.
• Do not operate the equipment in areas with flammable substances, fuel or flammable vapors.
• After the equipment is out of service, turn off the engine immediately, store it in a clean, dry area out of the reach of children, and ensure standardized storage.
• Do not remove the air filter cover, paper filter element and pre-cleaner while the engine is running.
• Before hoisting, jacking up the equipment or performing maintenance work, be sure to fasten the articulated steering connection in place with a locking rod.
• We provide instruction manuals and operation suggestions. Please use the machine in accordance with the manual to ensure personal safety and avoid machine damage.

Q1：What are the differences among the vibration modes and in what scenarios are they suitable?
A1: The equipment supports two vibration modes: single front-wheel vibration (68Hz frequency, 20kN excitation force) which is suitable for deep compaction of subgrade and sub-base layers, and large excitation force can quickly enhance soil density; dual-wheel vibration at the front and rear (46Hz frequency, 10kN excitation force) which is suitable for fine compaction of surface layers such as asphalt layers, avoiding overloading that may damage the pavement structure. With a uniform amplitude of 0.45mm, it ensures uniform compaction and covers the entire process of construction from the base to the surface layer.

Q2：Which engine configurations does this road roller support and is it suitable for different working conditions?
A2: The ST2500U offers three mature power options: YANMAR 3TNV80, CHANGCHAI 3M78, and KUBOTA D1105. All are 3-cylinder four-stroke water-cooled diesel engines with output power ranging from 18.2 to 18.6 kW. You can choose flexibly based on the construction environment, fuel compatibility, and maintenance convenience. Whether it's municipal roads, residential pavement, or small infrastructure projects, it can meet the stable and efficient power requirements.

Q3: How to control fuel consumption costs in daily use?
A3: The core methods for controlling fuel consumption in daily operations: First, choose the appropriate engine model based on the operation materials and compaction requirements; second, avoid prolonged idling and promptly shut down the engine during breaks in the operation; third, regularly maintain the engine (such as cleaning the air filter, checking the spark plugs / fuel injectors), keeping the engine in the best working condition to reduce fuel consumption.

Q4: What is the warranty period of the equipment, and where is your factory located?
A4: We provide a one-year whole-machine warranty. Our factory is located in Jining City, Shandong Province, China. If you need, please contact our sales team, who will customize a visit route for you.

Q5: How to get after-sales support in case of equipment failure or remote control problems?
A5: We have a professional service team providing 24/7 reception service. You can call the service hotline at any time. We will respond immediately, offer remote technical consultation and fault diagnosis, and arrange on-site maintenance if necessary.
