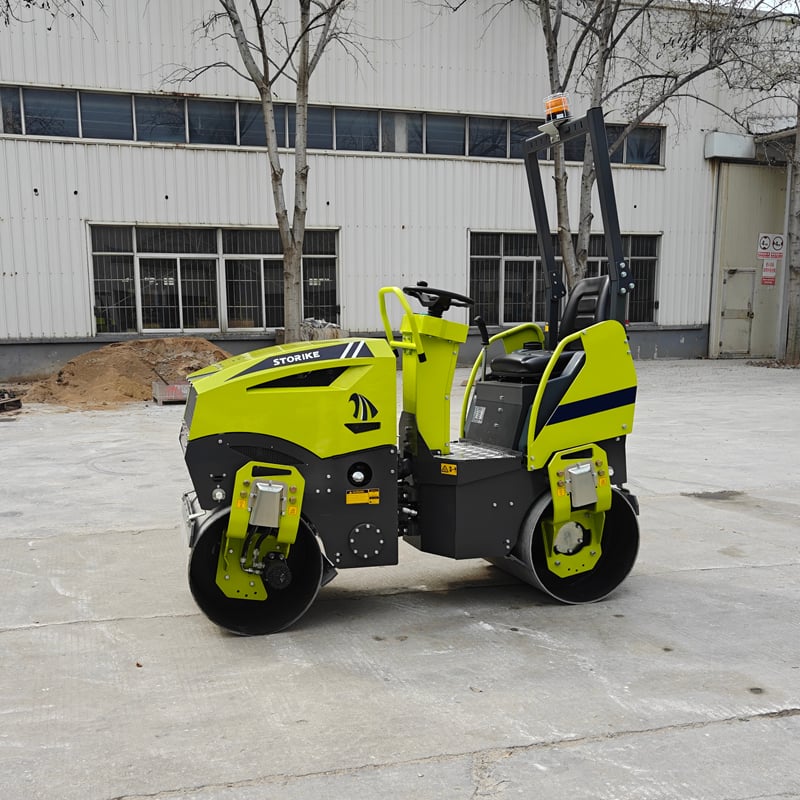

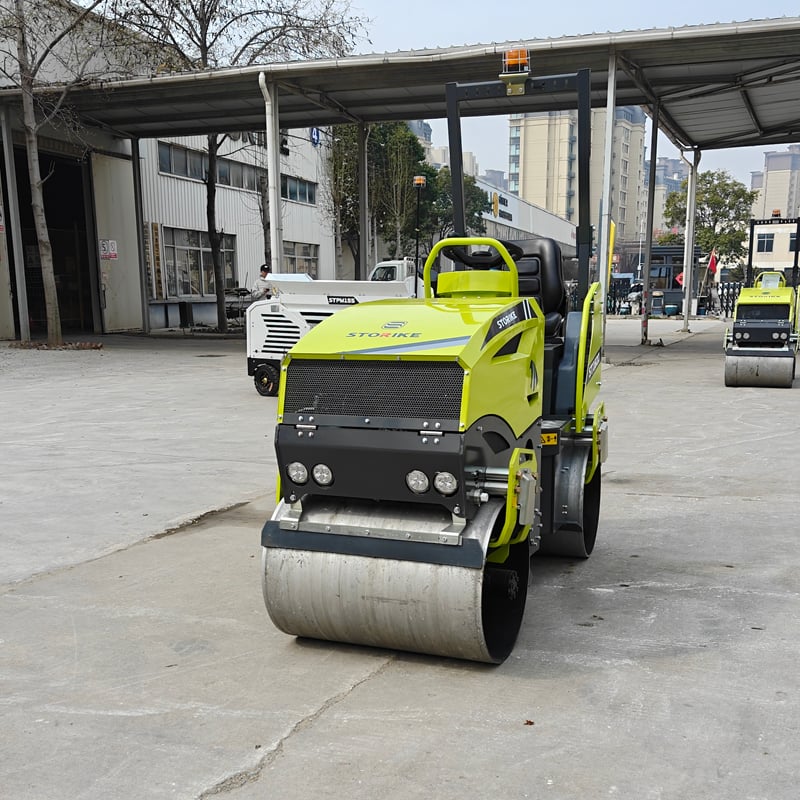

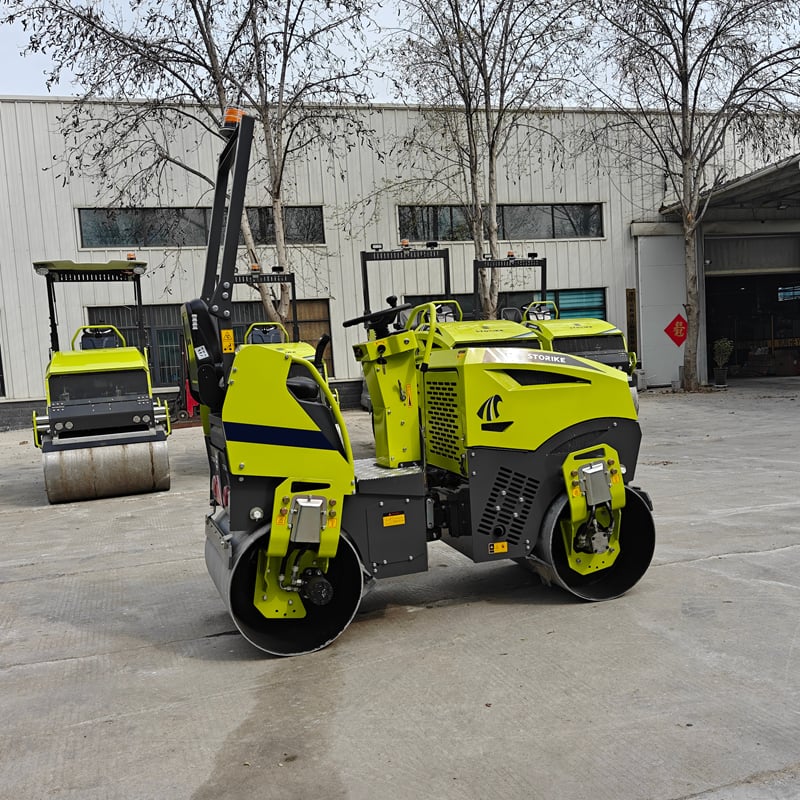

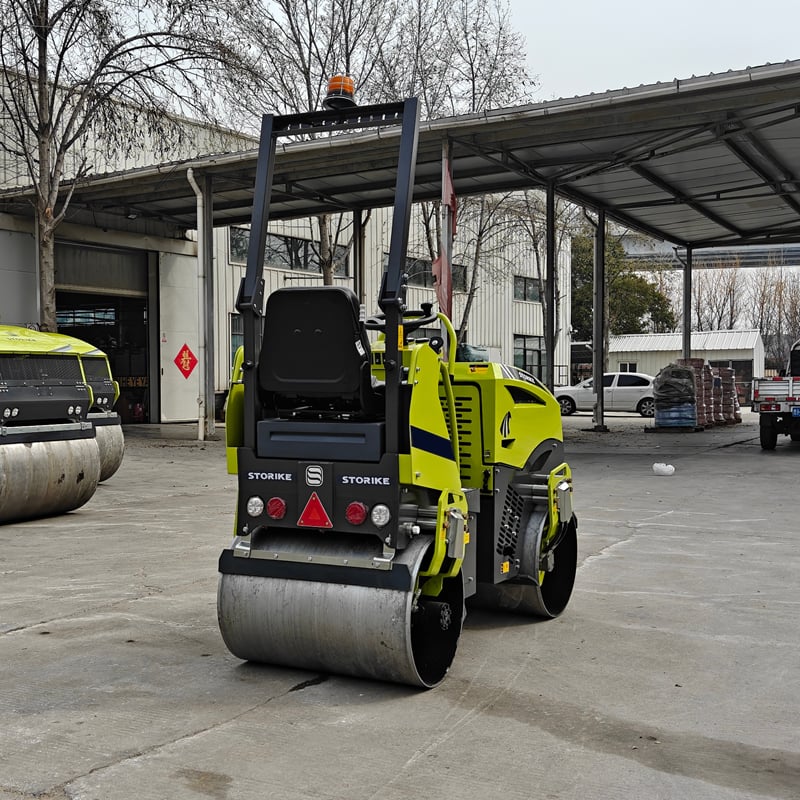

Vibratory roller | 1.3 ton | ST1300

The ST1300 small road roller is an efficient equipment specially designed for the compaction work in small and medium-sized projects. It has become an ideal choice in fields such as municipal construction, highways, and architecture.

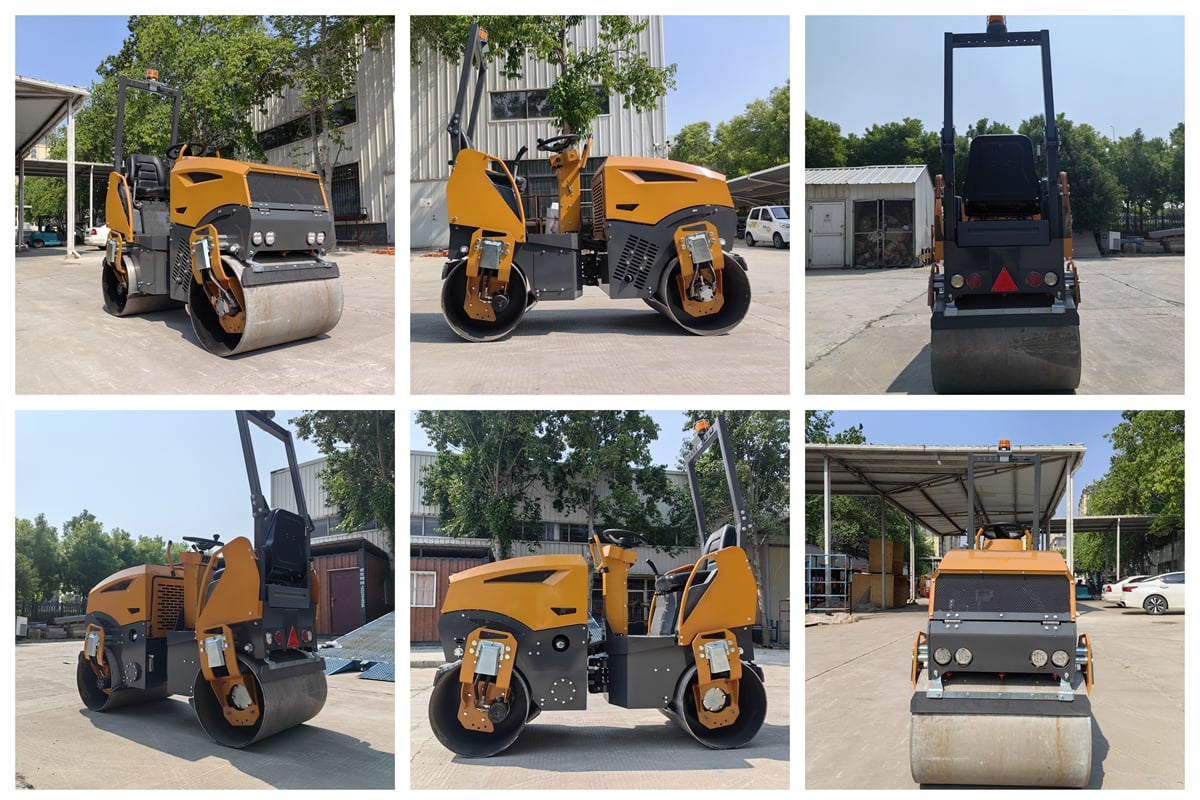

Details picture

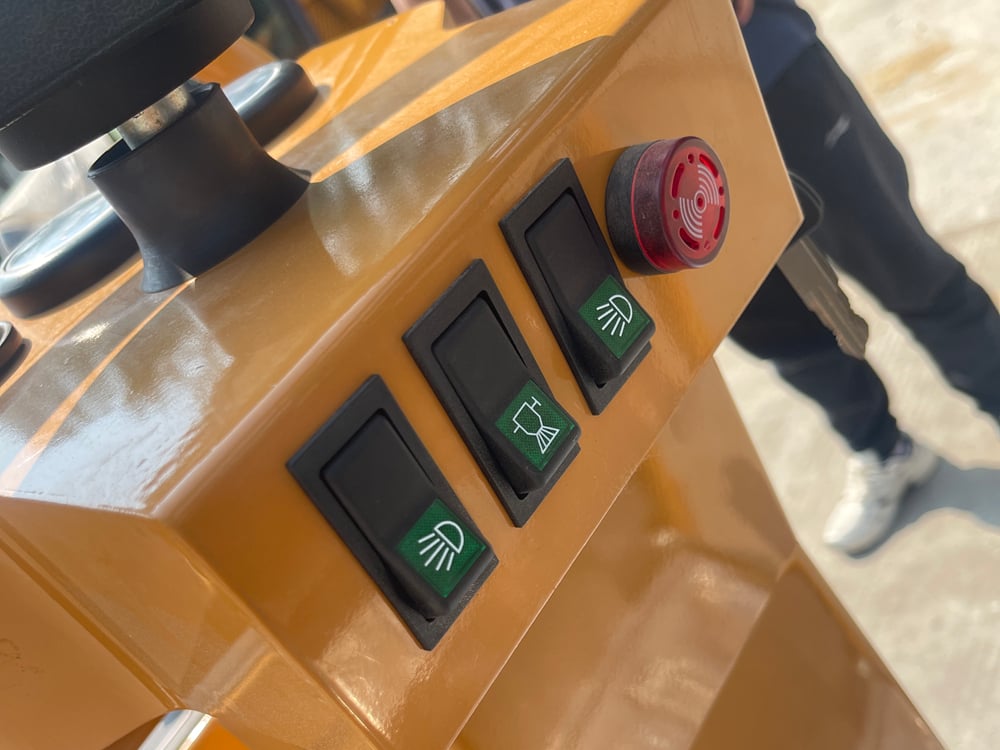

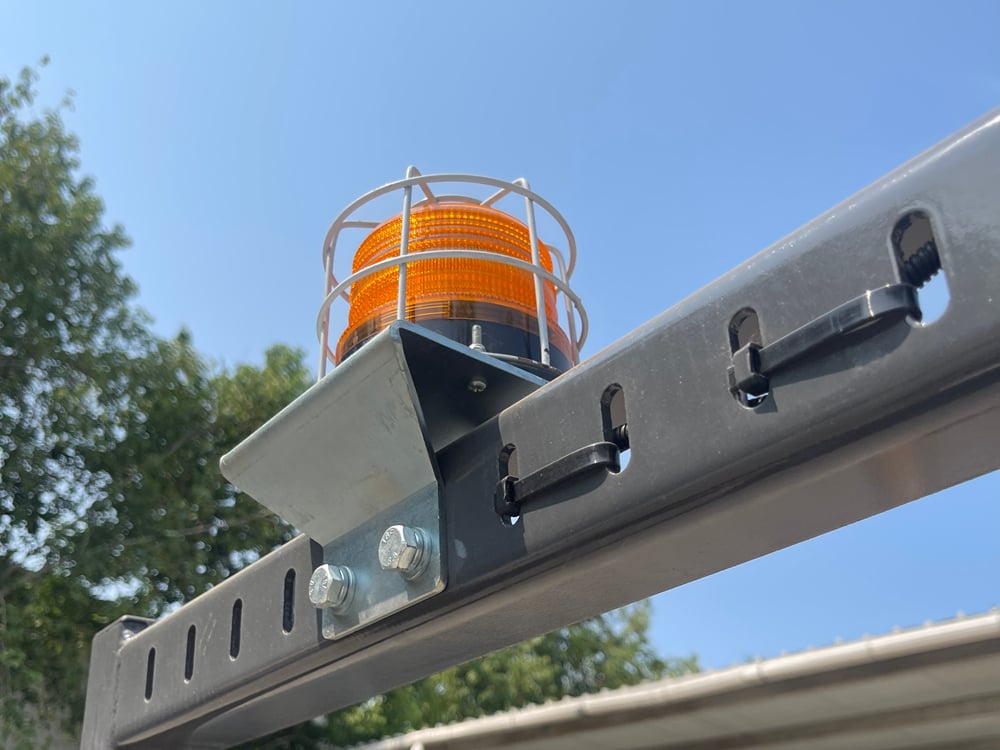

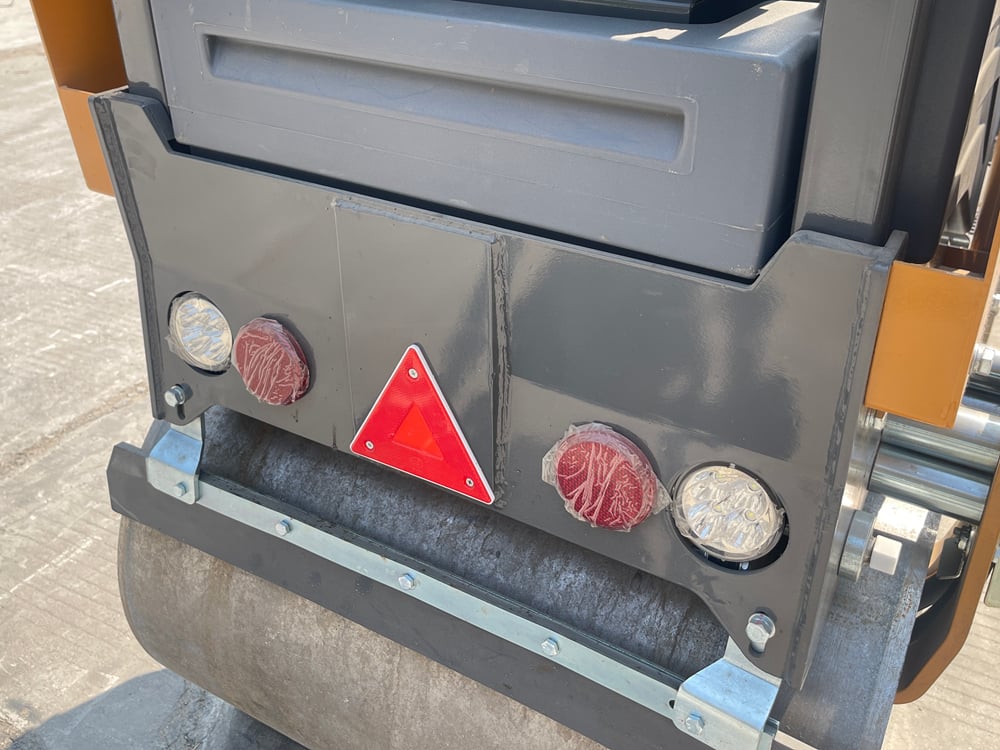

Name	Operation button	Engine	Scraping plate	Warning light

1.Power system

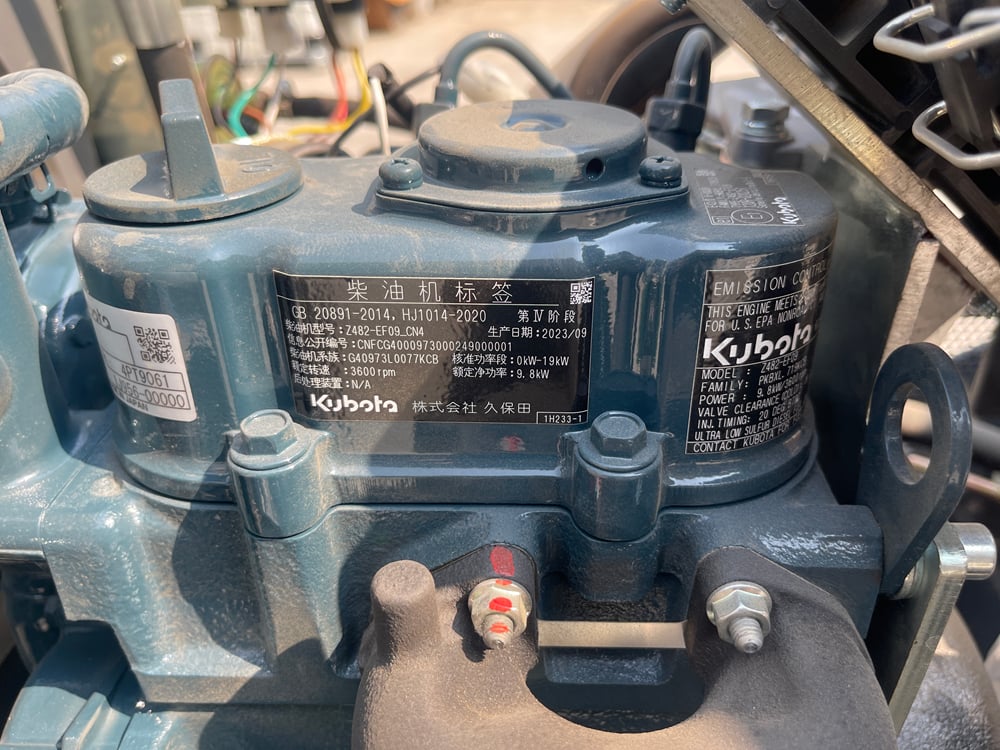

[1].This equipment is equipped with a KUBOTA Z482 dual-cylinder water-cooled diesel engine, which can effectively prevent overheating during long-term operation and is suitable for continuous construction requirements. The engine has a rated power of 9.8kW at 3600rpm, providing stable power for movement and compaction.

[2].It uses a front-mounted vibrating drum, driven by a hydraulic motor. The vibration frequency is 65Hz, the amplitude is 0.5mm, and the excitation force is 30KN.

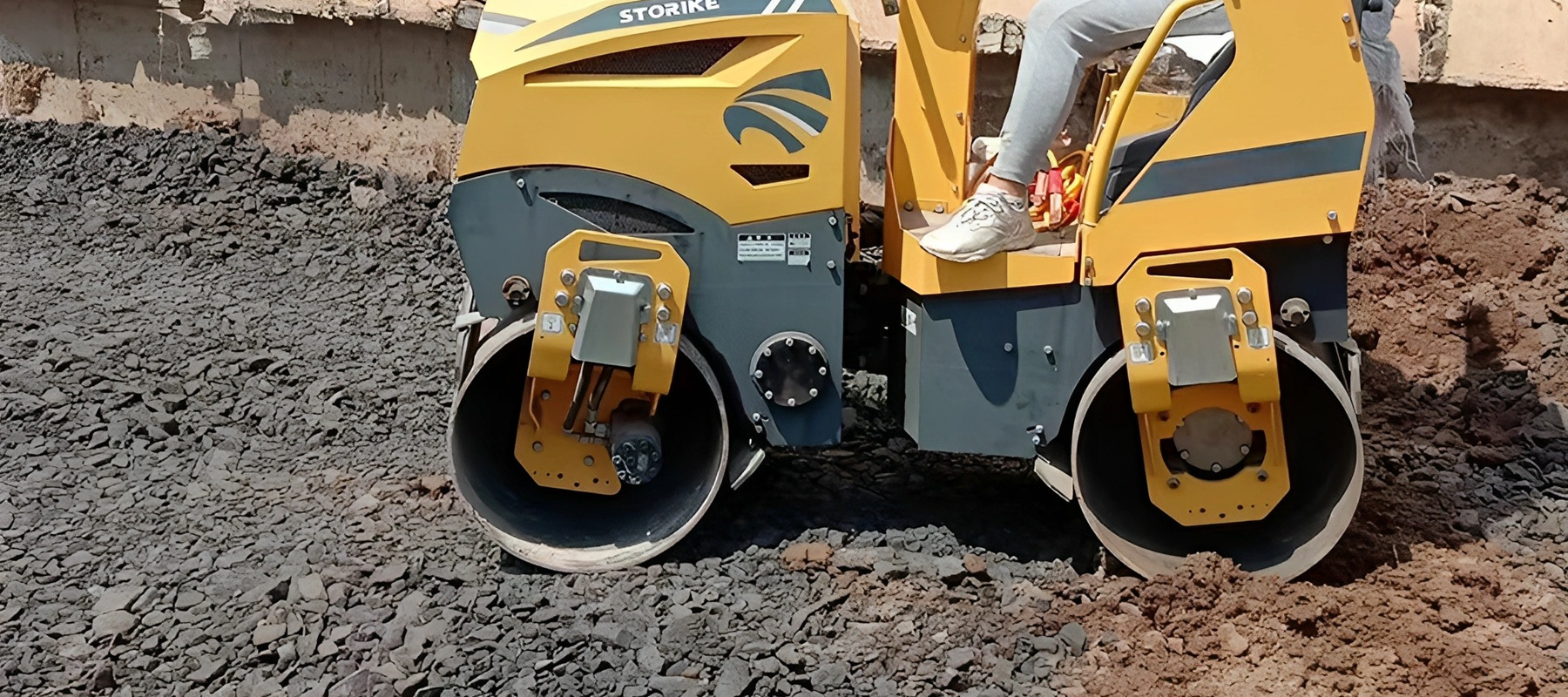

[3]I.t can uniformly compact soil,sand,asphalt and other materials, meeting various engineering standards.

[4].It is equipped with a 12V electrical system, which is reliable for starting; it also comes with an intermittent pressure spray system, which can suppress dust and protect the drum, improving the compaction effect.

2.Drive & Control System

[1].The ST1300 road roller adopts a variable piston pump for stepless speed control with two-wheel drive, enabling smooth speed adjustment from 0 to 10 km/h, suitable for various working rhythms.

[2].Its hydraulic steering system, combined with the swing articulation design, is easy to operate and requires less effort.

[3].The steering is precise, and the outer turning radius is only 3165mm, allowing for flexible operation even in narrow areas or cornered regions.

[4].The working brake system is also based on the variable piston pump design, with rapid and reliable braking response, effectively reducing safety hazards caused by operational inertia.

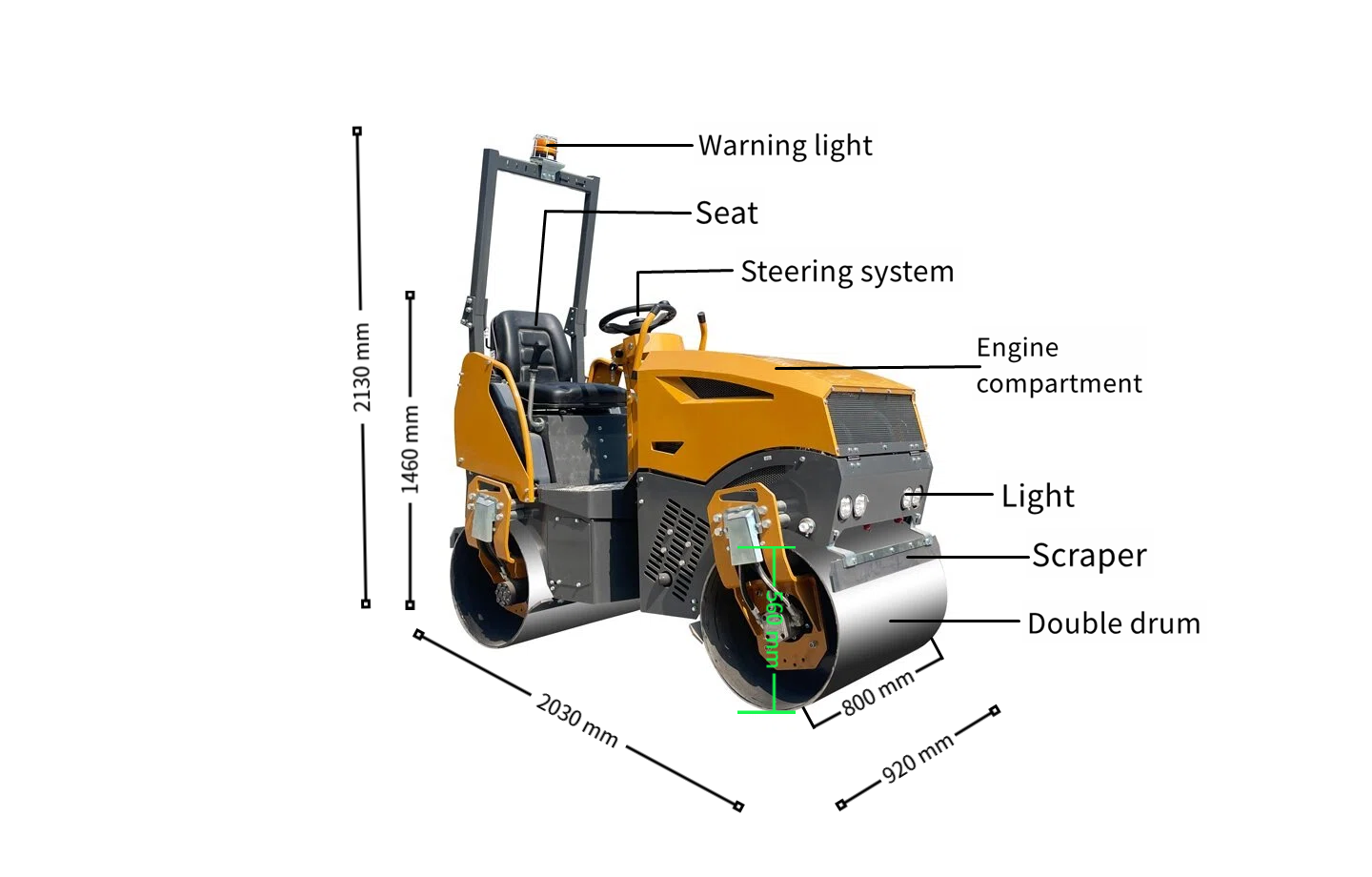

3.Size

[1].The ST1300 road roller adopts a compact structure design. Its operating weight is 1280kg, and the static linear load reaches 70N/cm. It has sufficient compressive strength and can effectively complete the compaction of deep materials.

[2].The working width of the equipment is 920mm, the roller width is 800mm, and the diameter is 560mm. The single-time compaction coverage area is large, which helps to improve the operation efficiency.

[3].The overall length is between 2030/1990mm, and the height can be adapted to 1460/2130mm. The structure is compact, facilitating transportation and enabling operation in narrow or low spaces.

[4].The hydraulic oil capacity of this equipment is 18L, the fuel capacity is 15L, and the water tank capacity is 70L. It supports long-term continuous operation. The theoretical climbing ability is 30%-35%, which can adapt to complex terrains with slopes.

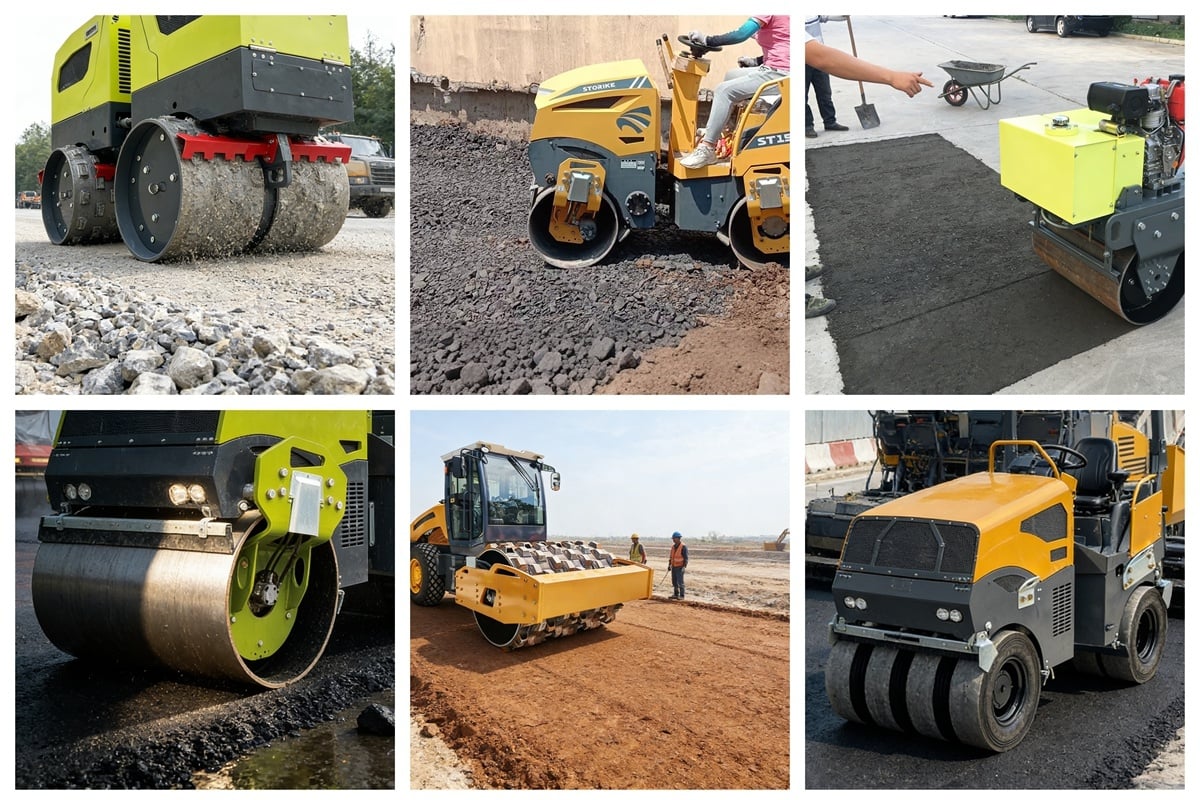

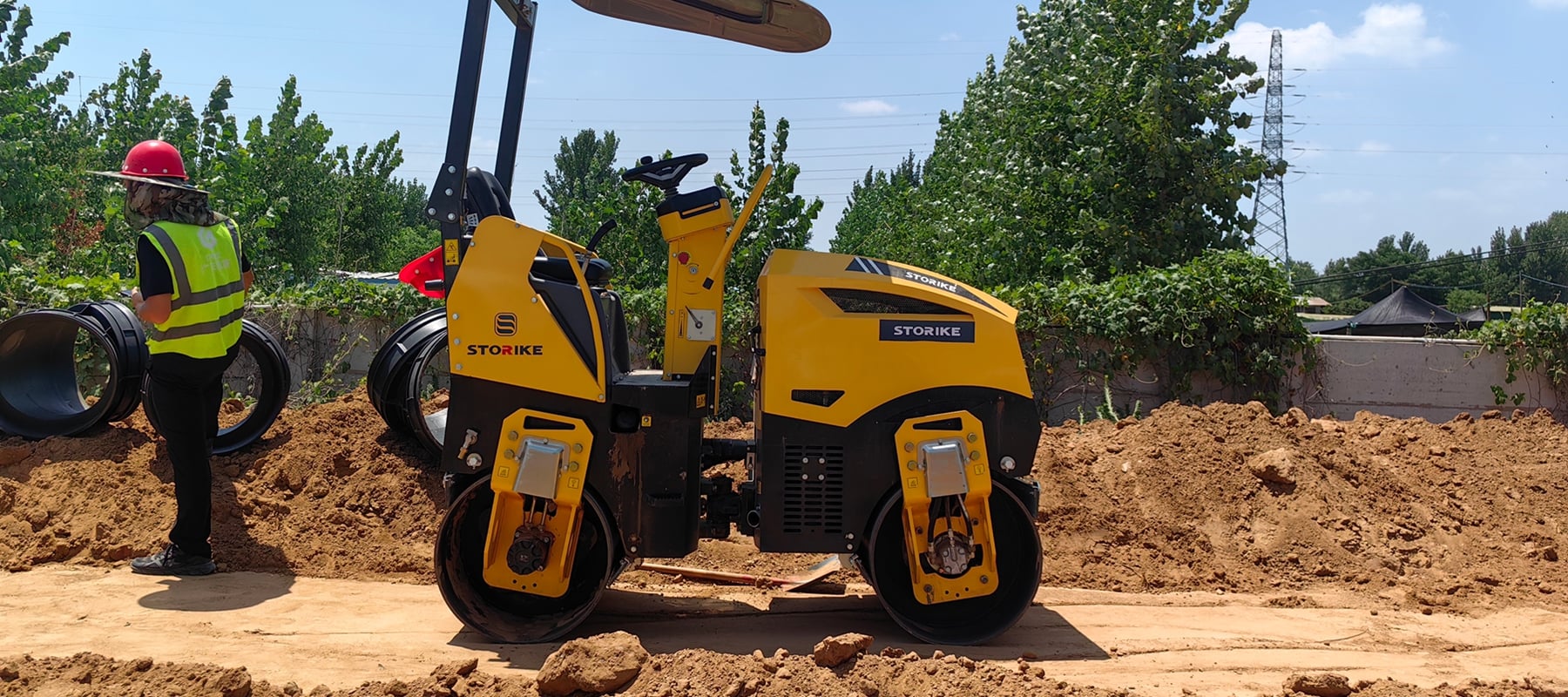

The 920mm machine width and 800mm drum fit perfectly into narrow gas, water, and telecom trenches, providing deep soil compaction with its 30kN force.

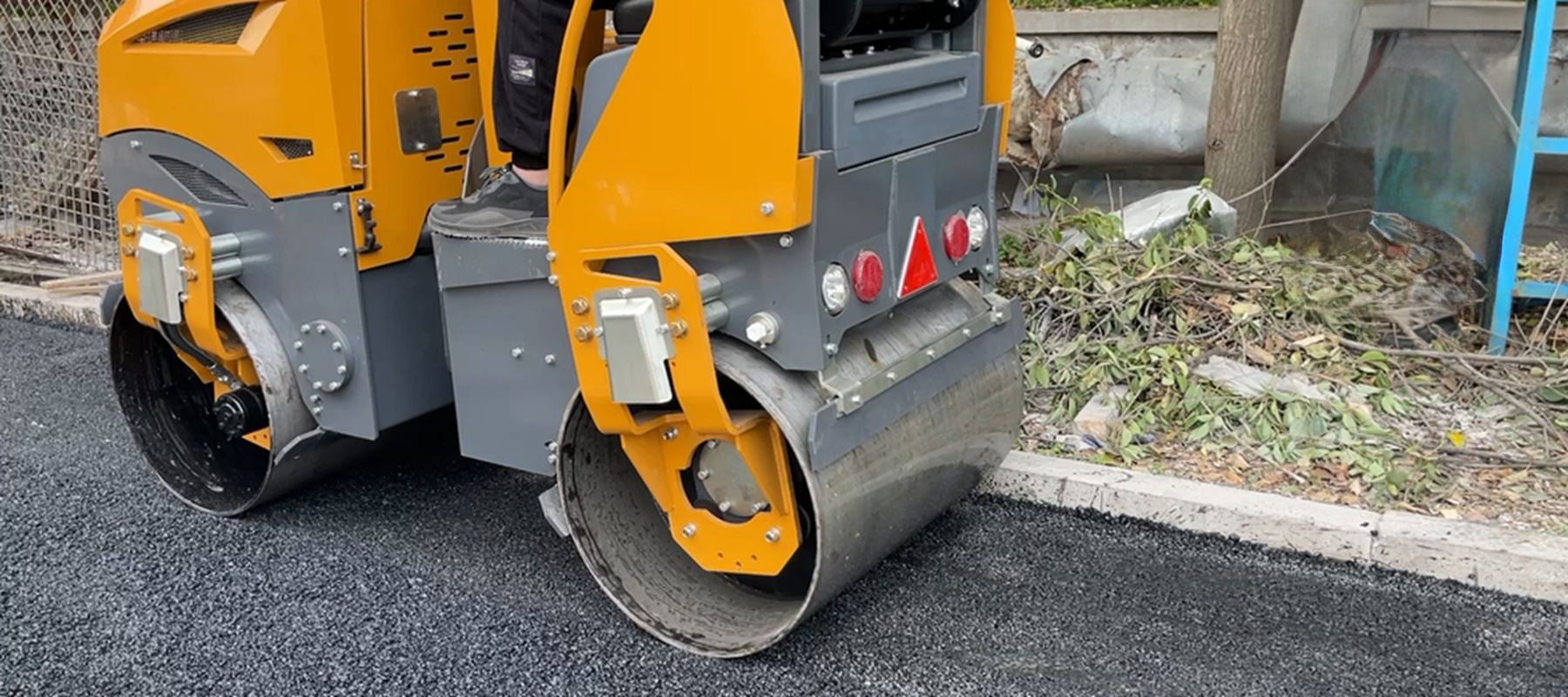

[1].Residential Driveways & Parking Lots

Hydraulic dual-drum driving prevents scuffing or plowing of the hot asphalt layer. The intermittent pressurized sprinkling keeps the drum cool and prevents asphalt sticking.

[2].Underground Garage & Basement Ramps

The foldable protective ROPS frame lowers the height to 1460mm to fit under low basements, while the 35% gradeability allows it to compact steep vehicle entrance ramps seamlessly.

[3].Highway Shoulder Patches & Cycle Paths

The 2235mm tight turning radius allows the machine to follow curvy bicycle paths and weave tightly around urban utility poles and manhole covers without damaging adjacent curbs.

[4].Night-Time Road Maintenance Contracts

Standard front and rear LED headlights + optional drum contour illumination lights provide 360° situational awareness for overnight urban patching crews, maximizing safety under dark conditions.

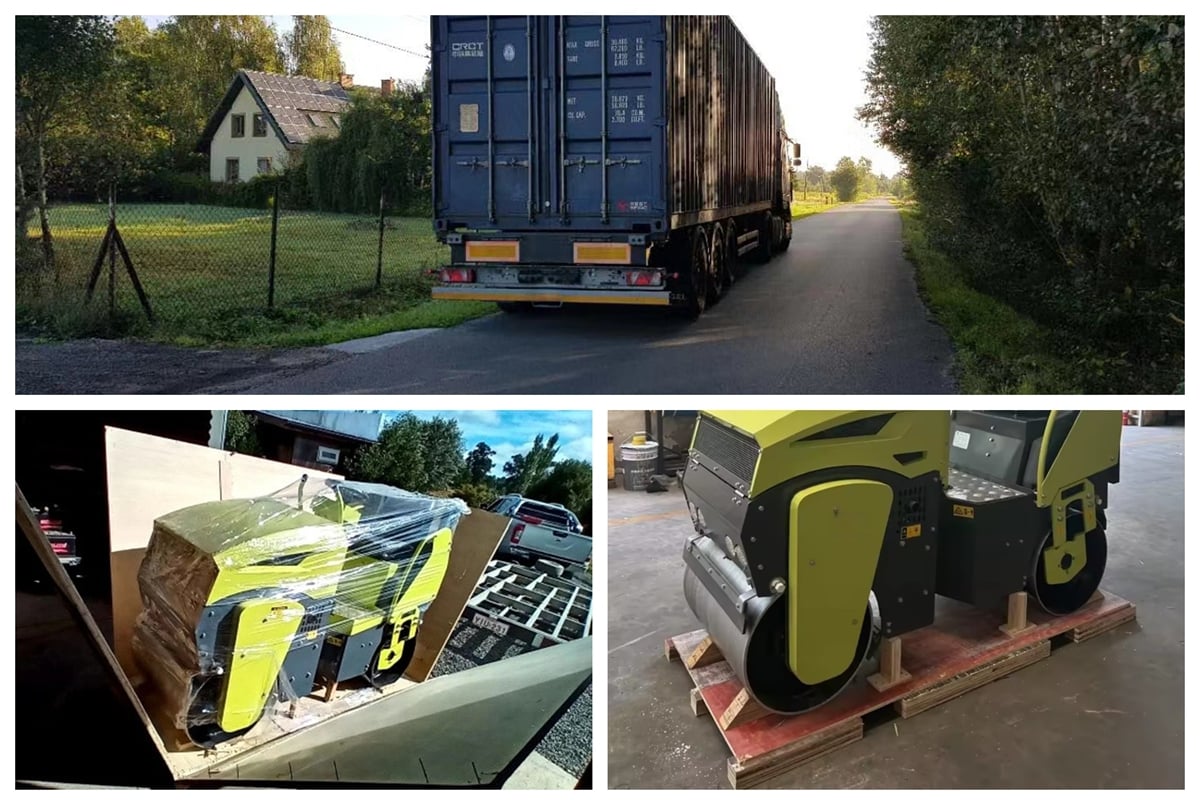

Professional Shipping &Logistics Services

[1].Heavy-Duty Protective Packaging: We provide premium, export-grade solid wooden box packaging for every roller to fully eliminate the risk of collision, rust, or scratching during international sea or land transits.

[2].Flexible Multimodal Transport: Leveraging 15 years of expert export experience , we provide flexible shipping solutions, including Ocean Freight (FCL/LCL), International Rail/Land Freight, and Air Cargo. We handle direct deliveries to your specified inland job sites, warehouses, or major global base ports.

[3].Comprehensive Customs Assistance: Our dedicated logistics team assists with all export documentation, customs clearance parameters, and freight forwarding optimization. If you have any questions regarding global shipping or shipping rates, contact our 24/7 service desk today!

Company Introduction

Q1: What are the vibration compaction performance parameters of the equipment?
A1:The front vibrating drum is driven by a hydraulic motor. The vibration frequency is 65Hz, the amplitude is 0.5mm, the excitation force is 30kN. The compaction effect is uniform and meets the compaction standards for various small and medium-sized projects.

Q2: What are the advantages of the equipment's steering and driving mode?
A2: It adopts hydraulic steering+swing hinge system, with precise and lightweight steering, and the outer turning radius is only 3165mm; the variable piston pump has stepless speed regulation for two-wheel drive, and the speed can be adjusted from 0 to 10 km/h, with flexible operation.

Q3: What is the benefit of the Japanese Kubota Z482 engine compared to single-cylinder engines?
A3: Single-cylinder diesel engines produce extreme vibrations and noise, leading to uneven linear compaction marks and quick operator fatigue. The Kubota Z482 twin-cylinder water-cooled engine operates with balanced 4-stroke firing cycles, delivering much smoother, linear power, ultra-low vibration to the operator cockpit, lower emissions, and superior heat management under continuous heavy workloads.

Q4: Do you accept OEM branding or custom colors? What is your MOQ?
A4: Yes! We are an authorized factory with 15 years of OEM/ODM experience . We can customize the body color, logo plates, and even adapt different engine brands to match your local market emissions requirements. Our MOQ is only 1 unit. For fleet procurement or agency partnerships, we offer highly competitive pricing agreements.

Q5: How to get after-sales support in case of equipment failure or remote control problems?
A5: We have a professional service team providing 24/7 reception service. You can call the service hotline at any time. We will respond immediately, offer remote technical consultation and fault diagnosis, and arrange on-site maintenance if necessary.
