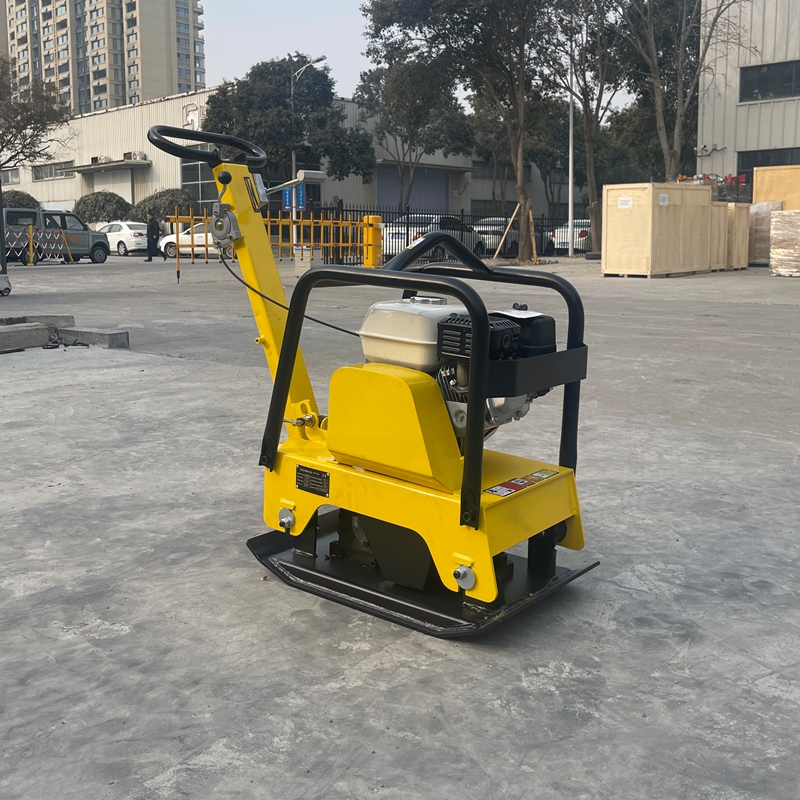

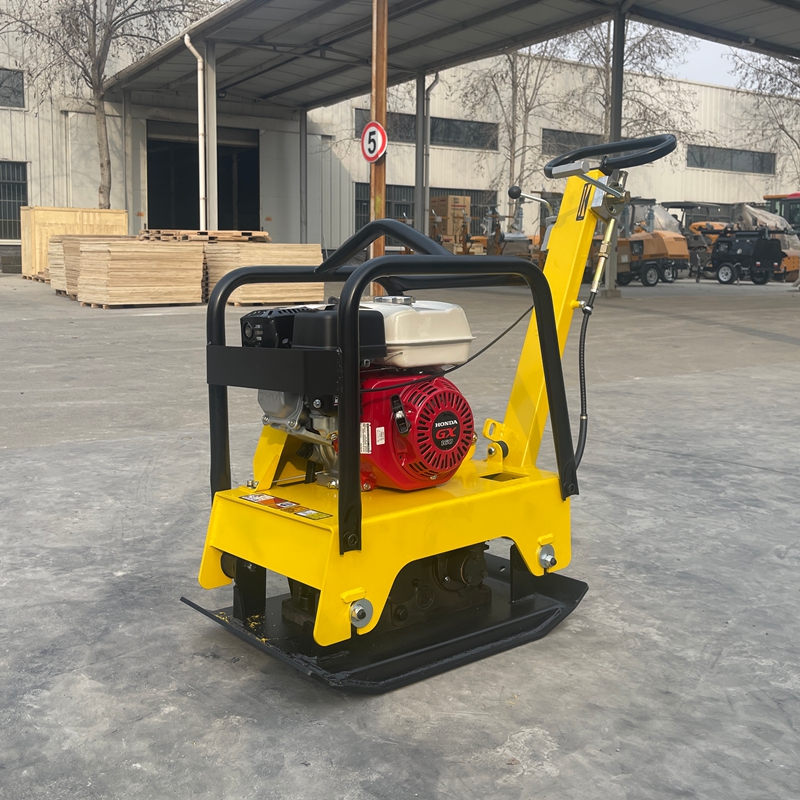

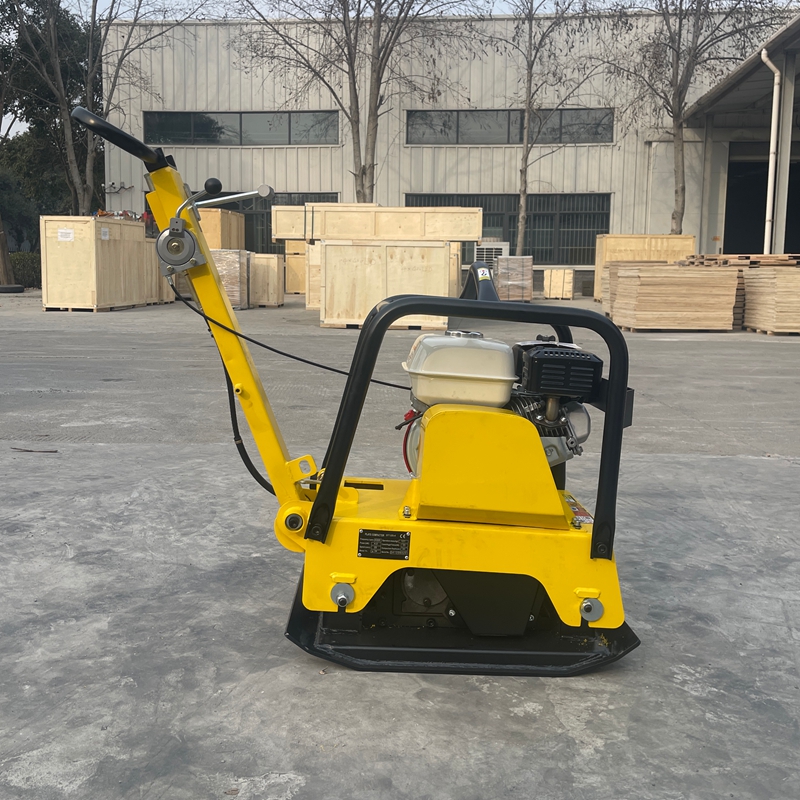

STP125 | 126KG | Plate Compactor
The STP125 is the smallest reversible vibrating plate compactor in the Storike series lineup, delivers great compaction results in a wide range of applications.
Key Specifications
-Engine:Honda GX160
-Power:5.5 HP
-Operating Weight:126 KG
-Exciting Force:25 KN
-Compacting Depth:30 CM
Our Service
-On-time Delivery
-Quality Assurance (one year)
-Customized Services (logo,packaging,graphic)
- Overview
- FAQ
- Contact Us
- Recommended Products
HAND PUSH SMALL COMPACTION MACHINERY
What is the function of a plate compactor?
It is used to compact loose base layers such as soil, sand, gravel, and asphalt. Through the combination of the plate's high-frequency vibration and static pressure, the particles of the material being compacted are made to closely adhere to each other, reducing the porosity and increasing the density. This enhances the bearing capacity and stability of the base layer, preventing problems such as settlement, deformation, and cracking during subsequent construction or use.
FEATURES
・ With 25kN excitation force and 30cm compaction depth, the working efficiency reaches 500㎡/h.
・ The body is compact (75*40*93 cm), allowing for flexible narrow-area operation and easy transportation.
・ The operation is simple and easy to master, runs smoothly, and reduces operational fatigue.
・ One-year full machine warranty + 24-hour after-sales service. No worries about maintenance.
Product Parameter
| Model | STP125 |
| Engine brand | HONDA |
| Engine model | GX160 |
| Engine type | Single cylinder air-cooled four stroke |
| Number | 1 |
| Power | 5.5 hp |
| Operating weight | 126 kg |
| Excitation frequency | 4300 rpm |
| Exciting force | 25 kn |
| Compacting depth | 30 cm |
| Travel speed | 25 cm/s |
| Working efficiency | 500 (M^2)/hr |
| Plate size | 63*40 cm |
| Working size | 75*40*93 cm |
Product details
1.Power system

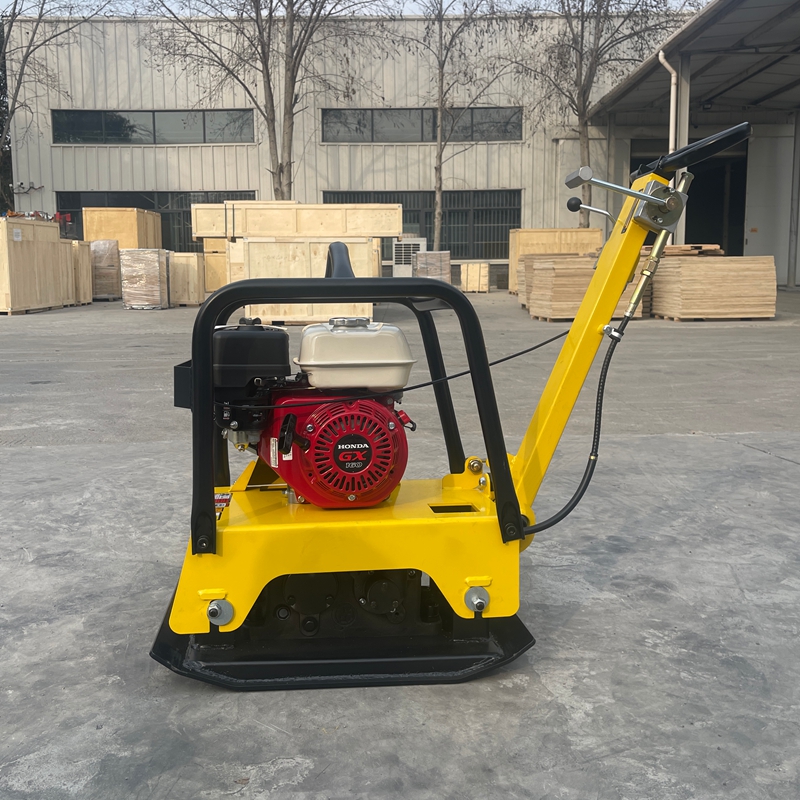

In terms of power, the STP125 flatbed tamper is equipped with a HONDA GX160 engine, featuring a single-cylinder air-cooled four-stroke design. It offers powerful and stable power output, effectively preventing performance degradation due to overheating during continuous operation.
The engine has a rated power of 5.5 horsepower, providing sufficient power support for the equipment. Combined with an excitation frequency of 4300 revolutions per minute, it can generate a powerful excitation force of 25 KN, achieving a maximum compaction depth of 30 centimeters. It can efficiently compact various foundation materials such as soil, sand, and backfill soil.
2.Drive & Control System
The traveling speed is maintained at 25 centimeters per second, which not only ensures uniform compaction but also avoids the problem of insufficient compaction due to excessive speed.
The powerful excitation system works in synergy with the drive system, enabling the equipment to operate smoothly during the operation process, with controllable vibration amplitude, and effectively reducing the fatigue during operation.
The equipment has excellent operational efficiency, completing 500 square meters of compaction work per hour, significantly shortening the construction period and improving the overall project progress.
3.Size
The plate size of the STP125 plate tamper is 63*40 centimeters. The widened and thickened working plate ensures sufficient compaction area and enhances the adhesion between the equipment and the ground, preventing local undercompaction.
The overall working size of the equipment is 75*40*93 centimeters, with an operating weight of 126 kilograms. The weight is evenly distributed, which not only ensures stability during the compaction process but also facilitates manual handling and transportation, and meets the requirements for multiple outdoor and indoor operation scenarios.
4.Application
Whether it is sand, clay, crushed stones and other different materials, or large-scale operations and the need for precise compaction, the application of the plate tamper is very extensive:
Road Engineering: Can be used for compaction of the base and surface layers of sidewalks, rural roads, and parking lots, ensuring the smoothness and density of the road surface and effectively preventing post-construction pavement settlement;
Construction: Applicable for compaction operations of house foundations and wall bases, enhancing the bearing capacity of the foundation and ensuring the stability of the building structure;
Landscape, municipal engineering, backfilling after pipeline laying, and leveling and compaction work for small sites.
Preliminary compaction of small building foundations and parking lot bases.
5.Service
Comprehensive service guarantee: Offer a one-year warranty period and a professional service team available 24/7 online. In case of equipment issues, you can call the service hotline at any time. We will respond immediately and provide you with a full range of services including technical consultation, fault diagnosis, and maintenance guidance, ensuring your construction is worry-free.
6.Packing and shipping
We provide wooden case packaging and strictly protect your machine's body as required, including components and paint finish, to ensure no scratches occur. Custom packaging is also available. We will select an appropriate transportation method for you. If you have a freight forwarder, we can also deliver the machine to your designated freight forwarder's location.
Company Introduction
STORIKE is a professional engineering equipment manufacturer with 15 years of production experience, specializing in products such as light towers, plate compactors, road rollers, excavators and loaders. Our products have obtained CE, EPA and Euro 5 certifications, and can be flexibly customized according to engine types, while providing comprehensive OEM/ODM service support. All products undergo strict quality control. We have participated in the Canton Fair and international construction machinery exhibitions, serving more than 100 countries worldwide. We have 6 dedicated sales and service departments and a 23,000-square-meter modern manufacturing base. We warmly welcome global customers to visit our factory and explore cooperation opportunities.
Q1: What precautions should be taken when the equipment is in operation?
A1: Operators should wear protective gloves and goggles, and stay away from the edges of the operation area.
Q2: The equipment weighs 126 kilograms. Is professional equipment required for transportation?
A2: No professional tools are needed. Two to three people can work together to move it. It can also be transported by a regular truck.
Q3: What is the warranty period of the equipment, and where is your factory located?
A3: We provide a one-year whole-machine warranty. Our factory is located in Jining City, Shandong Province, China. If you need, please contact our sales team, who will customize a visit route for you.
Q4: How to get after-sales support in case of equipment failure or remote control problems?
A4: We have a professional service team providing 24/7 reception service. You can call the service hotline at any time. We will respond immediately, offer remote technical consultation and fault diagnosis, and arrange on-site maintenance if necessary.
