STP90 | 83 KG | Plate Compactor

HAND PUSH SMALL COMPACTION MACHINERY

What is the function of a plate compactor?
It is used to compact loose base layers such as soil, sand, gravel, and asphalt. Through the combination of the plate's high-frequency vibration and static pressure, the particles of the material being compacted are made to closely adhere to each other, reducing the porosity and increasing the density. This enhances the bearing capacity and stability of the base layer, preventing problems such as settlement, deformation, and cracking during subsequent construction or use.

FEATURES
Equipped with Honda GX160 power, it is powerful, stable and easy to maintain.
With a 13kN vibration force, it can achieve a compaction depth of 30cm and has excellent efficiency.
Compact body design, suitable for operations in confined spaces
Ergonomic operation, easy to master, comfortable and safe during use, with CE certification
One-year warranty + 24-hour after-sales service. No worries when using.

Product Parameter

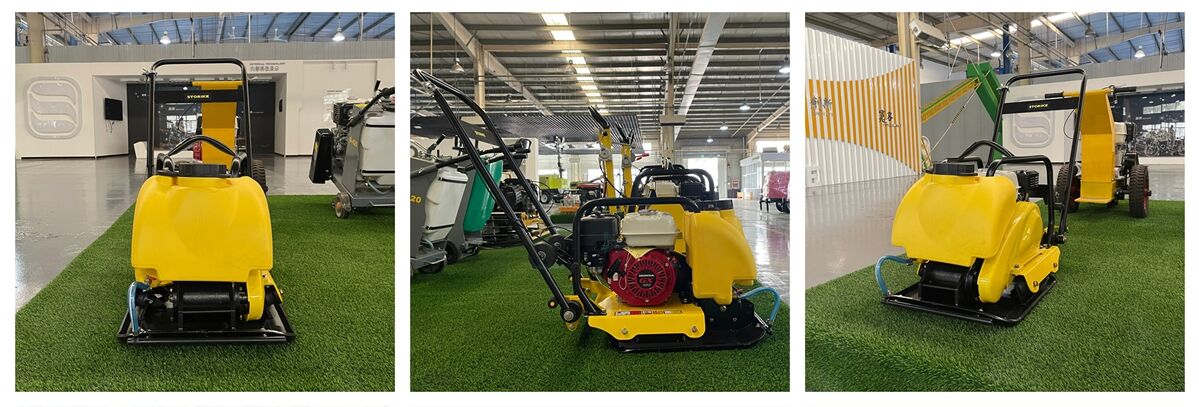

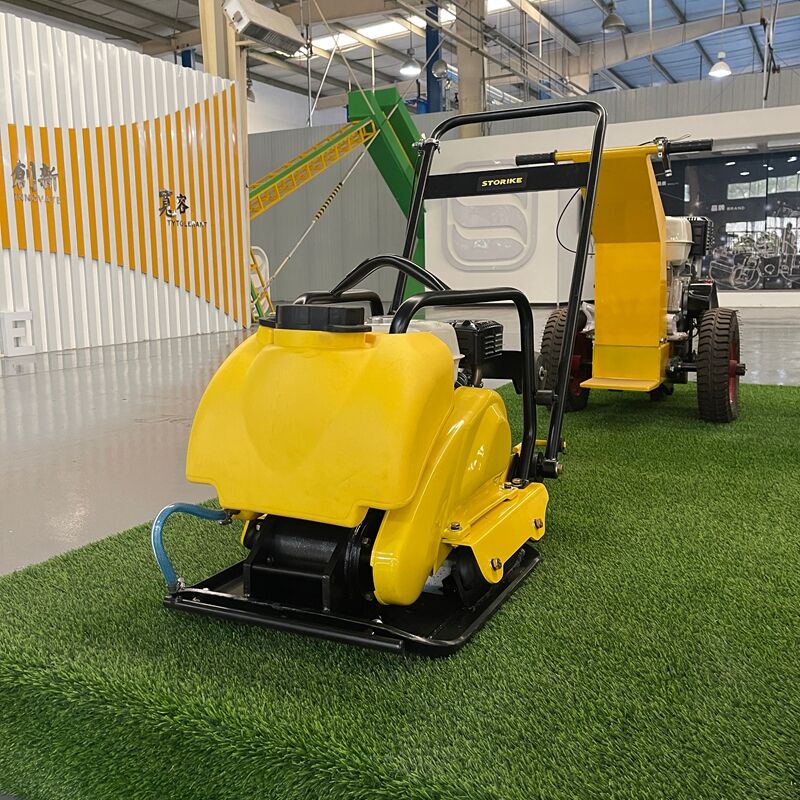

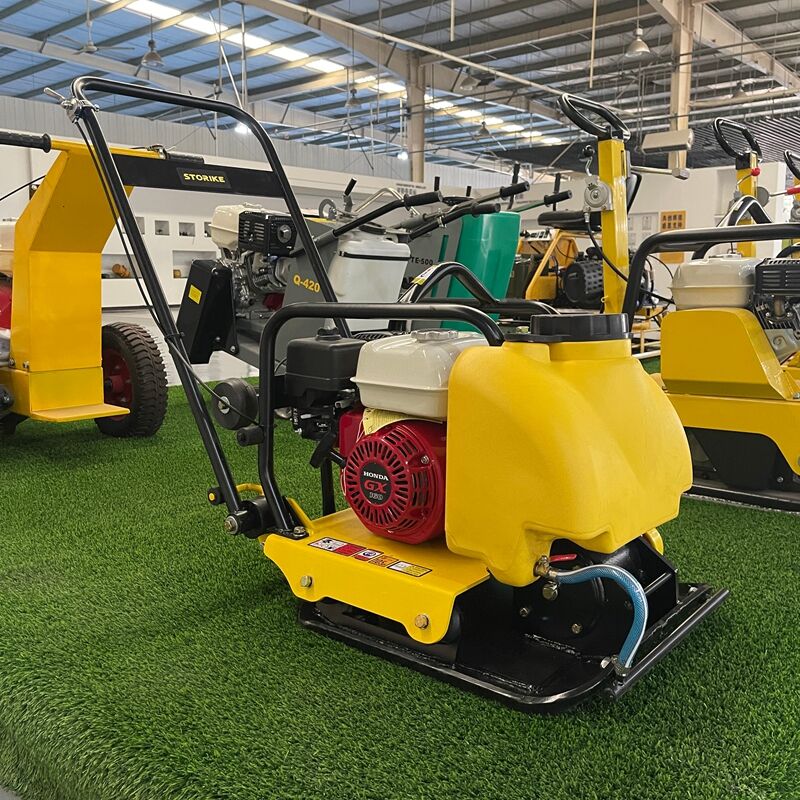

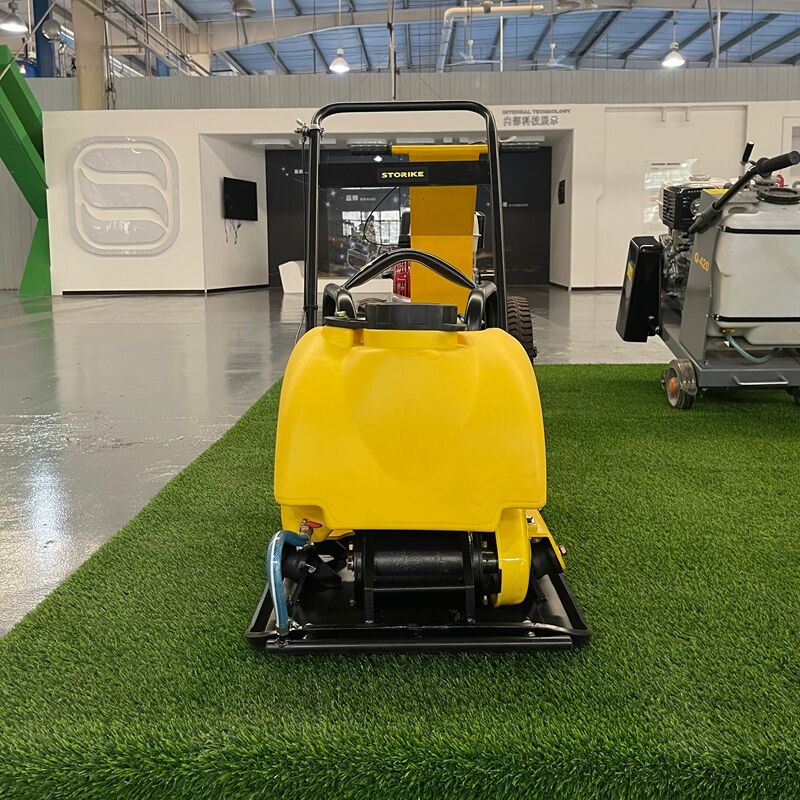

Product details
The STP90 plate compactor product strictly adheres to industrial-grade manufacturing standards, balancing performance and durability to provide reliable support for various compaction operations.



1.Power system

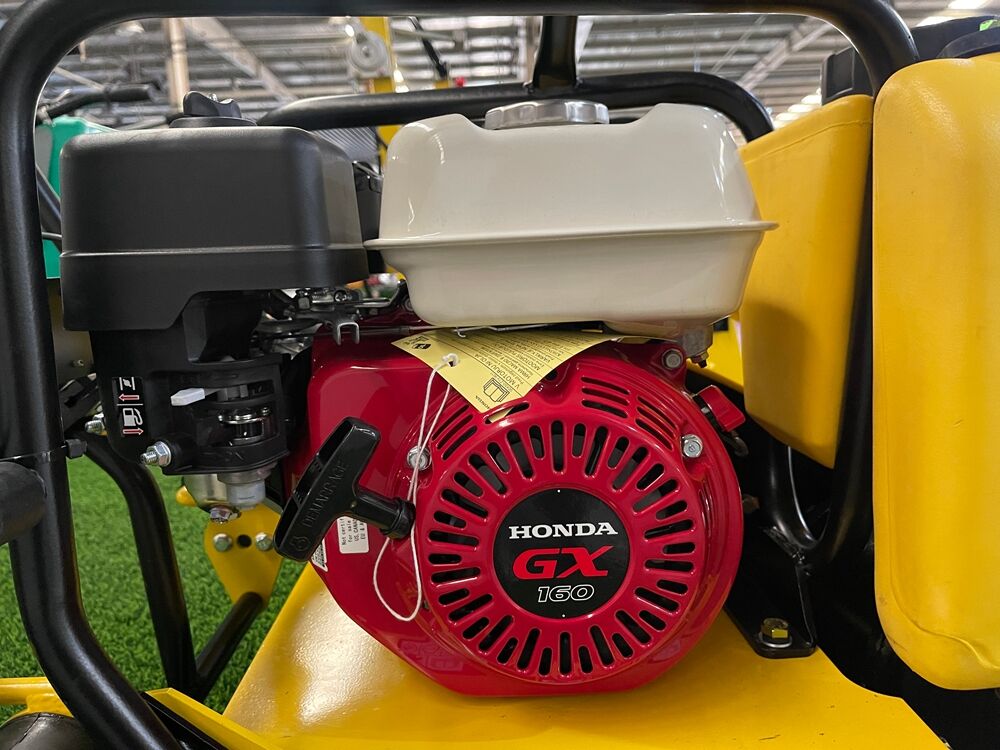

The STP90 plate compactor is equipped with the renowned brand HONDA GX160 engine with a power of 5.5 horsepower.It adopts a single-cylinder air-cooled four-stroke design and does not require an additional water cooling device.This simplifies the maintenance process while effectively adapting to harsh working environments such as high temperatures and dry conditions,thereby extending the equipment's service life.
The equipment's rotational speed is stable at 5500 revolutions per minute, capable of generating a powerful vibration force of 13KN. Combined with the 5.5 horsepower power support,it achieves efficient compaction, with a compaction depth of up to 30 centimeters, ensuring that the work surface's compactness meets engineering standards.

2.Drive & Control System
The equipment moves at a speed of 40 centimeters per second. Combined with a 13 KN excitation force, it achieves an efficient operation efficiency of 660 square meters per hour, significantly shortening the construction period and reducing labor costs.
The control panel is simple and intuitive, allowing for quick operation without the need for professional skills. This effectively lowers the operational threshold.



During operation, the equipment runs smoothly with stable vibration and flexible control. It can easily adjust the moving direction to meet the compaction requirements of narrow spaces or irregular working surfaces, while avoiding operational fatigue caused by excessive vibration and enhancing the safety and comfort of the operation.



3.Size

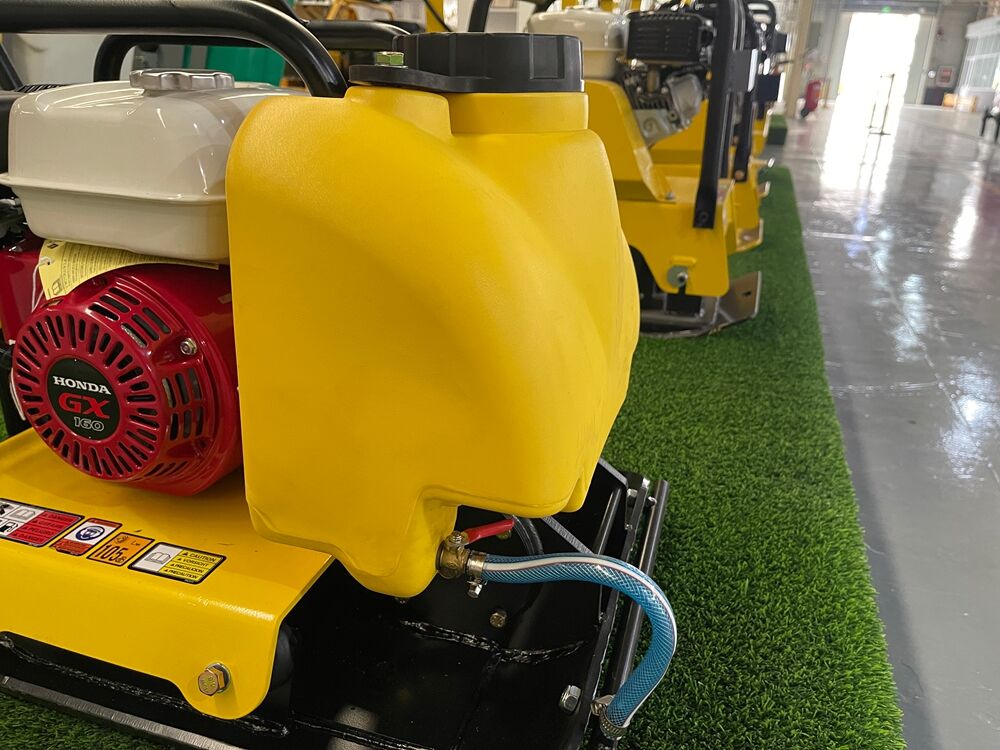

The STP90 flatbed tamper adopts a compact design, balancing the working coverage range and the adaptability to the site. Its operating weight is 83 kilograms, the flatbed size is 53*50 centimeters, and the working size is 110*50*85 centimeters. The machine is small in size and can flexibly move through narrow construction areas without the need for large-scale site relocation.

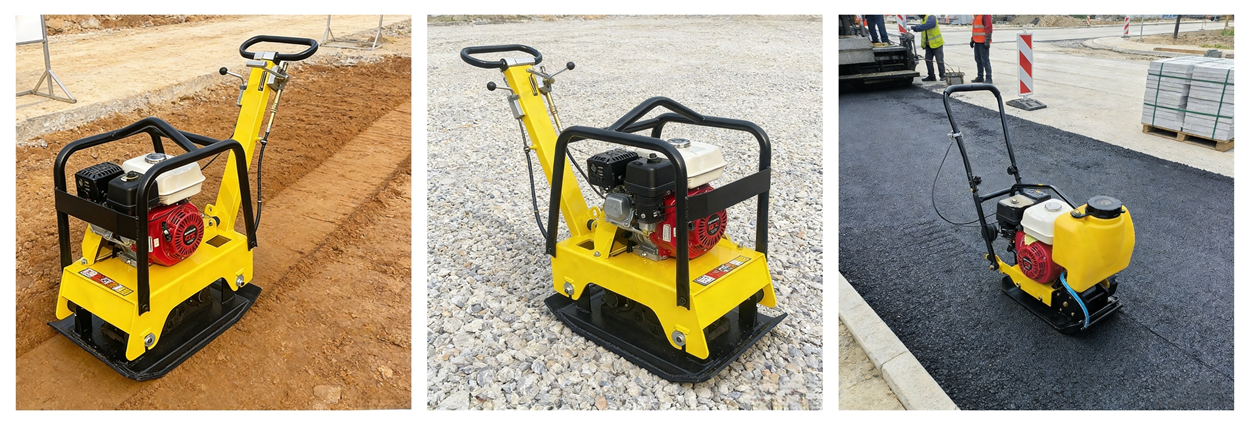

4.Application
Whether it is sand, clay, crushed stones and other different materials, or large-scale operations and the need for precise compaction, the application of the plate tamper is very extensive:
Road Engineering: Can be used for compaction of the base and surface layers of sidewalks, rural roads, and parking lots, ensuring the smoothness and density of the road surface and effectively preventing post-construction pavement settlement;
Construction: Applicable for compaction operations of house foundations and wall bases, enhancing the bearing capacity of the foundation and ensuring the stability of the building structure;
Landscape, municipal engineering, backfilling after pipeline laying, and leveling and compaction work for small sites.
Preliminary compaction of small building foundations and parking lot bases.

5.Service
Comprehensive service guarantee: Offer a one-year warranty period and a professional service team available 24/7 online. In case of equipment issues, you can call the service hotline at any time. We will respond immediately and provide you with a full range of services including technical consultation, fault diagnosis, and maintenance guidance, ensuring your construction is worry-free.

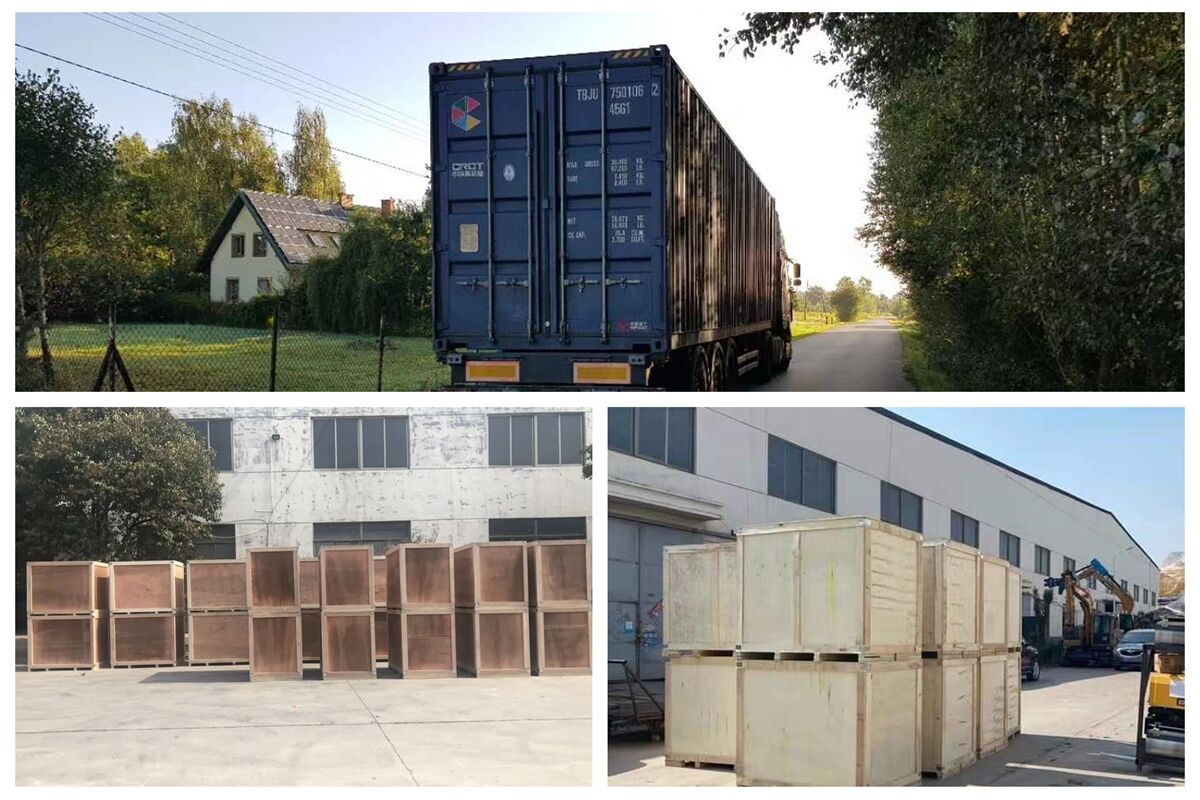

6.Packing and shipping
We provide wooden case packaging and strictly protect your machine's body as required, including components and paint finish, to ensure no scratches occur. Custom packaging is also available. We will select an appropriate transportation method for you. If you have a freight forwarder, we can also deliver the machine to your designated freight forwarder's location.

Company Introduction
STORIKE is a professional engineering equipment manufacturer with 15 years of production experience, specializing in products such as light towers, plate compactors, road rollers, excavators and loaders. Our products have obtained CE, EPA and Euro 5 certifications, and can be flexibly customized according to engine types, while providing comprehensive OEM/ODM service support. All products undergo strict quality control. We have participated in the Canton Fair and international construction machinery exhibitions, serving more than 100 countries worldwide. We have 6 dedicated sales and service departments and a 23,000-square-meter modern manufacturing base. We warmly welcome global customers to visit our factory and explore cooperation opportunities.
