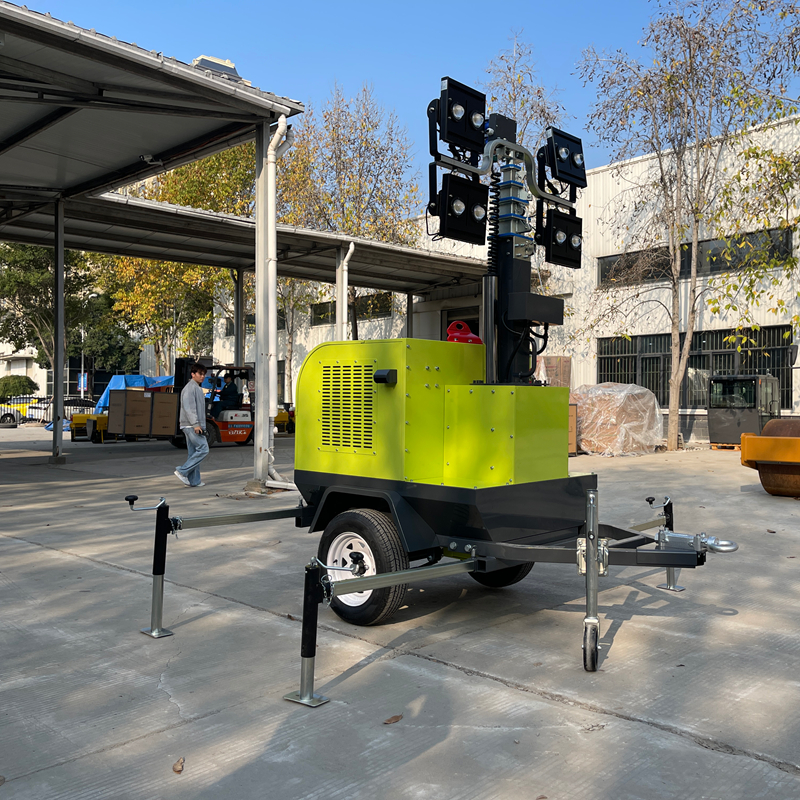

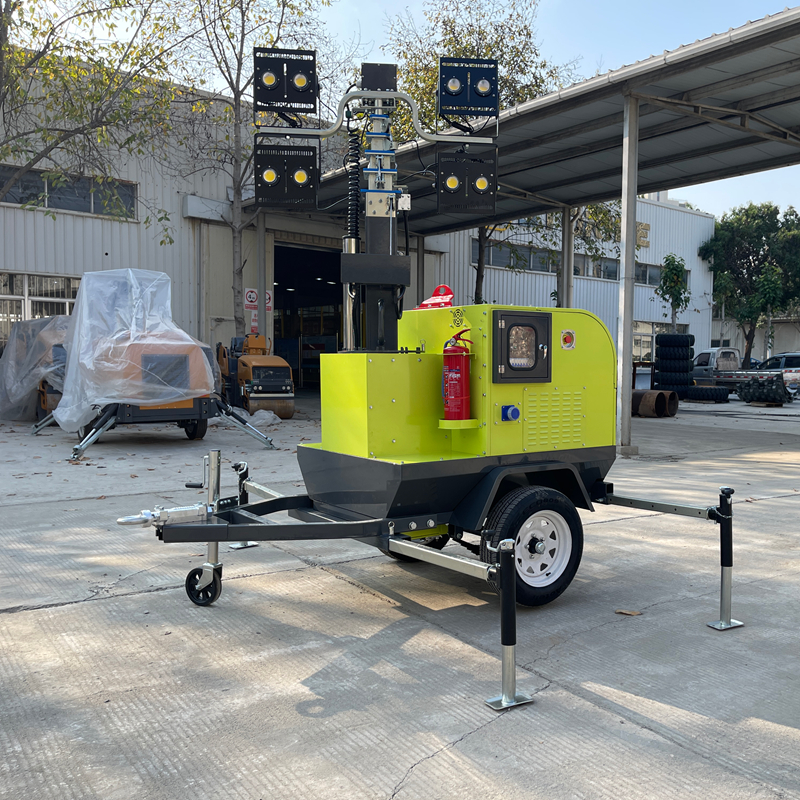

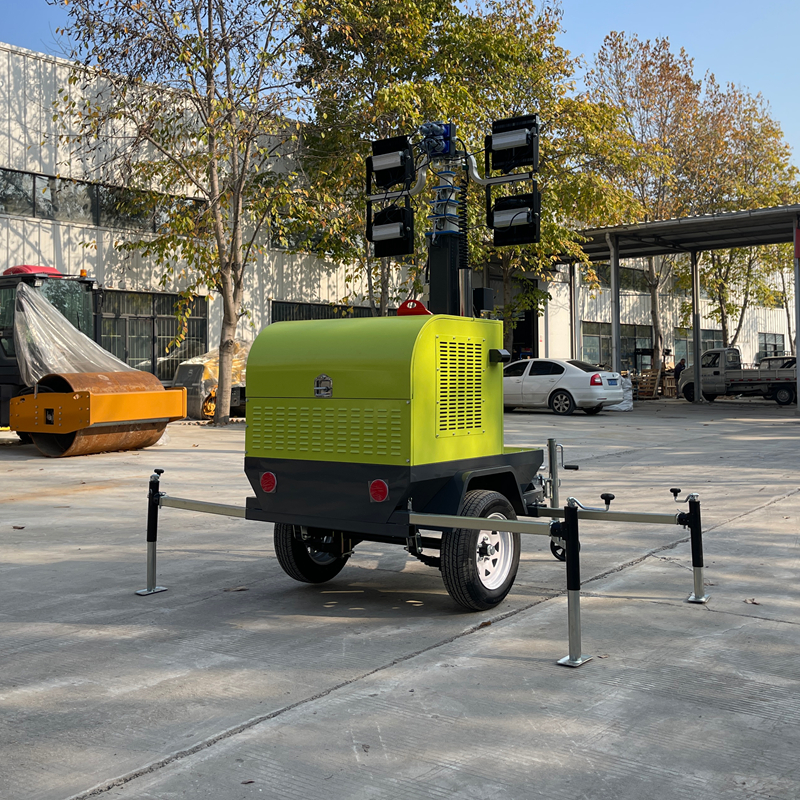

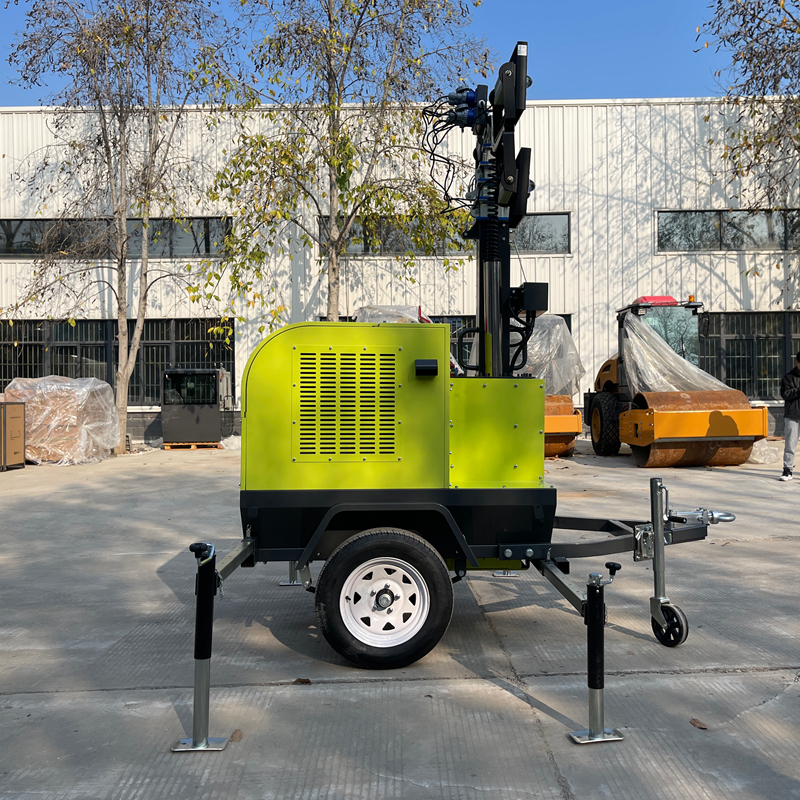

4TNVH1600 | 9m | Trailer Electric Lifting Mobile Lighting Tower

Trailer electric lift mobile lighting vehicle

What is a mobile lighting tower vehicle? How is its operation and mobility performance?
The mobile lighting tower vehicle is an emergency lighting equipment that can be flexibly moved and quickly set up for large-scale lighting. It is suitable for construction projects, emergency repairs, outdoor operations, etc., in scenarios without power supply or for temporary lighting.

FEATURES

• Equipped with imported power, quality assurance,superior performance.
• Equipped with LED lamp, large luminous flux and long life.
• High performance motor, automatic lifting and lowering.
• Six-section lifting pole, galvanized light pole.anti-drop, corrosion-resistant.
• Five windproof support legs for stable support.
• Integrated operator panel with rain cover.
• 9 meters lifting height, adjustable irradiation angle,long irradiation distance.
• Large capacity fuel tank, long battery life.

Product Parameter

Product details
The mobile lighting tower, with its stable power system, flexible control design, reasonable size layout and wide range of applicable scenarios, has become an ideal lighting solution for outdoor operations, emergency rescue and other scenarios.



1.Power system
Equipped with a KUBOTA engine, it offers two power configurations for selection. Both models adopt the E-TVS combustion method and natural intake air method. The power output is smooth and powerful, allowing for stable operation for a long time. It is suitable for different operating load requirements.
The Z482 model is a two-cylinder water-cooled engine, with an output power of up to 4.8kw;
The D1105 model is a three-cylinder water-cooled engine, with an output power of up to 12.6kw.
The power system uniformly adopts a 1800rpm frequency. The emissions comply with conventional standards. It is equipped with a 100L large-capacity fuel tank, and the continuous working time can reach 60 hours. There is no need to frequently add fuel, significantly improving the operation efficiency.
The rated voltage of the generator (60hz) is 240V. The motor insulation grade reaches CLASS H, and the protection level is as high as IP65. It has excellent insulation performance and waterproof and dustproof capabilities, and can adapt to complex outdoor environments.



2.Drive & Control System
The equipment is equipped with adjustable traction rods and extendable adjustable guide wheels, ensuring flexible traction and compatibility with various traction scenarios. The maximum traction speed can reach 80 km/h, facilitating the rapid transfer of the equipment.
In terms of lighting control, the lighthouse is equipped with LED headlights, with 4 400w headlights working together, generating a total luminous flux of up to 360,000 lm. The lighting is bright and the coverage is wide, effectively solving the problem of insufficient lighting during night operations.
The lamp pole adopts an electric self-raising design, which is convenient to operate. The maximum lifting height can reach 9 meters. The lighting angle and height can be flexibly adjusted according to the operation requirements to meet the lighting coverage needs of different scenarios.
The overall noise control of the equipment is excellent. The noise at a distance of 7 meters is only 72 dB, effectively reducing the noise interference during night operations. It also has a maximum wind resistance speed of 20 m/s, and can still operate stably in outdoor complex wind conditions.
The motor adopts a 6-pole design, which operates smoothly and further enhances the service life and stability of the equipment.



3.Size
Mobile lighting tower 4TNVH1600: Dimensions: L 2450mm * W 1350mm * H 2650mm. The total weight of the equipment is 860kg. It has a moderate size and is convenient for transportation and storage, without occupying too much space. The tire size is 14 inches, suitable for various road surfaces. It can run stably on both flat construction sites and simple mountain roads, ensuring that the equipment can quickly reach the work site.



4.Application
The mobile lighting tower is suitable for a wide range of scenarios. With stable power output, strong lighting performance and flexible mobility, it can meet the usage requirements in various fields.
In the construction industry, it is applicable to night operation scenarios such as road construction, bridge building, and mining, providing large areas of bright lighting to ensure construction safety and efficiency;
In the emergency rescue field, it can be used for night rescue and emergency operations in disaster sites such as earthquakes, floods, and fires, providing clear vision for rescue personnel and saving rescue time;
In the outdoor activity field, it is suitable for large-scale events, outdoor performances, and camping assembly scenarios, meeting the temporary lighting needs;
It can also be applied in municipal maintenance, power emergency repair, and night operation of agricultural planting bases, covering all aspects of outdoor temporary lighting and long-term operation lighting needs.

5.Service
Comprehensive service guarantee: Offer a one-year warranty period and a professional service team available 24/7 online. In case of equipment issues, you can call the service hotline at any time. We will respond immediately and provide you with a full range of services including technical consultation, fault diagnosis, and maintenance guidance, ensuring your construction is worry-free.



6.Packing and shipping
We provide wooden case packaging and strictly protect your machine's body as required, including components and paint finish, to ensure no scratches occur. Custom packaging is also available. We will select an appropriate transportation method for you. If you have a freight forwarder, we can also deliver the machine to your designated freight forwarder's location.



Company Introduction
STORIKE is a professional engineering equipment manufacturer with 15 years of production experience, specializing in products such as light towers, plate compactors, road rollers, excavators and loaders. Our products have obtained CE, EPA and Euro 5 certifications, and can be flexibly customized according to engine types, while providing comprehensive OEM/ODM service support. All products undergo strict quality control. We have participated in the Canton Fair and international construction machinery exhibitions, serving more than 100 countries worldwide. We have 6 dedicated sales and service departments and a 23,000-square-meter modern manufacturing base. We warmly welcome global customers to visit our factory and explore cooperation opportunities.

Suggested use
Here are some safety tips to help you maintain the machine and extend its service life：
Safety Tips & Maintenance Advice：
·  During the operation of the equipment, do not perform cleaning or maintenance work. Rotating parts may cause personal injury.
·  It is strictly prohibited to clean parts with gasoline, other fuels or flammable solvents, especially in enclosed areas; the fumes volatilized from fuels and solvents are prone to accumulation, which may cause explosions.
·  Regularly check the external buttons of the equipment to ensure their normal functions.
·  Provide professional operation and safety training to equipment operators on a regular basis.
·  Do not operate the equipment in areas with flammable substances, fuel or flammable vapors.
·  After the equipment is out of service, turn off the engine immediately, store it in a clean, dry area out of the reach of children, and ensure standardized storage.
·  Do not remove the air filter cover, paper filter element and pre-cleaner while the engine is running.
·  Do not remove the air filter cover, paper filter, and pre-cleaner during engine operation.
· We provide instruction manuals and operation suggestions. Please use the machine in accordance with the manual to ensure personal safety and avoid machine damage.
