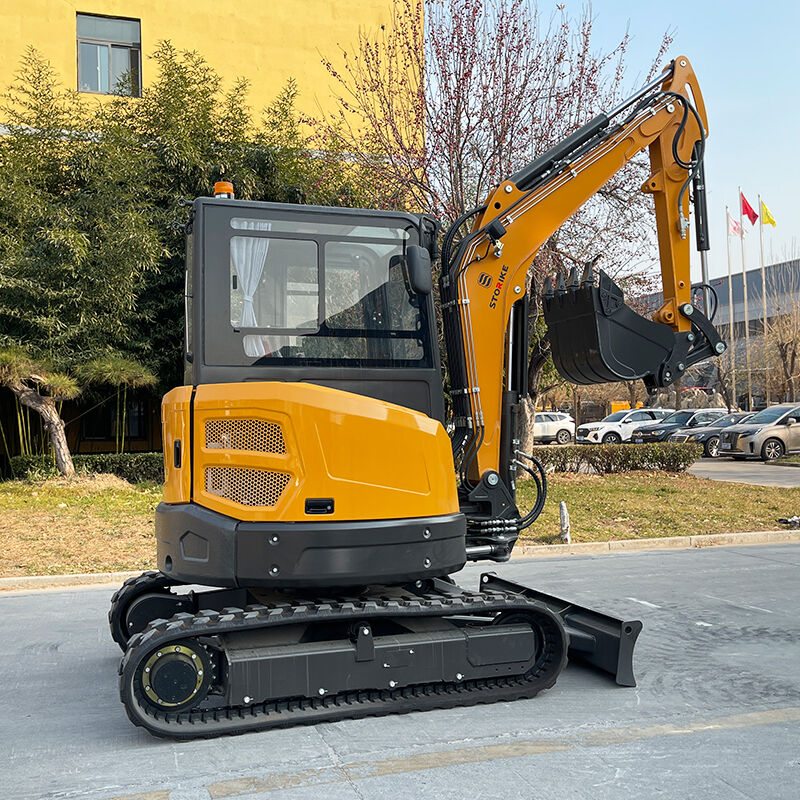

PC35.3 | 3.5 Ton Crawler Excavator

The 3.5 ton mini excavator is equipped with ISO,CE and EPA certifications

What is a small excavator?
Small excavators are compact earthmoving machinery, also known as mini or small excavators. Their core features include tailless rotation and rubber tracks. The body is narrow, the turning radius is small, and the transportation is convenient. They cause less ground damage and can be equipped with various attachments to perform multiple operations such as excavation, crushing, and loading. They are suitable for narrow areas that large equipment cannot access.

FEATURES
Powerful and environmentally friendly, the Kubota engine is suitable for various working conditions and has low fuel consumption.
The crawler drive is stable, and the narrow body design combined with a small turning radius make it highly adaptable to narrow spaces.
The working range is wide, and multiple processes such as excavation and leveling can be completed in one operation.
The body is lightweight and easy to transport, with low transfer costs, and it is highly flexible and suitable for cross-regional operations.
The hydraulic system is efficient, with sufficient digging force, and the operation efficiency far exceeds that of equipment in the same category.

Product details

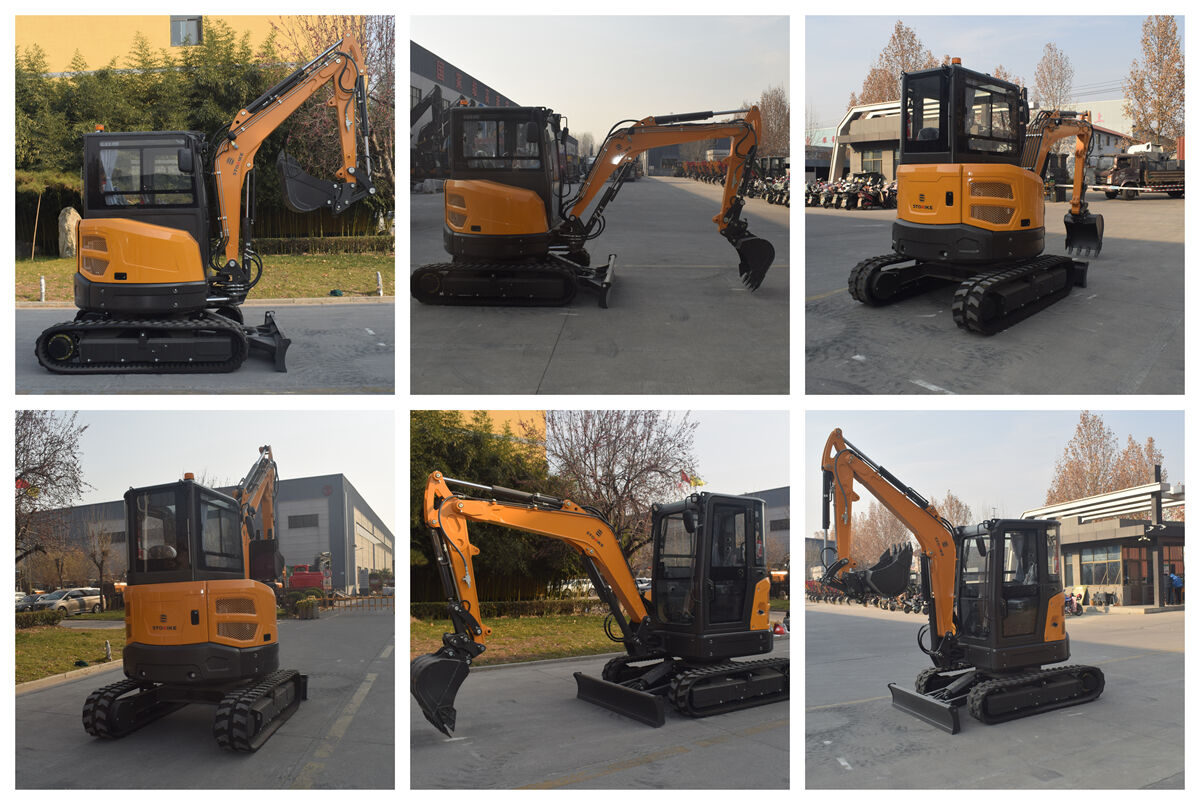

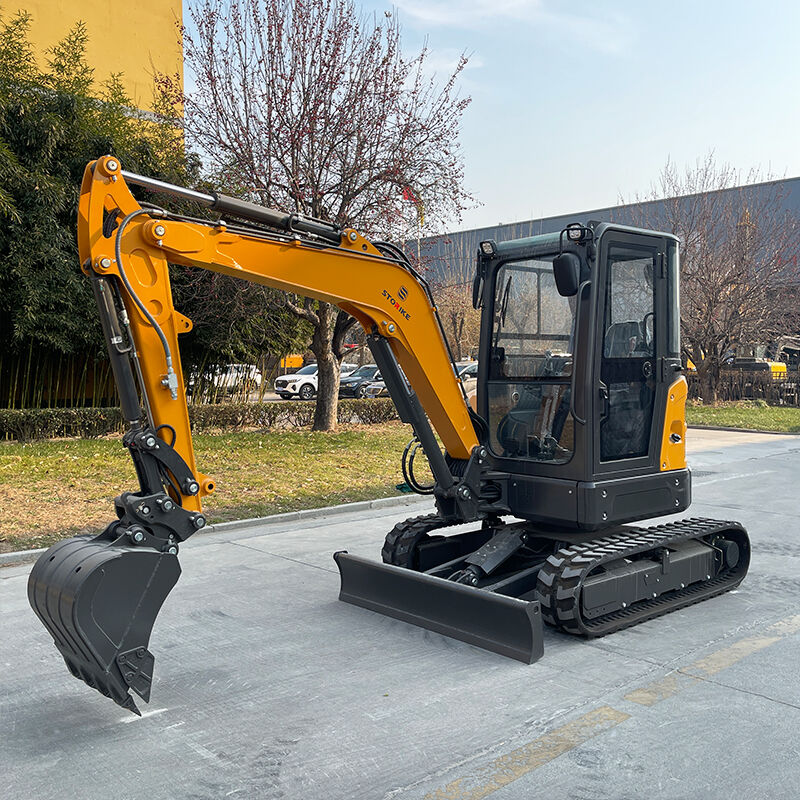

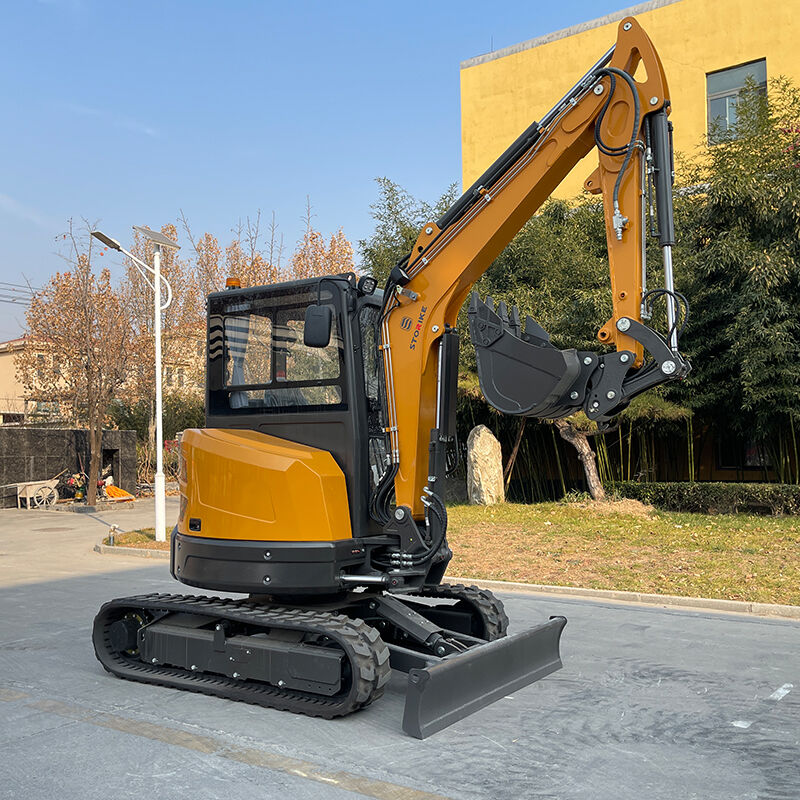

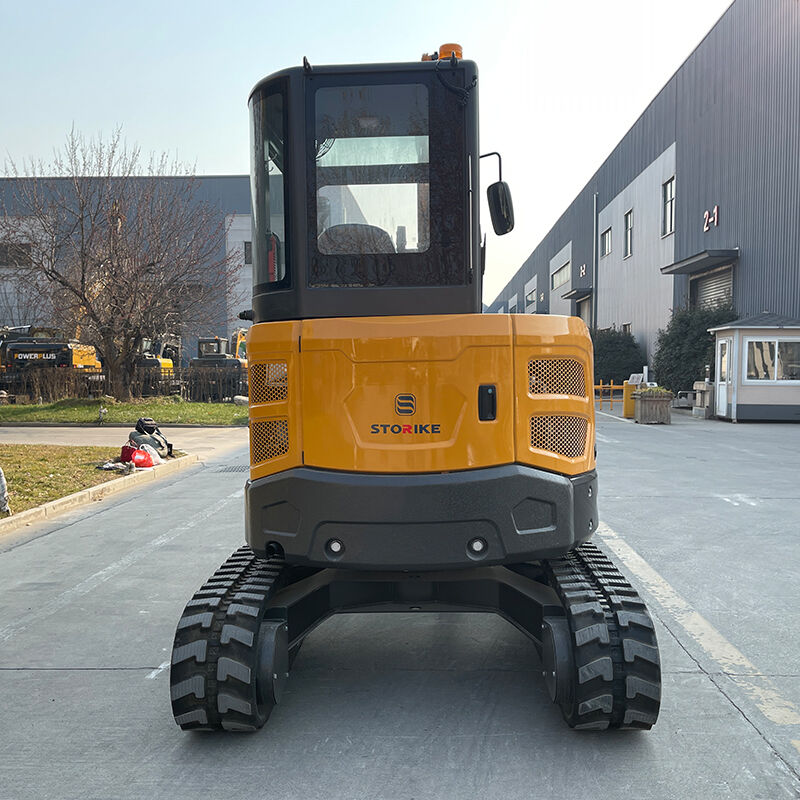

PC35.3 Compact Tracked Excavator, with precise performance tuning, compact body design and reliable core configuration, is suitable for various working scenarios and provides users with efficient and stable construction solutions.



1.Power system

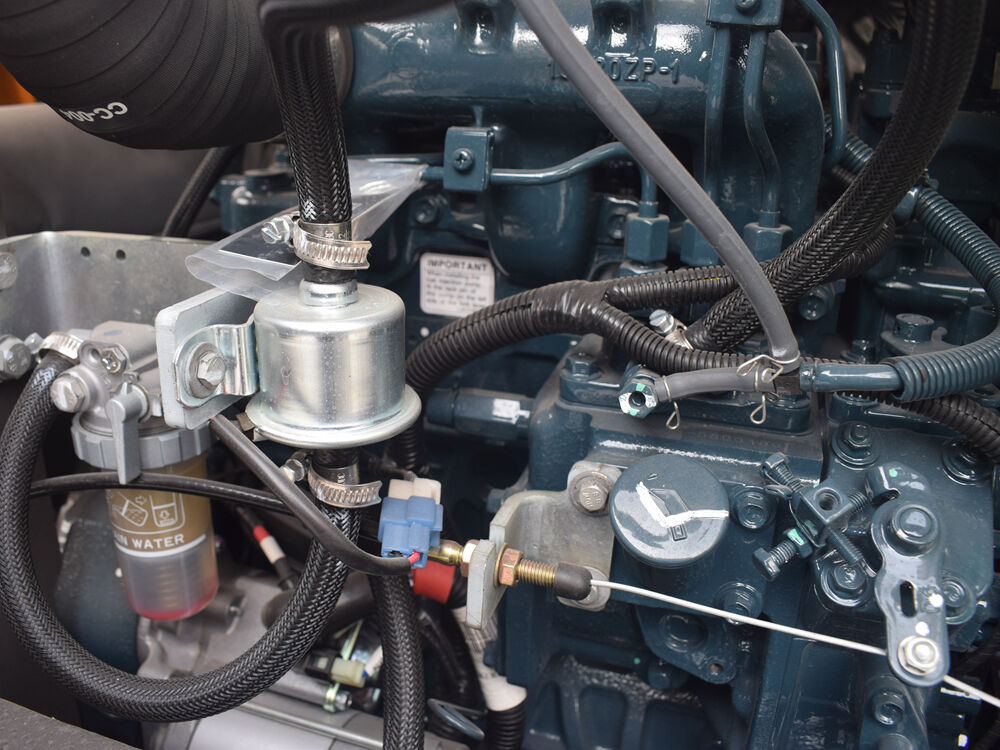

The power system is equipped with a 18.2kw three-cylinder structure engine from KUBOTA D1703.The power output is stable and it complies with Euro 5/EPA4 emission standards. It can easily meet the power demands in complex working conditions.

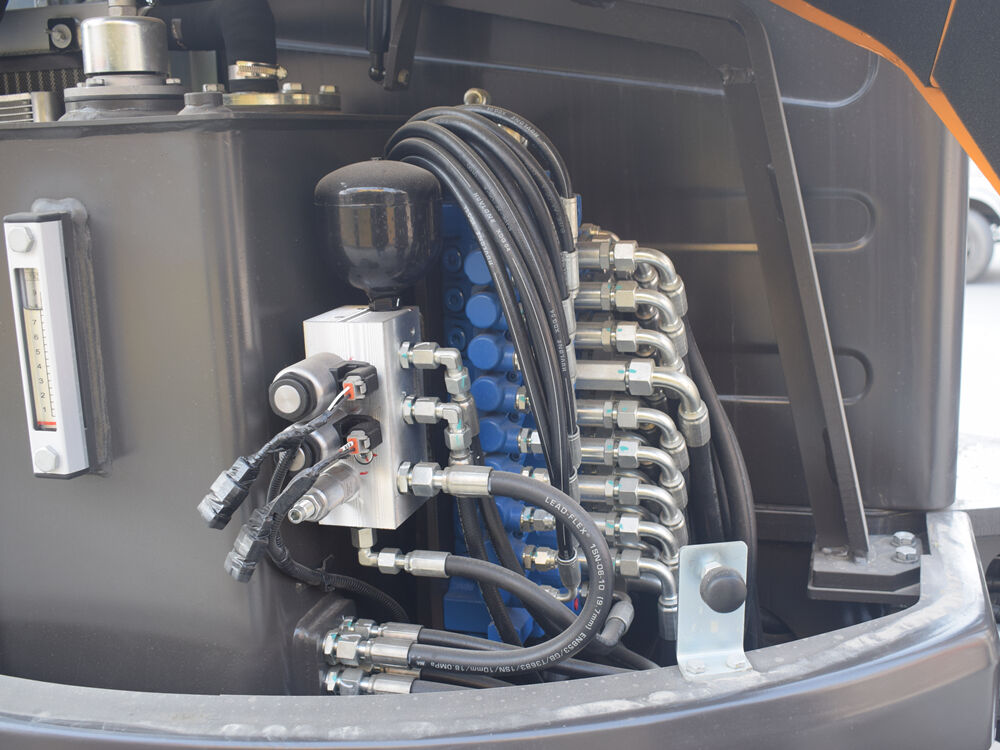

The hydraulic system adopts a 22.5Mpa high-pressure design. Combined with a maximum digging force of 30.4KN for the bucket and 18.2KN for the boom, the digging efficiency is outstanding. The rotation speed can be adjusted from 1 to 11 rpm, making the operation steering flexible and precise, and significantly improving the construction efficiency.

2.Drive & Control System
The equipment adopts a crawler drive system, equipped with a 300mm wide steel crawler plate. It has a large ground contact area and strong grip force, effectively reducing the ground contact pressure. It is suitable for operations in soft ground, mountainous areas and other complex terrains, avoiding slipping and sinking. The drive system supports high and low speed switching, ranging from 2.4km/h to 4.4km/h, balancing the mobility efficiency and operational stability.。



The equipment operates with precise and sensitive control, and has excellent radius control. The rear rotation radius is only 870mm, and the minimum rotation radius is 2530mm. It can perform flexible operations in narrow spaces. The left and right swing angles of the boom are 55° (left) and 65° (right) respectively, combined with a maximum climbing ability of 30°, it is suitable for multi-angle and high-gradient operation scenarios, and the control experience is smooth and efficient.



3.Size

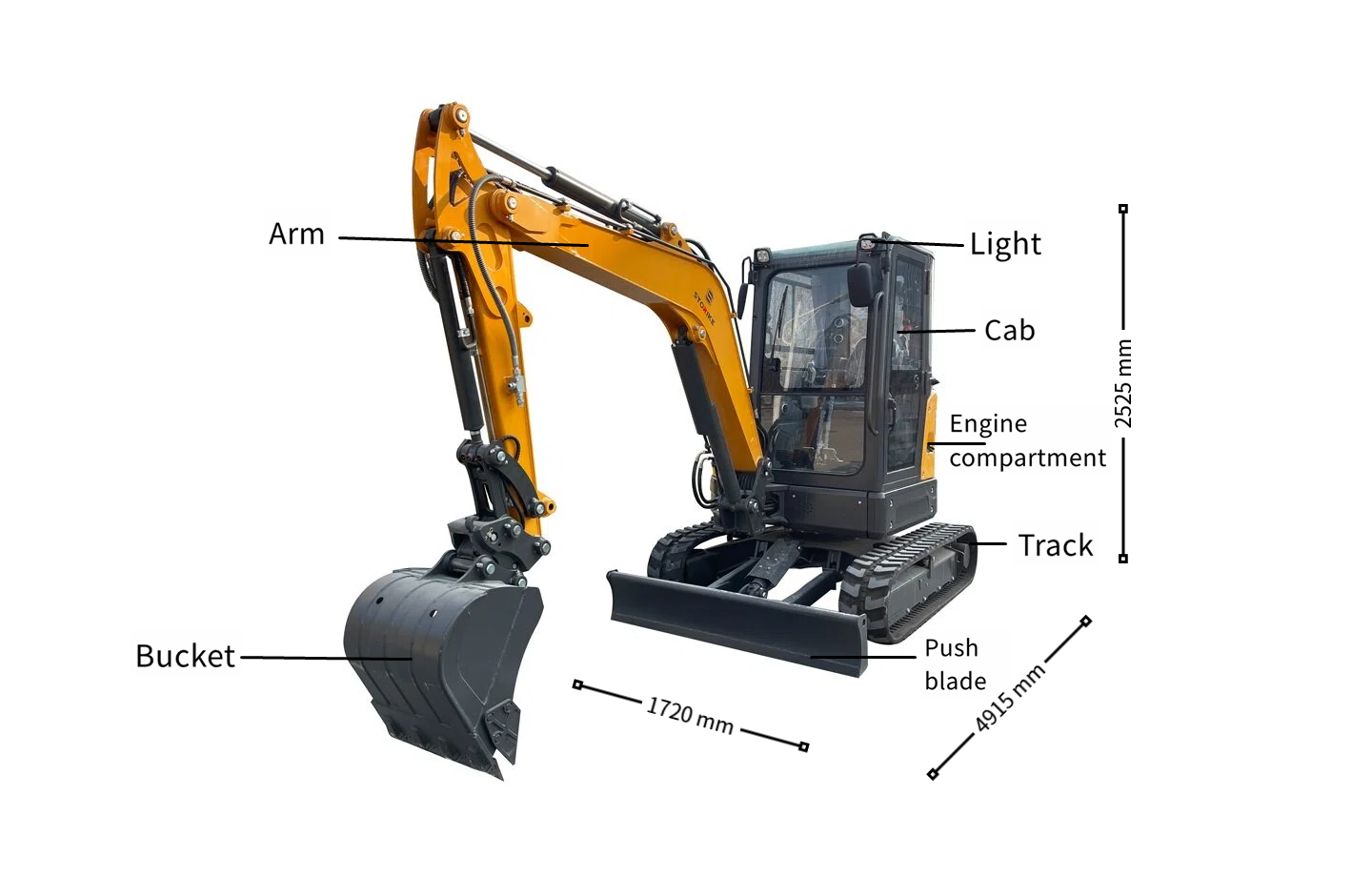

PC35.3 Self-weight: 3810kg. Overall dimensions: 4915mm × 1755mm × 2525mm. Track contact length: 1670mm. Track gauge: 1420mm. Equipped with a minimum ground clearance of 295mm, which not only ensures the stability of the machine but also enables it to easily pass over raised obstacles.
Working range: Maximum digging height: 4800mm; Maximum dumping height: 3406mm; Maximum digging depth: 3208mm; Maximum digging radius: 5480mm. It can meet various operational requirements such as excavation, crushing, loading, and leveling.

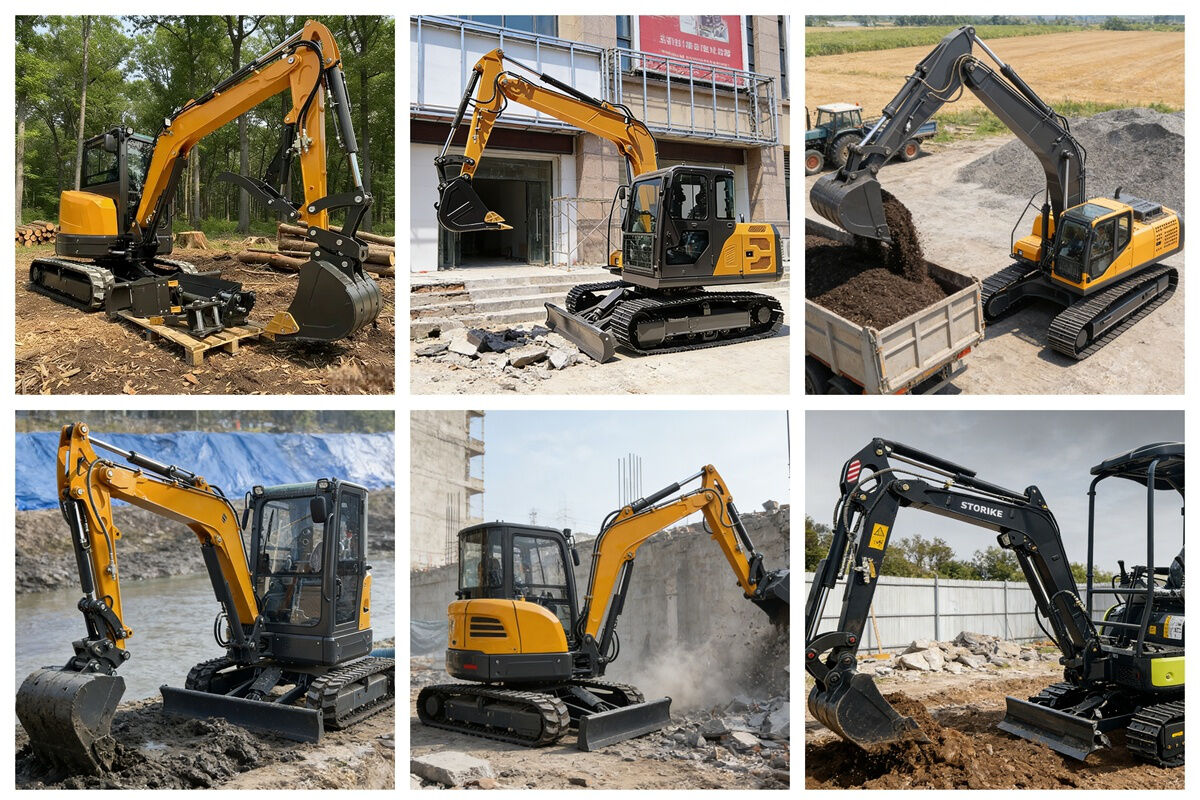

4.Application
Small excavators are widely used. Here are the application scenarios of small excavators：
·  Municipal: Pipeline laying/repair, sidewalk excavation, manhole operation；
·  Landscaping: Digging tree pits, site grading, river channel dredging；
·  Rural: Homestead land leveling, farmland water conservancy, small-scale farm construction;
·  Construction: Indoor demolition, small-scale foundation excavation, basement finishing;
·  Others: Orchard renovation, small-scale demolition, emergency rescue and disaster relief.

5.Service
Comprehensive service guarantee: Offer a one-year warranty period and a professional service team available 24/7 online. In case of equipment issues, you can call the service hotline at any time. We will respond immediately and provide you with a full range of services including technical consultation, fault diagnosis, and maintenance guidance, ensuring your construction is worry-free.



6.Packing and shipping
We provide wooden case packaging and strictly protect your machine's body as required, including components and paint finish, to ensure no scratches occur. Custom packaging is also available. We will select an appropriate transportation method for you. If you have a freight forwarder, we can also deliver the machine to your designated freight forwarder's location.



Company Introduction
STORIKE is a professional engineering equipment manufacturer with 15 years of production experience, specializing in products such as light towers, plate compactors, road rollers, excavators and loaders. Our products have obtained CE, EPA and Euro 5 certifications, and can be flexibly customized according to engine types, while providing comprehensive OEM/ODM service support. All products undergo strict quality control. We have participated in the Canton Fair and international construction machinery exhibitions, serving more than 100 countries worldwide. We have 6 dedicated sales and service departments and a 23,000-square-meter modern manufacturing base. We warmly welcome global customers to visit our factory and explore cooperation opportunities.
