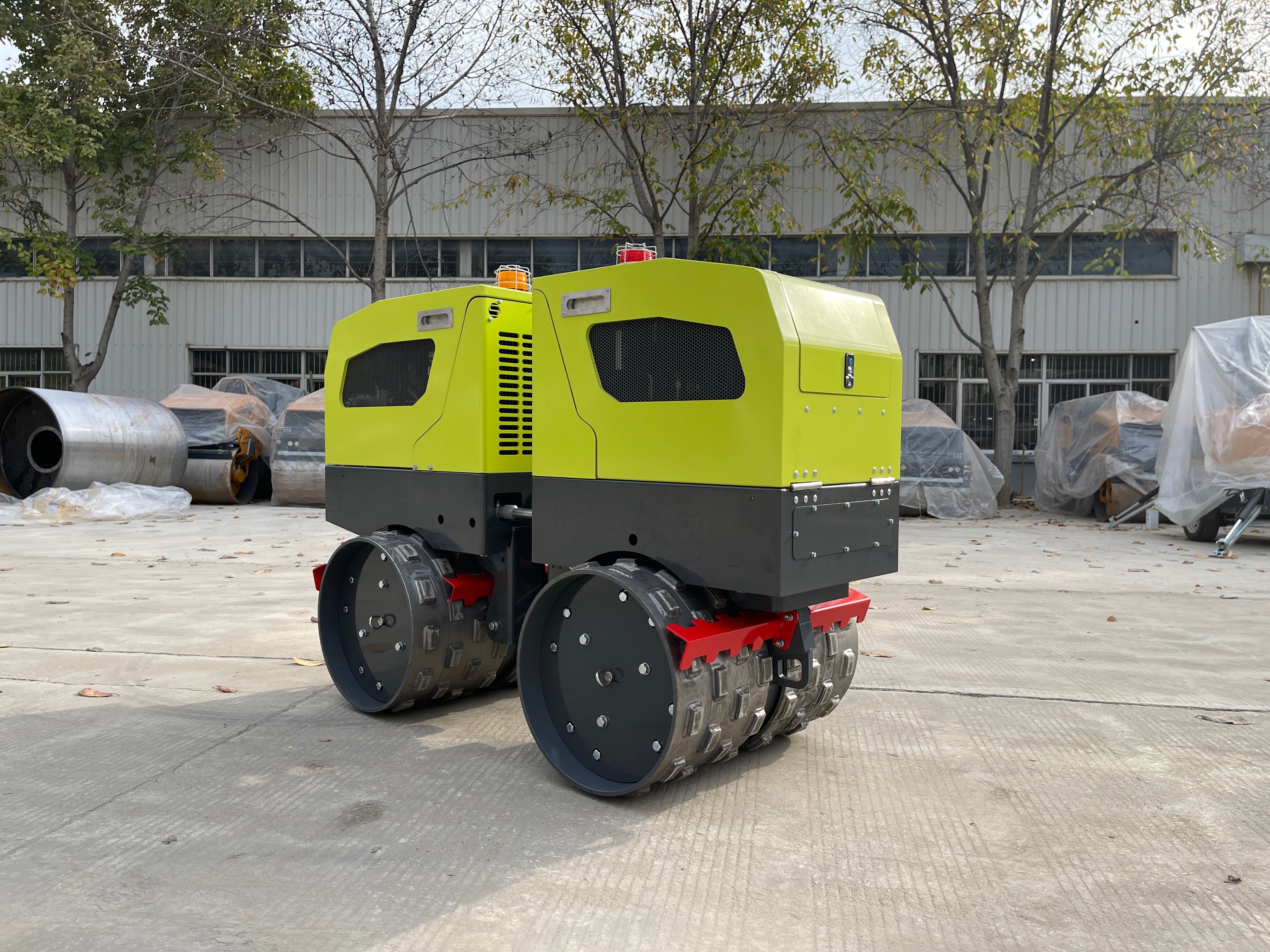

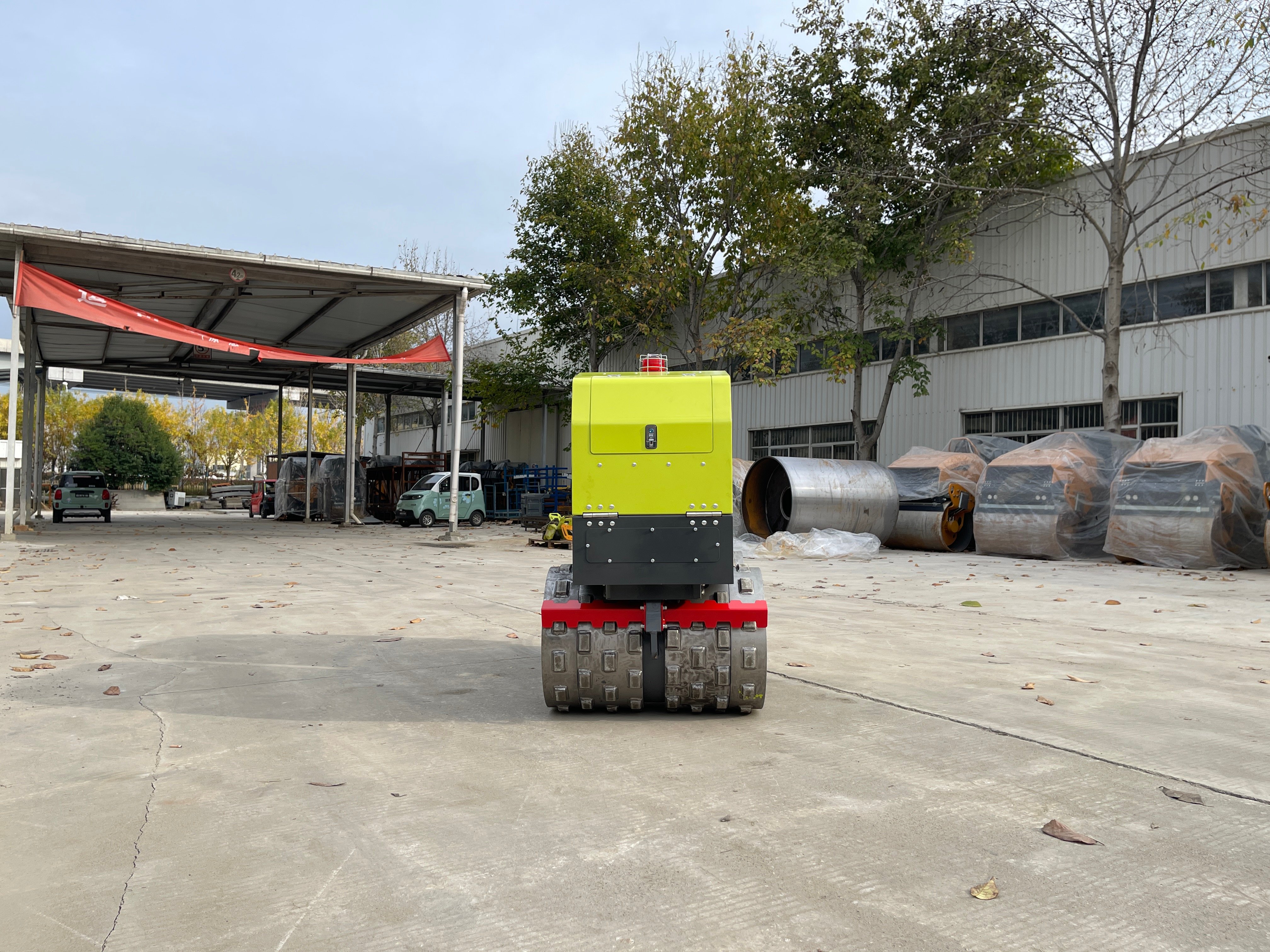

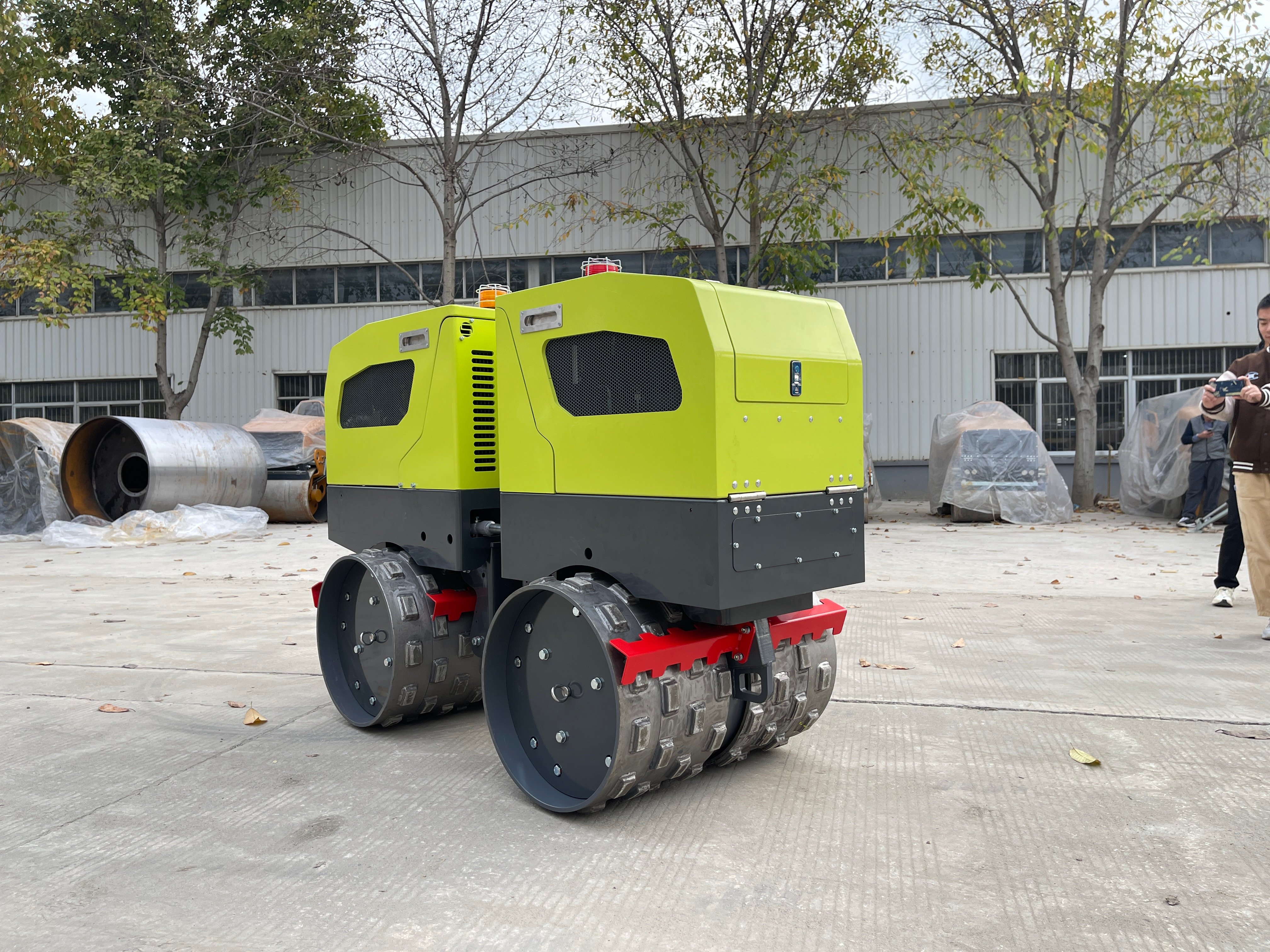

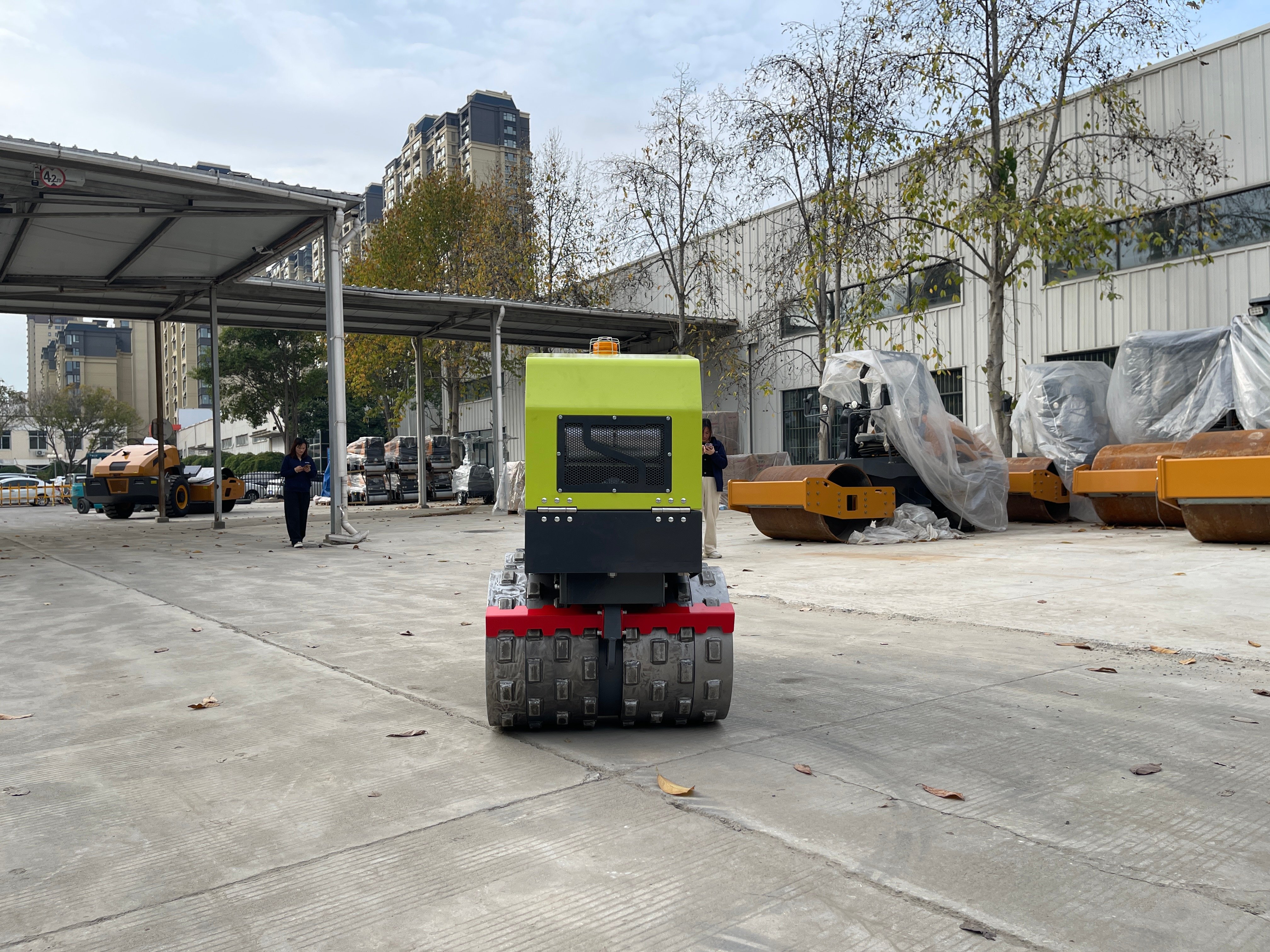

STRC-18 1.8 ton Remote control vibratory roller

Remote Control Double Drum Sheep Foot Vibratory Roller
What is a remote-controlled road roller?
A remote-controlled road roller is a compaction machine operated via a wireless remote control terminal, eliminating the need for on-board operation. It enables remote control of travel, steering, vibration and other working movements, and is suitable for narrow, high-risk construction sites or areas inaccessible to personnel.
What is the function of a road roller?
The core function of a road roller is to compact road-building materials such as soil, sand, gravel and asphalt mixture through its own weight or vibratory impact force. This improves the compactness, flatness and stability of the compacted materials, reduces their porosity, enhances load-bearing and anti-deformation capacity, and ensures the construction quality and service life of roads, foundations, dykes and other engineering projects.

FEATURES

• Equipped with branded power, guaranteed qualityand superior performance.
• Ergonomic streamlined body design,wide field of view,beautiful and elegant.
• Imported hydraulic variable displacement pump and quantitative motor,continuously variable speed, front and rear travel.
• Using wireless remote control technology to achieve remote engine start stop walking, and vibration control.
• Hydraulic steering, easy to operate,flexible,and convenient.
• The product has passed CE certification.


Product Parameter

Product details
The STRC18 small road roller combines high efficiency with flexible operation. With its excellent design and reliable configuration, it has become the preferred equipment for small and medium-sized construction projects.



1.Power system

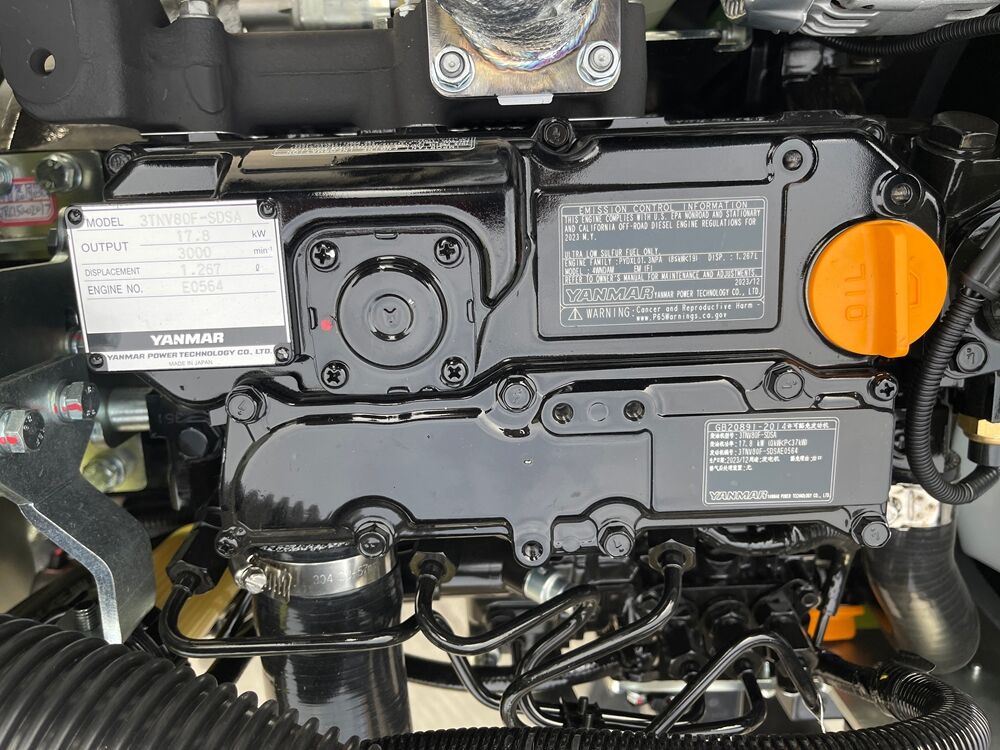

It is equipped with a Yanmar 3TNV80F-SDSA 4-stroke water-cooled diesel engine (3-cylinder) as the core configuration, delivering a stable, powerful and long-lasting power output with an output power of 17.8 kW and a rotational speed of 3000 rpm. The fuel consumption rate is as low as 282 g/kWh, greatly reducing operation and maintenance costs. It is matched with a 12V electrical system and a 3.4L oil capacity to ensure stable and reliable operation of the equipment.

2.Drive & Control System

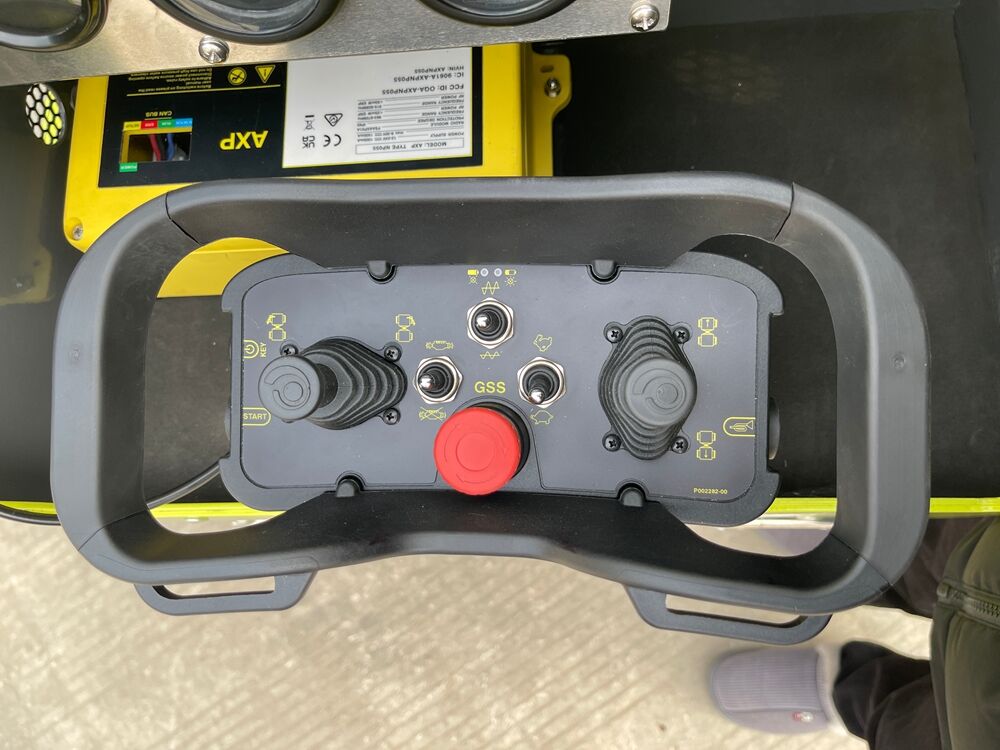

The equipment adopts a two-wheel parallel drive mode. The remote control system enables functions including remote engine start/stop, travel and steering control, vibration intensity adjustment (high and low), and automatic parking when the engine is turned off. It supports two-speed adjustment: a low speed of 1.25 km/h and a high speed of 2.5 km/h, with a 45% climbing capacity to easily tackle complex terrains. An articulated hydraulic cylinder steering system is adopted, featuring a steering angle of 30° and a minimum inner turning radius of only 1470 mm, ensuring flexible operation in narrow spaces. The hydraulic parking brake system provides reliable protection for construction safety.

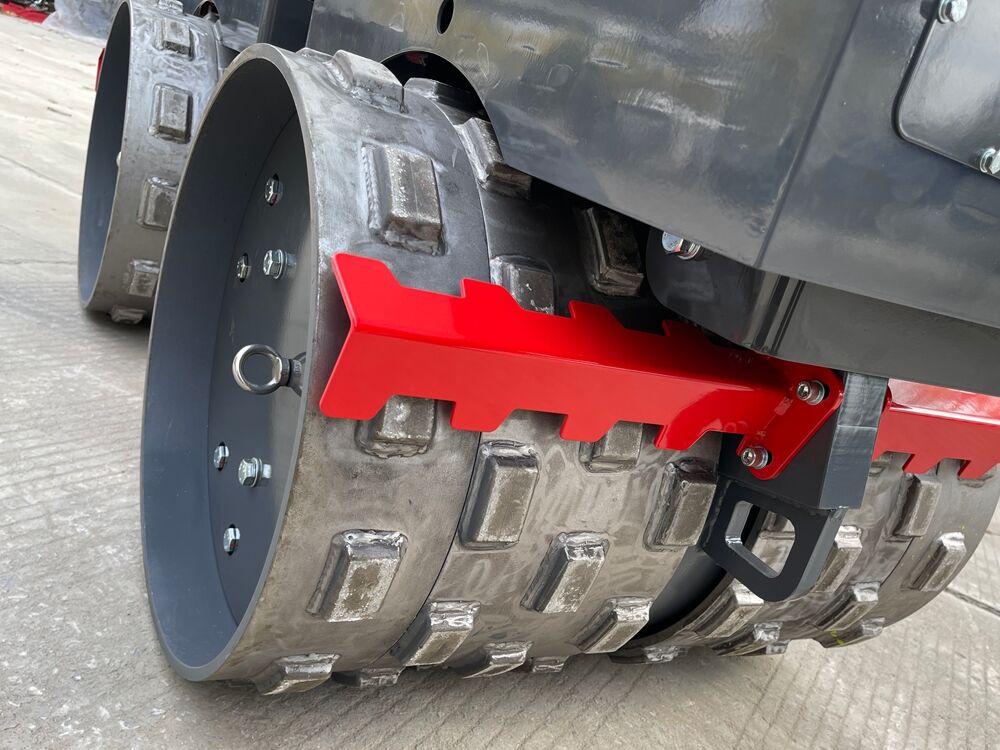

The machine’s core strength is its front & rear dual vibrating drums, hydraulically driven with a 42 Hz vibration frequency. Amplitude is adjustable between 0.7 mm (low) and 1.4 mm (high), delivering exciting forces of 15×2 KN and 30×2 KN respectively for uniform, high-efficiency compaction. Working width flexibly switches from 560 mm (narrow) to 820 mm (wide), and the 580 mm-diameter vibrating drum (with lugs) features a 1005 mm width to boost operational efficiency even further.



3.Size

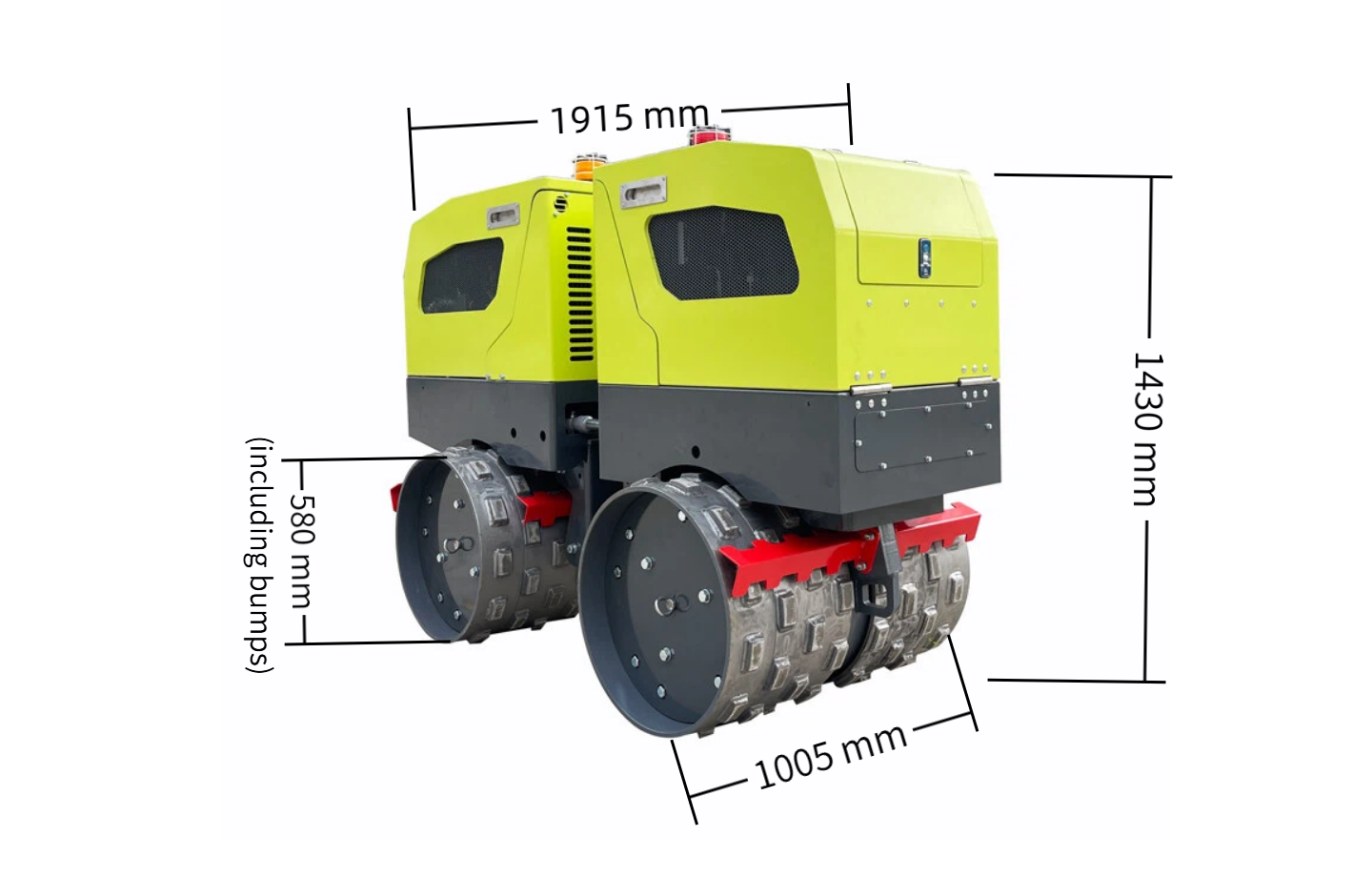

It features a compact body structure (1915 mm in length and 1430 mm in height), facilitating easy transportation and storage. With an operating weight of 1850 kg, it achieves a balance between compaction efficiency and ground protection. The 38.5-liter hydraulic oil tank and 25-liter fuel tank can meet the requirements of long-time continuous operation.

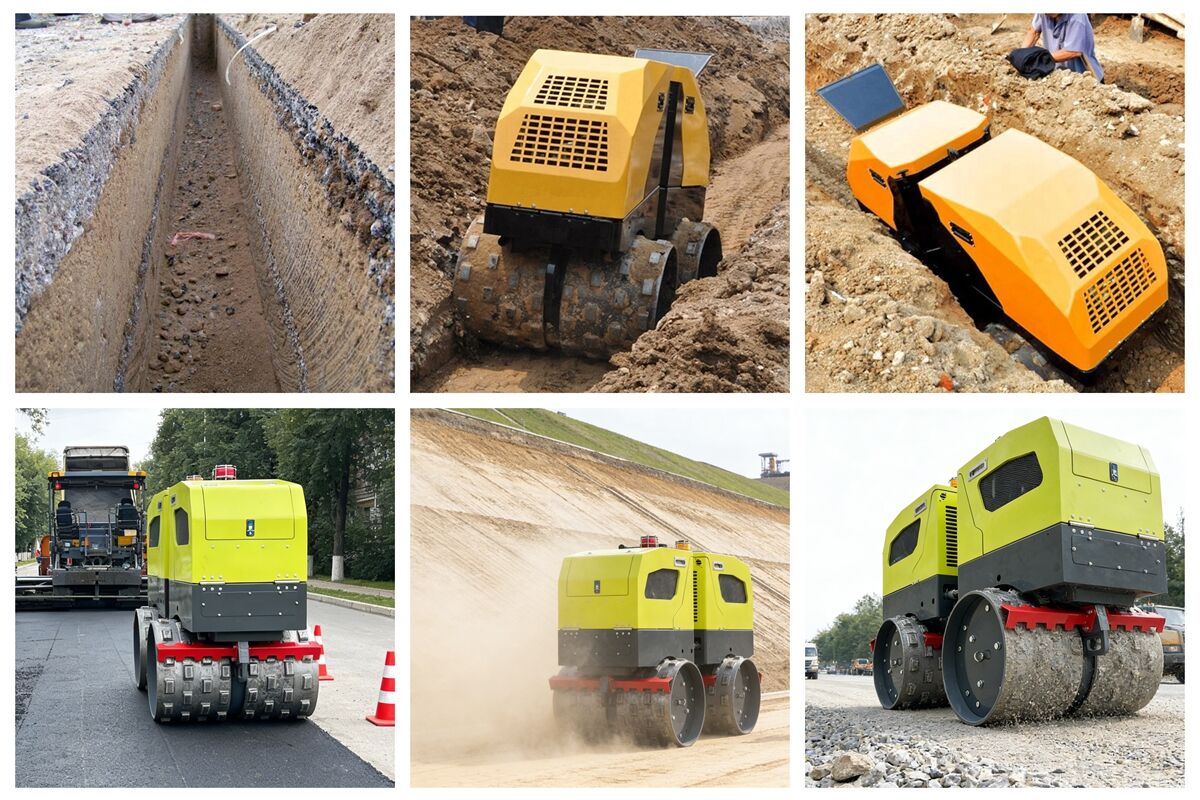

4.Application
The STRC-18 features a compact design. As a remote-controlled road roller, it is suitable for construction scenarios where manual operation is inconvenient, space is limited, or high risks and vulnerabilities exist. Its core applicable areas include：
·  Narrow Areas: Municipal lanes, areas beside community corridors, underground garages, pipeline surroundings, subgrade edges, bridge and culvert gaps, and other small construction sites inaccessible to large equipment.；
·  High-Risk Scenarios: Slopes and dykes, foundation pit edges, aerial work platforms, and slippery/soft ground. It eliminates potential safety hazards caused by on-board personnel operation；
·  Precision Construction Areas: Landscape gardens, golf courses, courtyard villas, and small-site foundations. Remote control enables better control of compaction accuracy and prevents over-compaction of the ground；
·  Special Working Conditions: Construction environments with high temperatures or heavy dust, reducing the health impact of on-site manual operation.

5.Service
Comprehensive service guarantee: Offer a one-year warranty period and a professional service team available 24/7 online. In case of equipment issues, you can call the service hotline at any time. We will respond immediately and provide you with a full range of services including technical consultation, fault diagnosis, and maintenance guidance, ensuring your construction is worry-free.

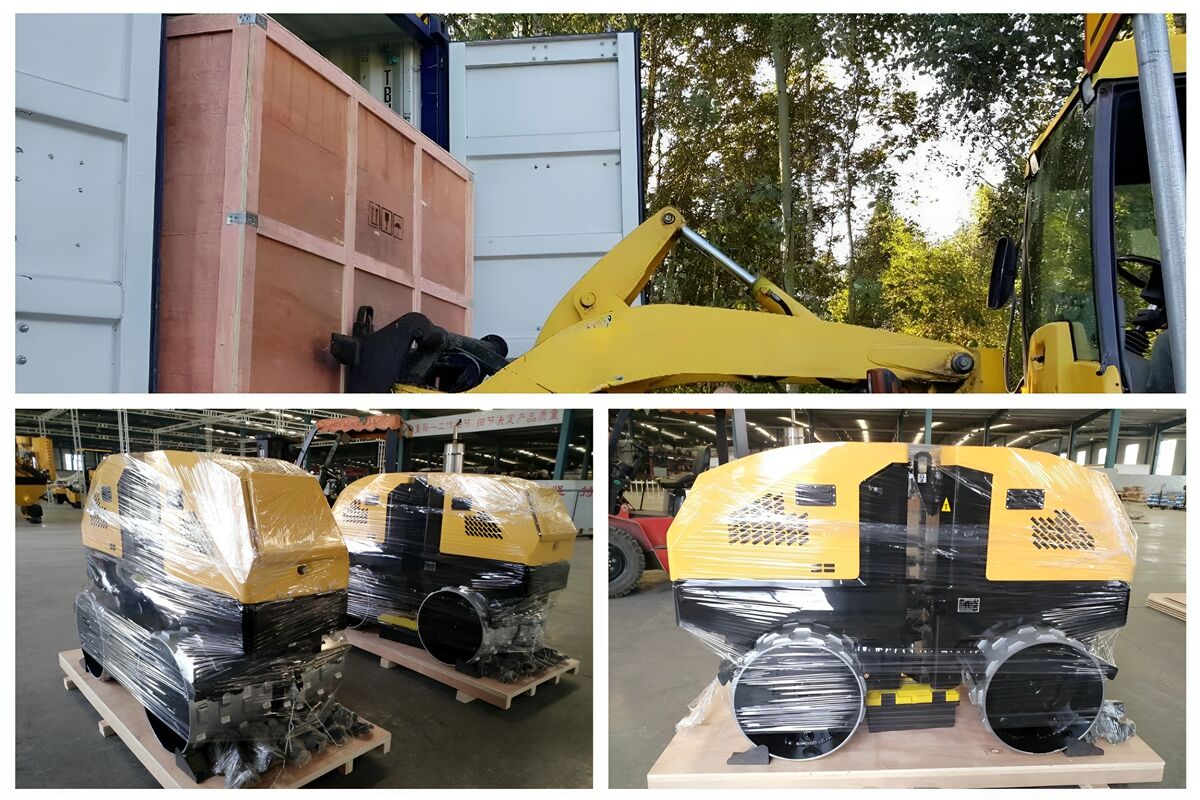

6.Packing and shipping
We provide wooden case packaging and strictly protect your machine's body as required, including components and paint finish, to ensure no scratches occur. Custom packaging is also available. We will select an appropriate transportation method for you. If you have a freight forwarder, we can also deliver the machine to your designated freight forwarder's location.

Company Introduction

STORIKE is a professional engineering equipment manufacturer with 15 years of production experience, specializing in products such as light towers, plate compactors, road rollers, excavators and loaders. Our products have obtained CE, EPA and Euro 5 certifications, and can be flexibly customized according to engine types, while providing comprehensive OEM/ODM service support. All products undergo strict quality control. We have participated in the Canton Fair and international construction machinery exhibitions, serving more than 100 countries worldwide. We have 6 dedicated sales and service departments and a 23,000-square-meter modern manufacturing base. We warmly welcome global customers to visit our factory and explore cooperation opportunities.

Suggested use

Here are some safety tips to help you maintain the machine and extend its service life：
Safety Tips & Maintenance Advice：
·  During the operation of the equipment, do not perform cleaning or maintenance work. Rotating parts may cause personal injury.
·  It is strictly prohibited to clean parts with gasoline, other fuels or flammable solvents, especially in enclosed areas; the fumes volatilized from fuels and solvents are prone to accumulation, which may cause explosions.
·  Regularly check the external buttons of the equipment to ensure their normal functions.
·  Provide professional operation and safety training to equipment operators on a regular basis.
·  Do not operate the equipment in areas with flammable substances, fuel or flammable vapors.
·  After the equipment is out of service, turn off the engine immediately, store it in a clean, dry area out of the reach of children, and ensure standardized storage.
·  Do not remove the air filter cover, paper filter element and pre-cleaner while the engine is running.
·  Before hoisting, jacking up the equipment or performing maintenance work, be sure to fasten the articulated steering connection in place with a locking rod.
· We provide instruction manuals and operation suggestions. Please use the machine in accordance with the manual to ensure personal safety and avoid machine damage.
