STORIKE Plate Compactor
Quick Overview of STORIKE Plate Compactor Catalog
Service
-On-time Delivery
-Quality Assurance (one year)
-Customized Services (logo,packaging,graphic,etc.)
Contact Information
-Number:+86-13963746955
-Email:[email protected]
- Overview
- Forward plate compactor
- Reversible plate compactor
- Hydraulic plate compactor
- Recommended Products
HAND PUSH SMALL COMPACTION MACHINERY
What is the function of a plate compactor?
It is used to compact loose base layers such as soil, sand, gravel, and asphalt. Through the combination of the plate's high-frequency vibration and static pressure, the particles of the material being compacted are made to closely adhere to each other, reducing the porosity and increasing the density. This enhances the bearing capacity and stability of the base layer, preventing problems such as settlement, deformation, and cracking during subsequent construction or use.
|
Forward plate compactor Click on the picture - view the details |
| Picture |  |
 |
| Model | STP60 | STP90 |
| Engine brand | HONDA/LONCIN | HONDA |
| Engine model | GX160/GF200 | GX160 |
| Engine type | Single cylinder air-cooled four stroke | |
| Number | 1 | |
| Power | 5.5HP | 5.5 HP |
| Operating weight | 66 KG | 83 KG |
| Rotational speed | 93 HZ | 5500 vpm |
| Exciting force | 10.5 kn | 13 kn |
| Compacting depth | 20 cm | 30 cm |
| Travel speed | 34 m/min | 40 cm/s |
| Working efficiency | 423 (M^2)/hr | 660 (M^2)/hr |
| Plate size | 50*35 cm | 53*50 cm |
| Working size | 108*35*85 cm | 110*50*85 cm |
|

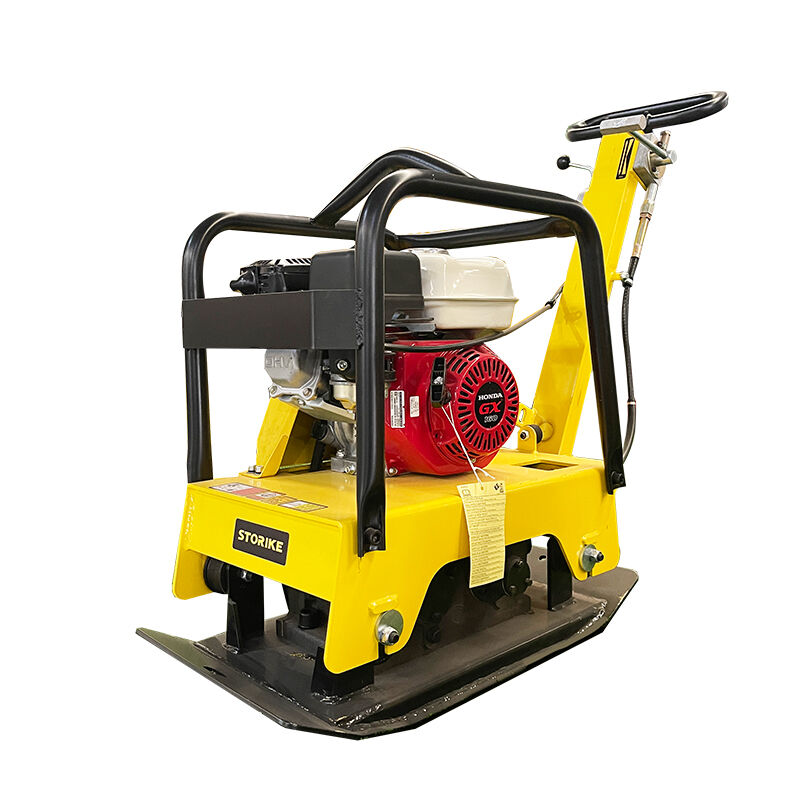

Reversible plate compactor Click on the picture - view the details |
| Picture |  |
 |
 |
| Model | STP125 | STP160 | STP270 |
| Engine brand | HONDA | HONDA | HONDA |
| Engine model | GX160 | GX160 | GX270 |
| Engine type | Single cylinder air-cooled four stroke | ||
| Number | 1 | ||
| Power | 5.5 HP | 5.5 HP | 9 HP |
| Operating weight | 126 kg | 149 kg | 270 kg |
| Rotational speed | 4300 vpm | 400 vpm | 3750 vpm |
| Exciting force | 25 kn | 30.5 kn | 36 kn |
| Compacting depth | 30 cm | 50 cm | 90 cm |
| Travel speed | 25 cm/s | 25 cm/s | 35 cm/s |
| Working efficiency | 500 (M^2)/hr | 570 (M^2)/hr | 650 (M^2)/hr |
| Plate size | 63*40 cm | 73*37 cm | 89*67 cm |
| Working size | 75*40*93 cm | 86*57*93 cm | 178*67*90 cm |
|
Hydraulic plate compactor Click on the picture - view the details |
| Picture |  |
| Model | STP450 |
| Engine brand | Honda/Loncin/Changchai |
| Engine model | GX390/GF420/186 |
| Engine type | Single cylinder air-cooled four stroke |
| Number | 1 |
| Power | 13hp/13hp/8HP |
| Operating weight | 450 kg |
| Rotational speed | 4400 vpm |
| Exciting force | 55 kn |
| Compacting depth | 90 cm |
| Travel speed | 24 m/min |
| Working efficiency | 780 (M^2)/hr |
| Plate size | 89*67 cm |
| Working size | 148*67*121 cm |
