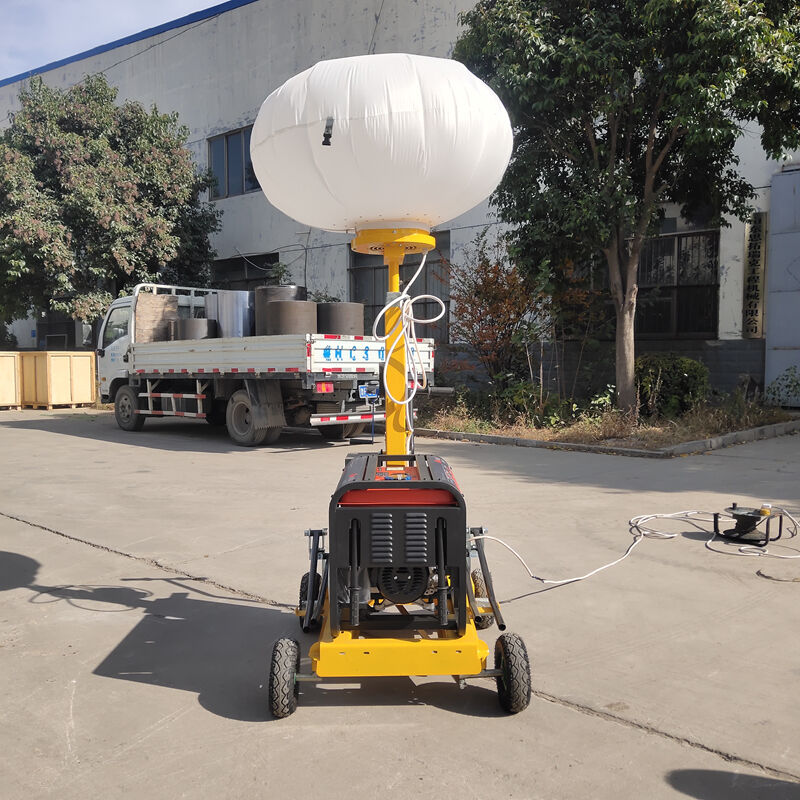

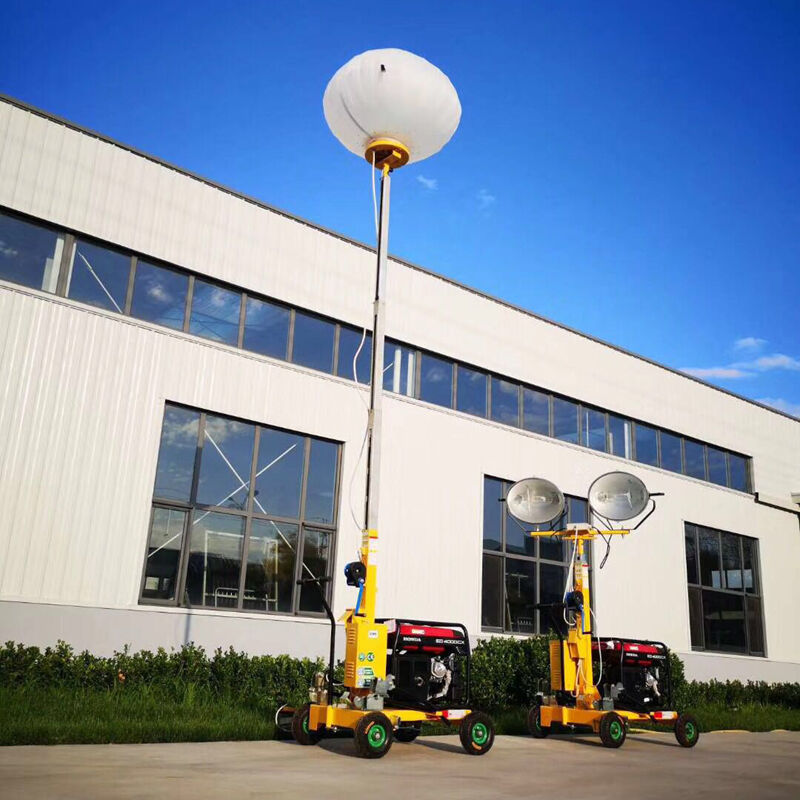

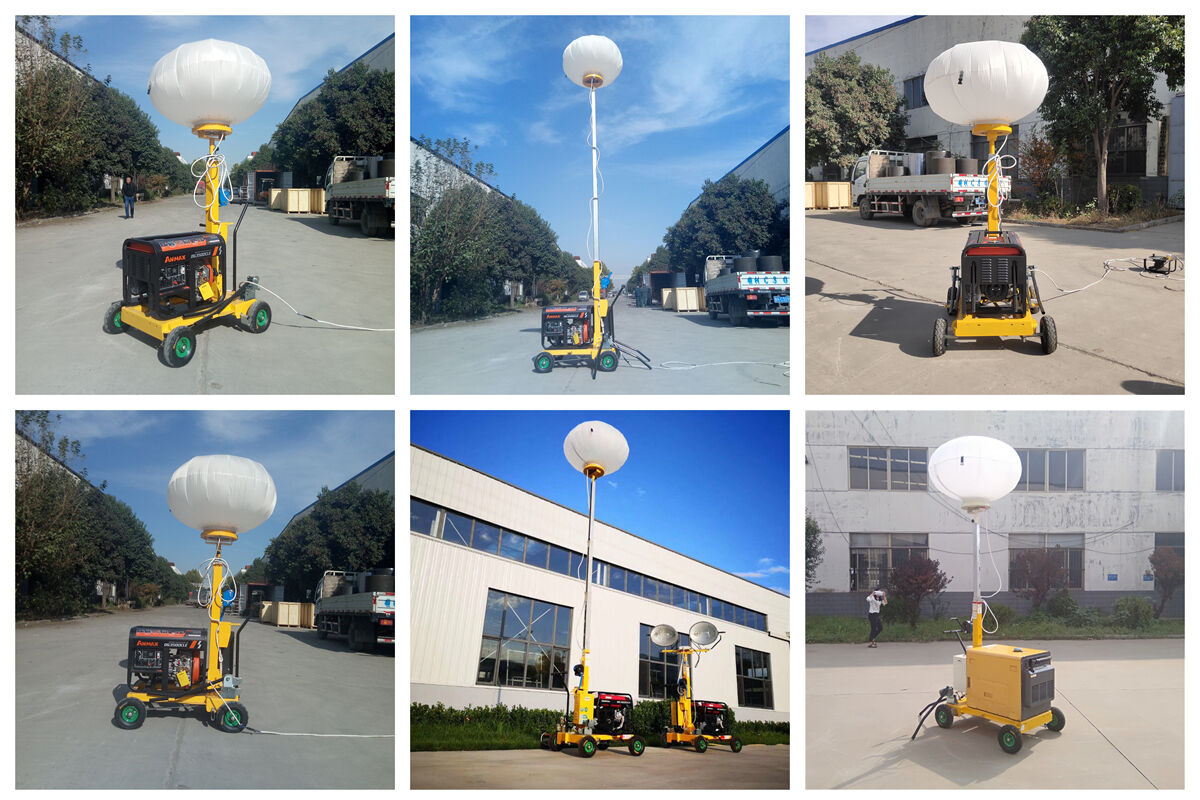

The mobile lighting tower, with its stable power system, flexible control design, reasonable size layout and wide range of applicable scenarios, has become an ideal lighting solution for outdoor operations, emergency rescue and other scenarios.

Details picture
Name	Control panel	Light bulb	Generator	Lift rod operation

1.Power system

[1].The multi-specification generator set is designed to balance stability and adaptability.

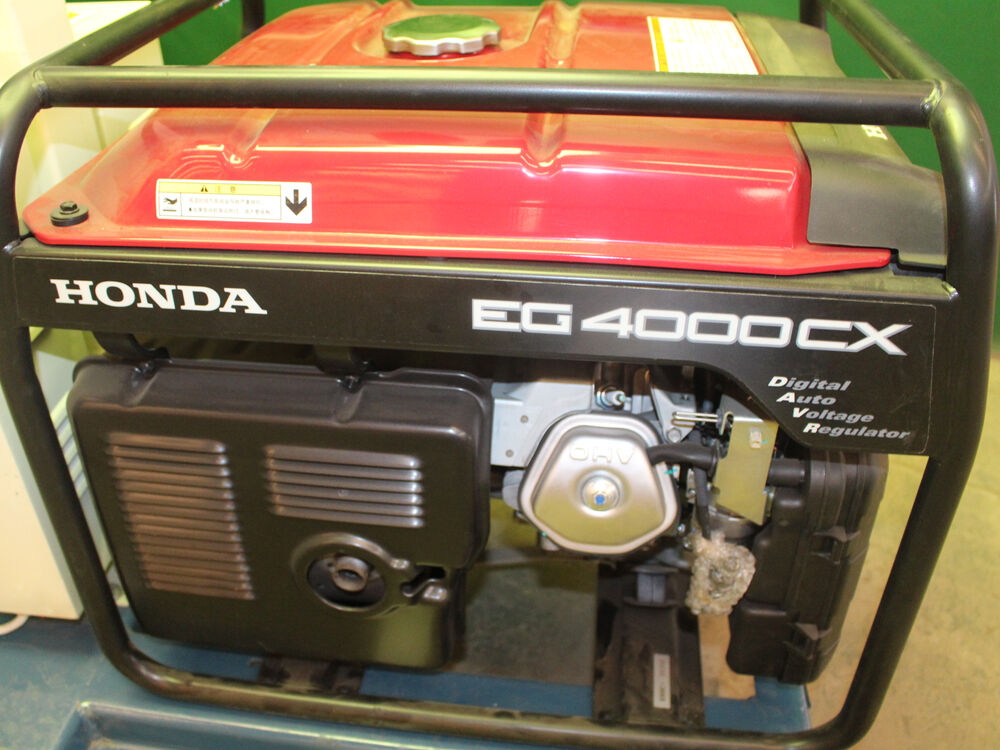

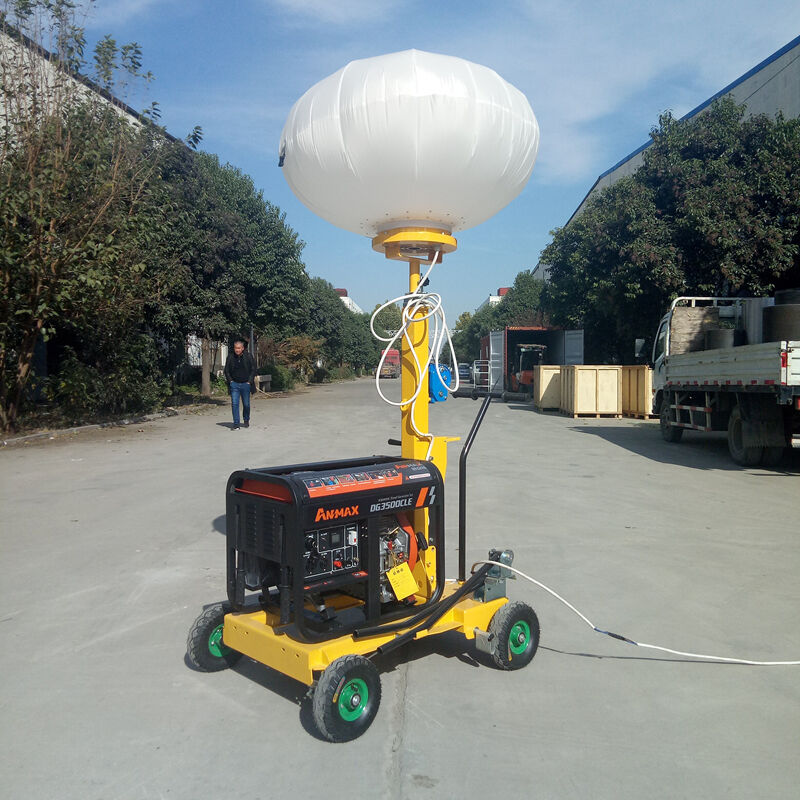

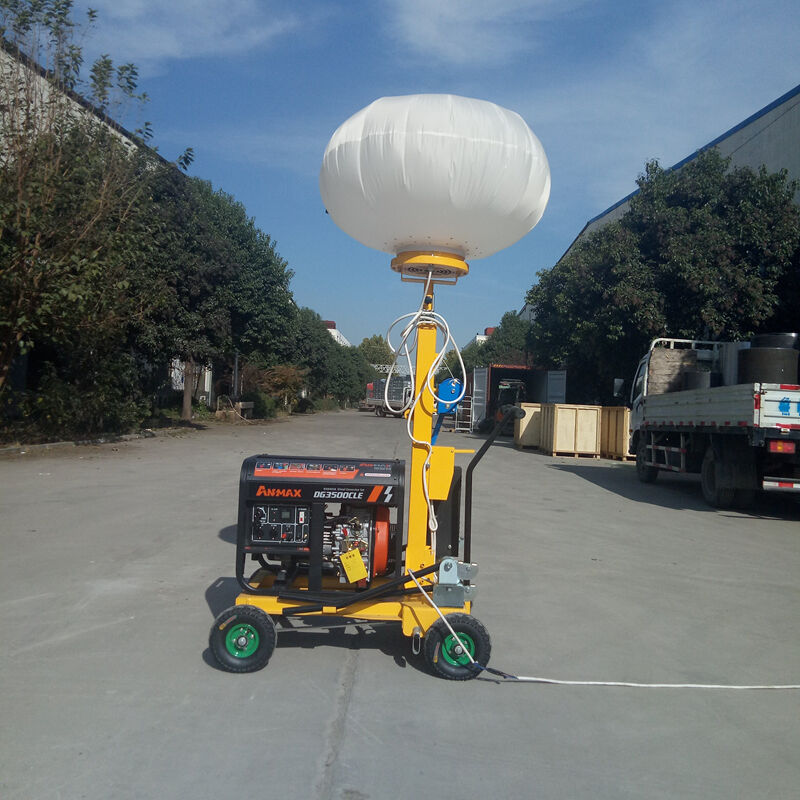

[2].Optional Honda EC4000CX or Loncin LC3500 gasoline generators, as well as ANMAX DG3500CLE diesel generator can be selected to meet the power requirements of different scenarios.

[3].The core configuration motor has a rated frequency of 50Hz and a rated voltage of 220V, ensuring stable and undisturbed power supply; with a rated power of 3.2kva and a maximum output power of 3.3kva, it can easily drive dual lighting fixtures to run for a long time.

[4].The fuel tank capacity is 25L, allowing for 13 hours of continuous operation when fully fueled, eliminating the need for frequent refueling and significantly improving operational efficiency.

2.Drive & Control System

[1].It adopts a portable hand-push walking mode, which can be easily pushed by a single person and is suitable for various complex terrain transfer needs.

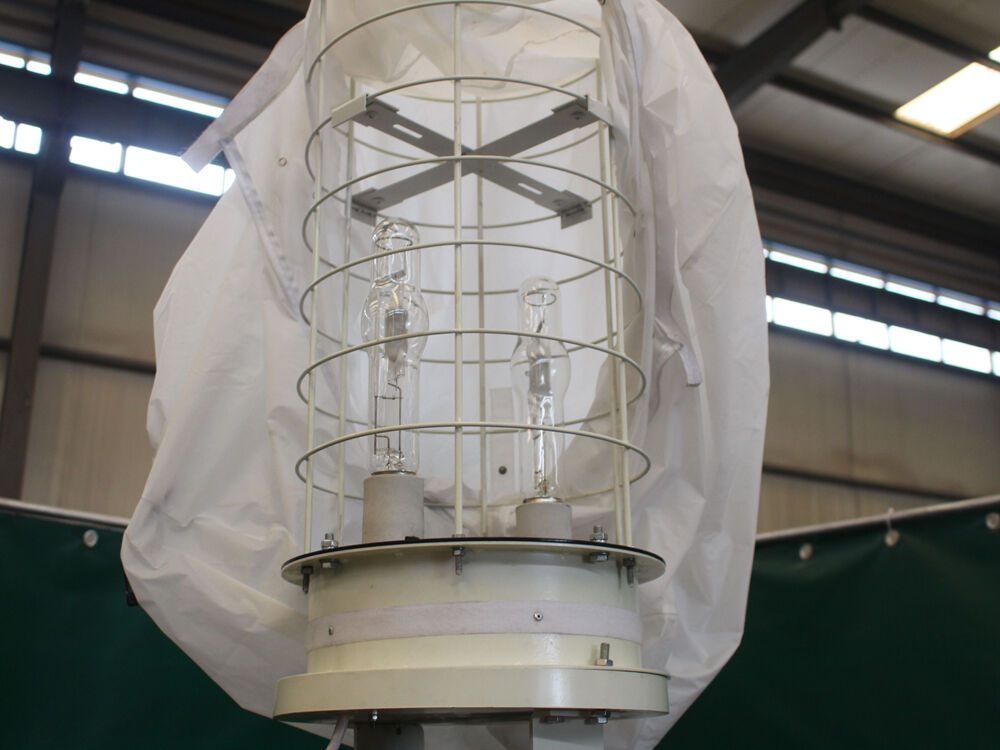

[2].In terms of lighting control, it is equipped with 2 1000W metal halide headlights, with a total luminous flux of up to 220,000 lm. The light is bright and uniform, with a wide coverage area, and can effectively meet large-area lighting requirements.

[3].The lamp stand adopts a three-section lifting rod design, supporting manual lifting adjustment. The lifting range is between 1700mm and 5000mm, and can be precisely adjusted to the lighting height according to the operation requirements, adapting to the lighting coverage needs of different scenarios.

[4].The equipment has strong operational stability. The inclination angle is controlled within 10°, and its wind resistance level can reach 6. It can still operate stably in complex outdoor weather conditions, ensuring uninterrupted lighting.

3.Size

[1].The engine measures 690mm * 530mm * 575mm and has a compact structure that doesn't take up much space.

[2].The supporting structure adopts a foldable design. When placed flat, the size of the support is 1710mm * 1740mm, providing stable support and preventing shaking during operation;

[3].After folding, the size of the support reduces to 1375mm * 860mm, significantly saving storage and transportation space, and facilitating vehicle loading and handling.

[4].The engine weighs 93 kg, and the total weight of the equipment (excluding the generator) is 117 kg. With a push-type design, it combines stability and mobility, allowing for flexible transfer on non-level ground such as construction sites and in the wild. It does not require the use of large handling equipment.

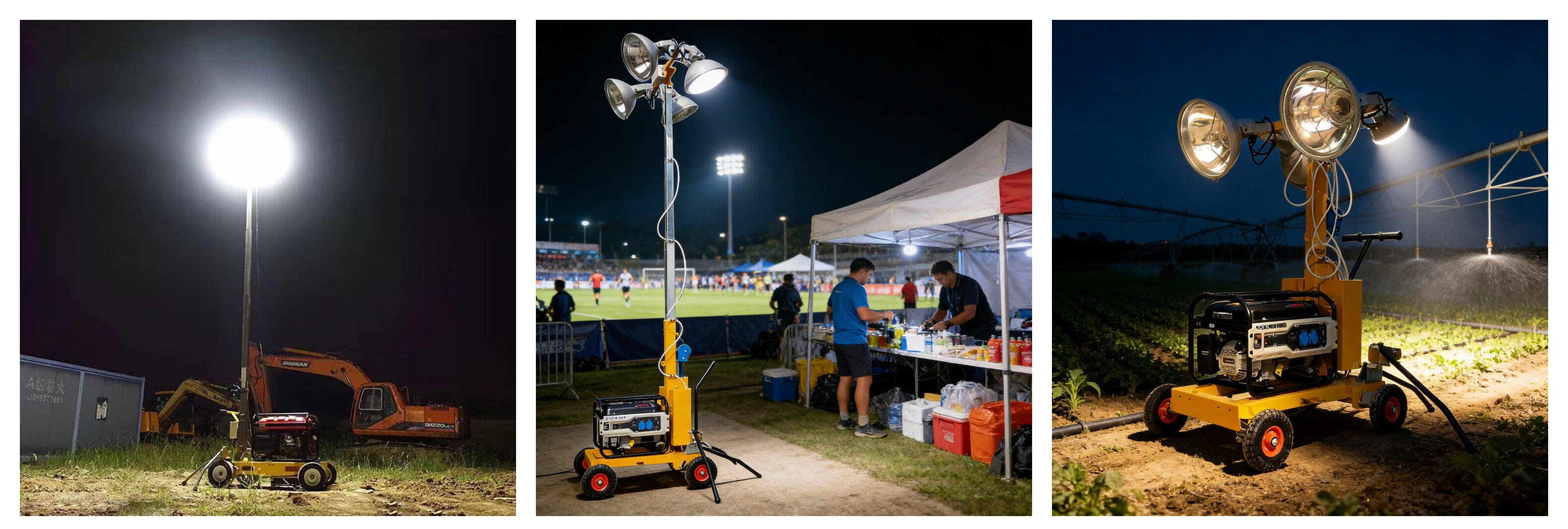

Applications

[1].Municipal Road Maintenance

Suitable for asphalt patching, pothole repair, manhole replacement, road marking maintenance and curb construction. The 5-meter mast raises the light above workers and equipment, reducing shadows caused by rollers, cutters and material piles.

The push-type chassis allows municipal crews to move the tower between multiple localized work zones during the same shift.

[2].Sidewalk and Narrow-Road Construction

Sidewalks, alleys, residential roads and utility construction areas often provide limited access. Large trailer-mounted towers may be difficult to maneuver, while the approximately 860mm retracted width of the SMLV1000QA is better suited to controlled narrow-site movement.

[3].Nighttime Building Construction

Suitable for reinforcement work, formwork installation, concrete placement, material handling and site inspection. The 220,000-lumen output and balloon diffuser help illuminate several nearby working areas with more evenly distributed light.

[4].Industrial Plant and Equipment Maintenance

Suitable for power-outage maintenance, production-line servicing, machinery assembly or disassembly and temporary warehouse lighting. The tower can be pushed close to the maintenance point and adjusted according to the required working height.

[5].Emergency Response and Disaster Recovery

During power outages, road failures, drainage repairs or disaster recovery, the integrated generator can provide independent lighting. The four-wheel chassis supports repositioning within the emergency zone, while the external power option can be used after temporary site power becomes available.

[6].Auxiliary Lighting for Mines and Quarries

Suitable for maintenance points, equipment servicing areas, material inspection zones and temporary work areas in mines and quarries. Large open-pit operating zones with strong winds or very long lighting distances may require a taller and higher-output trailer-mounted tower.

[7].Parking Lot and Site Construction

Suitable for parking lot paving, surface repair, drainage work, nighttime marking and temporary traffic management. The 5-meter mast covers concentrated work zones, while the push chassis allows the lighting position to follow project progress.

[8].Outdoor Event Support Lighting

The unit can support equipment areas, logistics zones, temporary parking areas, loading zones and safety routes at outdoor events. The balloon diffuser reduces the visual discomfort associated with strongly directional lighting.

The product is primarily designed as worksite lighting, and event use should be evaluated according to local electrical, safety and noise regulations.

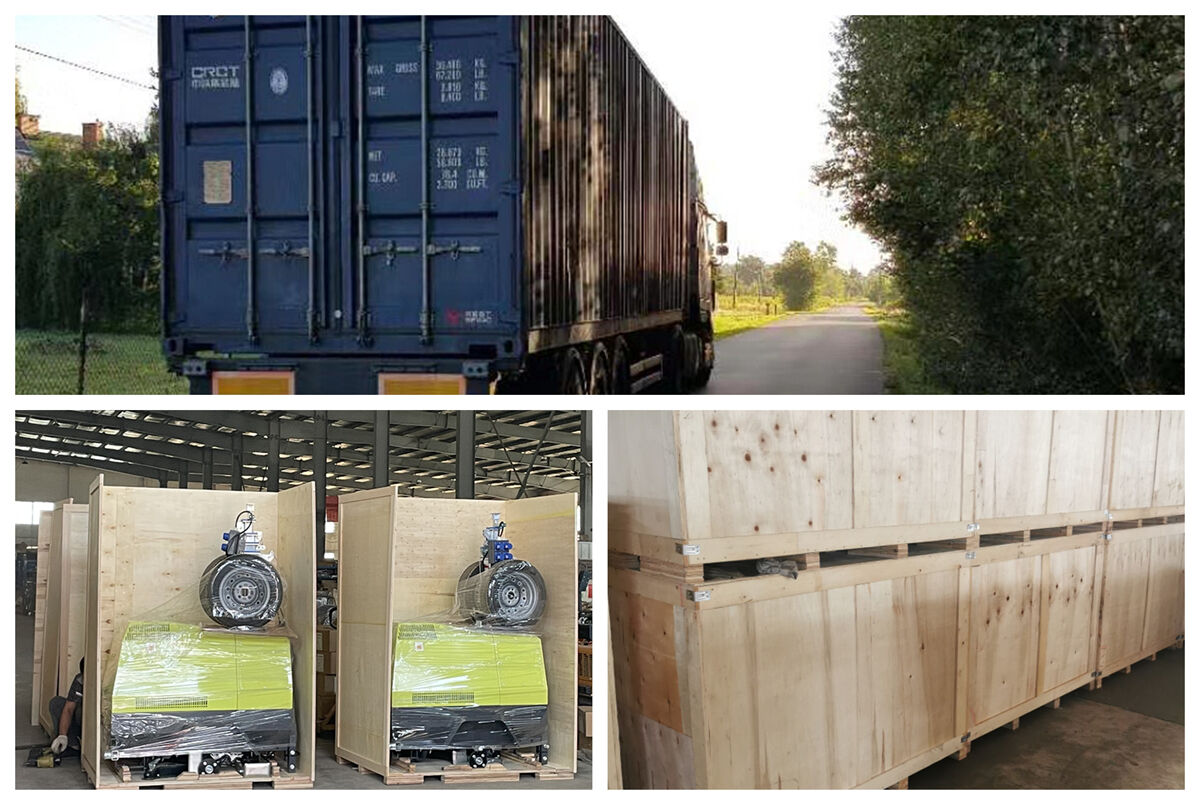

Packaging and International Shipping

The SMLV1000QA is packed in an export wooden case to reduce the risk of impact, dust and moisture during handling and transportation.

Available transportation arrangements may include:

[1].Full-container or less-than-container sea freight;

[2].Land or rail transportation;

[3].Air freight where practical;

[4].Delivery to a nominated port, freight forwarder’s warehouse or designated location;

[5].Door-to-door service in selected countries and regions.

With approximately 15 years of export experience, STORIKE can assist with transportation planning, packing documentation and shipment coordination. Shipment and transportation progress can also be monitored throughout the process.

Freight charges, customs duties, clearance costs and door-to-door service availability must be calculated according to the destination, ordered configuration and local import regulations.

Q1:How long can the light tower provide continuous lighting?
A1: Equipped with a 25L large-capacity fuel tank and a single-phase AC generator, under the rated power of 3.2kva condition, it can operate continuously for 13 hours. There is no need to frequently add fuel, meeting the requirements for long-term nighttime operations.

Q2: Which harsh environments is this equipment suitable for?
A2: It can withstand an inclination angle of less than 10 degrees and wind force of up to level 6. The structure is stable and does not easily tip over. It is suitable for various scenarios such as outdoor construction and emergency rescue, and can operate normally even in mild adverse weather conditions.

Q3：Is the equipment easy to move and store?
A3: It adopts a hand-push type moving design. When folded, the size of the support is 1375*860mm. When placed flat, the size is 1710*1740mm. Without the generator, it weighs only 117kg. It can be pushed by one person and can be flexibly stored in narrow spaces.

Q4: Are gasoline and diesel generator options available?

A4: Yes. Gasoline options include HONDA EC4000CX and LONCIN LC3500, while the diesel option is ANMAX DG3500CLE. Selection should be based on fuel availability, budget, operating schedule and local regulations.

Q5: Can the tower operate from an external power source?

A5: Yes. External power is supported, provided the voltage, frequency and connection match the machine and electrical safety is verified by qualified personnel.
