STP450 | 450KG | Plate Compactor

HAND PUSH SMALL COMPACTION MACHINERY

What is a plate compactor?
A plate compactor is a small, mobile and flexible construction machinery for compaction. It utilizes its own weight combined with the high-frequency, periodic excitation force generated by the vibration device to rearrange the particles of loose materials such as soil, sand, and asphalt, reducing the pores and achieving a dense and stable effect. It is particularly suitable for operations in narrow areas and compensates for the blind spots of large road rollers.

FEATURES
Choose from three superior power options. The 13HP high-power model has powerful performance and is suitable for various working scenarios.
With an excitation force of 55kN and a frequency of 4400rpm, the compaction depth reaches 90cm and the efficiency is as high as 780㎡/h.
The 450kg body is equipped with an 89×67cm base plate, which is dense and uniform, allowing for flexible operation in narrow areas.
Single-cylinder air-cooled four-stroke engine, with excellent heat dissipation, low failure rate and stable endurance.

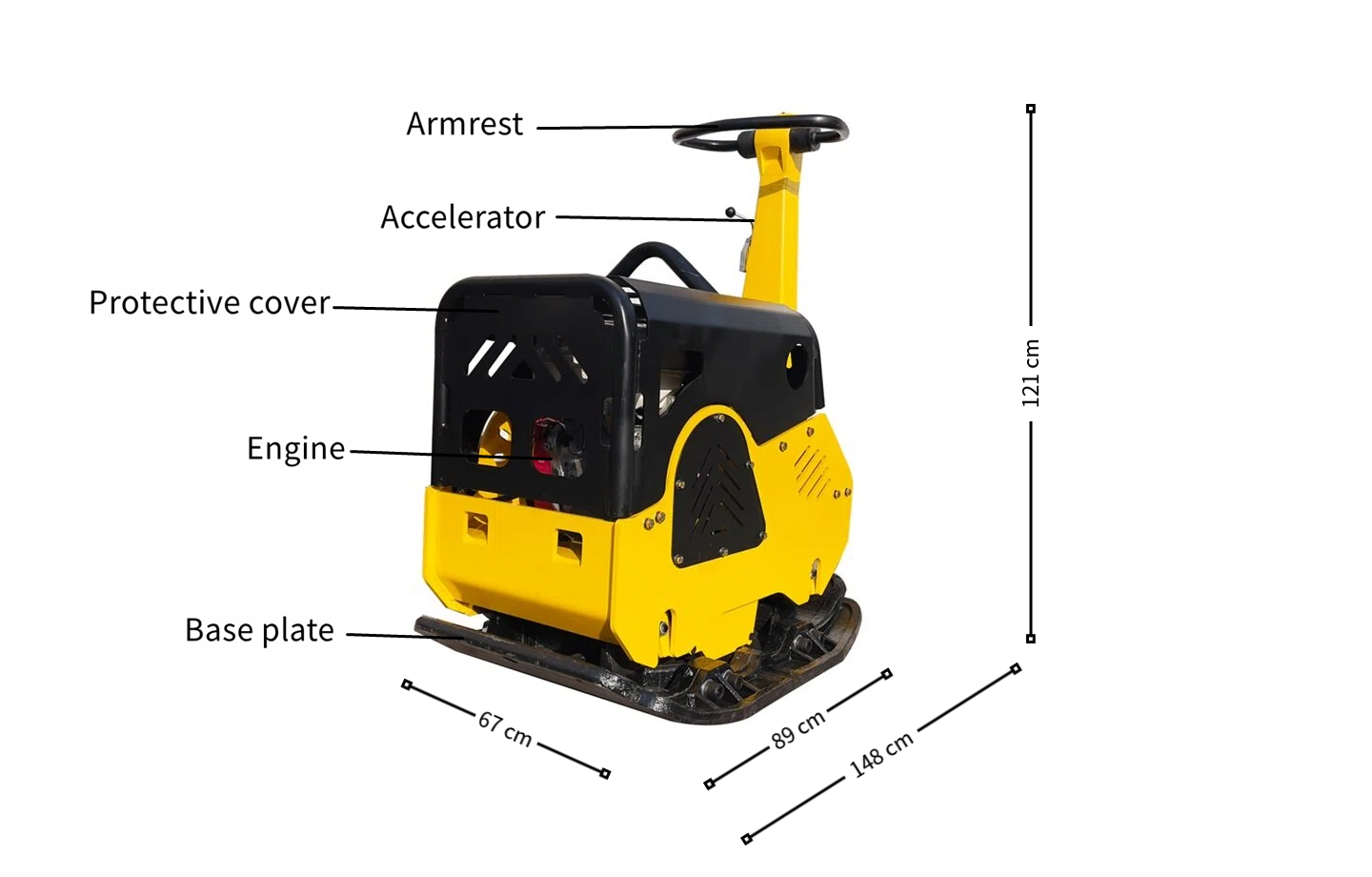

The body is compact (148×67×121 cm), making it easy to transport and store, and simple to maintain.

Product Parameter

Product details

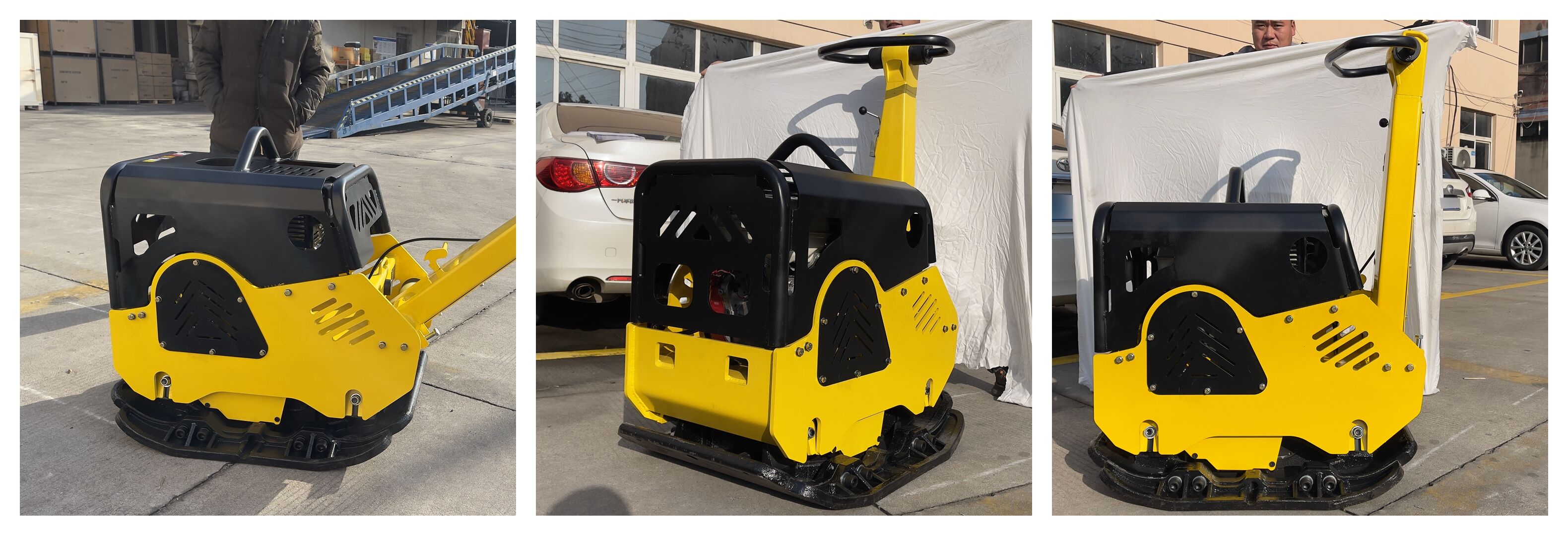

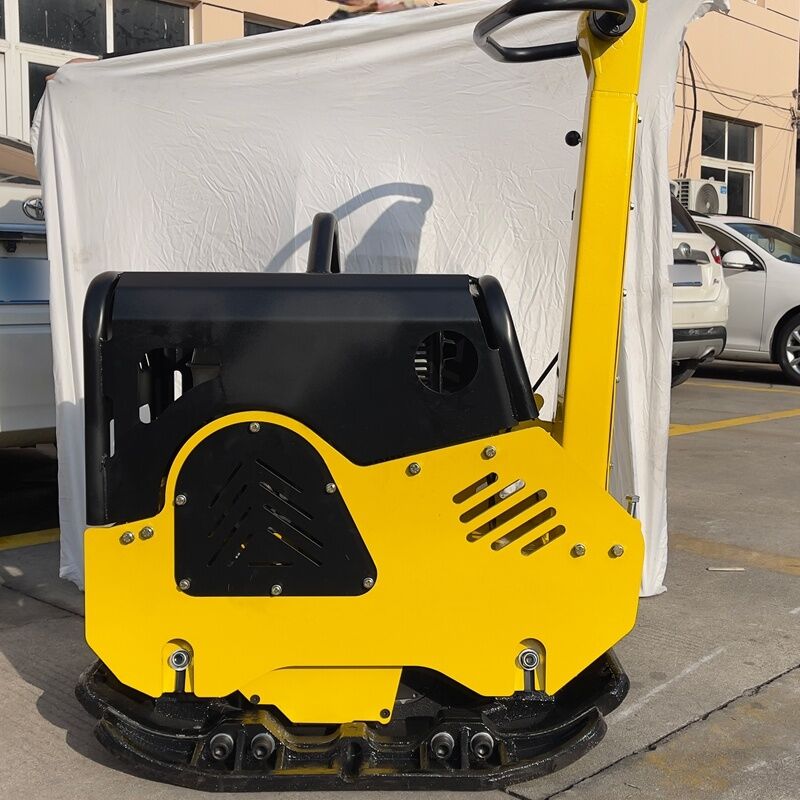

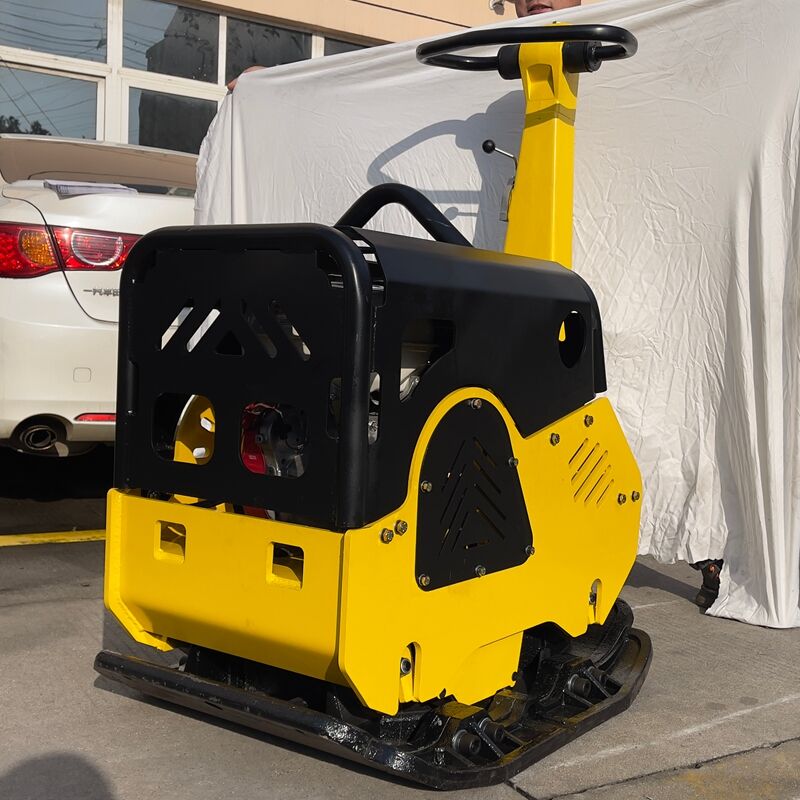

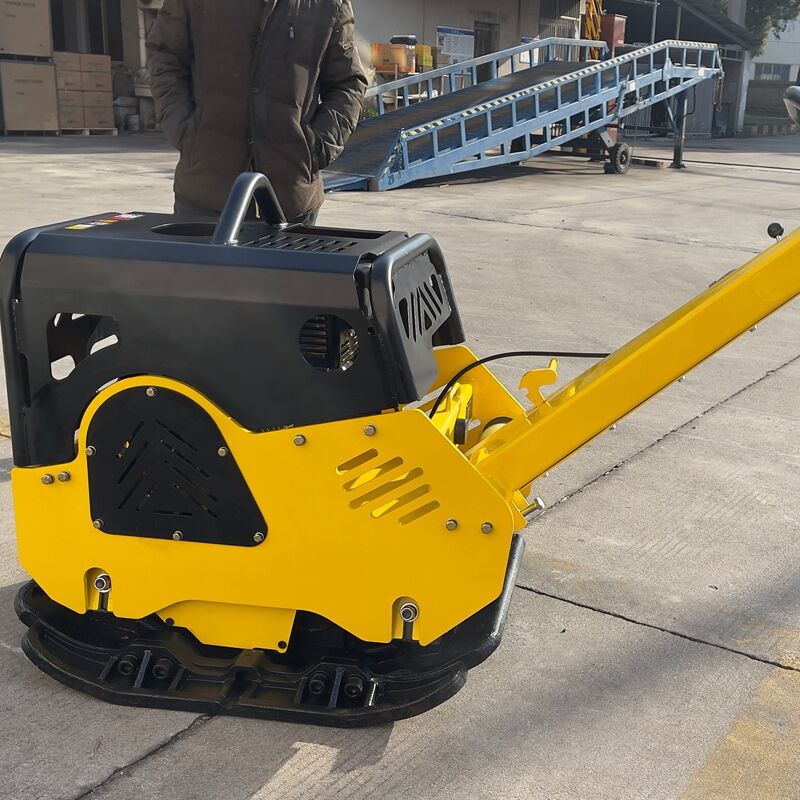

The STP450 vibrating plate compactor, with its powerful power, stable performance and flexible operation, is widely applicable to various small and medium-sized engineering scenarios, providing reliable solutions for compaction operations such as roadbeds, trenches and sites.



1.Power system

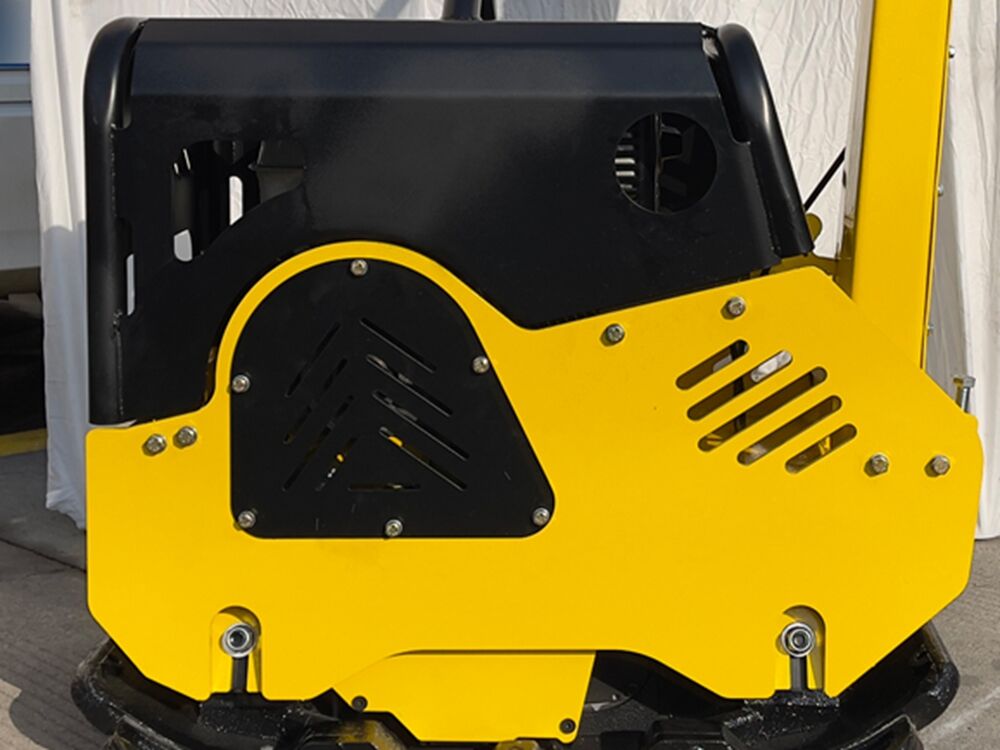

Equipped with high-quality engines, all adopt a single-cylinder air-cooled four-stroke design, featuring smooth starting, economical fuel consumption, and excellent heat dissipation. They can withstand long-term continuous operation without frequent shutdowns for maintenance:
The Honda GX390 offers a powerful 13-horsepower output, enabling long-term adaptation and continuous operation without stress;
The Longxin GF420 engine provides efficient 13-horsepower power, with first-class compaction performance;
The Changchai 186 engine offers stable 8-horsepower power, serving as the core support for efficient compaction.

2.Drive & Control System
The high-precision eccentric block excitation structure is adopted, with an excitation frequency reaching up to 4400 rpm. It can generate a powerful excitation force of 55 KN, enabling rapid penetration of loose materials and achieving deep compaction. The maximum compaction depth can reach 90 cm, effectively improving the compactness and stability of the foundation. Combined with an optimized transmission structure, the walking speed is stable at 24 m/min, and the working efficiency is as high as 780 square meters per hour, significantly shortening the construction period.。

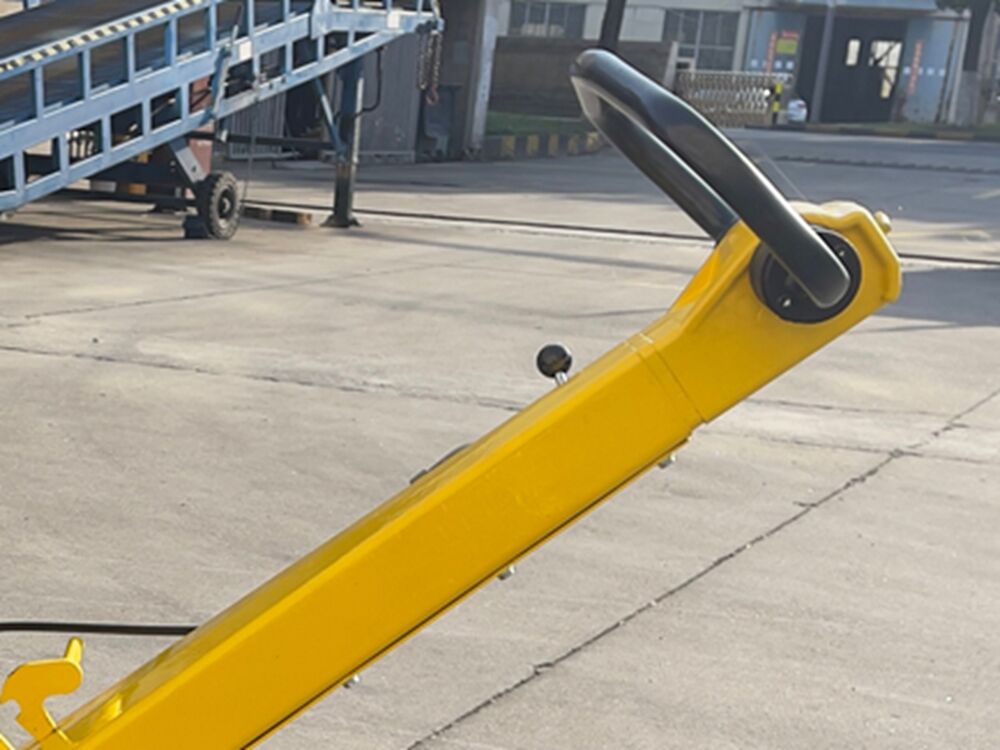

The armrest is equipped with a shock-absorbing device, which effectively reduces the impact of vibration on the operator and alleviates fatigue; at the same time, it is equipped with a convenient reversing function, allowing for flexible switching between forward and backward directions. Even in narrow areas, it can easily adjust the position, making the operation simple and easy to master.



3.Size

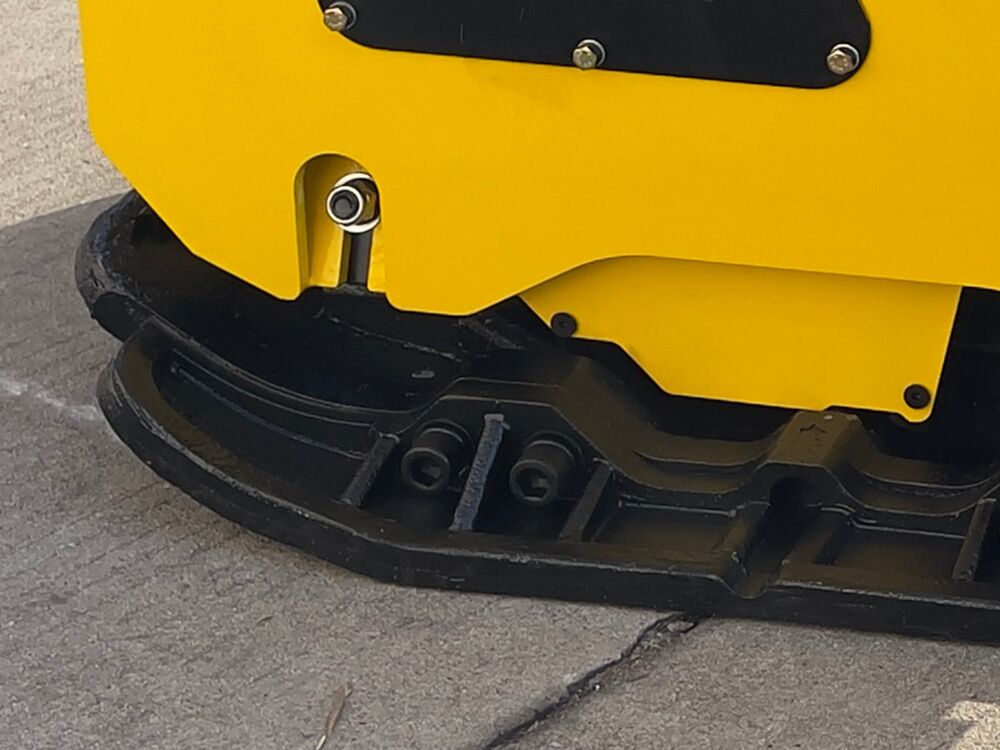

With a compact structure design, the overall operating weight of the machine is 450 kg, and the working dimensions are 148×67×121 cm. It can easily enter narrow alleys, pipeline trenches, corner edges and other areas that large road rollers cannot reach, compensating for the operational blind spots of large equipment. The夯板 size is 89×67 cm， made of high-strength wear-resistant steel plates， with a reasonable contact area. It can not only ensure uniform compaction but also enhance wear resistance， extend service life， and meet the compaction requirements for various materials such as sand， soil， and asphalt.

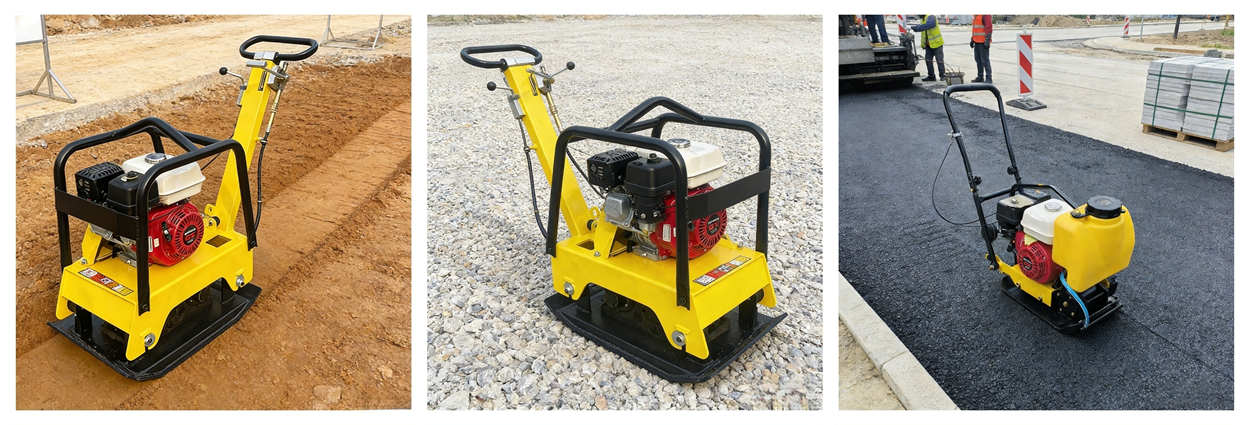

4.Application
The STP450 vibrating plate compactor is suitable for a wide range of scenarios and is an ideal equipment for various fields such as municipal engineering, construction, pipeline laying, and landscape gardening:
· In municipal road projects, it can be used for compaction of pedestrian road bases, areas around curb stones, and asphalt repair zones;
· In construction projects, it is applicable for reinforcing the foundation of building structures, foundation trenches of walls, and soil compaction for backfilling, enhancing the bearing capacity of the foundation;
· In pipeline projects, it can efficiently complete the compaction work after the backfilling of water supply and drainage, gas pipelines, preventing pipeline settlement;
· In landscape construction, it can be used for compaction of square bases, soil of flower beds, and lawn bases, laying a solid foundation for subsequent construction;
· In rural road maintenance and small construction sites, it can meet various construction needs comprehensively.

5.Service
Comprehensive service guarantee: Offer a one-year warranty period and a professional service team available 24/7 online. In case of equipment issues, you can call the service hotline at any time. We will respond immediately and provide you with a full range of services including technical consultation, fault diagnosis, and maintenance guidance, ensuring your construction is worry-free.



6.Packing and shipping
We provide wooden case packaging and strictly protect your machine's body as required, including components and paint finish, to ensure no scratches occur. Custom packaging is also available. We will select an appropriate transportation method for you. If you have a freight forwarder, we can also deliver the machine to your designated freight forwarder's location.



Company Introduction

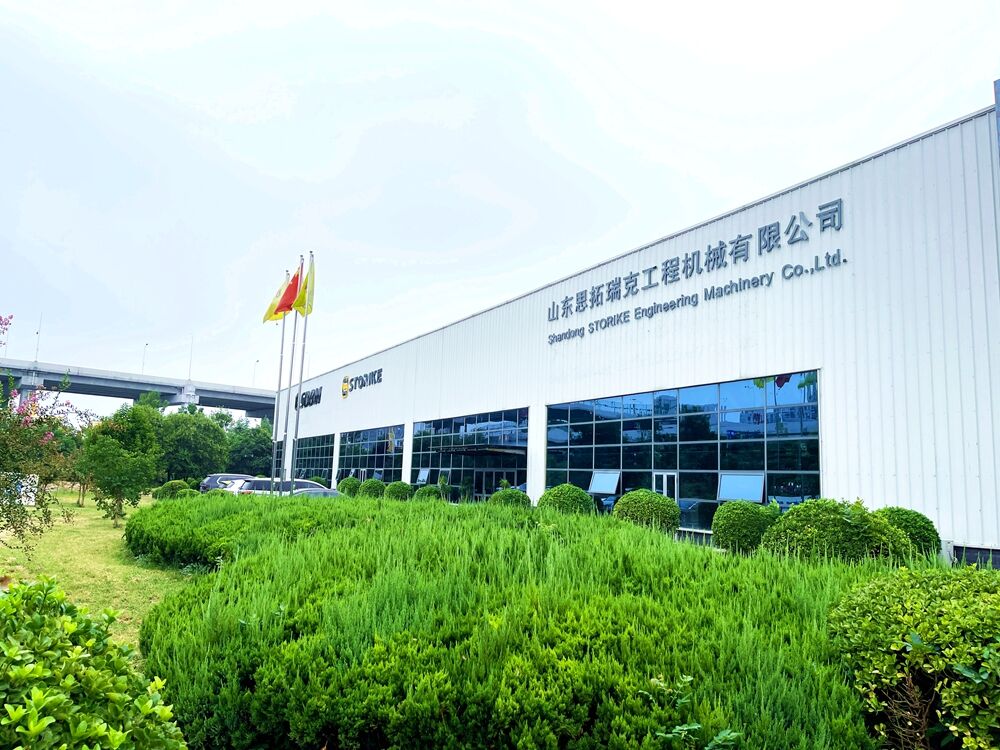

STORIKE is a professional engineering equipment manufacturer with 15 years of production experience, specializing in products such as light towers, plate compactors, road rollers, excavators and loaders. Our products have obtained CE, EPA and Euro 5 certifications, and can be flexibly customized according to engine types, while providing comprehensive OEM/ODM service support. All products undergo strict quality control. We have participated in the Canton Fair and international construction machinery exhibitions, serving more than 100 countries worldwide. We have 6 dedicated sales and service departments and a 23,000-square-meter modern manufacturing base. We warmly welcome global customers to visit our factory and explore cooperation opportunities.
