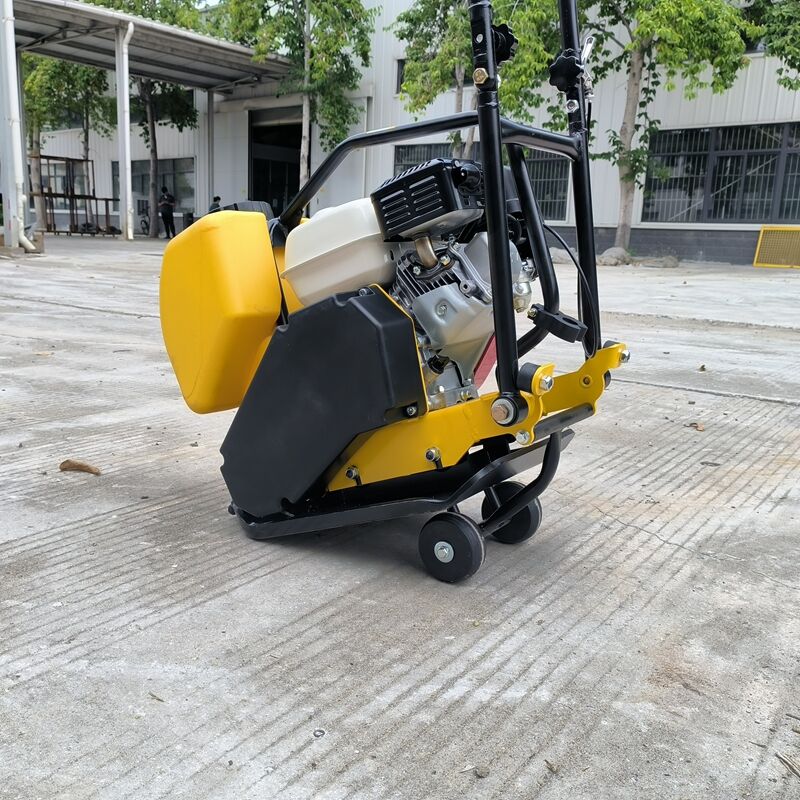

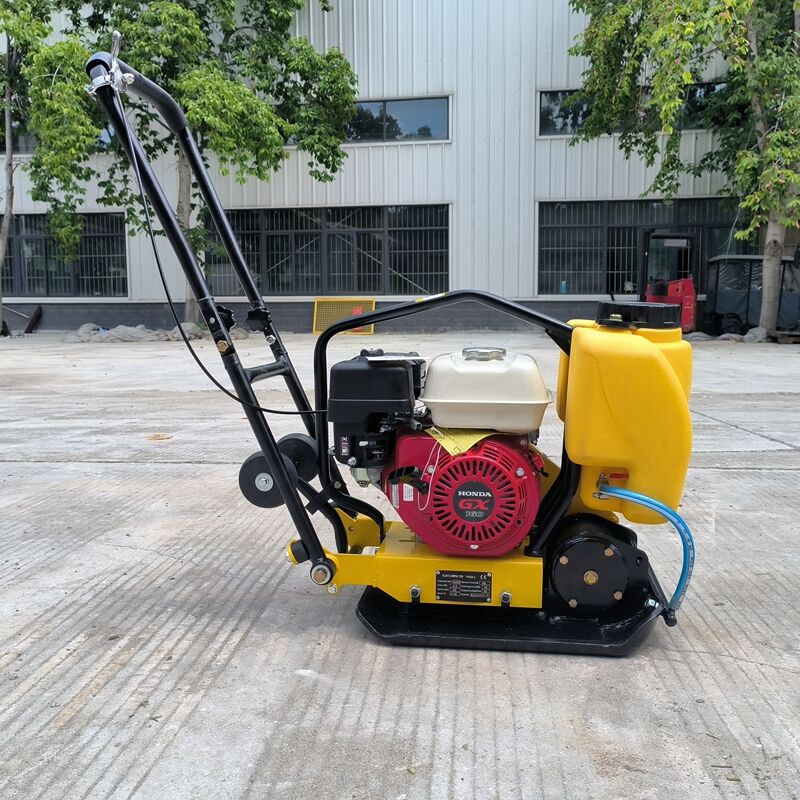

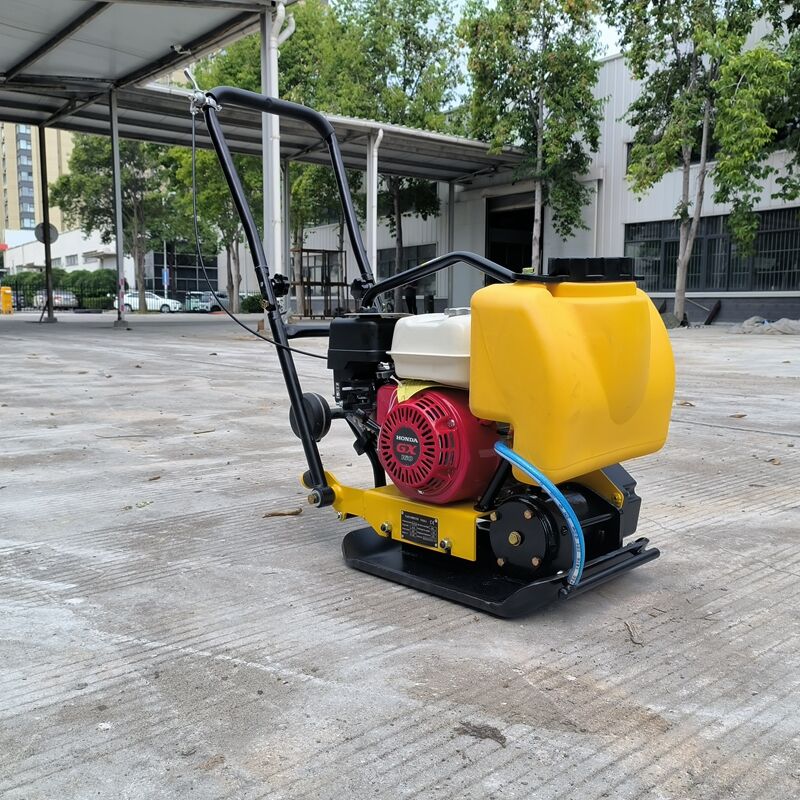

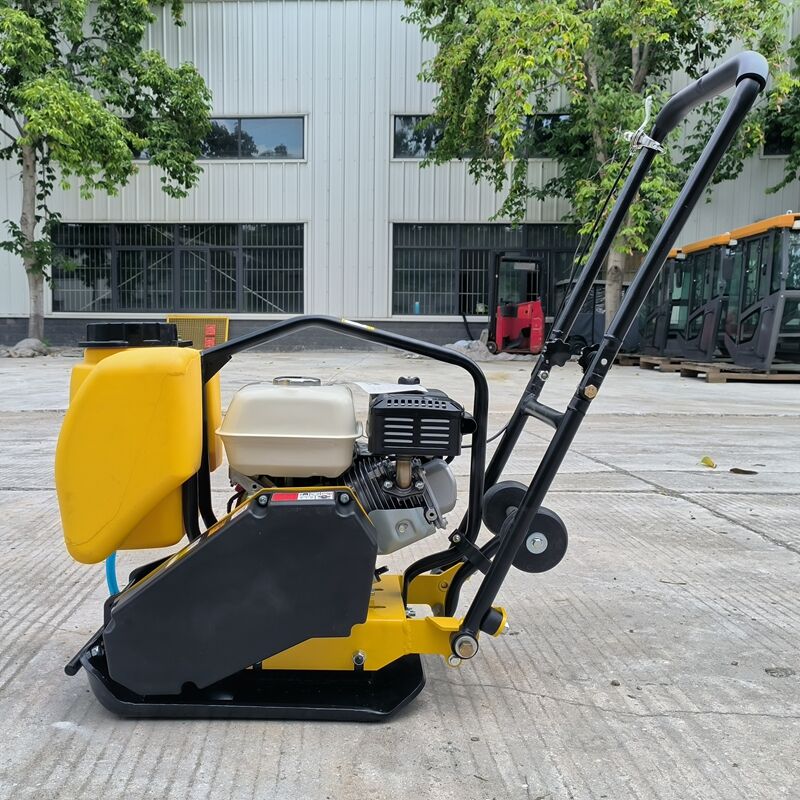

STP60 | 66KG | Plate Compactor

HAND PUSH SMALL COMPACTION MACHINERY

What is the function of a plate compactor?
It is used to compact loose base layers such as soil, sand, gravel, and asphalt. Through the combination of the plate's high-frequency vibration and static pressure, the particles of the material being compacted are made to closely adhere to each other, reducing the porosity and increasing the density. This enhances the bearing capacity and stability of the base layer, preventing problems such as settlement, deformation, and cracking during subsequent construction or use.

FEATURES
Powerful and efficient, with a 5.5hp power suitable for various working conditions.
High compression efficiency, 10.5KN vibration force + 423㎡/h working efficiency

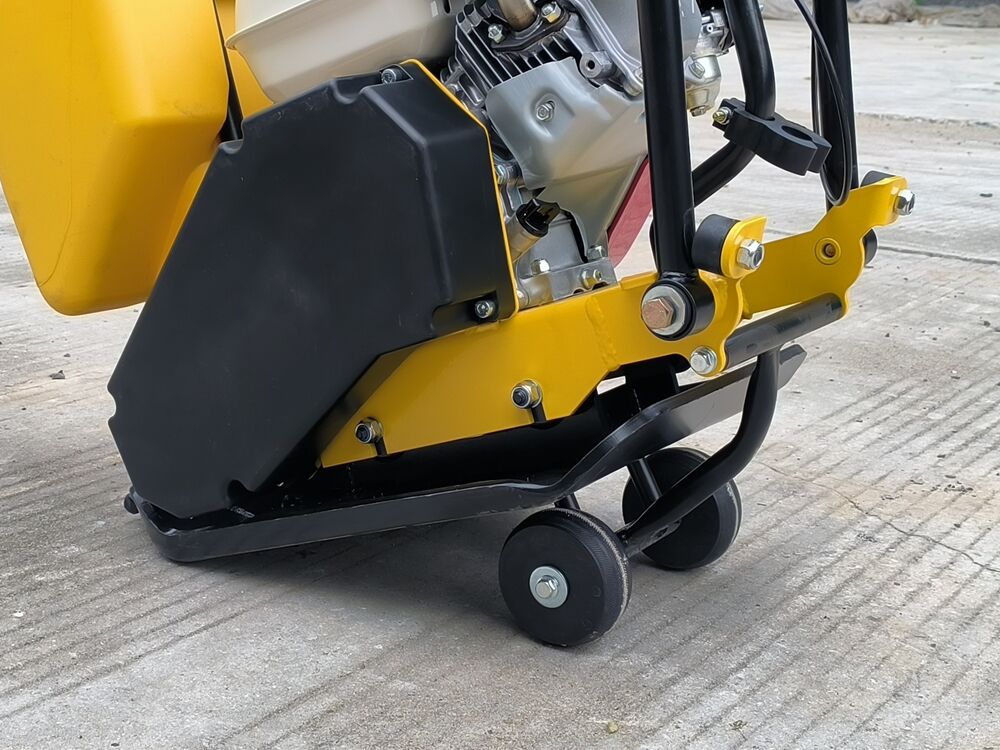

Compact body, lightweight and easy to move,capable of operating in narrow spaces
Strong adaptability, suitable for compacting various materials such as sand,clay, and crushed stones
Simple operation, no need for professional skills, easy to get started

Product Parameter

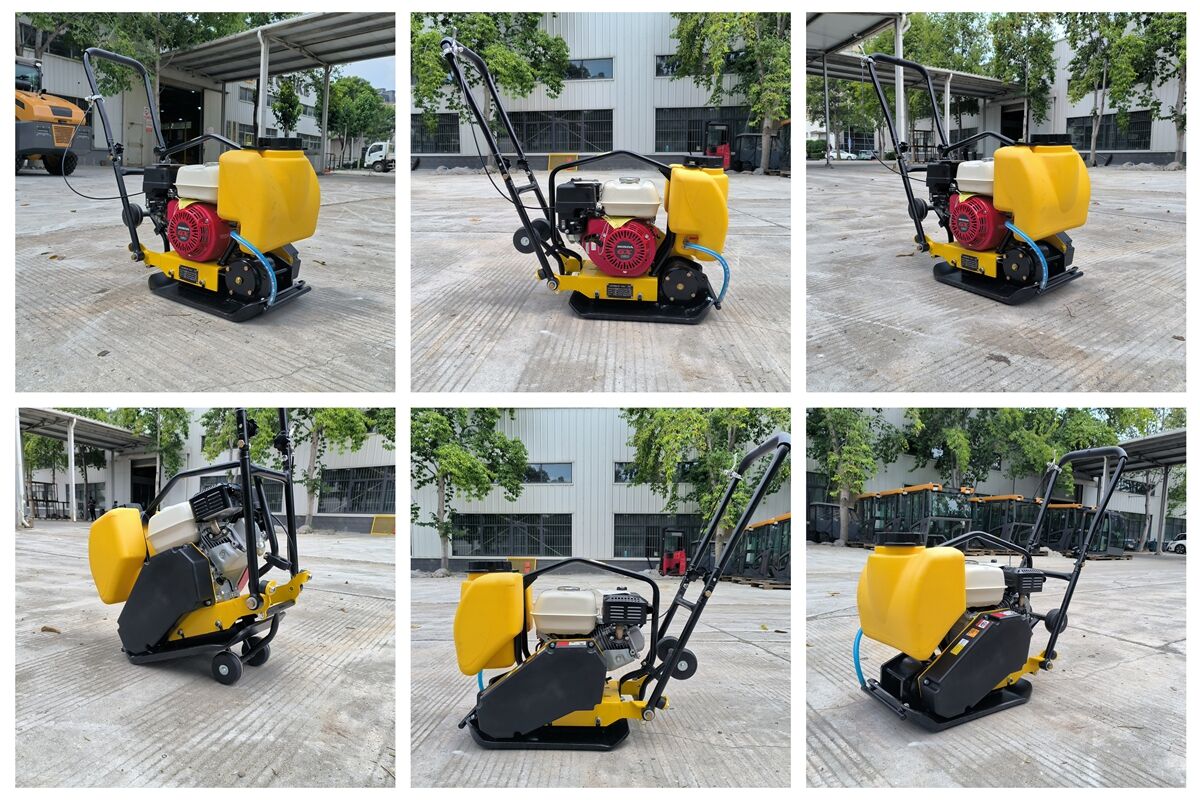

Product details
The STP60 plate compactor, with its stable performance and efficient compaction capability, has become an ideal equipment for construction projects, road maintenance and other scenarios.



1.Power system

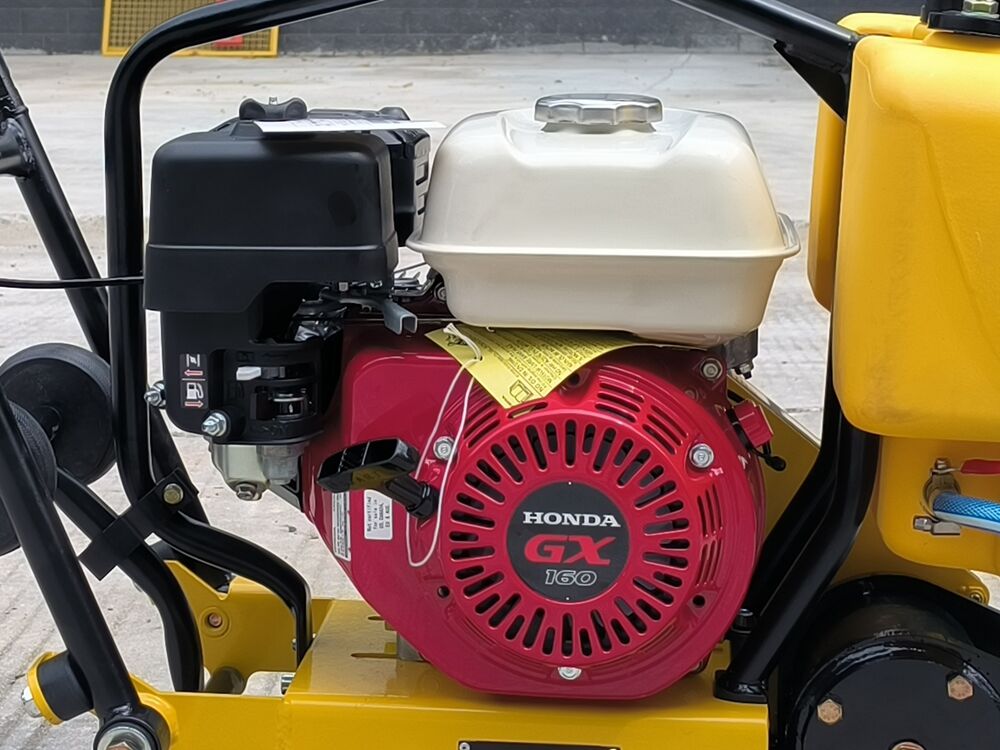

The STP60 plate compactor is equipped with the renowned brand HONDA GX160/LONCIN GF200 engine. Both adopt a single-cylinder air-cooled four-stroke design, providing powerful and stable power output.
The engine's rated power can reach 5.5 horsepower, enabling it to easily handle various complex working conditions. Even during long and intense operations, it can maintain an excellent operating state, effectively avoiding the problem of low compaction efficiency caused by insufficient power.
The single-cylinder structure combined with air cooling not only simplifies the body layout but also enhances the equipment's heat dissipation performance, prolongs the engine's service life, and reduces the subsequent maintenance costs.

2.Drive & Control System
The excitation frequency of the equipment is 93 Hz, and the exciting force can reach up to 10.5 KN. The powerful excitation force can quickly meet the density requirements of soil, sand, and other materials, with a compaction depth of up to 20 cm, far exceeding the compaction effect of ordinary plate compactors.



The walking speed is set at 34 meters per minute. Combined with the extremely high working efficiency of 423 square meters per hour, it can significantly shorten the construction period and is suitable for large-scale compaction operations. The stable drive system is equipped to effectively reduce vibrations and noise during the operation, thereby enhancing the operational comfort of the operators.



3.Size

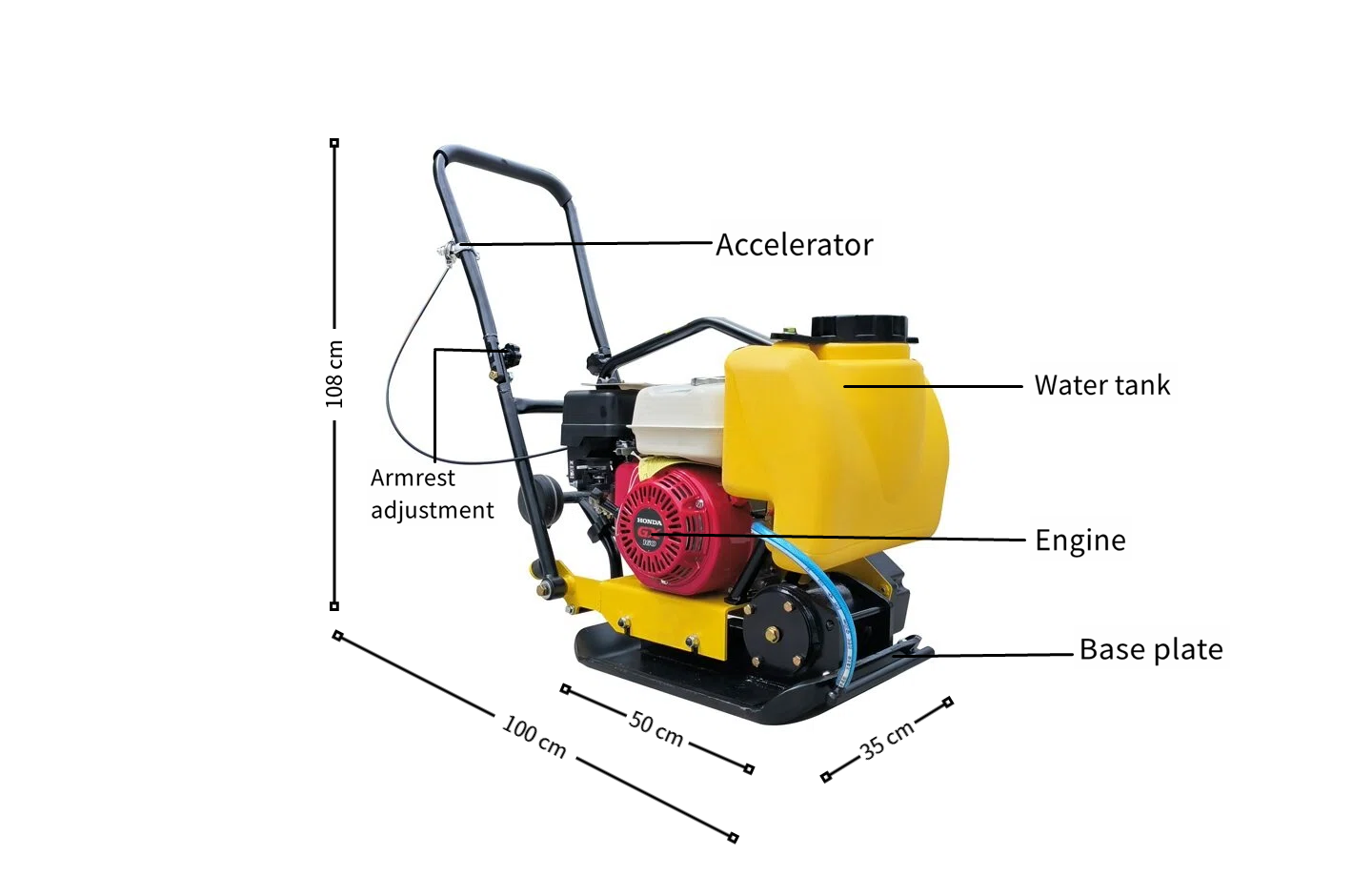

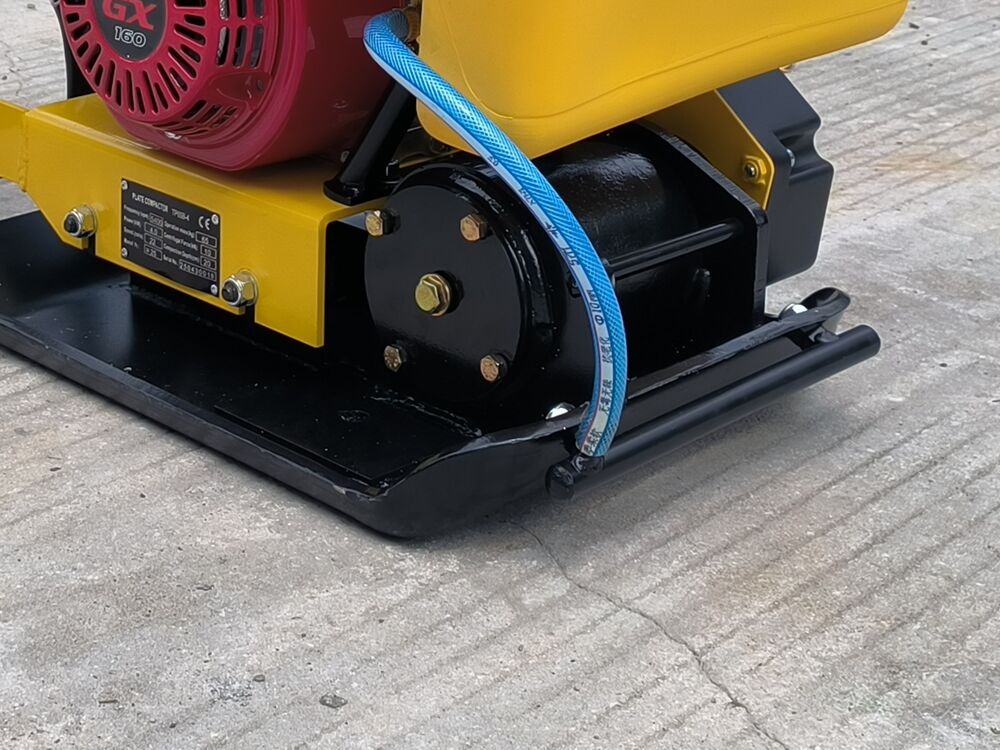

The operating weight of the equipment is 66KG. The size of the flat plate is 50*35cm. The wide compaction surface can increase the single compaction area and reduce repetitive operations. The overall working size of the equipment is 108*35*85cm. The body is compact and can easily pass through narrow areas such as building gaps and road edges, without occupying too much construction space. It meets the space requirements of various complex operation scenarios.



4.Application
Whether it is sand, clay, crushed stones and other different materials, or large-scale operations and the need for precise compaction, the application of the plate tamper is very extensive:
Road Engineering: Can be used for compaction of the base and surface layers of sidewalks, rural roads, and parking lots, ensuring the smoothness and density of the road surface and effectively preventing post-construction pavement settlement;
Construction: Applicable for compaction operations of house foundations and wall bases, enhancing the bearing capacity of the foundation and ensuring the stability of the building structure;
Landscape, municipal engineering, backfilling after pipeline laying, and leveling and compaction work for small sites.
Preliminary compaction of small building foundations and parking lot bases.

5.Service
Comprehensive service guarantee: Offer a one-year warranty period and a professional service team available 24/7 online. In case of equipment issues, you can call the service hotline at any time. We will respond immediately and provide you with a full range of services including technical consultation, fault diagnosis, and maintenance guidance, ensuring your construction is worry-free.



6.Packing and shipping

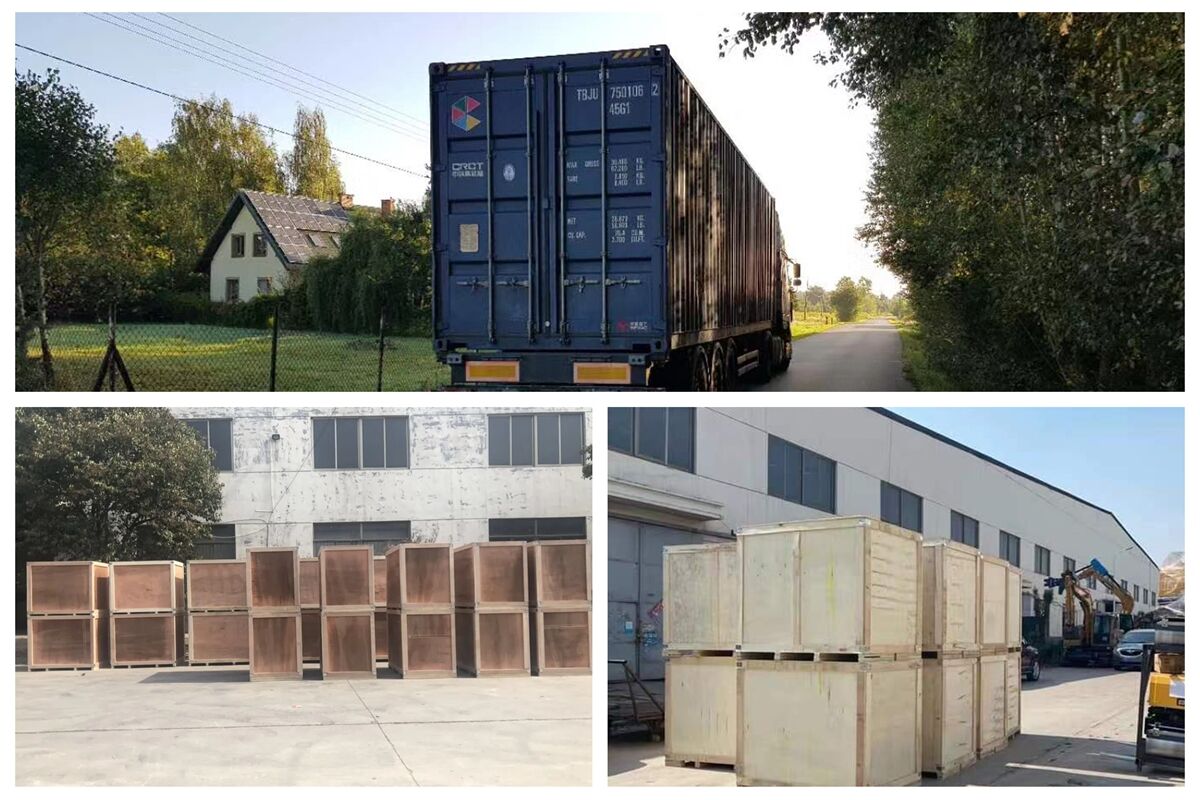

We provide wooden case packaging and strictly protect your machine's body as required, including components and paint finish, to ensure no scratches occur. Custom packaging is also available. We will select an appropriate transportation method for you. If you have a freight forwarder, we can also deliver the machine to your designated freight forwarder's location.



Company Introduction

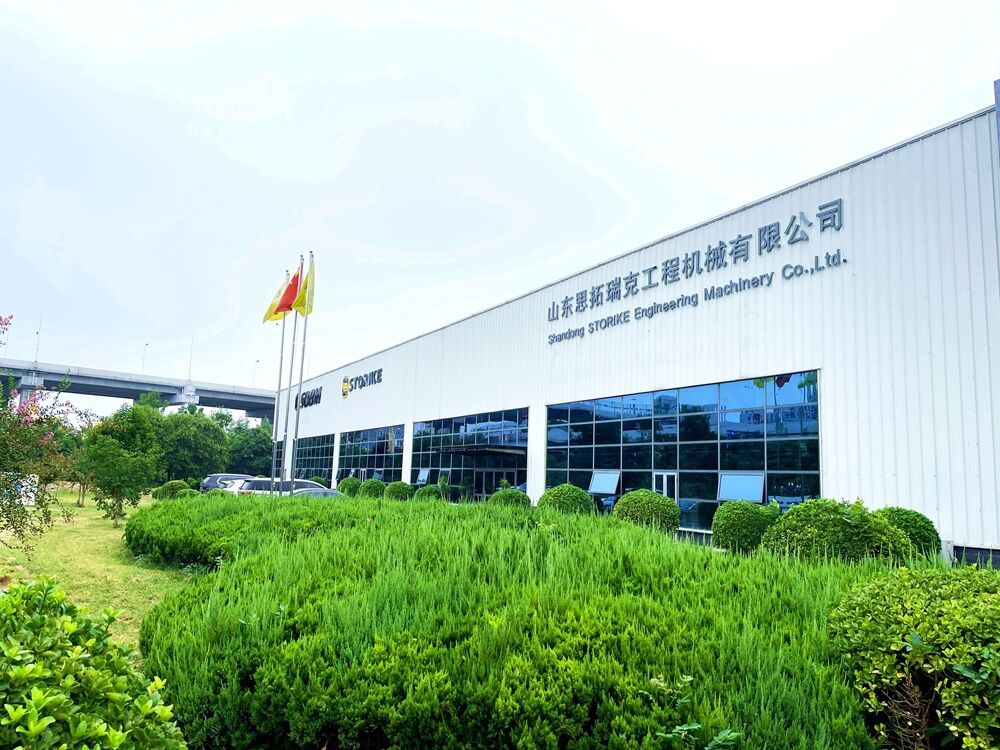

STORIKE is a professional engineering equipment manufacturer with 15 years of production experience, specializing in products such as light towers, plate compactors, road rollers,excavators and loaders.Our products have obtained CE,EPA and Euro 5 certifications,and can be flexibly customized according to engine types,while providing comprehensive OEM/ODM service support.All products undergo strict quality control. We have participated in the Canton Fair and international construction machinery exhibitions,serving more than 100 countries worldwide.We have 6 dedicated sales and service departments and a 23,000-square-meter modern manufacturing base.We warmly welcome global customers to visit our factory and explore cooperation opportunities.
