Trailer Solar Mobile Light Tower | 7M-9M | 4TNVE600

The 4TNVE 600 solar mobile lighting tower is an outdoor mobile lighting device that integrates high-efficiency energy conservation, flexibility and convenience, as well as stability and durability. Relying on advanced solar power supply technology and mobile design, it is widely applicable to various outdoor scenarios. Without the need for an external power grid, it can achieve long-term stable lighting, balancing practicality and economy, providing reliable lighting support for outdoor operations, emergency rescue and other scenarios.

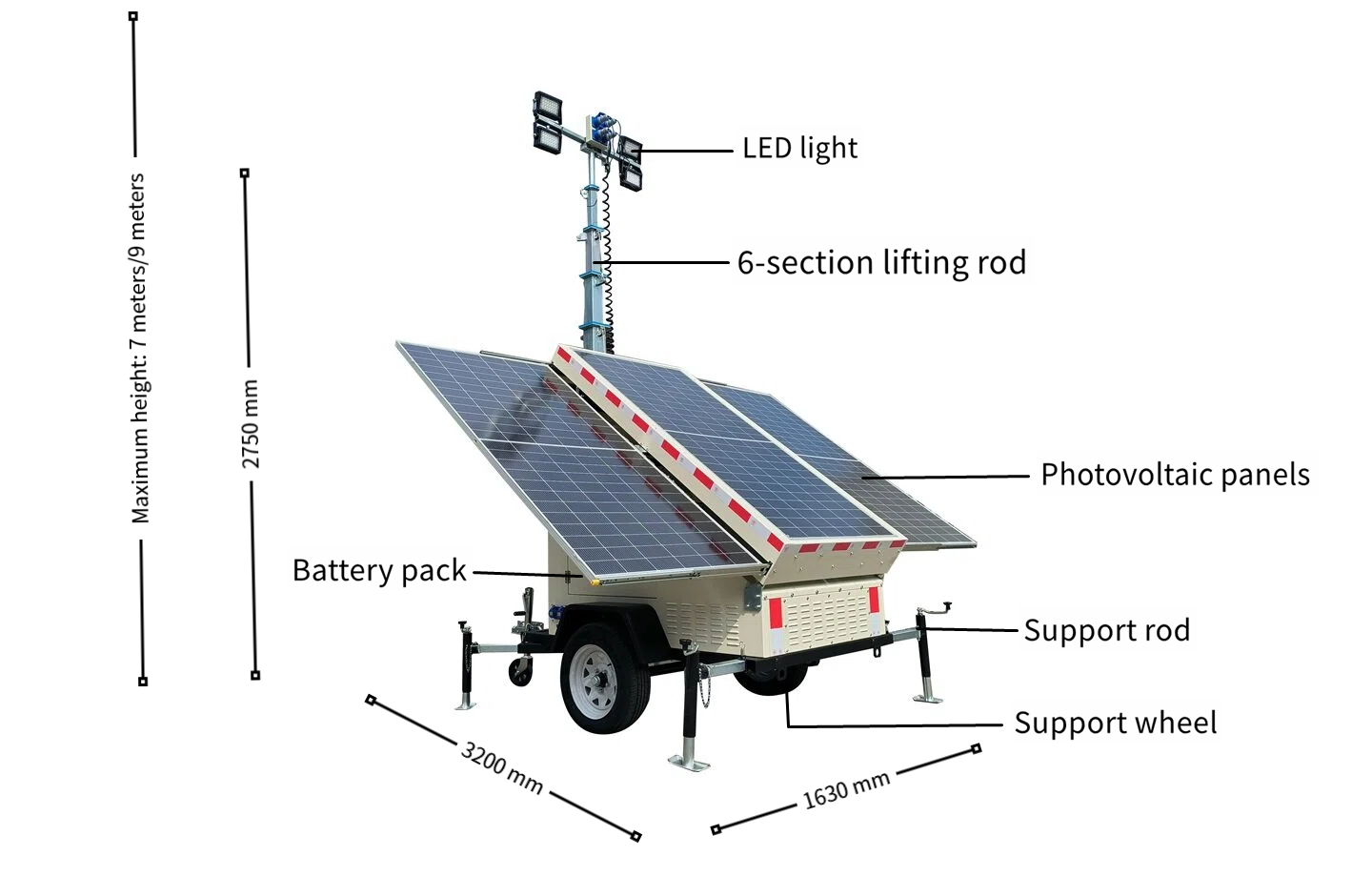

Details picture

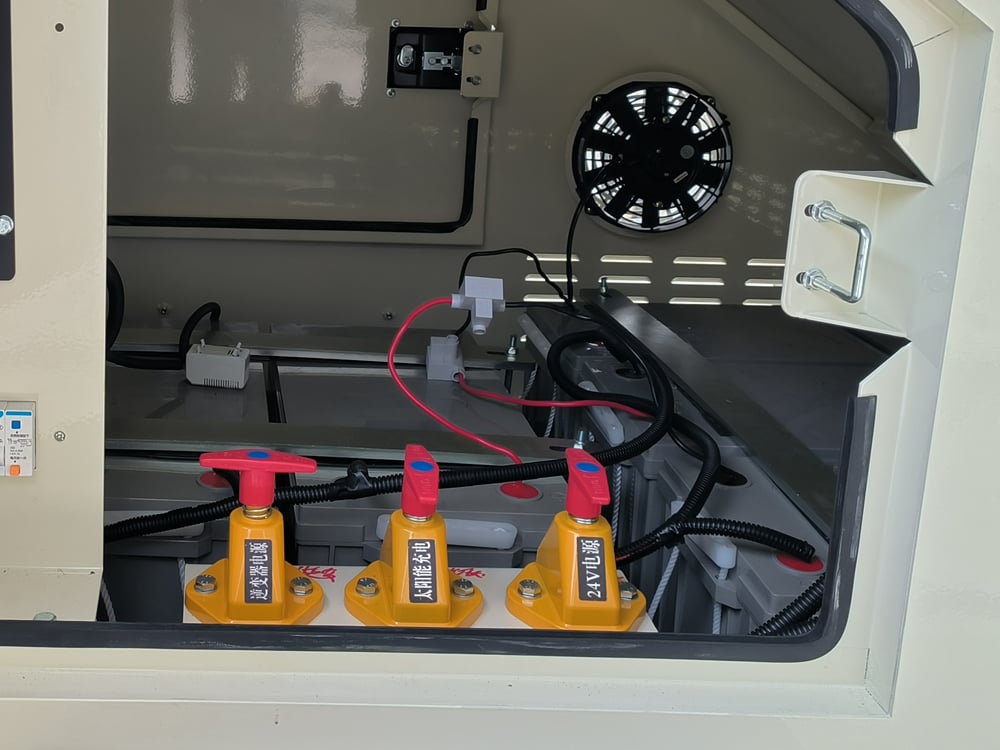

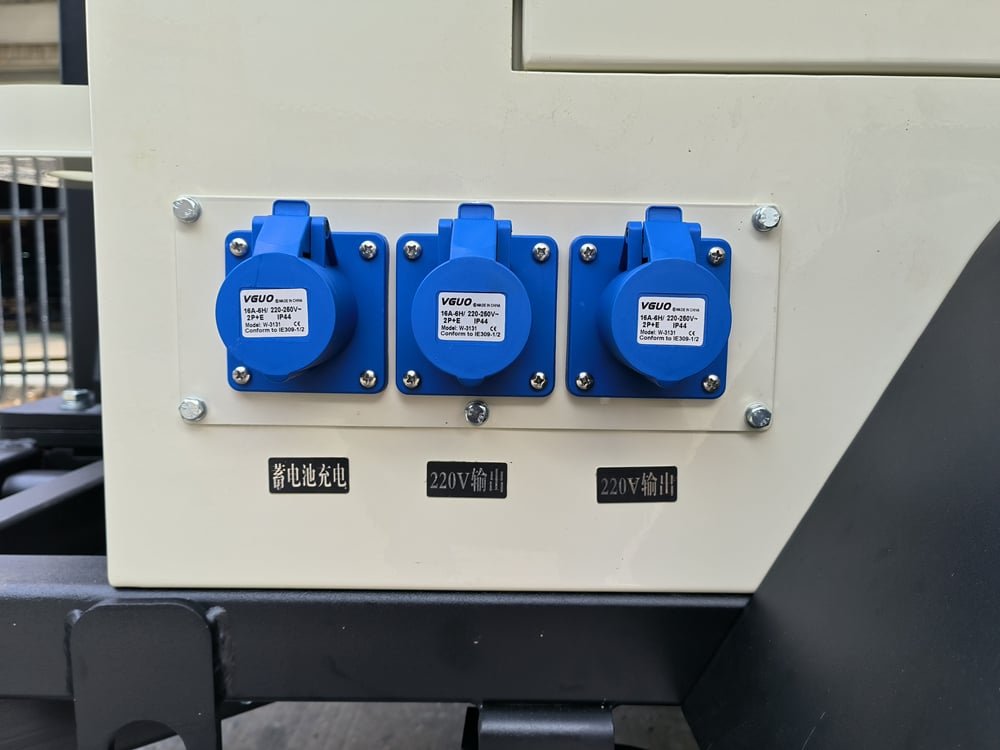

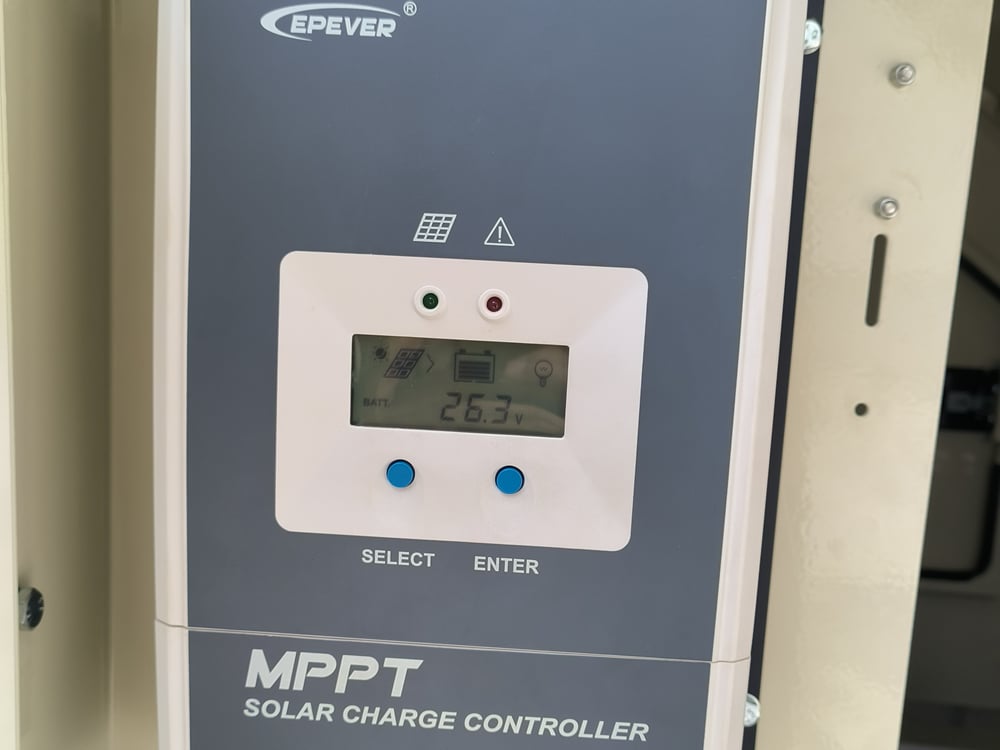

Name	Energy storage core	Power panel	Photovoltaic panels	Charging controller

1.Power system

[1].The power system of this product consists of a solar power supply module, an energy storage battery pack and an LED lighting module, forming a closed-loop power supply system. It is energy-saving, environmentally friendly and has stable battery life.

[2].The lighting is powered by 4 sets of 150W high-quality LED lights, with each set having a luminous flux of 21,000LM, providing strong illumination.

[3].It has an IP68 protection level, with excellent waterproof and dustproof performance, suitable for harsh outdoor environments.

[4].The service life is up to 8,000 hours. The lighting angle can be manually adjusted from 0 to 90 degrees, suitable for different scenarios.

[5].The system operates at a DC24V voltage, and is equipped with 6 200AH gel batteries, providing sufficient energy storage.

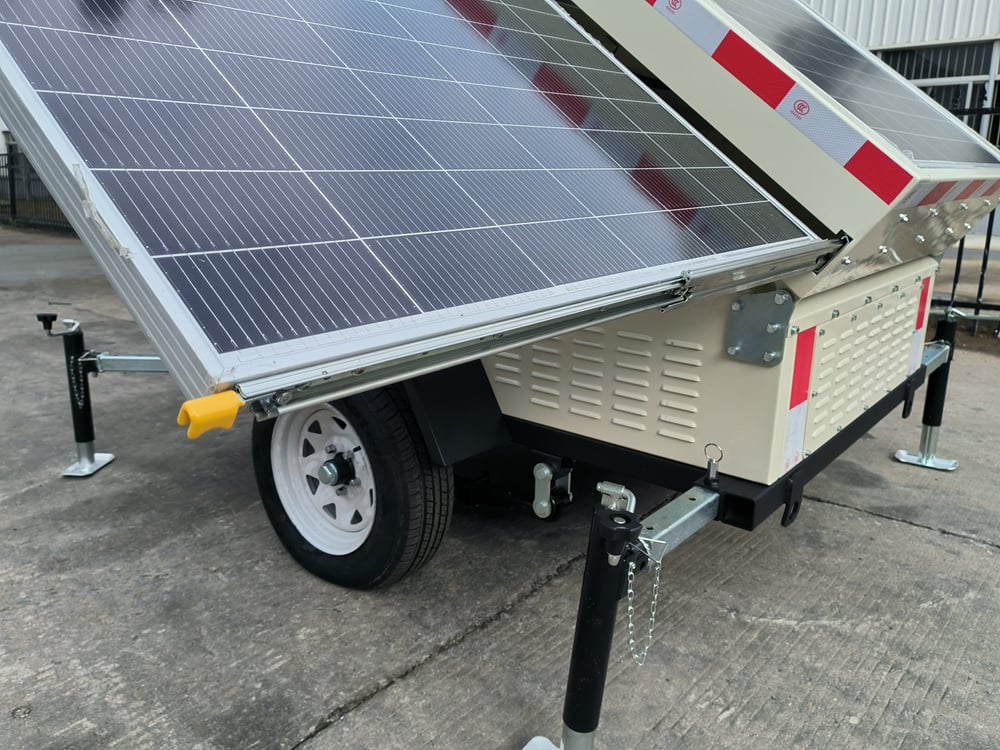

[6].Equipped with three 470W single crystal silicon photovoltaic panels, the heavy-duty drawer slide rail deployment mode is adopted, which is convenient to operate, and can maximize the reception of solar energy and improve charging efficiency after deployment.

2.Drive & Control System

[1].The lighthouse is equipped with 6 lamp poles, featuring both manual and electric lifting modes. The lifting height can be selected as either 7 meters or 9 meters. The lighting angle of the lamp poles can be manually adjusted to ensure uniform illumination coverage.

[2].The equipment adopts a trailer-mounted design. The trailer frame is equipped with telescopic guide wheels, 4 manually extendable support legs, and 14-inch standard tires that are suitable for complex road conditions. The maximum towing speed is 80 km/h (62 mph).

[3].It is also equipped with a tail light for enhanced safety during night towing and to avoid traffic hazards.

3.Size

[1].Size: L3200mm * W1630mm * H2750mm. In transportation state: L 2200mm * W 1630mm * H 2330mm.The transportation size is compact,which can be flexibly adapted to various transportation vehicles,reducing transportation costs and facilitating long-distance transfer.

[2].Height of the pole: When the pole is fully extended, its height can reach 9 meters, enabling wide-area lighting coverage and meeting the lighting needs of large outdoor scenarios.

[3].Weight: 1180kg.The weight is moderate, and it can complete on-site deployment and movement without the need for large equipment assistance, further enhancing the ease of use and meeting the rapid deployment requirements of various outdoor operation scenarios.

SHIPPING & LOGISTICS PACKAGING

With over 15 years of dedicated export experience, Storike offers fully managed international logistics. We specialize in secure sea freight, reliable land transport, and swift air freight. We deliver directly to your specified site or warehouse. For international transit, the light tower is packed in export-standard wooden crates to prevent scratches and impact damages. The mast, tow bar, and outriggers are designed for easy partial disassembly, allowing a 40FT HQ container to securely load up to 7 full sets, drastically saving your ocean freight costs per unit. If you have any shipping or customs clearance questions, our expert logistics team is here to assist you.

Q1:What are the requirements for equipment towing? Can ordinary vehicles be used for towing?
A1: The head of the towing rod supports a 2-inch or 50mm ball head for towing, and it is compatible with various towing devices. The maximum towing speed is 80 km/h. Ordinary small-sized towing vehicles can meet the towing requirements (they must comply with the vehicle load standards)

Q2: Is the deployment and storage of the photovoltaic panels complicated?
A2: The photovoltaic panels are deployed using heavy-duty drawer slide rails. The operation is convenient, and it can be completed by a single person for both deployment and retraction. After deployment, they can maximize the reception of solar energy and improve the charging efficiency.

Q3: What is the warranty period of the equipment, and where is your factory located?
A3: We provide a one-year whole-machine warranty. Our factory is located in Jining City, Shandong Province, China. If you need, please contact our sales team, who will customize a visit route for you.

Q4: How to get after-sales support in case of equipment failure or remote control problems?
A4: We have a professional service team providing 24/7 reception service. You can call the service hotline at any time. We will respond immediately, offer remote technical consultation and fault diagnosis, and arrange on-site maintenance if necessary.
