vibratory roller | 560KG | SVH50

The SVH50 series of small road rollers include three models: SVH50, SVH50C, and SVH50S. With stable performance, reliable vibration system and drive unit, it strikes a balance between compaction efficiency and operational convenience, while also offering comprehensive after-sales support to ensure the smooth progress of construction.

Details picture
Name	Engine	Levers	water tank	Straight-up handrails

1.Power system

[1].The three models are equipped with differentiated high-quality power, precisely matching the requirements of different working scenarios, while also balancing power output and fuel economy.

[2].The SVH50 is equipped with a Honda GX270 gasoline four-stroke engine, with an output power of 6.7kw and a stable rotational speed of 3600rpm. It supports both manual recoil and electric start modes for easy startup, suitable for working conditions requiring high response speed of power.

[3].The SVH50C uses a Changfa/Changchai/Kama178 diesel four-stroke engine with an output power of 4.4kw, ensuring continuous operation capability at a rotational speed of 3600rpm. It has outstanding cost-effectiveness.

[4].The SVH50S is equipped with a Changchai R180 evaporative water-cooled diesel engine, with an output power of 5.7kw and a rotational speed of 2600rpm. The water-cooling system effectively guarantees the stability of long-term and high-intensity operations.

2.Drive & Control System

[1].The drive system adopts a bidirectional hydraulic chain drive method, ensuring smooth and efficient power transmission. Combined with a 0-4 km/h continuous speed regulation, it can precisely control the operation progress and is suitable for precise compaction work in narrow spaces.

[2].The theoretical climbing ability of the entire series reaches 30%, enabling it to easily handle slope terrain operations and meeting the construction needs of complex sites.

[3].The vibration system adopts a front and rear dual vibration wheel design. The vibration frequency is stable at 70Hz, the amplitude is 0.6mm, and the excitation force can reach 30kn. The compaction effect is outstanding, which can effectively improve the ground density and is suitable for the compaction of various material roads.

[4].The SVH50 is equipped with a gravity spray water system. The 20L large-capacity water tank can effectively prevent the materials from adhering to the wheel body during the compaction process, ensuring the compaction flatness.

3.Size

[1].Machine details: The overall operating weight of the machine is uniformly 530kg. The static line load is 45n/cm, and the pressure on the ground is moderate. It can operate on fragile ground without damaging the base.
Roller size: The drum width is 600mm and the drum diameter is 426mm. The coverage and efficiency of the compaction are well balanced.

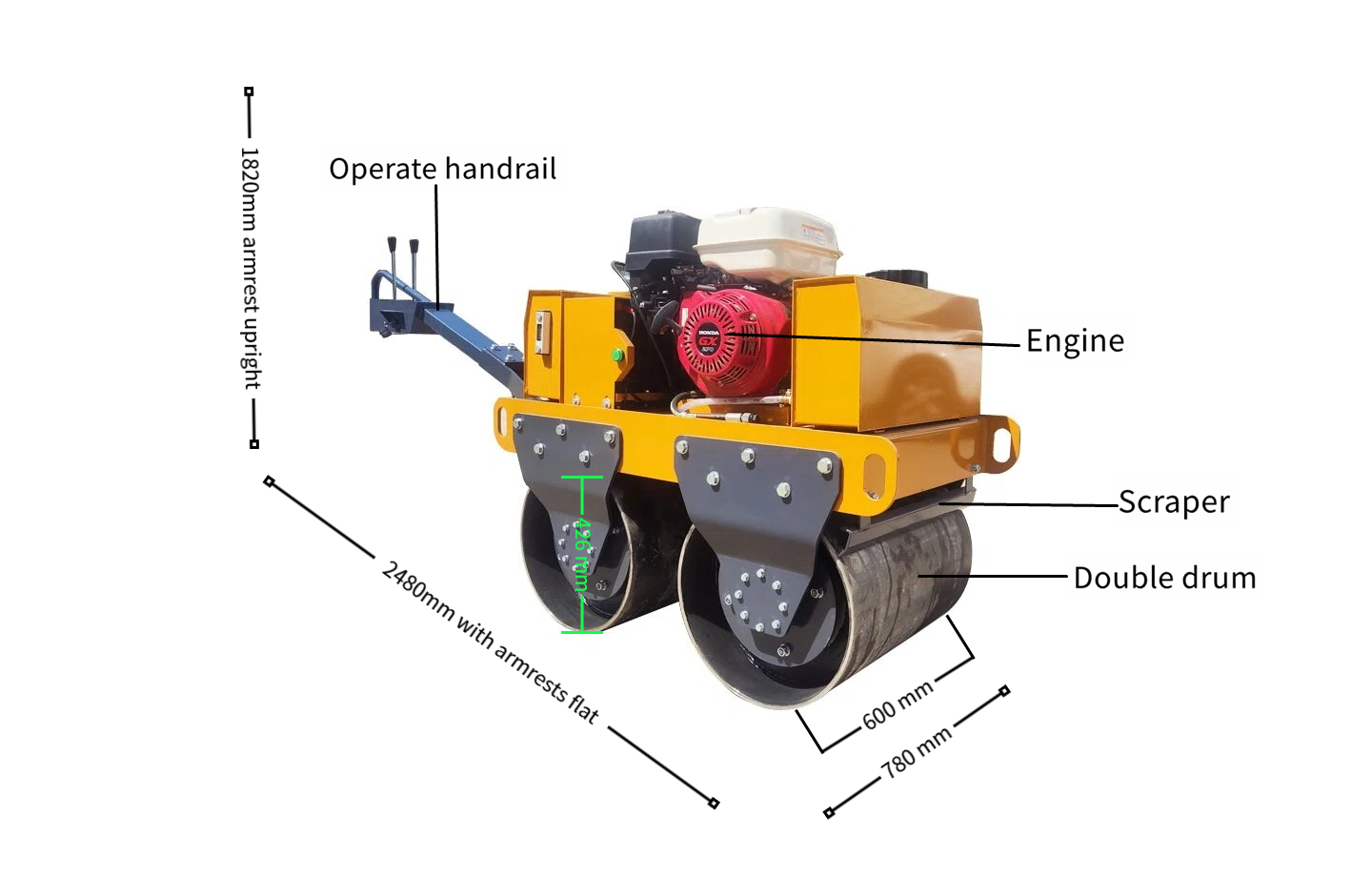

[2].Machine size: The full width is 780mm. When placed horizontally with handrails, the length is 2480mm. When the handrails are upright, the height is 1820mm. It can also turn flexibly in narrow areas for operation; the packaging size is 1300*840*1050mm, which is convenient for transportation and storage, and reduces logistics costs.

[3].Water tank capacity: Both SVH50 and SVH50C have a capacity of 20L, meeting the requirements for water spraying and compaction. SVH50S omits the watering system and focuses on the core compaction scenarios of diesel-water-cooled models.

Why is the Storike 0.5-ton roller uniquely suited for these projects? Its 560kg operating weight combined with 30kN vibration delivers the perfect balance—heavy enough to compact commercial asphalt, yet light and compact enough not to damage sub-structures or get stuck in tight pathways.

[1]. Municipal Sidewalk & Pedestrian Path Paving: Standard large rollers cannot fit on sidewalks. Storike’s 600mm width fits perfectly, delivering uniform compaction right up to the concrete curbs.

[2]. Pipe & Utility Trench Backfilling: After laying gas or water pipes, trenches must be compacted deeply to avoid future ground sinking. The 30kN excitation force penetrates deep soil layers inside narrow trenches.

[3]. Residential Driveway & Parking Lot Patching: Perfect for localized pothole repairs and residential asphalt driveways. The dual-drum vibration seals the asphalt perfectly to prevent water ingress.

[4]. Garden Landscaping & Athletic Turf Foundation: Smooths out soil and sub-base layers for high-end golf courses, parks, and sports fields without destroying the surrounding landscape boundaries.

We protect your investment. Every single road roller is encased in a heavy-duty, export-grade wooden box to prevent scratches and structural movement during transit. With 15 years of expert export experience, we arrange ocean freight (FCL/LCL), land transportation, or air freight directly to your job site or specified port. We handle all export customs paperwork seamlessly.

Company Introduction

Storike is an elite, professional construction machinery manufacturer with over 15 years of rich production experience. Our massive 23,000 square meter modern manufacturing base is located at: Area A, Yangjiahe Science and Technology Incubation Park, No. 2166 Chongwen Boulevard, High-tech Zone, Jining City, Shandong Province, China. We specialize in light-towers, plate compactors, road rollers, excavators, and loaders. Armed with strict quality control, CE/EPA certifications, and comprehensive OEM/ODM capabilities, we have served clients across more than 100 countries and frequently showcase our machinery at the Canton Fair and international construction expos. We are currently actively recruiting global dealers and agents!

Comprehensive Services Provided

[1].1-Year Bulletproof Warranty: Peace of mind engineering.

[2].Free Replacement Parts: Fast shipping on parts for non-human-induced damages.

[3].Original Factory Spare Parts Warehouse: Instant access to paid original components for lifelong machine health.

[4].24/7 One-on-One Technical Support: Lifelong expert online guidance for operations and troubleshooting.

[5].Pre-Sales Consultation: Personalized machinery pairing and custom engineering solutions tailored to your market.

Buying Guide

[1].Emission Compliance: Select EPA-approved engines for North America, Euro 5 for Europe, and Honda/standard diesel for other international markets.

[2].Start Preference: You can choose between electric start and standard hand pull start according to your project’s frequent quick start-stop demands and budget arrangement.

[3].Bulk Ordering: Our MOQ is 1 unit.For bulk buyers and rental dealers, contact our sales department to sign an official Price Discount Agreement directly with our CEO for maximized profit margins.

Q1: What are the differences in power types among the three models?
A1: SVH50 is a gasoline four-stroke engine, SVH50C is a diesel four-stroke engine, and SVH50S is a diesel evaporative water-cooled engine.

Q2: What are the core compaction parameters of this series of rollers?
A2: Vibration frequency 70Hz, amplitude 0.6mm, excitation force 30kN, drum width 600mm

Q3：Can both rollers vibrate simultaneously, or do I have to choose?
A3: Both front and rear steel drums feature synchronous vibration. This dual-drum setup ensures that a single pass provides double the compaction force compared to single-vibrating units, maximizing your efficiency on asphalt.

Q4: What is the warranty period of the equipment, and where is your factory located?
A4: We provide a one-year whole-machine warranty. Our factory is located in Jining City, Shandong Province, China. If you need, please contact our sales team, who will customize a visit route for you.

Q5:What options do I have if my country requires strict EPA or Euro 5 emission compliance?

A5: Storike offers fully certified engine options, including premium Honda gasoline engines and advanced diesel options that strictly comply with EPA (North America) and Euro 5 (Europe) certifications.
