Vibratory roller | 650KG | SVH60

The SVH60 series of small road rollers, with their compact body design, powerful performance and flexible operation experience, have become the ideal equipment for municipal, landscaping and road maintenance applications.

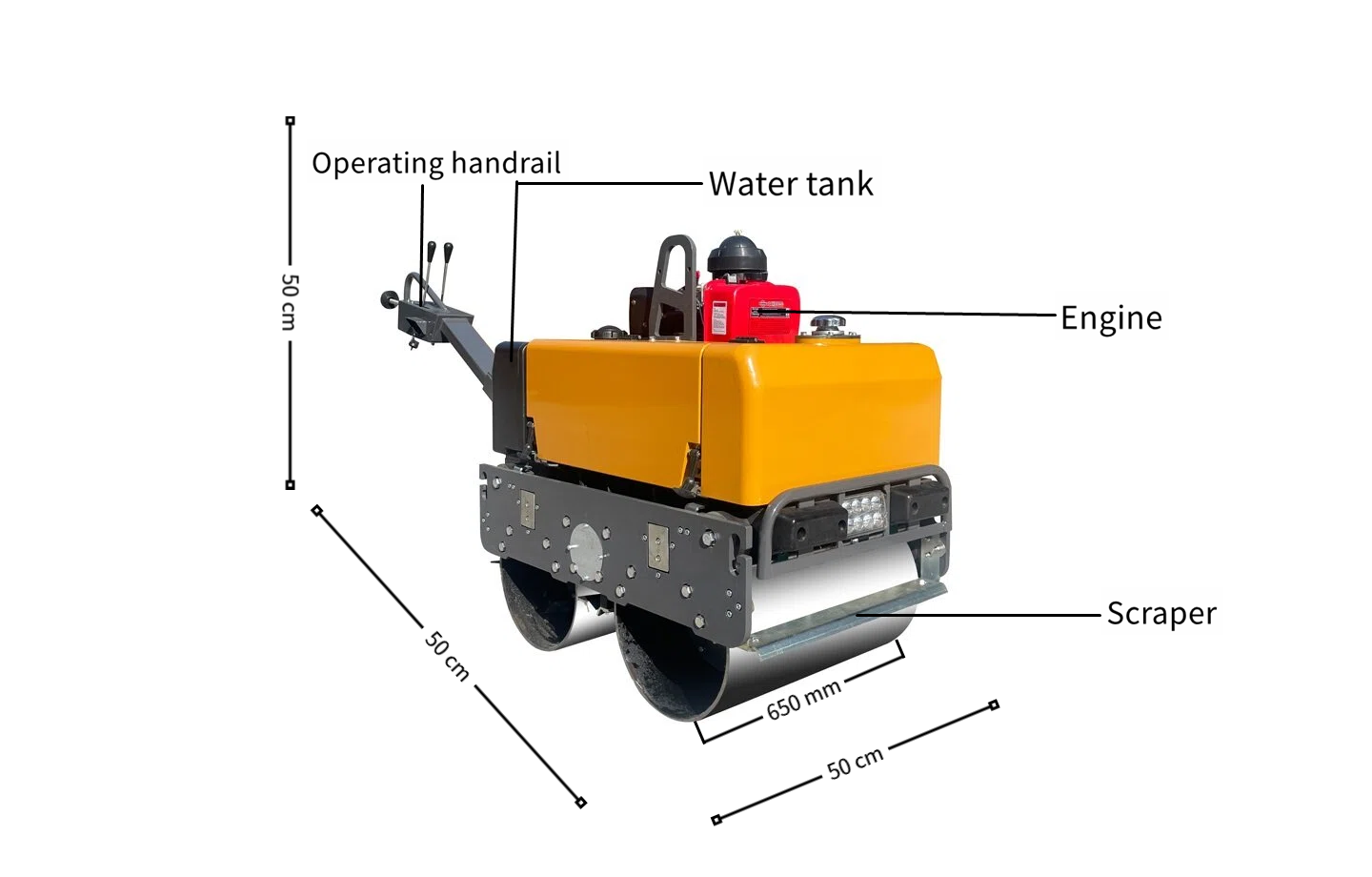

Details picture
Name	Engine	Scraper	water tank	Hydraulic power core

1.Power system

[1].The SVH60 is equipped with a Honda GX390 gasoline four-stroke engine, with an output power of 9.7KW and a stable rotational speed of 3600 rpm. It is equipped with a 6.5L fuel tank and offers powerful performance and excellent fuel efficiency, making it suitable for scenarios with high environmental protection requirements and good ventilation in the working environment.

[2].The SVH60C is equipped with a Changchai/KIPOR 186F diesel four-stroke engine with an output power of 6.6KW. It is equipped with a 5.5L fuel tank, which is sufficient for routine compaction operations. The diesel engine characteristics give it an advantage in terms of range.

[3].The SVH60CS is equipped with a Fuzhou Golden Flying Fish RD90N-1 diesel water-cooled engine with an output power of 5.88KW, a 10L fuel tank, and a rotational speed of 2400 rpm. The water-cooling design effectively improves the engine's heat dissipation performance, extending the continuous operation time, and is suitable for long-term and high-intensity construction.

[4].The 12V electrical system and electric start-up method ensure convenient start-up, stable operation, and a unified hydraulic oil tank capacity of 25L, ensuring the efficient operation of the hydraulic system.

2.Drive & Control System

[1].The entire series adopts a variable displacement piston pump variable speed dual-wheel drive system. The power transmission is precise and efficient, enabling stepless speed adjustment from 0 to 5 kilometers per hour. It can meet different requirements for compaction speed and has flexible steering. It can easily adjust the working posture in narrow spaces.

[2].The braking system uses a variable piston pump for braking, with rapid response and smooth braking, effectively ensuring operational safety.

[3].The vibration system is controlled by a mechanical transmission electromagnetic clutch. The front and rear dual-wheel vibration design ensures a stable vibration frequency of 55Hz, a vibration amplitude of 0.5MM, and an excitation force of up to 30KN. The compaction effect is outstanding, and it can easily handle various materials such as soil, sand, and asphalt for compaction operations.

[4].A gravity spray watering system is equipped, with a 40L large-capacity water tank to meet the watering needs for long-term operations, avoiding material adhesion to the drum, and improving the compaction flatness.

3.Size

[1].Overall machine details: The operating weight is 650 kilograms. The full width of the machine body is 720 millimeters. When the arm is upright, the total length is 1240 millimeters and the total height is 1765 millimeters. It can flexibly navigate through narrow sections and indoor areas.

[2].Transport packaging dimensions: 1300*750*1160MM. The size is compact, making it convenient for vehicle transportation and storage.

[3].Working dimensions: The width of the drum is 650 millimeters and the diameter is 380 millimeters. The drum size has been optimized for design, ensuring a sufficient compaction coverage while precisely adhering to the edge of the operation area, reducing compaction dead zones and improving operational efficiency.

The Storike 0.6-ton roller is engineered for projects where large ride-on rollers cannot maneuver and plate compactors lack sufficient depth capacity:

[1].Municipal Sidewalks & Cycle Paths: Ideal because its 0.6-ton footprint won’t crush underlying utility pipes, yet its dual vibration ensures the asphalt meets city durability codes;

[2].Trenches & Pipeline Backfilling: Perfectly fits into narrow drainage, gas, or cable trenches to compact soil layers, preventing future ground subsidence;

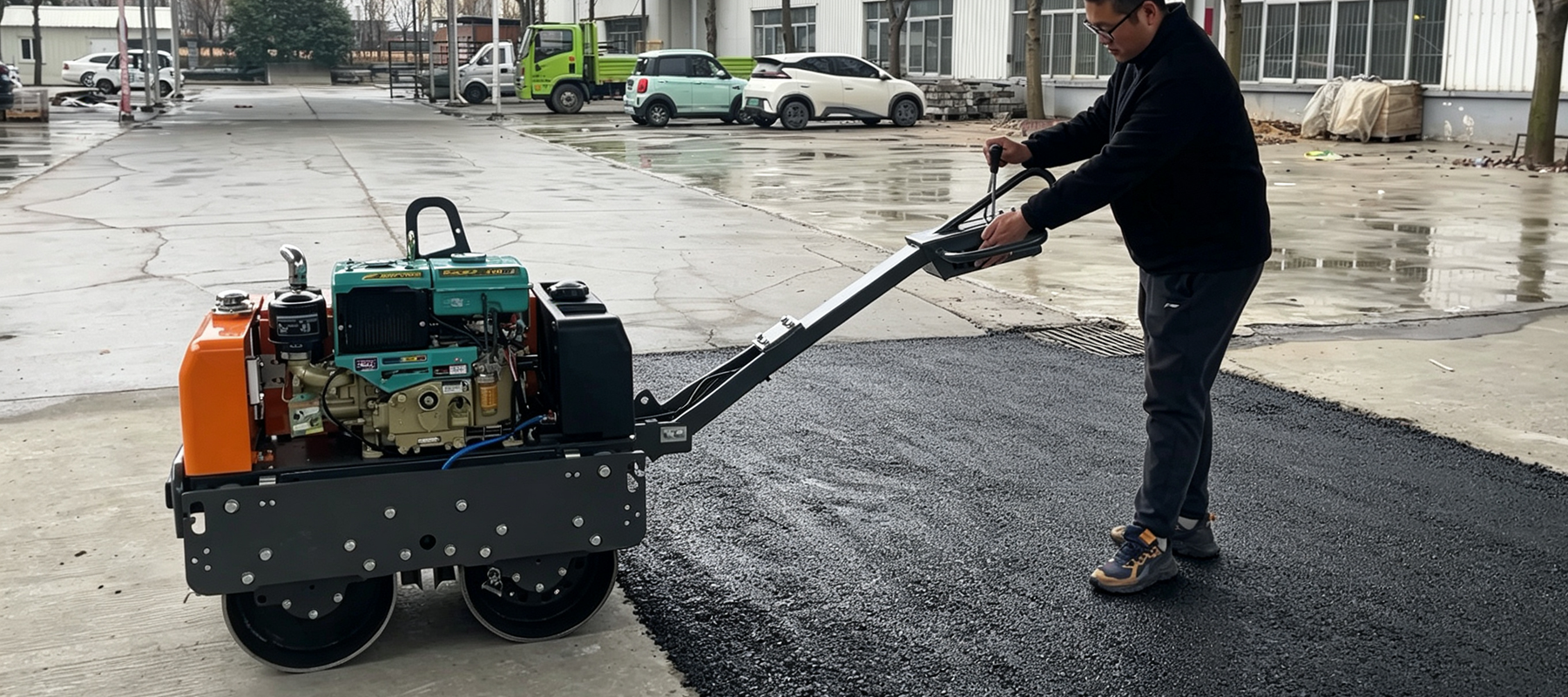

[3].Residential Driveways & Courtyards: Delivers mirror-smooth asphalt finishes for private driveways. Its tight turning radius allows agile maneuvering around gardens and residential corners;

[4].Patching & Road Maintenance: Perfect for pothole repairs on highways and urban roads. It transitions smoothly onto existing asphalt, creating seamless patches.

With 15 years of global export experience, Storike provides seamless international logistics:

[1].Standard Export Packaging: Every roller is securely enclosed in a heavy-duty, seaworthy wooden box to prevent scratches, moisture, or structural damage during transit.

[2].Multimodal Transport Network: We offer flexible shipping via Sea Freight, Land Transport, and Air Freight, depending on your budget and urgency.

[3].Direct-to-Site Delivery: We can ship directly to your specified business location, warehouse, or construction site.

[4].Customs & Documentation Support: Our expert logistics team will assist you with customs declarations, certificates of origin, and freight tracking.

Company Introduction

Storike is a premier construction machinery manufacturer with a 15-year pedigree of engineering excellence. Based in a 23,000 square meter modern manufacturing facility, we specialize in high-performance lighting towers, plate compactors, road rollers, excavators, and loaders.

Location: No. 2, Area A, Yangjiahe Science and Technology Pioneer Park, 2166 Chongwen Avenue, High-tech Zone, Jining City, Shandong Province, China.

Infrastructure: 6 dedicated international sales and technical service departments ensuring 24/7 global coverage.

Global Presence: Exhibitor at the Canton Fair and major international construction machinery expos, serving clients across 100+ countries.

OEM/ODM Support: Full capability to modify engines, branding, and hydraulics based on your specific market requests under strict quality control.

Services Provided

[1].1-Year Warranty & Free Parts: Enjoy a comprehensive 1-year warranty. Replacement parts for non-human damage are shipped to you completely free of charge.

[2].Original Parts Inventory: We maintain a massive factory parts warehouse. You can purchase genuine, factory-direct spare parts easily at any time.

[3].24/7 One-on-One After-Sales Guidance: Direct access to an assigned engineer for live video troubleshooting, assembly guidance, and operation training.

[4].Pre-Sales Consultation & Custom Solutions: Our experts help you analyze your local market requirements, select the ideal model, and customize specifications before purchase.

[5].Lifelong Service Commitment: Even after your warranty expires, Storike provides lifetime free online repair guidance and continuous access to our original parts warehouse.

Product Buying Guide

[1].Determine Your Engine Requirements: Choose between an EPA-compliant engine for the USA, a Euro 5 engine for the EU, or standard cost-effective options for other regions.

[2].Confirm Soil vs. Asphalt Needs: Ensure the standard water sprinkler system option is highlighted if your primary application is sticky asphalt.

[3].Evaluate Order Volume: Our MOQ is 1 unit. However, if you are a bulk distributor, contact our management team to sign a Price Discount Agreement to maximize your profit margins.

[4].Inquire About Agency Perks: Looking to become a local dealer? Ask about our exclusive regional agent recruitment benefits.

Q1: What are the operating speed and climbing ability of this series of road rollers?
A1: The speed can be adjusted continuously from 0 to 5 km/h, and the theoretical climbing ability is 30%.

Q2:What are the advantages of the body size?
A2: The operating weight is 650kg, and the full width is only 720mm. The compact design is suitable for operations in narrow spaces.

Q3: What is your Minimum Order Quantity (MOQ), and do you offer discounts?

A3: Our MOQ is 1 unit. For bulk buyers and wholesalers, we offer substantial price discounts to maximize your profit margin. This requires a signed agreement with our CEO.

Q4: How is the road roller packaged for international shipping?

A4: We package each machine inside a robust, export-standard wooden box to protect it from any structural impacts or maritime moisture.

Q5: What happens if a part breaks after the 1-year warranty expires?

A5: We adhere to a lifelong service policy. We will still provide free online repair guidance, and you can easily buy original replacement parts from our factory parts warehouse.
