SMLV1000A/B | 5m | Hand propelled mobile lighting vehicle

Hand propelled mobile lighting vehicle

What is a mobile lighting tower vehicle? How is its operation and mobility performance?
The mobile lighting tower vehicle is an emergency lighting equipment that can be flexibly moved and quickly set up for large-scale lighting. It is suitable for construction projects, emergency repairs, outdoor operations, etc., in scenarios without power supply or for temporary lighting.

FEATURES

• Equipped with imported power, quality assurance,superior performance.
• Equipped with metal halide lamp, large luminous flux and long life.
• High performance self-braking hand winch.
• 3-section lifting pole, galvanized light pole,anti-drop, corrosion-resistant.
• Left and right wind proof support frame, stable support.
• Integrated operator panel.
• 5 meters lifting height, adjustable irradiation angle,long irradiation distance.

Product Parameter

Product details
The SMLV1000A and SMLV1000B models are specifically designed for various outdoor scenarios to provide stable and bright lighting solutions. They feature reliable performance, flexible operation, and comprehensive after-sales support.

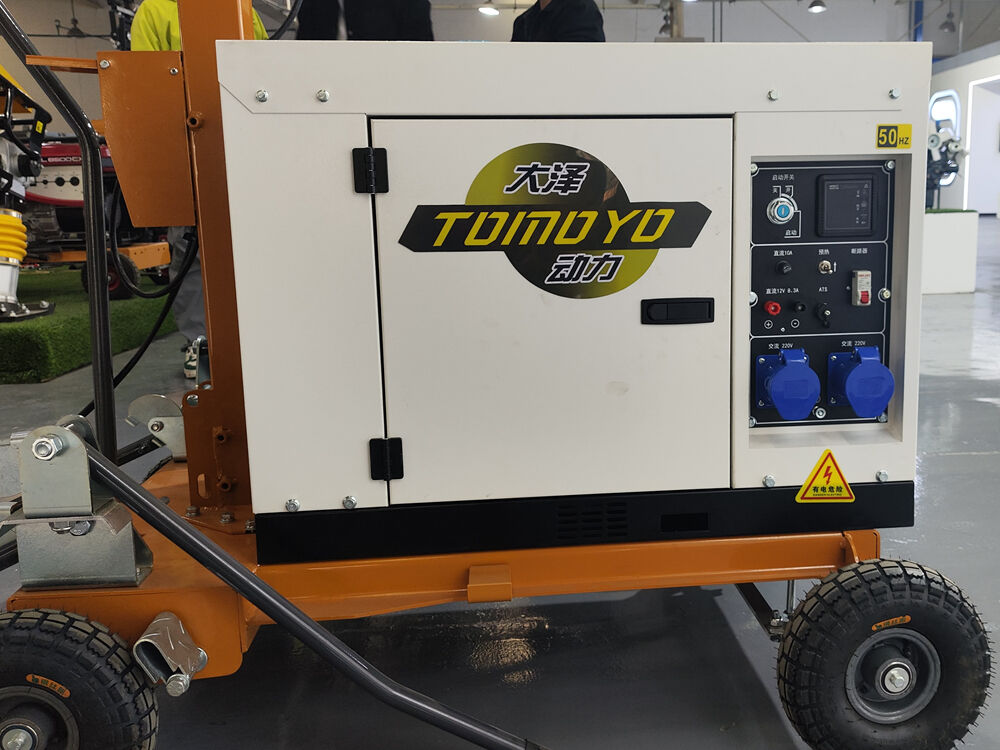

1.Power system
The power systems of both models are equipped with high-quality generators and alternators, ensuring continuous and stable power supply and meeting the lighting needs for a long time. Both devices are uniformly equipped with single-phase alternating current generators, with a working frequency of 50 hertz and a rated voltage of 220 volts. They can efficiently match the lighting load and ensure stable lighting effect.
Model SMLV1000A:
Equipped with an EC4000CX generator set, along with a HONDA 3KW gasoline generator and an ANMAX 3KW diesel generator,
The maximum output power is 3.3 kva,
The rated power is 3.2 kva, and it can operate continuously for 13 hours;
The fuel tank capacity is 24 L, and the engine weighs 71 KG.
Model SMLV1000B:
Equipped with an EC6500CX generator set, along with a HONDA 5KW gasoline generator and an ANMAX 5KW diesel generator,
The maximum output power is 5.5 kva,
The rated power is 5 kva,
The continuous working time can reach up to 11 hours;
The fuel tank capacity is 25 L, and the engine weight is 83 KG.

2.Drive & Control System
In terms of lighting control:

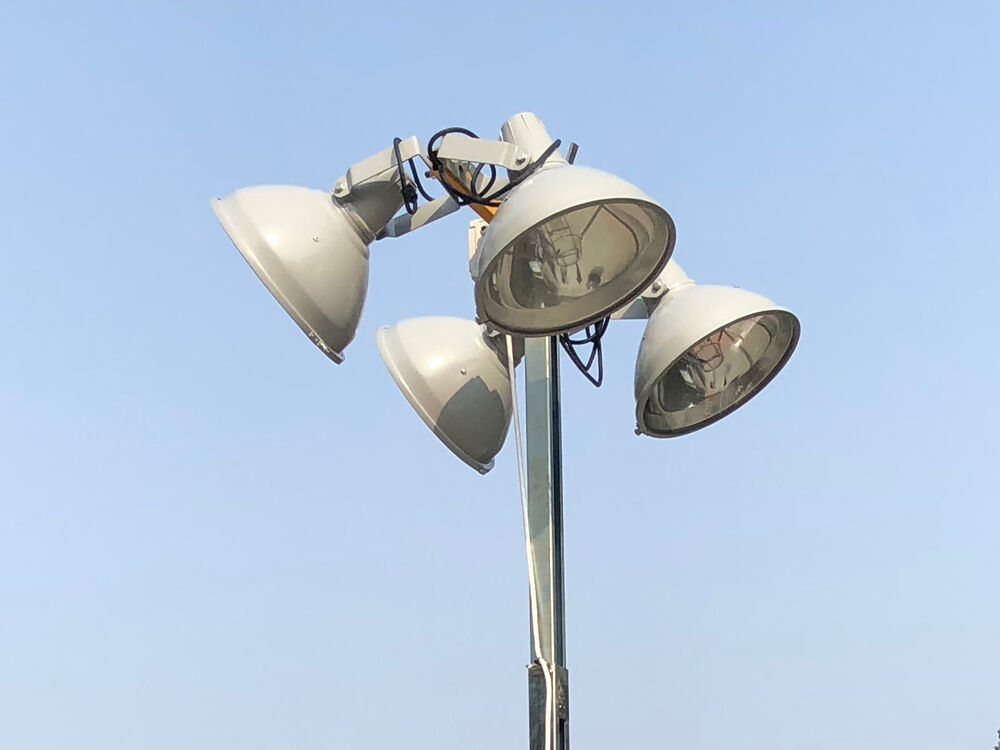

The SMLV1000A model offers a variety of lighting combinations, including 2 or 4 1000-watt metal halide lamps (with total luminous fluxes of 220,000 lumens and 440,000 lumens respectively). The light is powerful and uniform, capable of covering a wide area.

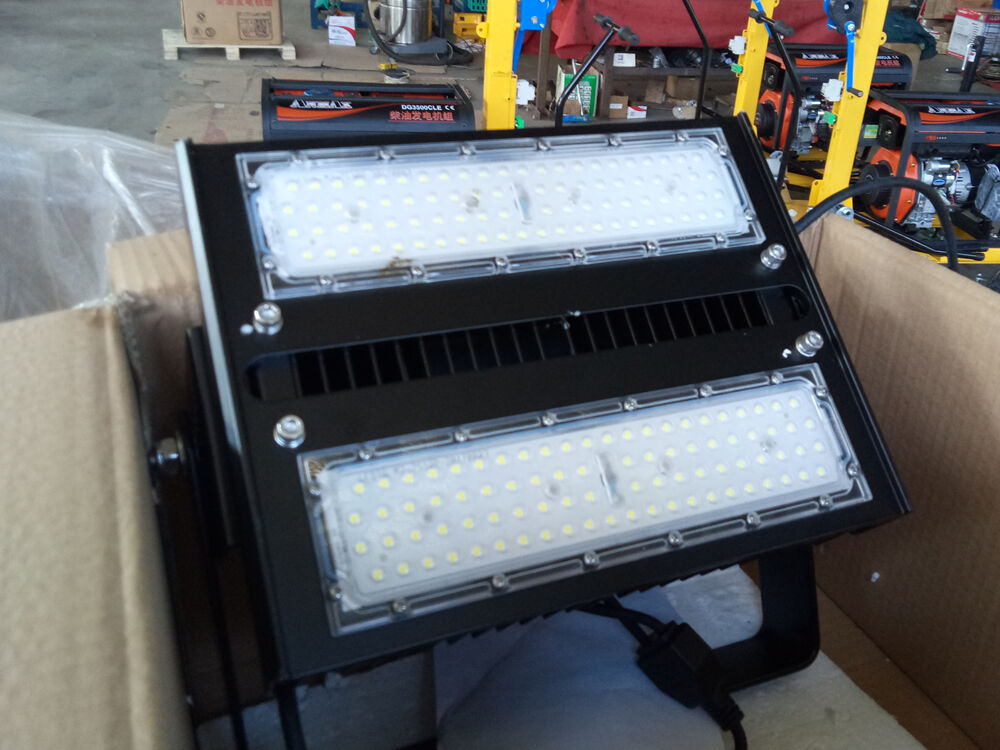

The SMLV1000B model offers either 2 or 4 200-watt LED lights (with total luminous fluxes of 56,000 lumens and 112,000 lumens respectively), allowing for flexible selection based on actual lighting requirements.

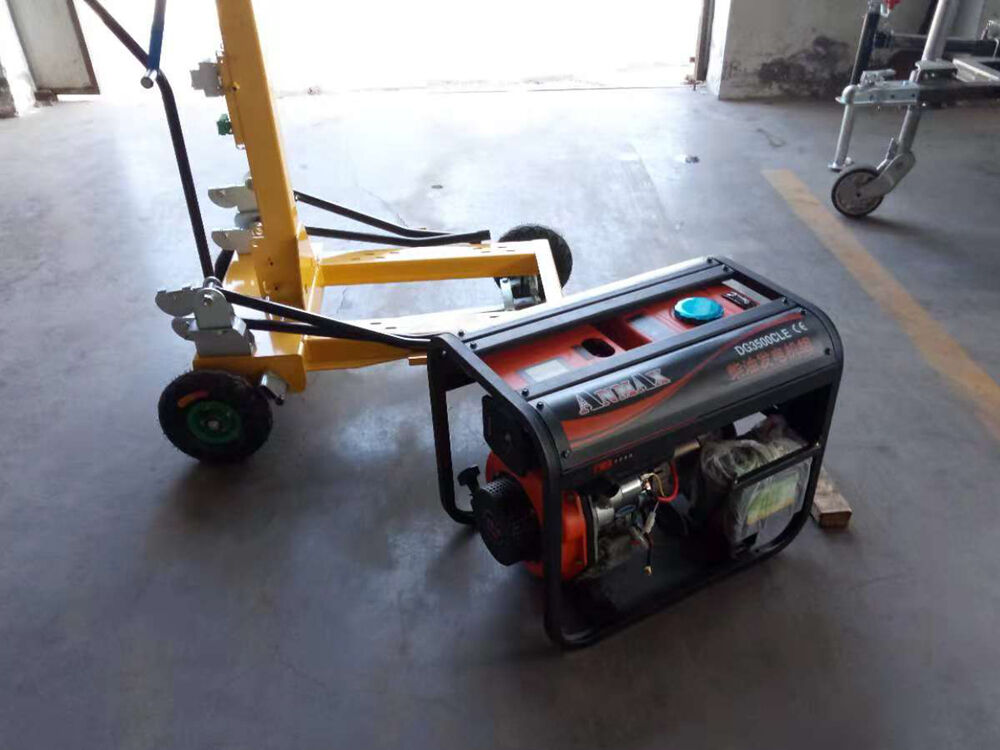

The lamp stand adopts a three-section lifting rod design, with a telescopic range of 1700 - 5000 millimeters. The lifting method is manual, which is simple and labor-saving. It can quickly adjust the lighting height.
The moving method is designed as a push-type, which is flexible and convenient. Even in a narrow space, it can be easily moved to the designated lighting position.



The equipment has excellent stability. The inclination angle can be controlled within 10 degrees, and the wind resistance level can reach below 6. It can adapt to different complex outdoor environments and ensure the safety of use.



3.Size
The mobile lighting tower is designed with a compact and reasonable size, ensuring stability while also considering the convenience of storage and transportation.
The size of the SMLV1000A engine is 681mm × 530mm × 571mm. The weight of the SMLV1000A model (without the generator) is 114 kilograms. It is of moderate weight and easy to deploy and move on-site.
The size of the SMLV1000B engine is 680mm × 510mm × 540mm. The weight of the SMLV1000B model (without the generator) is 120 kilograms. It is small in size and easy to store and transport.
In terms of support dimensions, the two models have the same specifications. The flat support size is 1585mm × 1740mm, which provides stable support during operation and ensures that the equipment does not shake.
The folded support size is 1250mm × 860mm, allowing for folding and storage when not in use, significantly saving storage space.



4.Application
The mobile lighting tower is suitable for a wide range of scenarios. With stable power output, strong lighting performance and flexible mobility, it can meet the usage requirements in various fields.
In the construction industry, it is applicable to night operation scenarios such as road construction, bridge building, and mining, providing large areas of bright lighting to ensure construction safety and efficiency;
In the emergency rescue field, it can be used for night rescue and emergency operations in disaster sites such as earthquakes, floods, and fires, providing clear vision for rescue personnel and saving rescue time;
In the outdoor activity field, it is suitable for large-scale events, outdoor performances, and camping assembly scenarios, meeting the temporary lighting needs;
It can also be applied in municipal maintenance, power emergency repair, and night operation of agricultural planting bases, covering all aspects of outdoor temporary lighting and long-term operation lighting needs.

5.Service
Comprehensive service guarantee: Offer a one-year warranty period and a professional service team available 24/7 online. In case of equipment issues, you can call the service hotline at any time. We will respond immediately and provide you with a full range of services including technical consultation, fault diagnosis, and maintenance guidance, ensuring your construction is worry-free.



6.Packing and shipping
We provide wooden case packaging and strictly protect your machine's body as required, including components and paint finish, to ensure no scratches occur. Custom packaging is also available. We will select an appropriate transportation method for you. If you have a freight forwarder, we can also deliver the machine to your designated freight forwarder's location.



Company Introduction
STORIKE is a professional engineering equipment manufacturer with 15 years of production experience, specializing in products such as light towers, plate compactors, road rollers, excavators and loaders. Our products have obtained CE, EPA and Euro 5 certifications, and can be flexibly customized according to engine types, while providing comprehensive OEM/ODM service support. All products undergo strict quality control. We have participated in the Canton Fair and international construction machinery exhibitions, serving more than 100 countries worldwide. We have 6 dedicated sales and service departments and a 23,000-square-meter modern manufacturing base. We warmly welcome global customers to visit our factory and explore cooperation opportunities.

Suggested use
Here are some safety tips to help you maintain the machine and extend its service life：
Safety Tips & Maintenance Advice：
·  During the operation of the equipment, do not perform cleaning or maintenance work. Rotating parts may cause personal injury.
·  It is strictly prohibited to clean parts with gasoline, other fuels or flammable solvents, especially in enclosed areas; the fumes volatilized from fuels and solvents are prone to accumulation, which may cause explosions.
·  Regularly check the external buttons of the equipment to ensure their normal functions.
·  Provide professional operation and safety training to equipment operators on a regular basis.
·  Do not operate the equipment in areas with flammable substances, fuel or flammable vapors.
·  After the equipment is out of service, turn off the engine immediately, store it in a clean, dry area out of the reach of children, and ensure standardized storage.
·  Do not remove the air filter cover, paper filter element and pre-cleaner while the engine is running.
·  Do not remove the air filter cover, paper filter, and pre-cleaner during engine operation.
· We provide instruction manuals and operation suggestions. Please use the machine in accordance with the manual to ensure personal safety and avoid machine damage.
