Storike is a professional manufacturer specialized in road rollers, providing reliable OEM and ODM services.

Our product range is classified by drum type: small road rollers include double-drum rollers, steel-drum front and rubber-wheel rear rollers, and double rubber-wheel rollers.

By operation mode, we offer walk-behind rollers and ride-on rollers.

The weight of our products ranges from 340kg to 30 tons; for detailed specifications, please refer to our product parameters.

We provide customized solutions. A wide selection of gasoline and diesel engines is available, including well-known brands such as Honda, Yanmar, Kubota, Cummins, Changchai, and others.

Padfoot drums and smooth drums are optional, and sunshades can be equipped according to customer requirements.

All products come with a one-year warranty. We will respond promptly upon receiving your inquiries.

If you have any needs, please feel free to contact us.

Remote Control Road Roller

Click on the picture - view the details

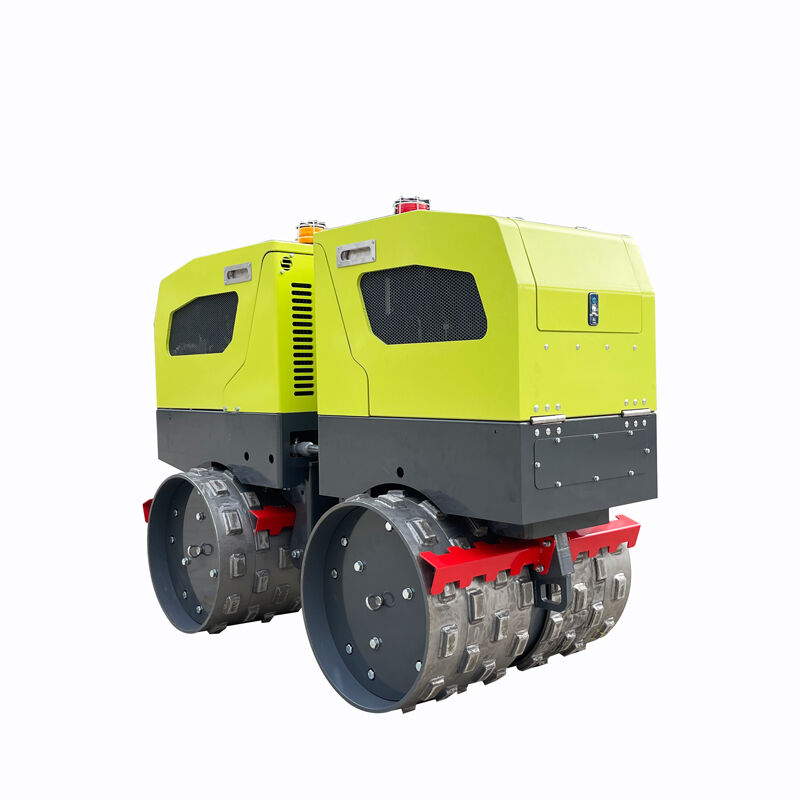

Picture 1.8 ton remote road roller (1).jpg
Model STRC-18
Operating Weight(kg) 1850
Size(mm)L*W*H 1915*560/820*1430
Drum width(mm) 1005
Drum diameter(mm) 580
Engine YANMAR
Power(kw) 17.8
Rating speed(rpm) 3000
Walking speed(km/h) Low speed 1.25/
high speed 2.5
Climbing ability 45%
Vibrating drum front + rear
Frequency(HZ) 42
Amplitude(mm) Low 0.7/High 1.4
Centrifugal force(kn) Low 15*2/High 30*2
Hydraulic oil(L) 38.5
Fuel(L) 25

Walk Behind Road Roller

Click on the picture - view the details

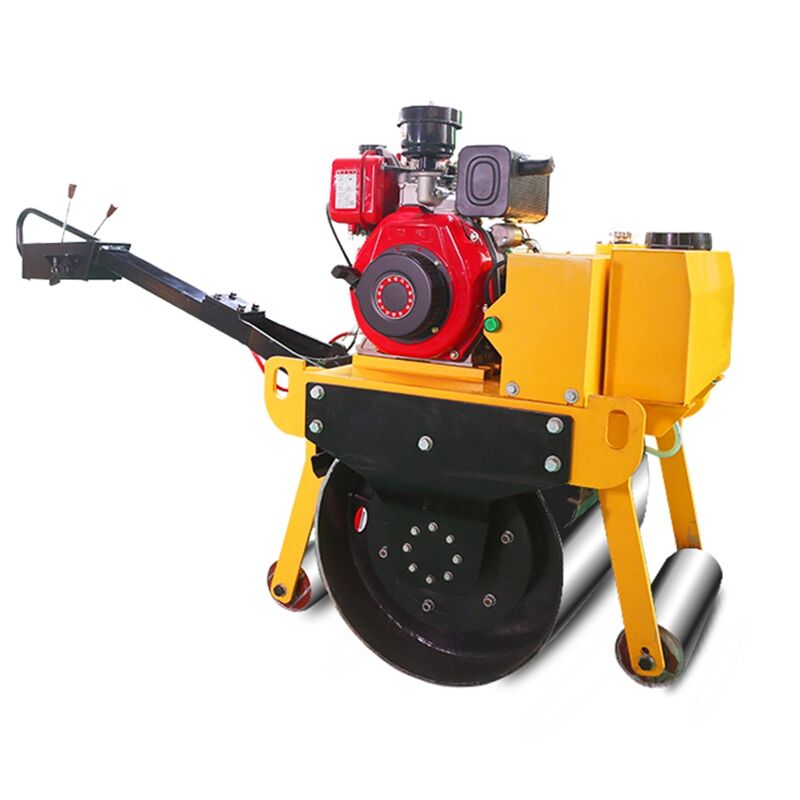

0.3 ton road roller (1).jpg single drum road roller (1).jpg 0.5 ton road roller (1).jpg double drum 0.6 ton road roller (1).jpg SVH60M double drum road roller (1).jpg 0.8 ton road roller (1).jpg
Drum Type Single drum Single drum Double drum Double drum Double drum Double Drum
Model SVH30/30C SVH700 SVH50/50C/50S SVH60/60C/60CS SVH60M/SVH60MC SVH80/80C/80S
Operating weight(KG) 340 485 530 620 580 790
Static line load(n/cm) 45 45 45 45 45 61.5
Size(mm)L*W*H 1600*780*1060 2150*880*1870 2480*780*1820 1240*720*1765 2500*780*1820 2500*750*1710
Package dimensions(mm) 1050*850*1200 1200*920*1920 1300*840*1050 1300*750*1160 1320*840*1050 1320*700*1730
Drum width(mm) 600 700 600 650 600 680
Drum diameter(mm) 426 530 426 380 426 355
Engine Honda/
Changchai/
Kama		 Honda
Changchai/
Changfa		 Honda/
Changchai/
Kama		 Honda/
Changchai/
Fuzhou Golden Flying Fis		 Honda/
Changchai		 Honda/
Changchai/
Fuzhou Golden Flying Fis
Power(kw) 4.1/3.1/3.7 6.7/4.4/4.4 4.7/5.7/4.4 9.7/6.6/5.88 9.7/6.6 9.7/6/5.88
Speed(km/h) 0-3.8 0-4.5 0-4 0-5 0-4 0-6
Theoretical climbing
ability 		30% 30% 30% 30% 30% 30%
vibration frequency(hz) 70 70 70 55 70 65/60
Exciting force(kn) 20 30 30 30 30 30
Capacity
Fuel(L) 3.6/1.9/2.5 6.5/2.7/2.7 5.9/3.5/6.5 5.9/5.5 5.9/5.5 6.5/5.5/10
Lubricant (L) 0.6/0.75/0.75 1.1 1.1/1.1/2 1.1 1.1 //
Hydraulic tank(L) 15/12/12 15 18 18 18 28
Water tank(L) 22 20 20/20/--- 22 22 30

Ride on Small Road Roller(Less than 2 tons)

Click on the picture - view the details

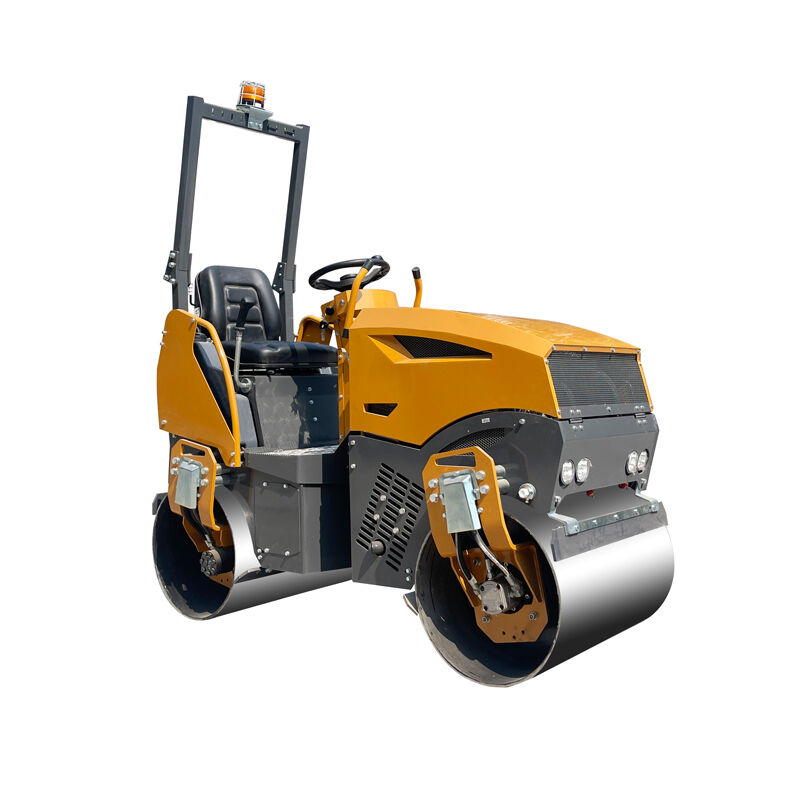

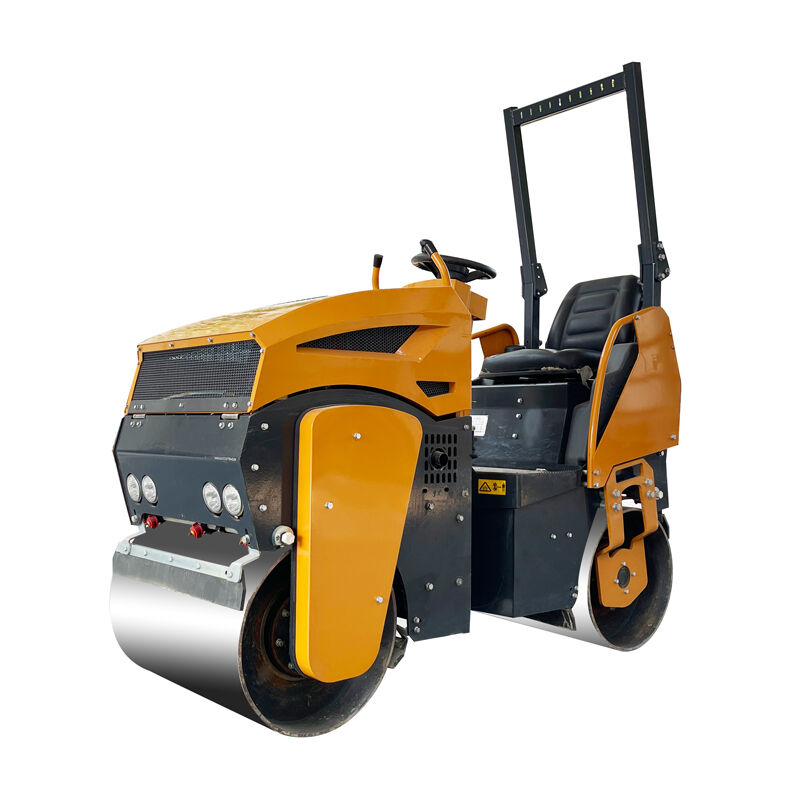

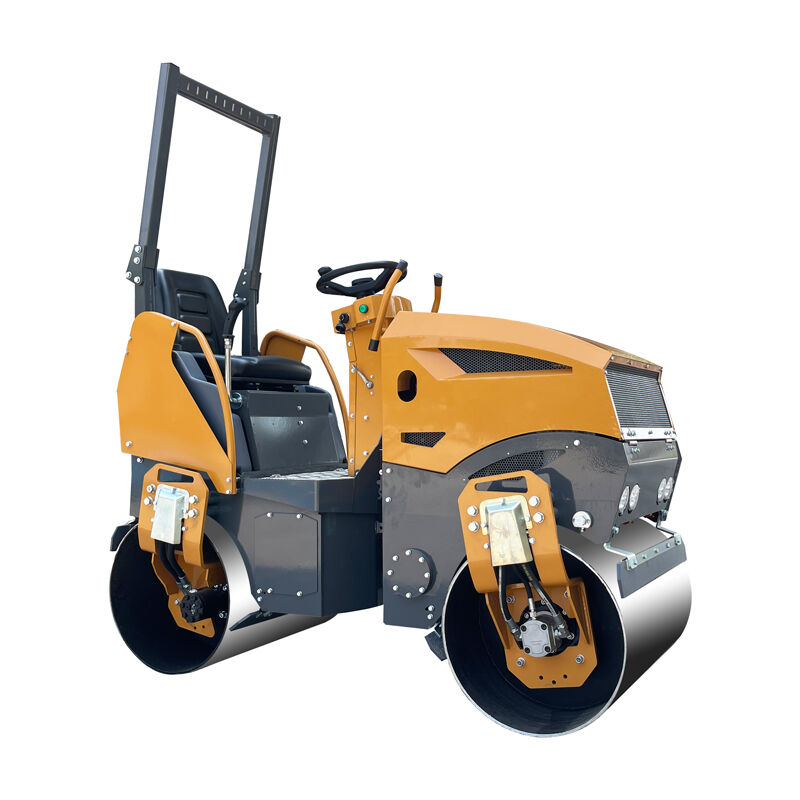

double drum road roller (1).jpg 1 ton road roller (1).jpg 1.2 ton road roller (1).jpg 1.3 ton road roller (1)(e0d0c4e5de).jpg 1.8 ton road roller (1).jpg
Model SVH70/70C ST1000 ST1200 ST1300 ST1800
Operating weight(KG) 620 1100 1185 1280 1790
Static line load(n/cm) 55 50/77 69.5/68 70 82
Size(mm)L*W*H 1550*875*1210 1870*825*1985 1980*930*2125 2030*920*2130 2210*1050*2465
Drum width(mm) 700 front 500 rear 700 800 800 900
Drum diameter(mm) 530 front 425 rear 500 560 560 560
Engine Honda/
Loncin/
Changfa/
Changchai 		Honda/
Changfa/
Changchai 		Changchia/
Honda 		Kubota Yanmar
Power(kw) 9.7/9.7/4.8/4.4 9.7/6 8.1/9.7 9.8 18.5
Speed(km/h) 0-6 0-6 0-6 0-10 0-8
Theoretical climbing ability 30% 30% 30% 30% 30/35%
vibration frequency(hz) 70 70 65 65 65
Exciting force(kn) 30 25 30 30 30
Capacity
Fuel(L) 6.5/6.5/3.5/2.7 6.5 5.5 15 36
Hydraulic oil tank(L) 12 15 22 15 45
Water tank(L) 18 70 70 70 160

Ride on Road Roller(More than 2 tons)

Click on the picture - view the details

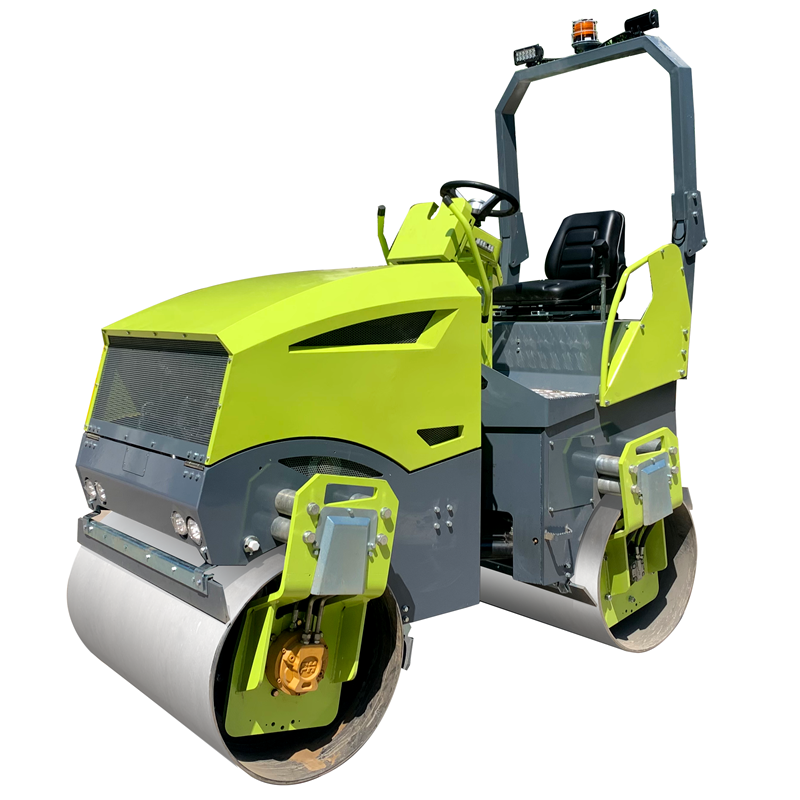

Picture 2 ton road roller (1).jpg 白底图.jpg 3 ton road roller (1).jpg 微信图片_20260309151524.jpg 微信图片_202105181411483_副本.png 5ton road roller (1).jpg
Model ST2000 ST2000U ST3000 STM3.5F-4 ST4000 ST5000
Operating weight(KG) 2100 1820 2585 3500 3150 4230
Static line load(n/cm) 110/105 90 106/94 Front wheel 147 /
Rear wheel 163 		135/120 155
Size(mm)L*W*H 2315*1050*2445 2315*1060*2535 2480*1355*2630 2830*1420*2650 2580*1370*4130 2920*1850*2680
Drum width(mm) 900 1000 1200 1090 1200 1400
Drum diameter(mm) 630 630 630 / 720 900
Engine Yanmar/
Changchai/
Kubota 		YANMAR/
CHANGCHAI/
KUBOTA		 Changchai/
Yanmar/
Kubota 		Quanchai Changchai/
Yanmar/
Kubota 		Changchai/
Yammar/
Kubota
Power(kw) 17.8/19/18.2 18.6 / 18.5 / 18.2 28.5/28.1/26.1 28 28.5/28.1/26.1 36/34.5/33.6
Speed(km/h) 0-10 0-8 0-10 2.4-7.8 0-10 0-15
Theoretical climbing ability 30/35% 30/35% 30/35% 20% 30/40% 35/40%
vibration frequency(hz) 65 before 68/
before+after 46		 65 50 60 50
Exciting force(kn) 35/35*2 before 20/
before + after 10		 40/40*2 35 50/50*2 60/60*2
Capacity
Fuel(L) 36 36 42 / 42 44.5
Hydraulic oil tank(L) 45 45 46 / 42 60
Water tank(L) 160 160 180 200 180 180

Ride on Road Roller(Front steel wheel, rear pneumatic tire)

Click on the picture - view the details
Picture 2 ton tire roller (1).jpg 3.5 ton road roller (1).jpg ST4500 Pneumatic roller (1)(cf2adfdbb3).jpg
Model ST2000C ST3500C ST4500C
Operating Weight(kg) 2150 2820 4150
Static linear load(n/cm) 105 130 140
Size(mm)L*W*H 2345*1150*2535 2650*1370*2565 3000*1580*2680
Turning radius(outer)(mm) 2950 2600/3900 4380
Drum width(mm) 1000 1200 1400
Drum diameter(mm) 630 720 900
Wheel base(mm) 1565 1795 1960
engine Changchai/
Kubota 		Changchai/
Yanmar/
Kubota 		Changchai/
Yanmar/
Kubota
Power(kw) 19/18.2 28.5/28.1/26.1 36/34.5/33.6
Rating speed(rpm) 3200/3000 2600/3000/3000 2400/3000/2400
Walking speed(km/h) 0-8 0-10 0-12
Climbing ability 30/35 30/40 35/40
Vibrating drum Front Front Front
Vibration form Hydraulic motor Hydraulic motor Hydraulic motor
Frequency(HZ) 65 60 50
Amplitude(mm) 0.5 0.5 0.5
Centrifugal force(kn) 35 50 68
Hydraulic oil(L) 45 50 60
Fuel(L) 36 38 44.5
Water(L) 160 180 180

Ride on Road Roller(Double pneumatic tire)

Click on the picture - view the details

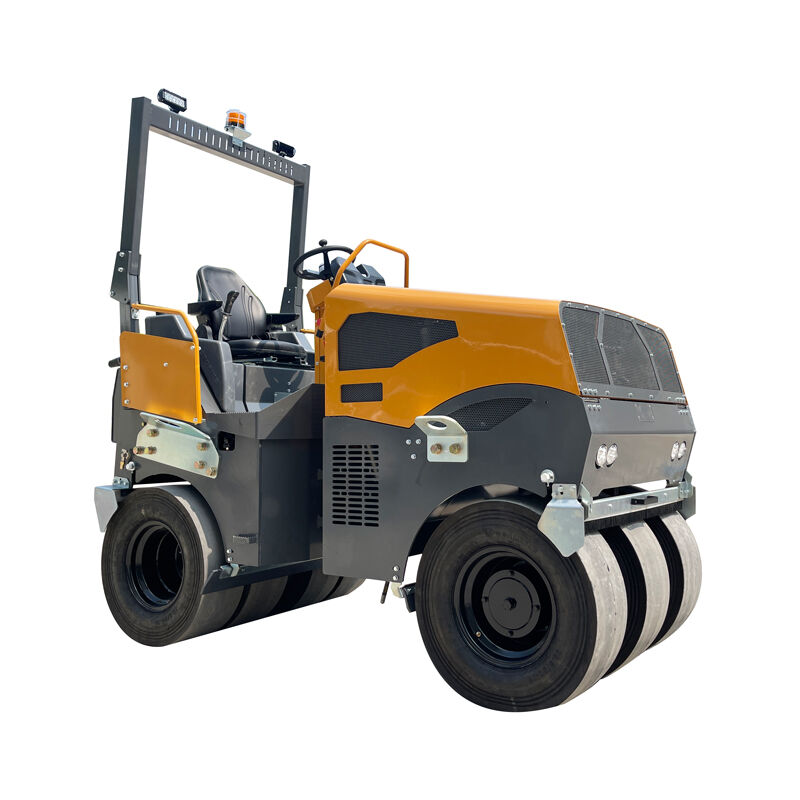

Picture 微信图片_20260316145131.jpg 4 ton Pneumatic tire roller (1).jpg
Model STP2030 STP1826 STP1016 STP2030H STP1826H STP1016H ST4000DQ
Operating weight 20000 18000 10000 20000 18000 10000 ST4000DQ
(Do not load/load)kg 30000 26000 16000 30000 26000 16000 /
Maximum forward speed(KM/H) 20.64 20.64 14.7 10 10 14 12
Number of tires front+rear 5+6 5+6 4+5 5+6 5+6 4+5 3+4
Minimum turning radius(mm) 8000 8000 7500 8000 8000 7500 4300
Compaction width(mm) 2790 2790 2280 2790 2790 2280 1200
Climbing ability(%) 30 35
Overall dimensions(mm) 4950*2750*3240 4780*2100*3200 4950*2750*3240 4780*2100*3200 3000*1455*2680
Wheelbase(mm) 3800 3800 3700 3800 3800 3700 1975
Engine brand Cummins Changchai/
Yanmar/
Kubota
Engine model 6BTA5.9 6BTA5.9 4BT3.9 6BTA5.9 6BTA5.9 4BT3.9 ZN490B/
4TNV88/
V2403
Engine power(kw) 125 125 75 125 125 75 36/34.5/33.6
