ST1200 | 1.2 ton | Vibratory roller

Articulated double drum vibratory roller

What is a double drum road roller?
The double-steel-wheel roller has two rollers at the front and rear. Some models support synchronous vibration of the two rollers, which results in better compaction efficiency and uniformity. It is the core equipment for compacting asphalt pavement. The vibration mode is flexible and can be switched according to the types of materials such as soil, sand and gravel, and is suitable for each stage of initial compaction, re-compaction and final compaction.

What is the function of a road roller?
The core function of a road roller is to compact road-building materials such as soil, sand, gravel and asphalt mixture through its own weight or vibratory impact force. This improves the compactness, flatness and stability of the compacted materials, reduces their porosity, enhances load-bearing and anti-deformation capacity, and ensures the construction quality and service life of roads, foundations, dykes and other engineering projects.

FEATURES

• Equipped with famous brand power, qualityassurance, superior performance.
• Eagle-eye body design, wide field of vision,beautiful and generous.
• Imported hydraulic variable pump and quantitative motor, stepless speed change, walking forward and backward.
• The control panel is fully functional, one-key operatiorFront and rear lighting & warning lights, can be constructed at night.

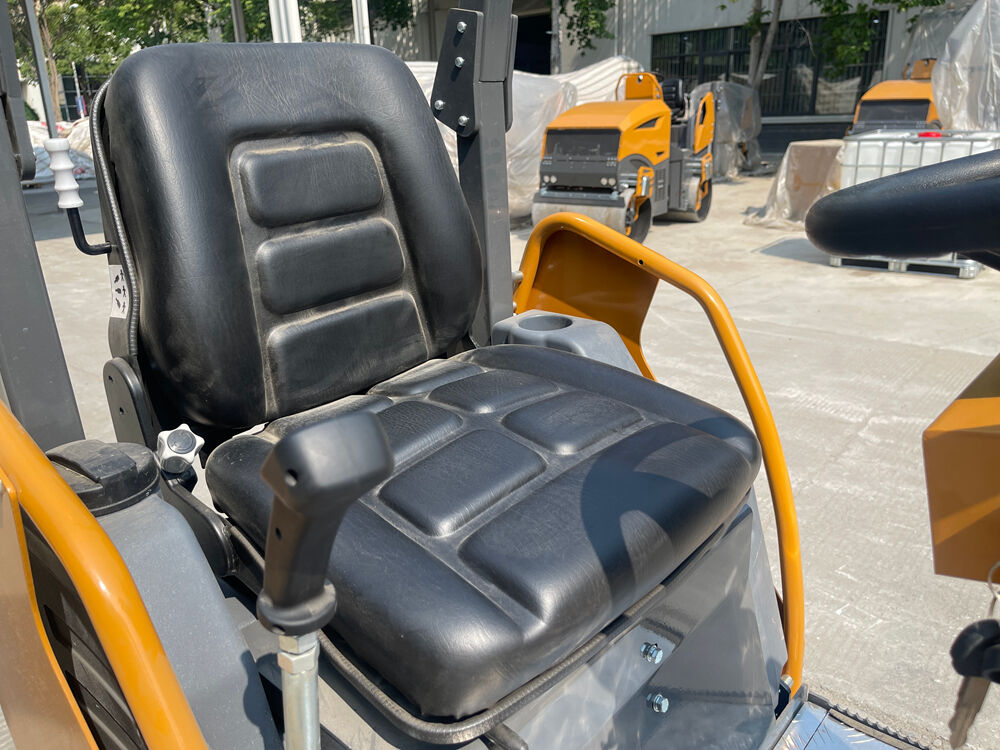

• Ergonomic driving.
• The product has passed the CE certification, and the design of the Red Star Award.
• The steel wheel is equipped with an outline light,which is easy to operate, safe and efficient.

Product Parameter

Product details
The ST1200 road roller can efficiently complete the compaction task in various scenarios such as municipal maintenance, road construction, or site leveling. Moreover, its comprehensive after-sales service system ensures a smooth construction process.



1.Power system
The ST1200 road roller is available in both diesel and gasoline versions, catering to different working scenarios and energy supply requirements. The power output is stable and powerful:
The diesel version is equipped with the Changchai 192F four-stroke single-cylinder diesel engine, with an output power of up to 8.1kW; the gasoline version is fitted with the Honda GX390 four-stroke single-cylinder gasoline engine, providing abundant power with an output power of up to 9.7kW.
The 12V stable voltage design ensures smooth startup and meets the power supply requirements of complex construction environments; the 5.5L large-capacity fuel tank effectively extends the continuous operation time and reduces the hassle of frequent refueling; the hydraulic oil capacity is 22L, ensuring the efficient and stable operation of the hydraulic system and avoiding the impact on the work progress due to insufficient oil.

2.Drive & Control System

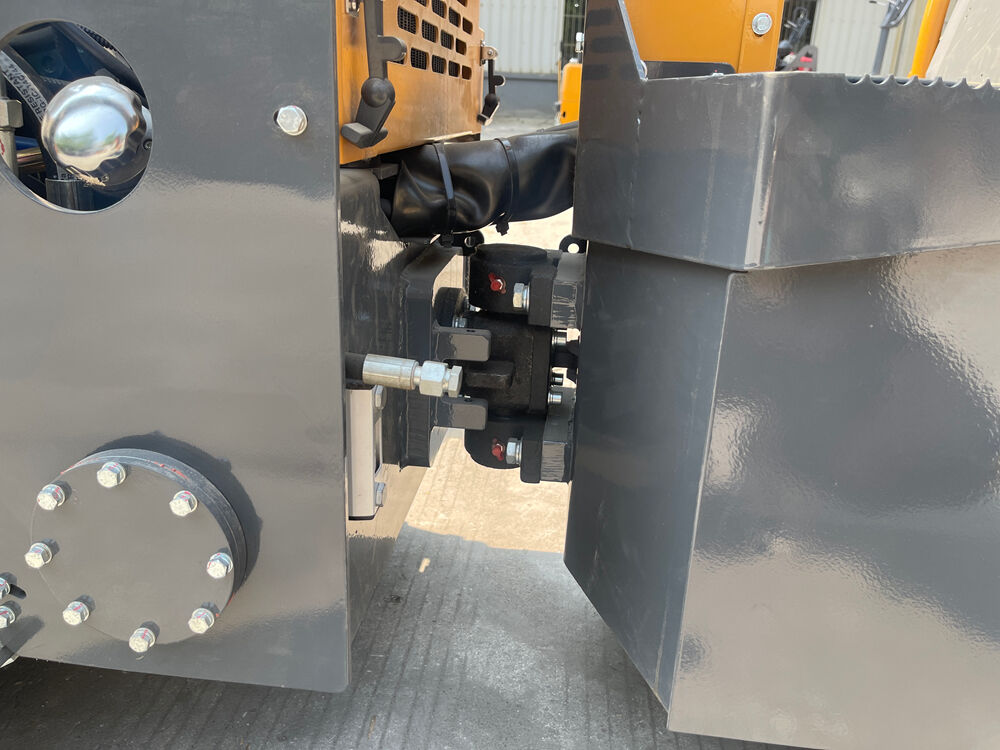

The equipment adopts a variable plunger pump stepless speed control two-wheel drive mode, combined with a hydraulic steering system and a swing hinge-joined steering structure. The outer turning radius is only 2800mm, with no steering blind spots, significantly enhancing operational flexibility.
The walking speed can be adjusted steplessly within the range of 0-6 km/h. It can flexibly adjust the operation rhythm according to the compaction requirements. The theoretical climbing ability reaches 30%, enabling it to handle construction sites with slopes with ease.

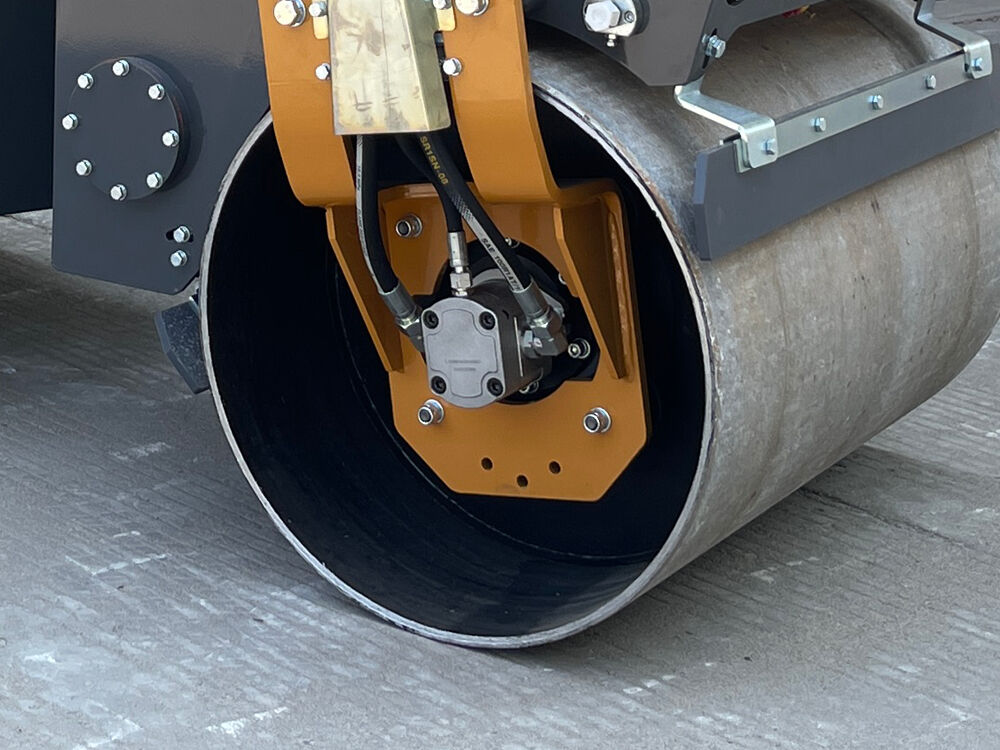

The system adopts a front-mounted vibrating drum, driven by a hydraulic motor. The vibration frequency reaches 65Hz, the vibration amplitude is 0.5mm, and the excitation force can reach 30kN. It can efficiently complete the compaction operation of loose materials such as soil and sand, with uniform compaction density and effectively enhance the ground bearing capacity.

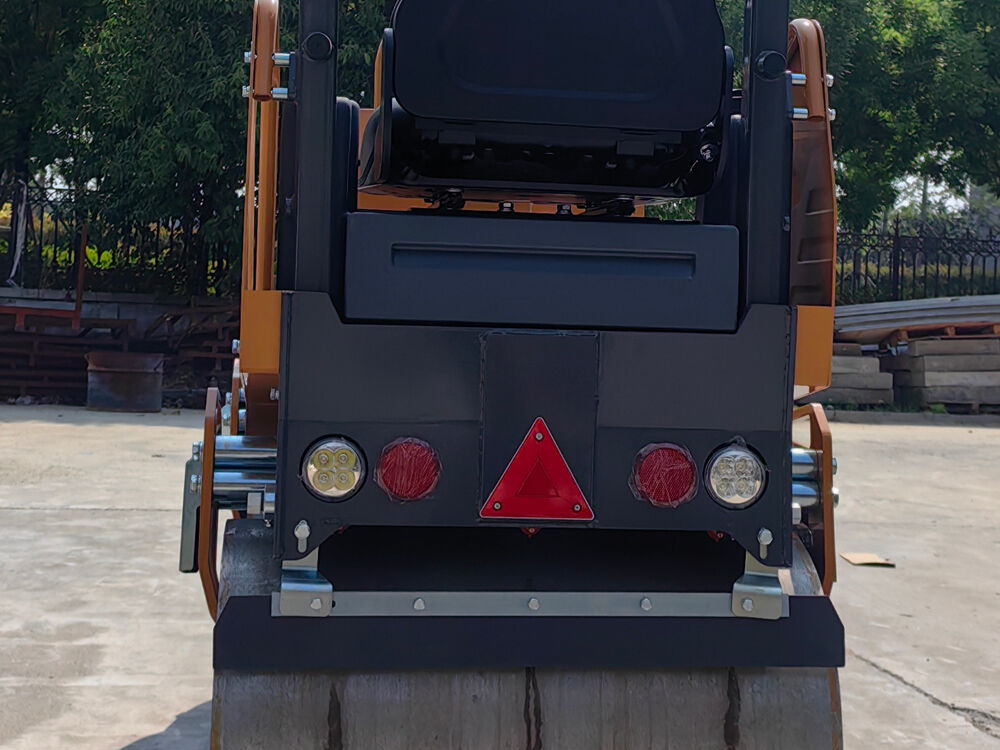

In addition, it is equipped with an intermittent pressure spray watering system. The 70L large-capacity water tank can meet the dust reduction and drum lubrication requirements during long-term operations, avoiding the problem of material sticking to the drum which may affect the compaction effect.



3.Size
The operating weight of ST1200 is 1185kg. The static linear loads are 69.5n/cm and 68n/cm respectively. It has strong compaction stability and can ensure that the equipment does not shift or shake during the compaction process.
The working width reaches 930mm. Combined with a 800mm-wide and 560mm-diameter vibrating drum, the single compaction area is large, which can significantly shorten the construction period. The overall length of the equipment is 1980/1940mm, the overall height is 1540/2125mm, the wheelbase is 1356mm. The structure is compact, making it convenient for transportation and storage.



4.Application
The ST1300 compact roller, with its flexible design and powerful performance, is widely applicable in the following scenarios:
· Municipal engineering: Sidewalk paving,community road maintenance, ground compaction in underground garages,and reinforcement around manhole covers;
· Road construction: Rural road paving, scenic area path maintenance, initial and final compaction of asphalt surfaces,and compaction of non-motorized vehicle lanes;
· Building construction: Compaction of house foundations,courtyard hardening,villa garden renovation,and small site leveling;
· Landscape gardening: Compaction of lawn bases,flower bed construction, road leveling in parks, and laying of landscape paths;
· Other scenarios: Compaction of warehouse floors,factory floor maintenance,emergency repair projects,and compaction of farm and water conservancy access roads,etc.

5.Service
Comprehensive service guarantee: Offer a one-year warranty period and a professional service team available 24/7 online. In case of equipment issues, you can call the service hotline at any time. We will respond immediately and provide you with a full range of services including technical consultation, fault diagnosis, and maintenance guidance, ensuring your construction is worry-free.



6.Packing and shipping
We provide wooden case packaging and strictly protect your machine's body as required, including components and paint finish, to ensure no scratches occur. Custom packaging is also available. We will select an appropriate transportation method for you. If you have a freight forwarder, we can also deliver the machine to your designated freight forwarder's location.



Company Introduction
STORIKE is a professional engineering equipment manufacturer with 15 years of production experience, specializing in products such as light towers, plate compactors, road rollers, excavators and loaders. Our products have obtained CE, EPA and Euro 5 certifications, and can be flexibly customized according to engine types, while providing comprehensive OEM/ODM service support. All products undergo strict quality control. We have participated in the Canton Fair and international construction machinery exhibitions, serving more than 100 countries worldwide. We have 6 dedicated sales and service departments and a 23,000-square-meter modern manufacturing base. We warmly welcome global customers to visit our factory and explore cooperation opportunities.

Suggested use
Here are some safety tips to help you maintain the machine and extend its service life：
Safety Tips & Maintenance Advice：
·  During the operation of the equipment, do not perform cleaning or maintenance work. Rotating parts may cause personal injury.
·  It is strictly prohibited to clean parts with gasoline, other fuels or flammable solvents, especially in enclosed areas; the fumes volatilized from fuels and solvents are prone to accumulation, which may cause explosions.
·  Regularly check the external buttons of the equipment to ensure their normal functions.
·  Provide professional operation and safety training to equipment operators on a regular basis.
·  Do not operate the equipment in areas with flammable substances, fuel or flammable vapors.
·  After the equipment is out of service, turn off the engine immediately, store it in a clean, dry area out of the reach of children, and ensure standardized storage.
·  Do not remove the air filter cover, paper filter element and pre-cleaner while the engine is running.
·  Before hoisting, jacking up the equipment or performing maintenance work, be sure to fasten the articulated steering connection in place with a locking rod.
· We provide instruction manuals and operation suggestions. Please use the machine in accordance with the manual to ensure personal safety and avoid machine damage.
