STORIKE EXCAVATOR
Quick Overview of STORIKE Excavator Catalog
Service
-On-time Delivery
-Quality Assurance (one year)
-Customized Services (logo,packaging,graphic,etc.)
Contact Information
-Number:+86-13963746955
-Email:[email protected]
- Overview
- Mini Excavator
- Small Excavator
- Recommended Products
Storike is a professional manufacturer dedicated to the independent R&D and production of various excavators.
Our product lineup is categorized by operating weight as follows: mini excavators (1 ton to 3.5 tons), small excavators (6.5 tons to 15 tons), medium excavators (18 tons to 23 tons), and large excavators (30 tons to 60 tons). In terms of traveling mechanisms, we offer both crawler excavators and wheeled excavators to suit diverse working conditions.
For detailed product specifications, parameters and exclusive pictures, please refer to our product catalog or contact our sales team directly.
We provide customized solutions to meet personalized demands. All our engines are EPA and EURO 5 certified, and the whole products are CE certified, complying with strict international quality and emission standards. Optional configurations including air conditioners, fully enclosed cabins and radios are available.
All products are backed by a one-year warranty. We guarantee a prompt and professional response upon receiving your inquiries. Should you have any questions or purchasing needs, please feel free to contact us at any time.
|

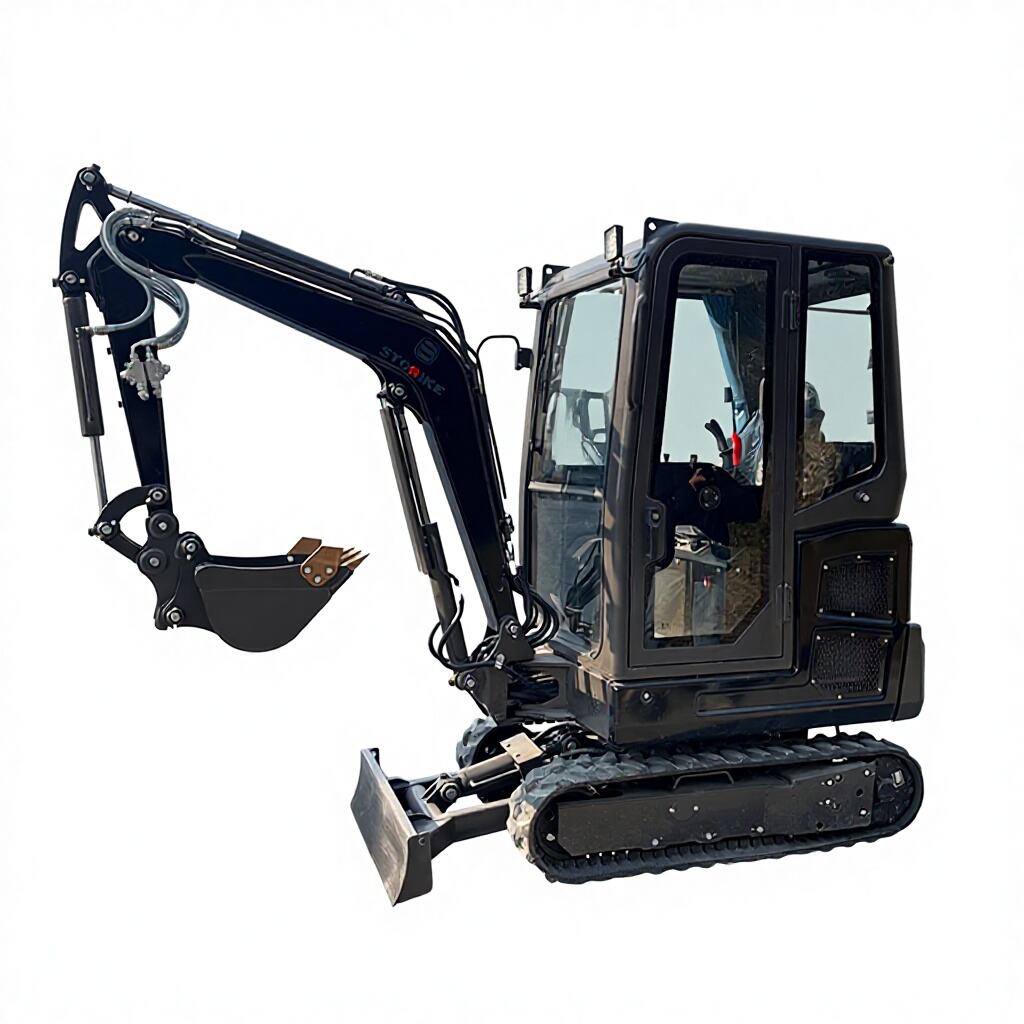

Mini Crawler Excavator Click on the picture - view the details |
Note: Different parameters of the same model have been marked with different colored words.
| Picture |  |
 |
 |
 |
 |
| Model | PC12.3 | PC18.3//PC18.3D | PC20.3 | PC30.3 | PC35.3 |
| Engine | |||||
| Emission Standard |
EURO5// -- |
EURO 5// EPA4/EURO 5 |
Euro V, EPA// Euro 5 /EPA4 |
EPA4/EURO 5 | Euro 5/EPA4 |
| Make Model |
KAMA 195FD// KUBOTA D722-E4B |
LAIDONG 3TE25// KUBOTA D1105 |
YANMAR 3TNV74F// KUBOTA D1105 |
KUBOTA D1105 | KUBOTA D1703 |
| Power /Rotation speed(KW/rpm) |
8.3/3000// 10.2/2500 |
18.4/2350// 14/2200 |
11.2/2400// 14/2200 |
14 | 18.2/2200 |
| Number of cylinder | -- | 3 | --//3 | 3 | 3 |
| Track system | |||||
| Travel speed(KM/H) | 0.025 | 2.5 |
2.2/4.2// 2.5/3.5 |
2.6/4.5 | 4.4/2.4 |
| Width of track shoe(mm) | -- |
230 (Rubber&steel track) |
230 | 300(Rubber) | 300 |
| Performance parameter | |||||
| Standard bucket capacity(m³) | 0.025 | 0.06 | 0.05//0.07 | 0.1 | 0.12 |
| Swing speed(rpm) | -- | 10~12 | --//9 | 1~10 | 1~11 |
| Max. Grade ability(°) | --//35 | 35 | 35 | 58 | 30 |
| Max. Bucket digging force(KN) | --//9 | 14 | --//18 | 23.5KN | 30.4 |
| Max. Arm digging force(KN) | --//5.5 | 10 | --//11 | 14KN | 18.2 |
| Hydraulic system pressure(Mpa) | --//17 | 18 | --//21.5 | 20.5Mpa | 22.5 |
| Weight(KG) | 1180//1200 | 1800/1900 | 2000 | 2750kg | 3810 |
| Size | |||||
|
Overall dimension(mm) (L*W*H) |
--// 3032*760/980*2270 |
3655*1050*2232// 3865*1050*2215 |
--// 3555*990/1300*2290 |
4195*1550*2480 | 4915*1755*2525 |
|
Axle base(mm) (Track length on ground) |
-- | 1231 | --//1320 | 1565mm | 1670 |
| Track gauge(mm) | --//580/760 | 820 | --//760/1070 | 1250mm | 1420 |
| Min.Ground clearance(mm) | 90//125 | 210 | --//150 | 286mm | 295 |
| Swing radius at tail | --//550 | 1000//1125 | --//650 | 860mm | 870 |
| Working range | |||||
| Max. Digging height(mm) | 2600//3170 | 3391//3365 | 2200//3570/3700 | 4427mm | 4800 |
| Max. Dumping height(mm) | 1750//2172 | 2290//2385 | 3810//2440 | 3005mm | 3406 |
| Max. Digging depth(mm) | 1750//1838 | 2125//2050 | --//2400 | 2830mm | 3208 |
| Max. Vertical digging depth(mm) | --//1709 | 1771//1725 | --//2025 | 2530mm | 2957 |
| Max. Digging radius(mm) | 3100//3442 | 3851//3860 | --//4040 | 4835mm | 5480 |
| Min .swing radius(mm) | --//1398 | 1701//1720 | --//1610 | 2160mm | 2530 |
| Max. Lifting height of blade(mm) | -- | 230 | --//240 | 308mm | 365 |
| Max. Cutting depth of blade(mm) | -- | 275 | --//270 | 363mm | 385 |
| Boom swing angle(Left)(°) | -- | 75 | --//75 | 69 | 55 |
| Boom swing angle(Right)(°) | -- | 45 | --//45 | 45 | 65 |
|

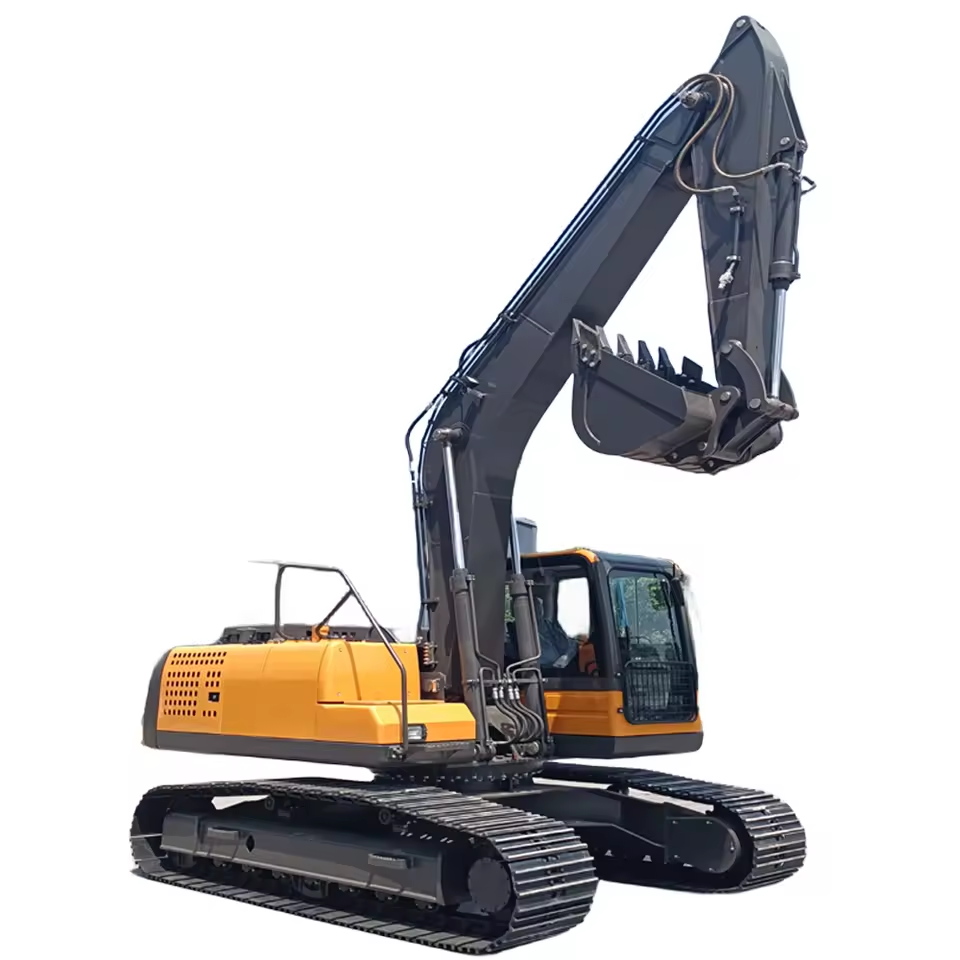

Small Crawler Excavator Click on the picture - view the details |
Note: Different parameters of the same model have been marked with different colored words.
| Picture |  |
 |
 |
| Model | PC65.3 | PC75.3 | PC150.3 |
| Engine | |||
| Emission Standard |
Euro 5/EPA4// China Stage III |
EURO 5/EPA4// China Stage III |
Tier 3/ Stage III // -- |
| Make Model |
KUBOTA V2607// YANMAR 4TNV94L |
KUBOTA V2607// YANMAR 4TNV98 |
YUCHAI YC4D125// WEICHAI WP4.1N |
| Power /Rotation speed(KW/rpm) |
43/2000// 36.2/2000 |
43/2000// 44.4/2000 |
92/2200// 110/2000 |
| Number of cylinder | 4 | 4 | / |
| Track system | |||
| Travel speed(KM/H) | 2.4/4.3 | 2.5/4.5 | 2.4/4.4 |
| Width of track shoe(mm) | 400 | 450 | 500 |
| Performance parameter | |||
| Standard bucket capacity(m³) | 0.21 | 0.28 | 0.55//0.6 |
| Swing speed(rpm) | 11 | 11 | 11//12 |
| Max. Grade ability(°) | 35 | 35 | 35 |
| Max. Bucket digging force(KN) | 48 | 56 | 95//91 |
| Max. Arm digging force(KN) | 35 | 38 | 55 |
| Hydraulic system pressure(Mpa) | 28 | 27 | 32 |
| Weight(KG) | 5700 | 7500 | 14100 |
| Size | |||
|
Overall dimension(mm) (L*W*H) |
5802*1960*2420 |
6054*2216*2672// 6121*2216*2557 |
7752*2500*2847// 7737*2500*2847 |
|
Axle base(mm) (Track length on ground) |
2020 | 2209 | 2950 |
| Track gauge(mm) | 1560 | 1745 | 2000 |
| Min.Ground clearance(mm) | 380 | 375 | 380 |
| Swing radius at tail | 1520 | 1797 | 2389 |
| Working range | |||
| Max. Digging height(mm) | 5928 | 7023 | 8627 |
| Max. Dumping height(mm) | 4228 | 5195 | 6025 |
| Max. Digging depth(mm) | 4158 | 3898 | 5343 |
| Max. Vertical digging depth(mm) | 3458 | 2968 | 4811 |
| Max. Digging radius(mm) | 6162 | 6182 | 8198 |
| Min .swing radius(mm) | 2389 | 1740 | 2770 |
| Max. Lifting height of blade(mm) | 380 | 382 | -- |
| Max. Cutting depth of blade(mm) | 455 | 332 | -- |
